LC1D12B7 - Schneider Electric 12A 3-Pole TeSys D Contactor 24VAC Coil DIN Rail Mount

LC1D12B7

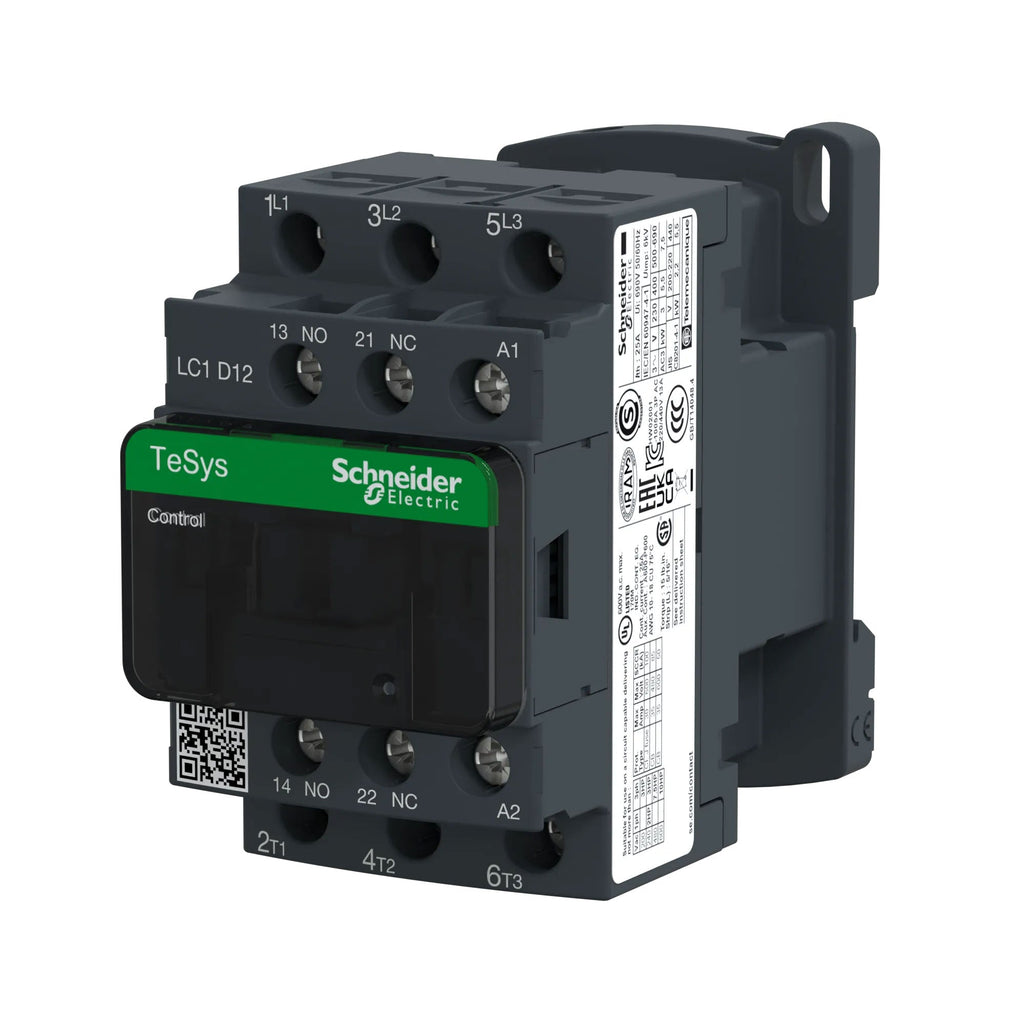

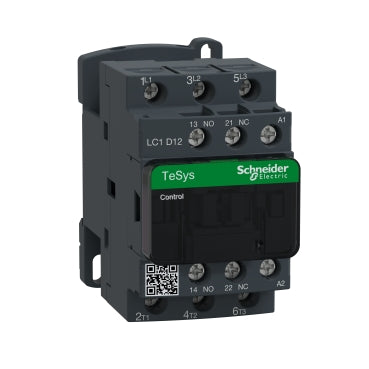

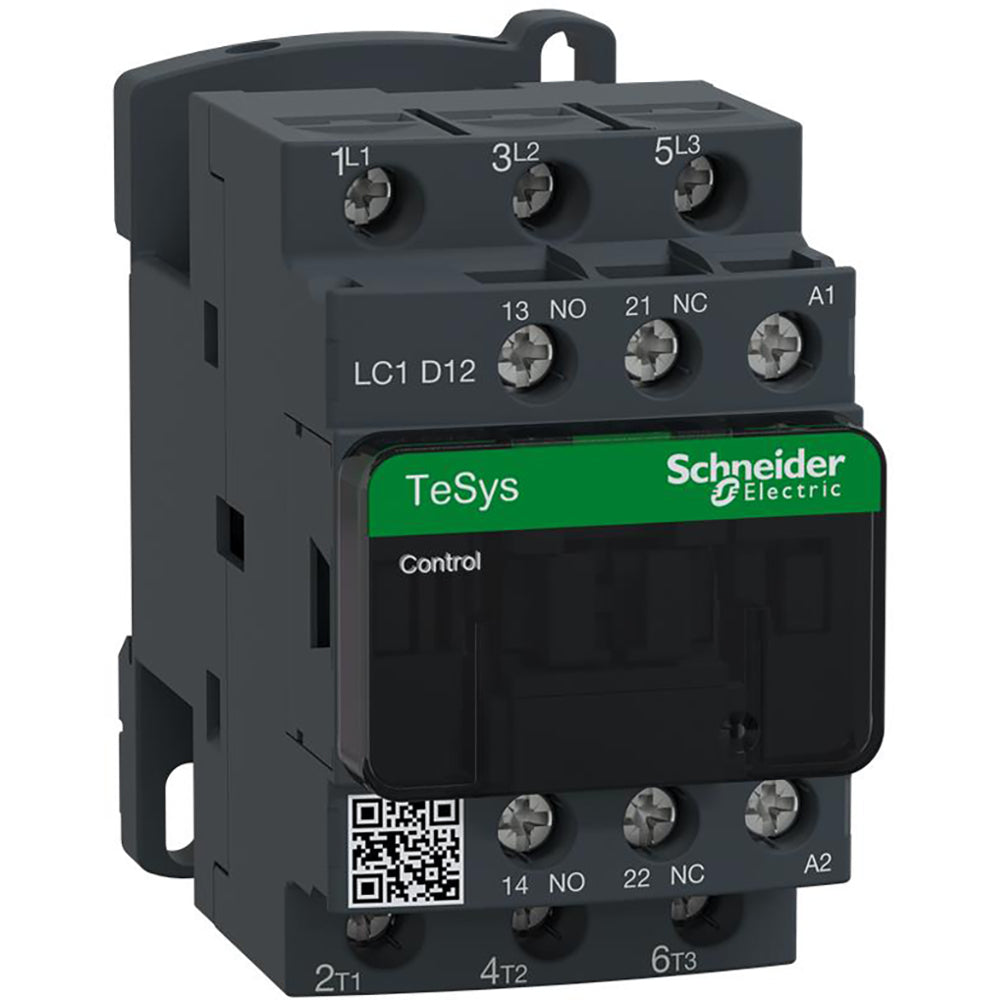

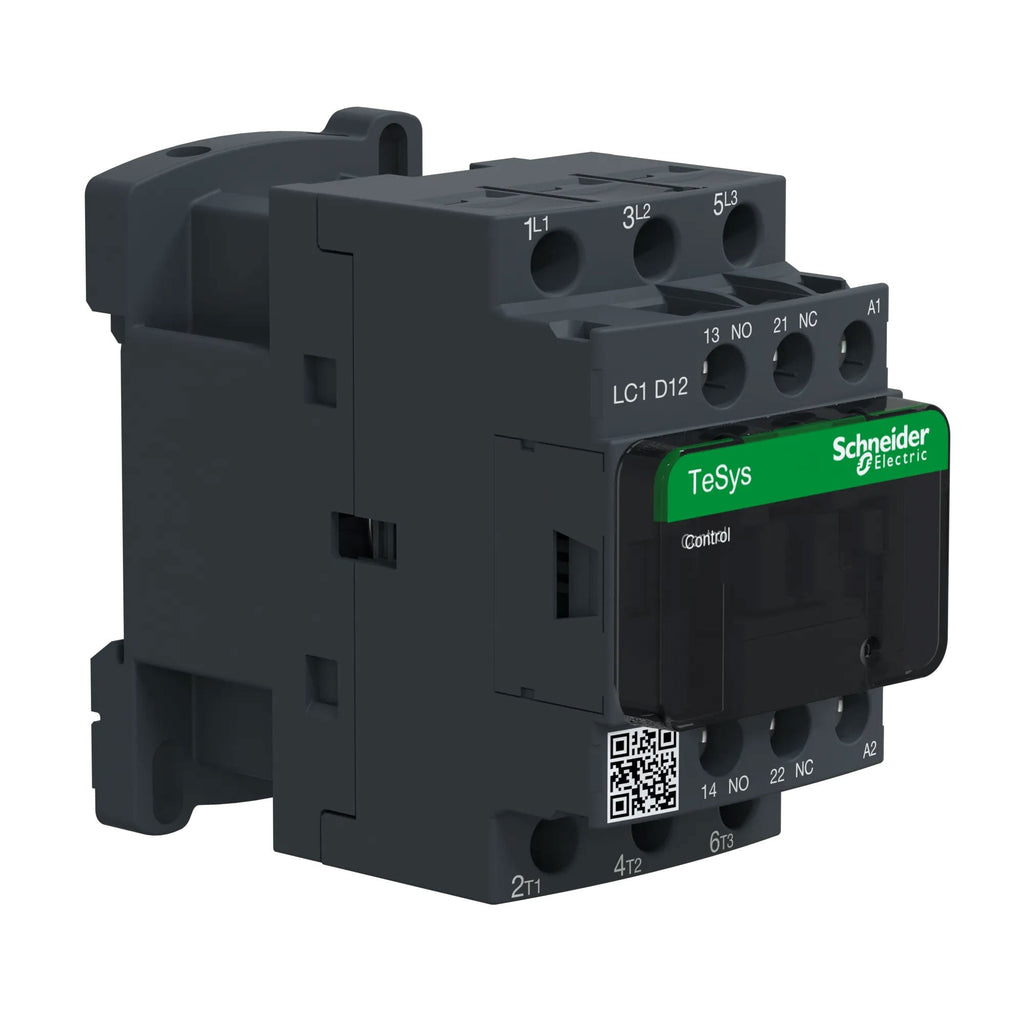

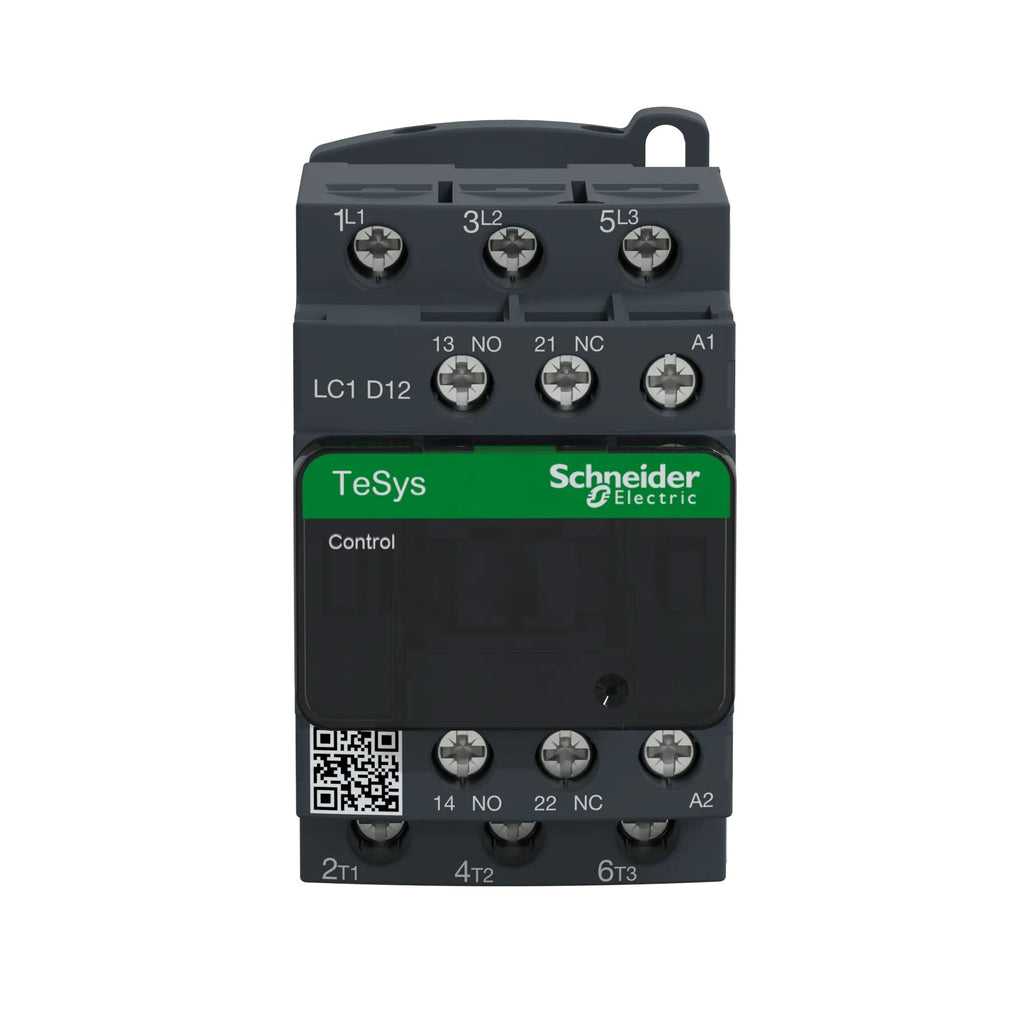

LC1D12B7 is a Schneider Electric 3-pole TeSys D contactor with a 24VAC coil designed for motor control and industrial automation applications.This contactor features three normally open power poles and one NO-1NC auxiliary contact, rated for 12A at up to 440VAC (AC-3 utilization category) and 25A at up to 440VAC (AC-1). It supports motor power up to 4kW at 415-440VAC and operates with a 24VAC control circuit at 50/60Hz. The device includes screw clamp terminals for easy DIN rail mounting, has a rated breaking capacity of 250A at 440V, and meets IEC 60947 standards. It is UL94V-1 flammability rated and suitable for ambient temperatures from -5¡C to 60¡C with IP2X front face protection.

Key Specifications
• Amperage: 12A (AC-3), 25A (AC-1)
• Voltage: 24VAC coil, up to 690VAC power circuit
• Poles: 3 normally open (3NO)

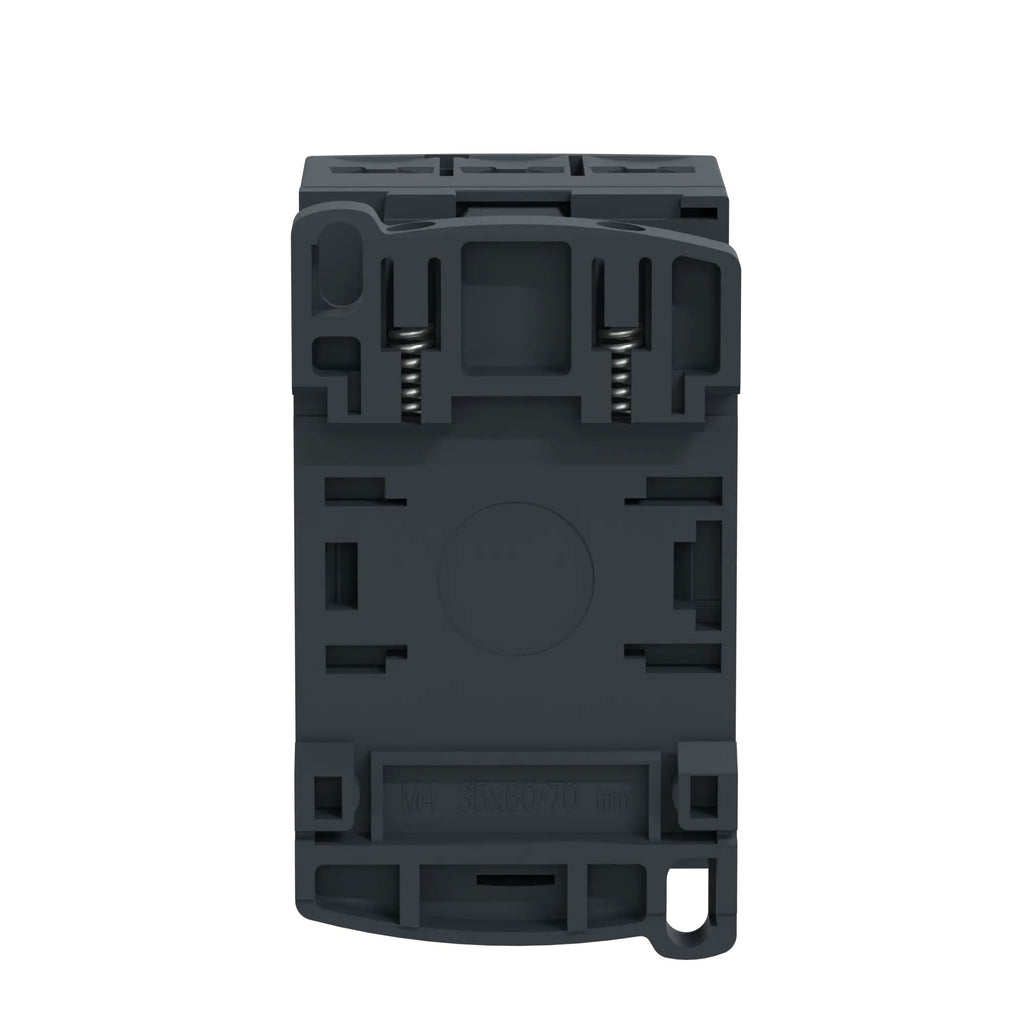

• Mounting Type: DIN rail
• Interrupt Rating: 250A at 440V
• Series/Frame: TeSys D
• Trip Unit: Non-reversing contactor
• Auxiliary Contacts: 1NO-1NC
• Certifications: IEC 60947, UL94V-1 flammability
• Ambient Temperature: -5¡C to 60¡C
• Power Di(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 24 VAC coil.




  Specifications

  • Part Number: LC1D12B7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 12
  • Phase : 3
  • Poles : 3
  • Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 24
  • Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
  • Coil Voltage Minimum : 24
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 785901207016
  • GTIN : 03389110349160
  • Country of Origin : Indonesia

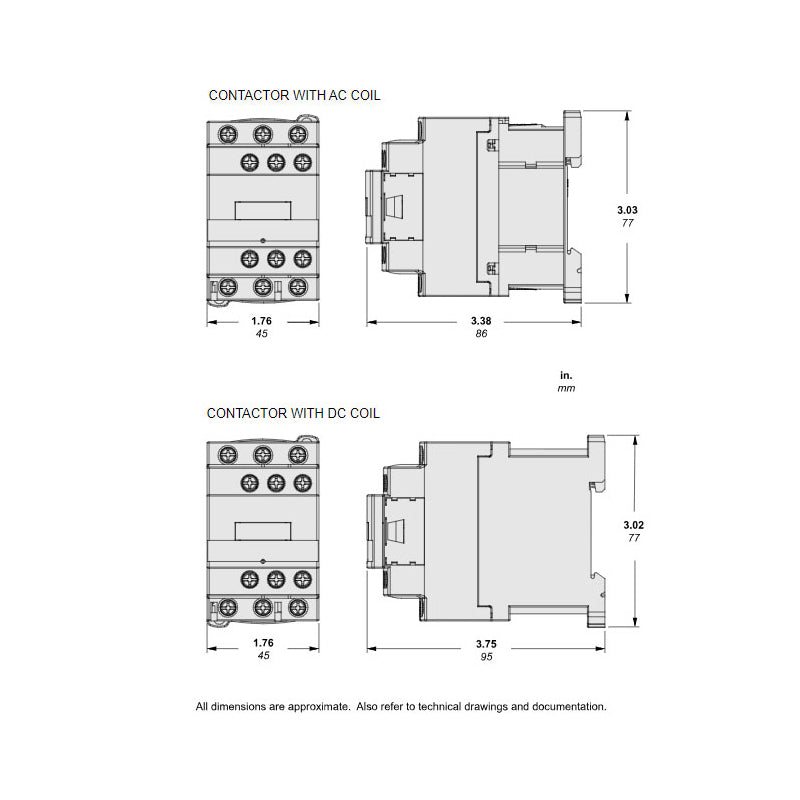

  • Dimensions : 1.77 in x 3.03 in
  • Weight : 0.767
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
