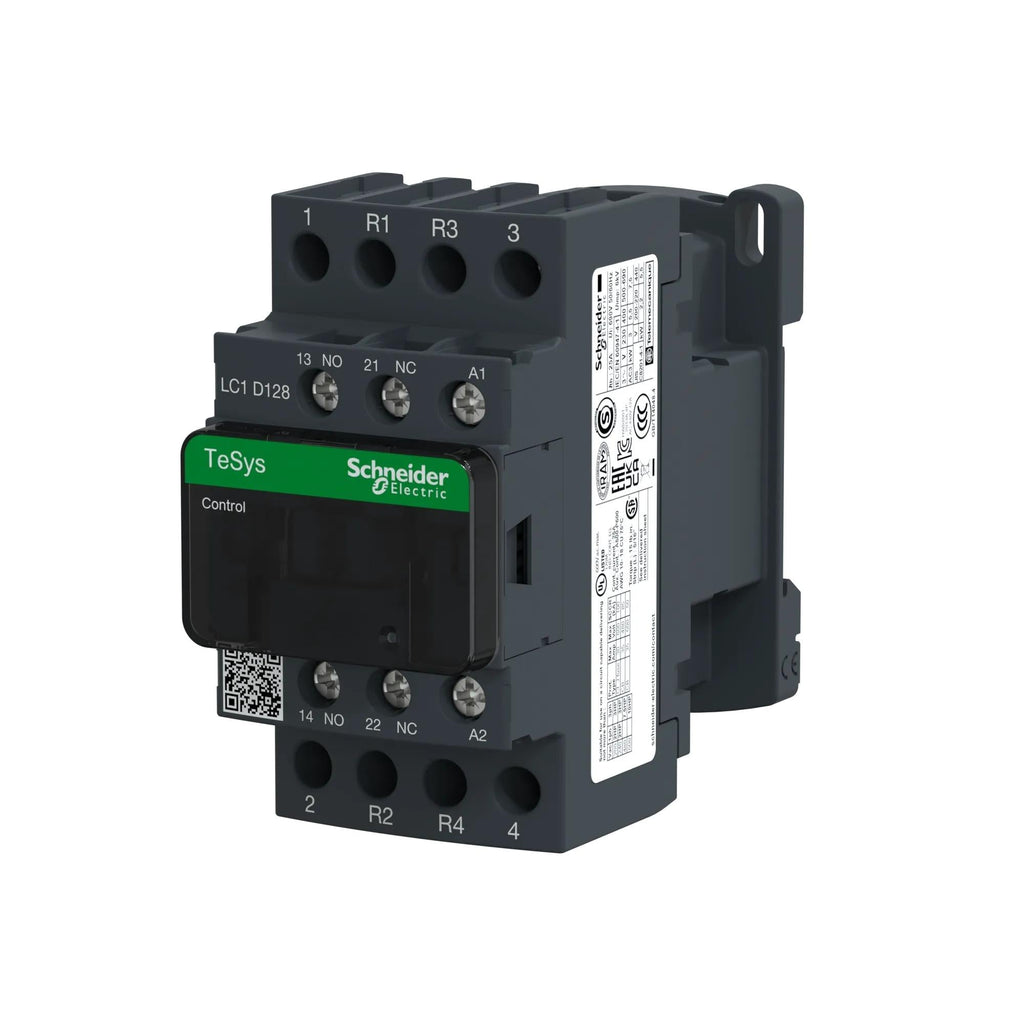

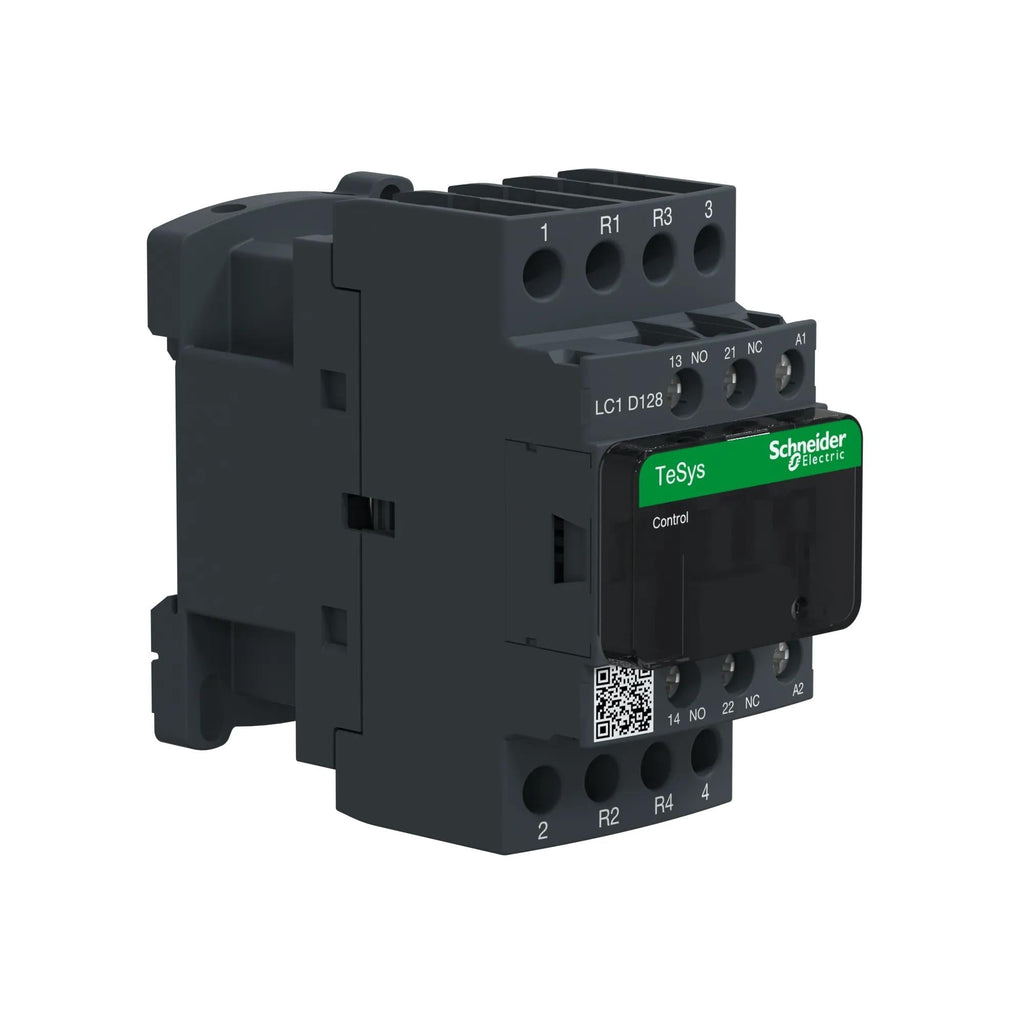

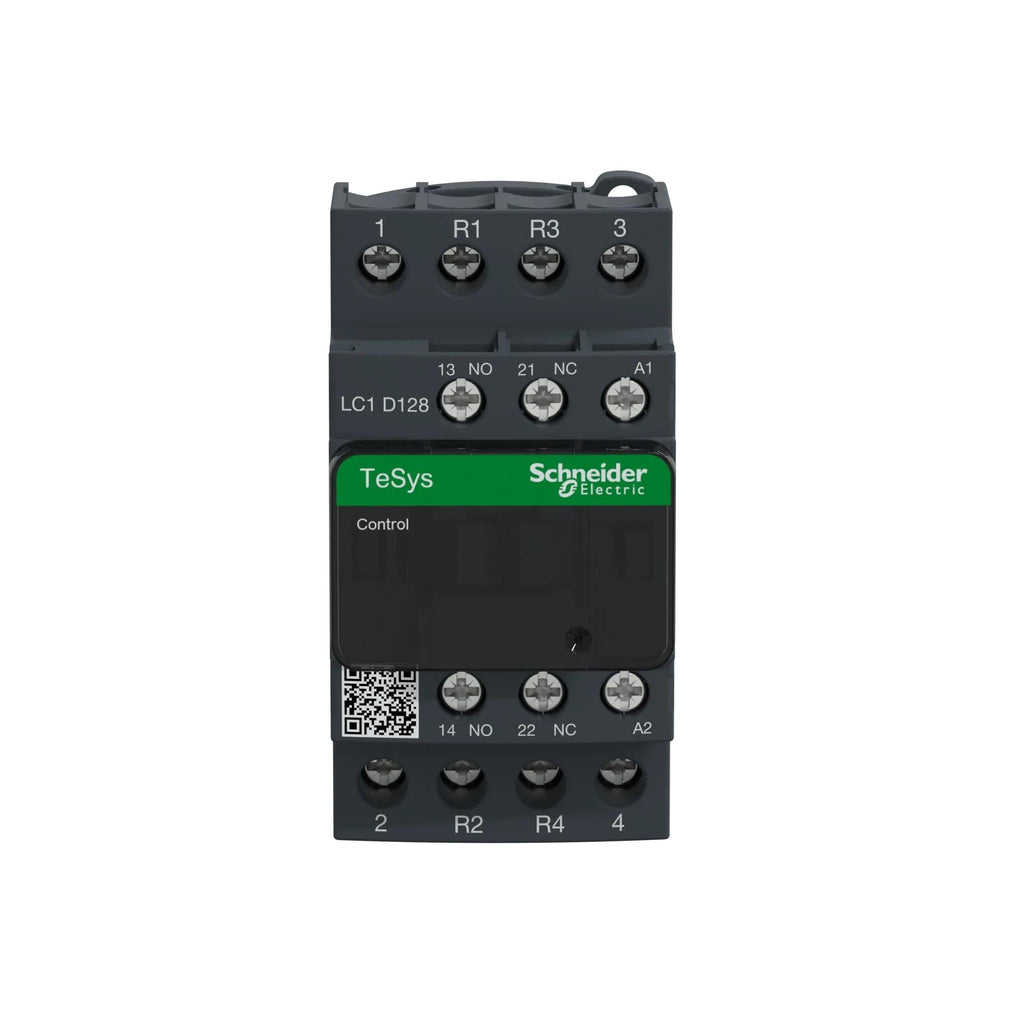

LC1D128F7 - Schneider Electric TeSys D 25A 4-Pole Contactor 110V AC Coil Non-Reversing

LC1D128F7

LC1D128F7 is a Schneider Electric TeSys D non-reversing contactor designed for motor control applications with a 25 amp rating and 4 poles (2 normally open + 2 normally closed).This contactor features a 110V AC coil, supports AC-1 utilization category up to 440V, and offers high reliability with long mechanical and electrical life. It is IEC 60947-1 and 60947-4-1 compliant, UL and CSA certified, and includes screw clamp terminals for easy installation. The device is suitable for resistive load applications and DIN rail mounting.

• Amperage: 25 A
• Voltage: Up to 440 V AC (power circuit), 110 V AC coil
• Poles: 4 (2 NO + 2 NC)

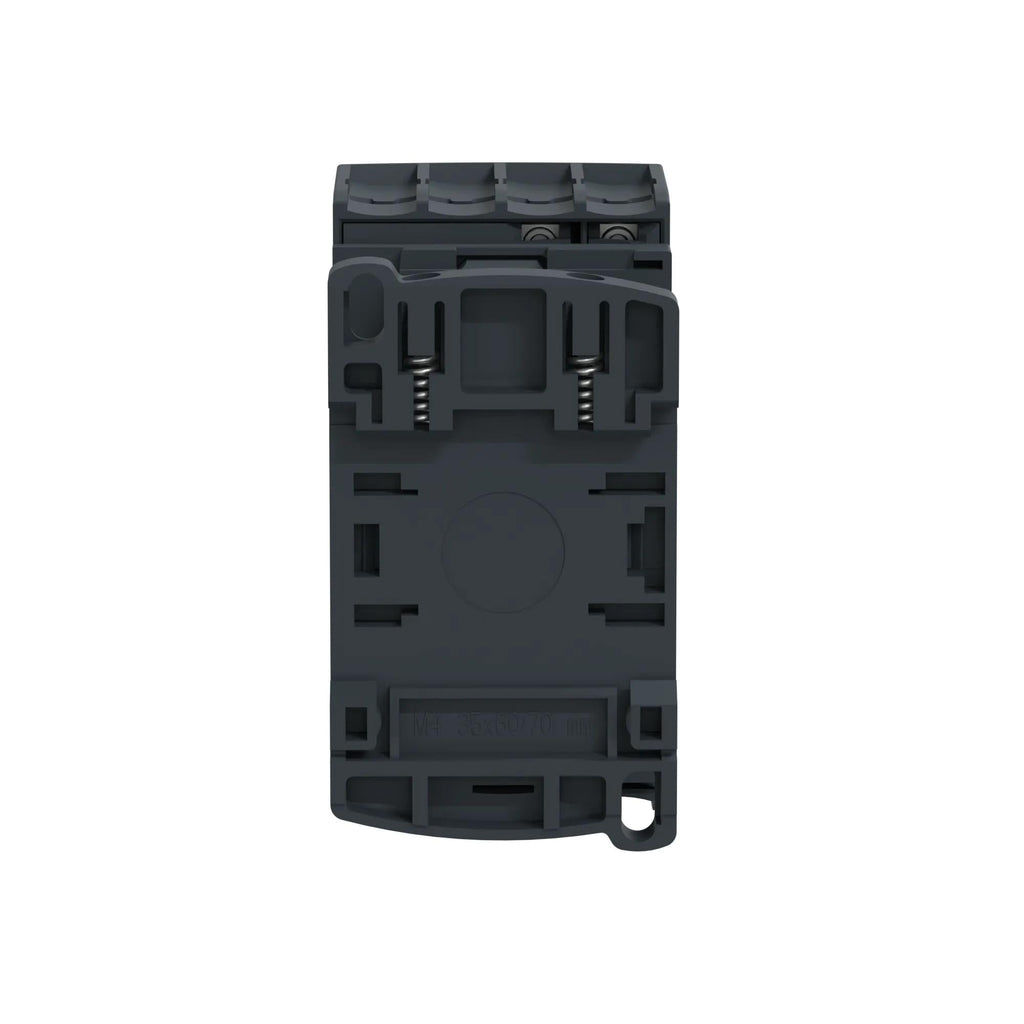

• Mounting Type: DIN rail
• Interrupt Rating: Conforms to IEC 60947-4-1 standards
• Series/Frame: TeSys D
• Trip Unit: Non-reversing
• Certifications: UL, CSA, IEC 60947-1, IEC 60947-4-1
• Degree of Protection: IP 2X
• Rated insulation voltage: 600 V
• Rated impulse withstand voltage: 6 kV
• Auxiliary contacts: 1 NO + 1 NC base mounted standard

At Essential Parts, we offer fast sh(more...)

Additional Information

This TeSys D IEC Contactor includes a 110 VAC coil.

Specifications

• Part Number: LC1D128F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Section : Contactors
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 4
• Aux Contacts : 2 NO + 2 NC
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901499558
• GTIN : 00389110577474
• Country of Origin : Indonesia
• Dimensions : 45 mm W x 92 mm D x 85 mm H
• Weight : 0.862
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
