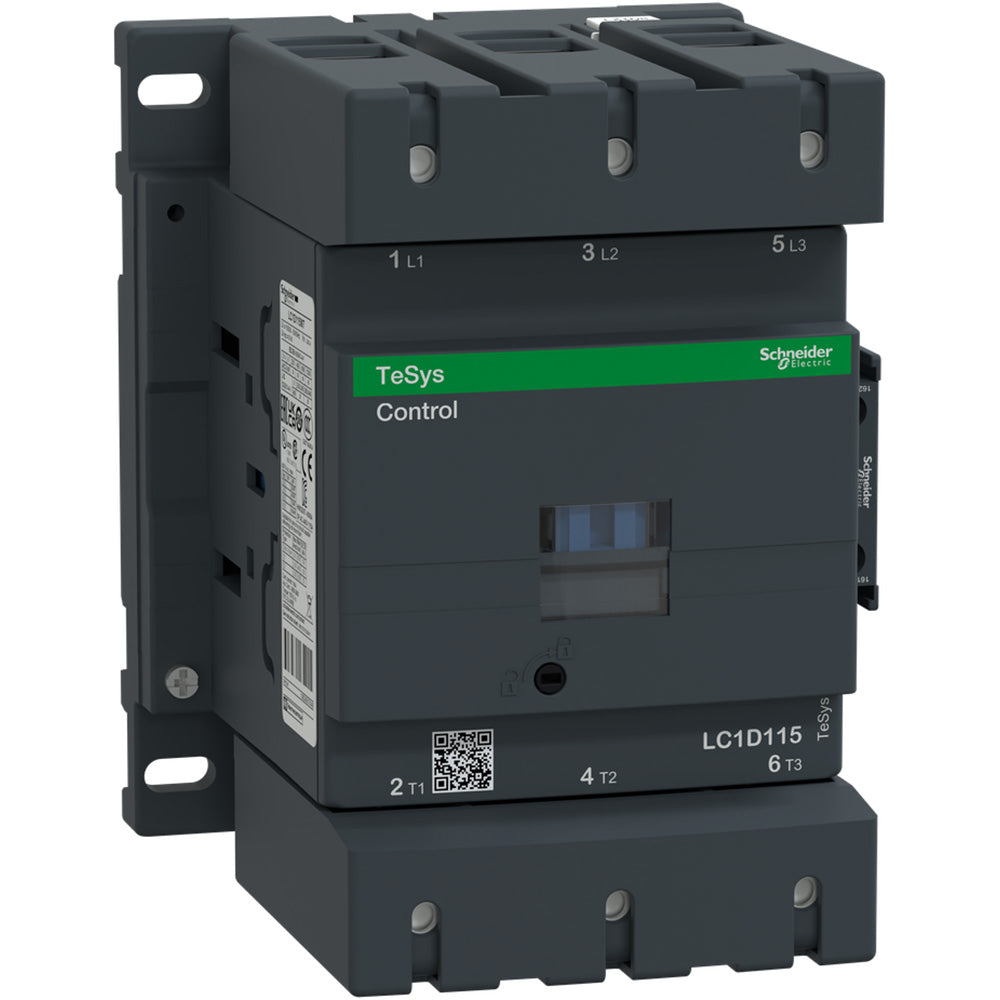

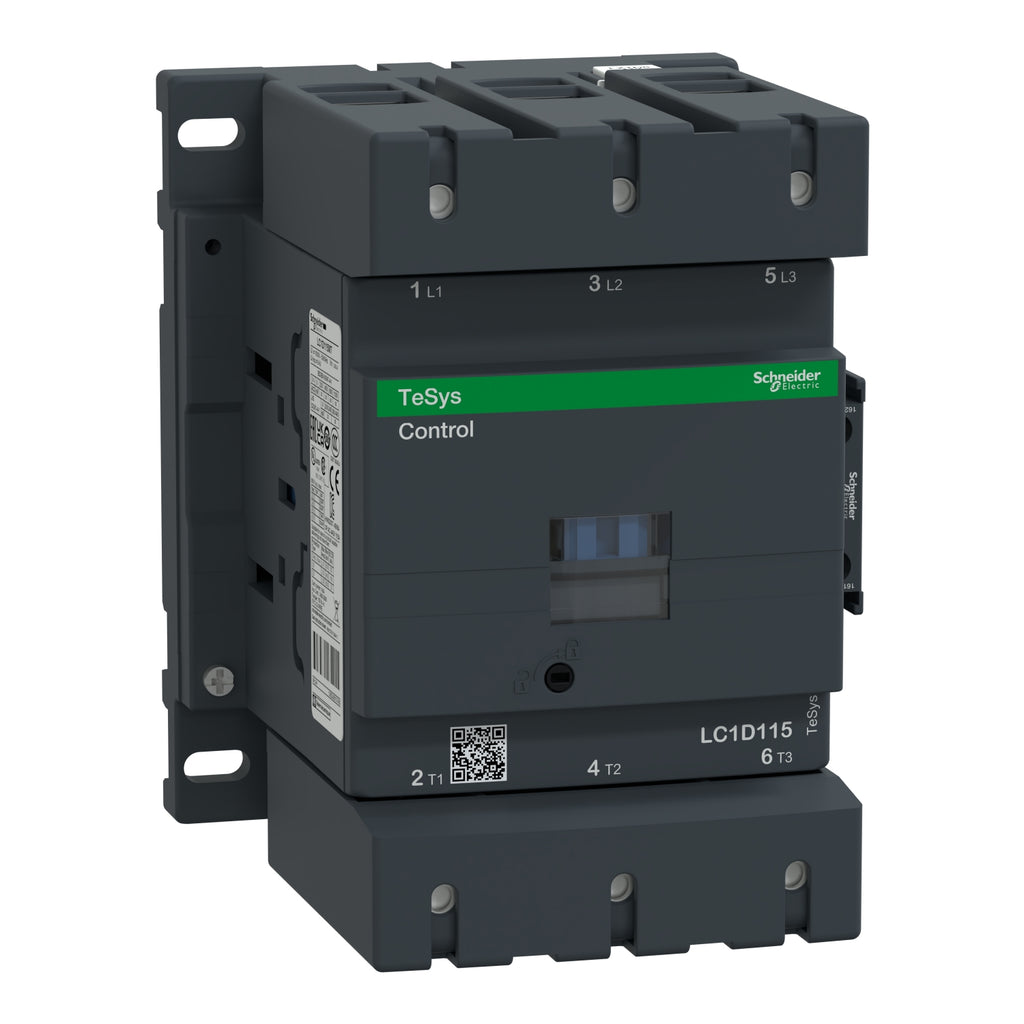

LC1D115U7 - Schneider Electric 115A 3-Pole Motor Contactor 240V AC Coil TeSys D Series

LC1D115U7

LC1D115U7 is a Schneider Electric 3-pole motor contactor designed for reliable motor control applications with a 240V AC coil.LC1D115U7 features a 115A rated operational current at up to 440V AC (AC-3 utilization category) and supports motor loads up to 55 kW at 400V AC. It is part of the TeSys D series, offering robust performance with screw clamp terminals and compliance with IEC 60947-4-1 standards.

• Rated operational current: 115A at <= 440V AC (AC-3)
• Poles: 3 (3 NO contacts)
• Coil voltage: 240V AC 50/60 Hz
• Rated operational voltage: up to 1000V AC (IEC)
• Motor power rating: 55 kW at 380-400V AC
• Utilization categories: AC-1, AC-3, AC-4
• Mounting type: Panel mount with screw clamp terminals
• Standards: IEC 60947-4-1, UL, CSA certified
• Series: TeSys D
• Contact composition: 3 Normally Open (NO)
• Power circuit rated voltage: 600V UL/CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the righ(more...)

Additional Information

This TeSys D IEC Contactor includes a 240 VAC coil.

Specifications

• Part Number: LC1D115U7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Frequency : 50/60 Hz

Product Data

• UPC : 038911037776
• GTIN : 03389110377767
• Country of Origin : Czechia
• Dimensions : 4.33 in x 4.33 in
• Weight : 5.573
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
