Product Info
- Manufacturer:Schneider Electric||Telemecanique
- Sub-Category:Contactor
Description

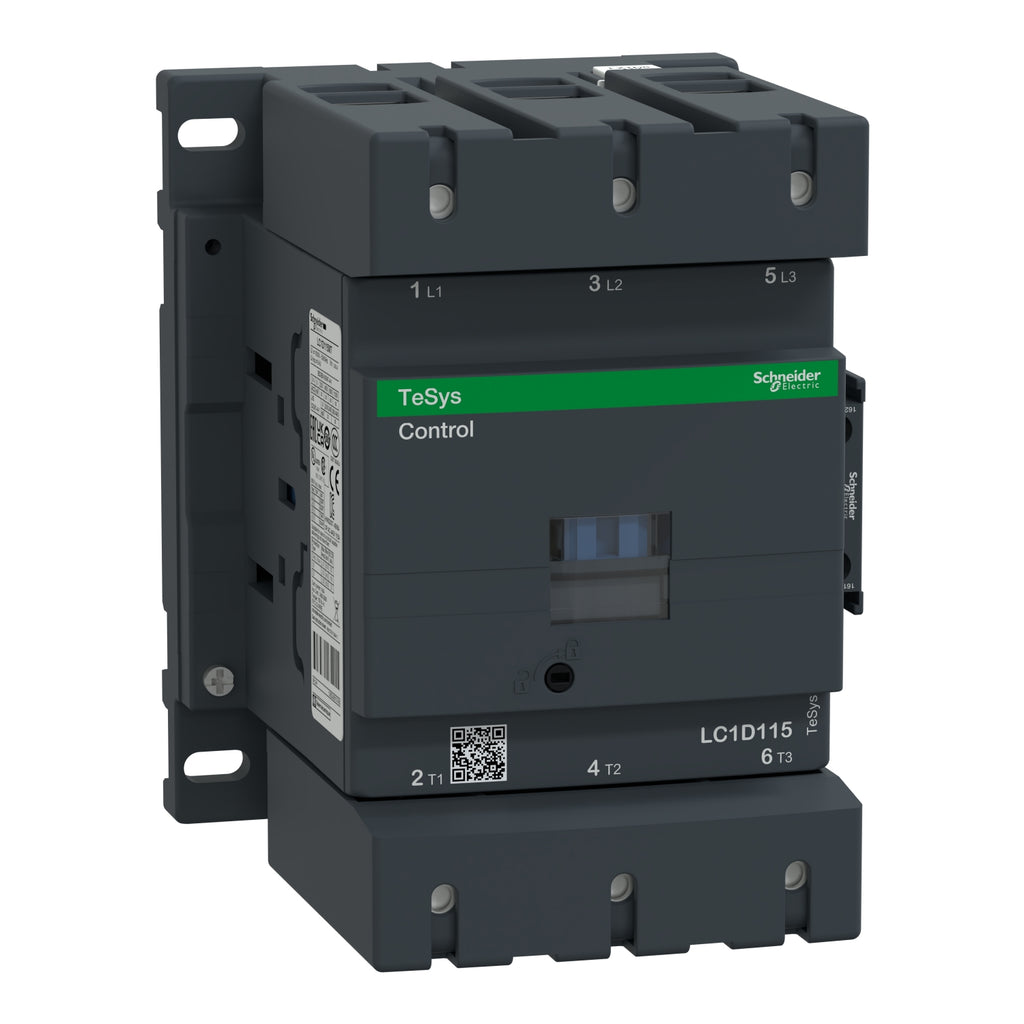

LC1D115P5
LC1D115P5 is a Schneider Electric TeSys D non-reversing contactor designed for motor control applications.
This 3-pole contactor features a 115 ampere current rating and operates with a 230V AC coil at 50 Hz frequency. It supports AC-3 utilization category loads up to 440V and is suitable for controlling motors up to 100 HP at 575/600 VAC. The device offers reliable performance with long durability and is certified to multiple standards including IEC 60947-4-1. It uses screw clamp terminals for secure wiring and is designed for easy installation and maintenance with a compact form factor.
- Current Rating: 115A
- Number of Poles: 3 (3 NO)
- Coil Voltage: 230V AC
- Coil Frequency: 50 Hz
- Utilization Category: AC-3 / AC-3e
- Maximum Operating Voltage: 440V AC
- Motor HP Ratings: 30 HP @ 208V, 40 HP @ 230/240V, 75 HP @ 460/480V, 100 HP @ 575/600V
- Mounting Type: Open style
- Terminal Type: Screw clamp terminals
- Standards: IEC 60947-4-1, UL, CSA
- Environmental: Flame retardant V1 UL 94, vibration and shock resistant
At (more...)
Additional Information
This TeSys D IEC Contactor includes a 230 VAC coil.
Specifications
- Part Number: LC1D115P5
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
- Frequency : 50 Hz
Product Data
- UPC : 38911037721
- GTIN : 03389110377217
- Country of Origin : Czechia
- Weight : 5.39
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
