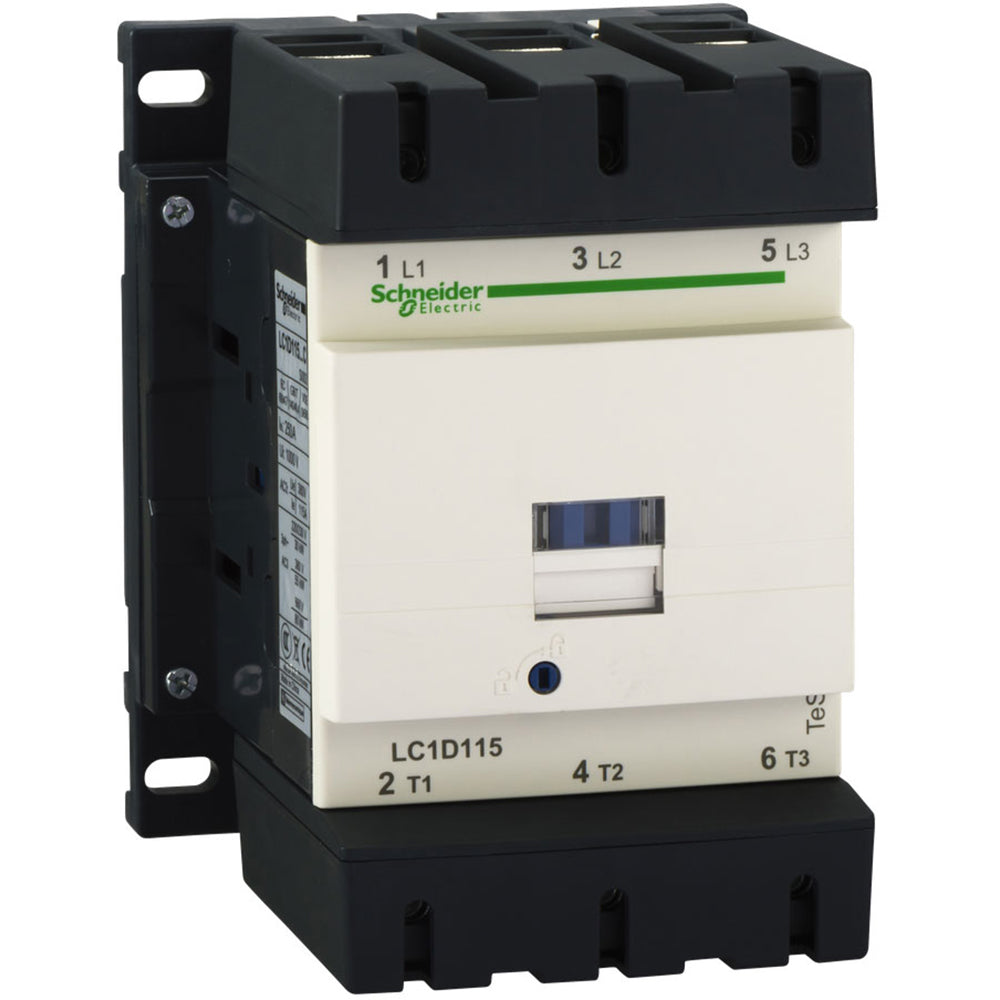

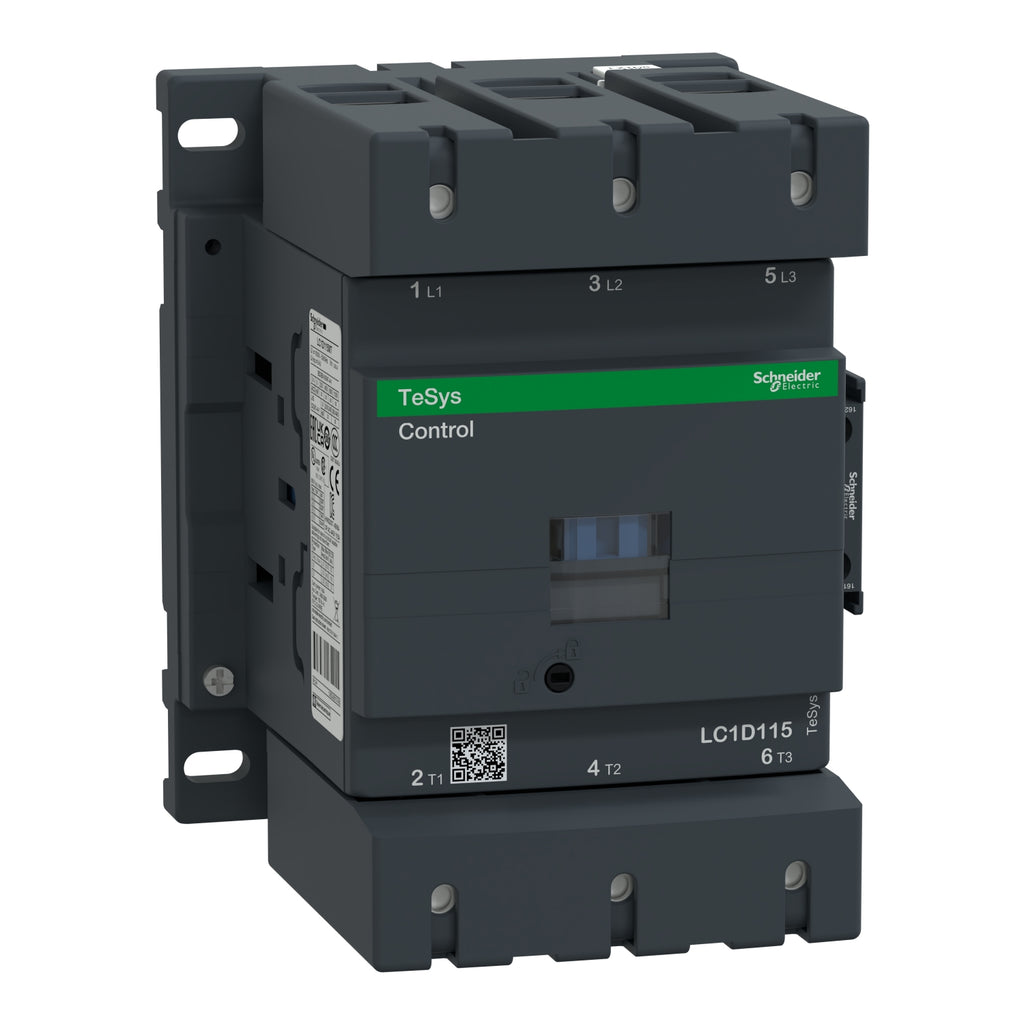

LC1D115LE7 - Schneider Electric TeSys Deca 115A 208VAC 3-Pole Non-Reversing IEC Contactor

LC1D115LE7

LC1D115LE7 is a Schneider Electric TeSys Deca non-reversing IEC contactor designed for motor control and resistive load applications with a rated amperage of 115A at 208VAC coil voltage. This electromechanical contactor features a 3-pole, 3 NO (normally open) contact configuration and delivers up to 100kA short circuit current rating (SCCR) for reliable performance in industrial motor control systems. The contactor is rated for 30 HP at 200-208VAC 3-phase, 40 HP at 240VAC, and 75 HP at 480VAC, making it suitable for a wide range of motor applications. Built-in bi-directional peak limiting diode protection is included for enhanced reliability. The open enclosure type allows for flexible installation in control panels and motor starter assemblies.

• Part Number: LC1D115LE7
• Manufacturer: Schneider Electric
• Contactor Type: Non-Reversing IEC
• Series: TeSys Deca
• Rated Amperage: 115A
• Coil Voltage: 208VAC, 50/60Hz
• Poles: 3-Pole
• Contact Configuration: 3 NO
• Short Circuit Current Rating: Up to 100kA SCCR
• Enclosure Type: Open
• Application: Motor Control, Resist(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 208 VAC coil.




  Specifications

  • Part Number: LC1D115LE7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 115
  • Phase : 3
  • Poles : 3
  • Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 48
  • Coil Voltage Minimum : 48
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 038911072672
  • GTIN : 03389110726725
  • Country of Origin : Czechia
  • Dimensions : 4.33 in x 4.33 in
  • Weight : 5.606
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
