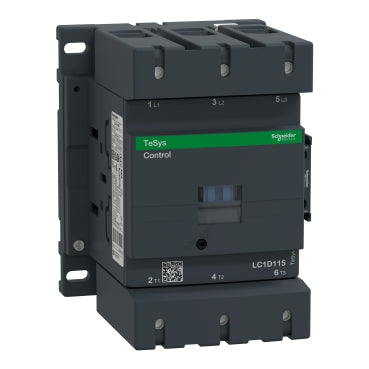

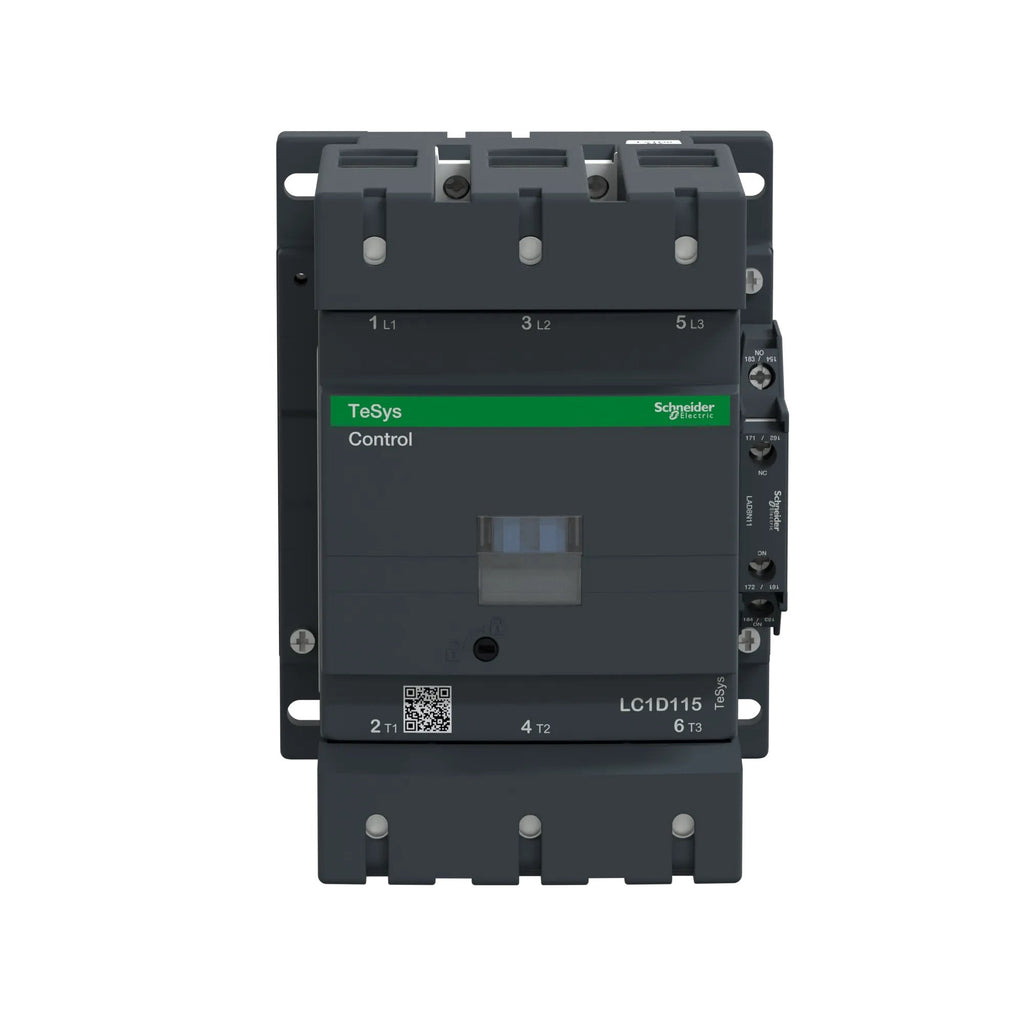

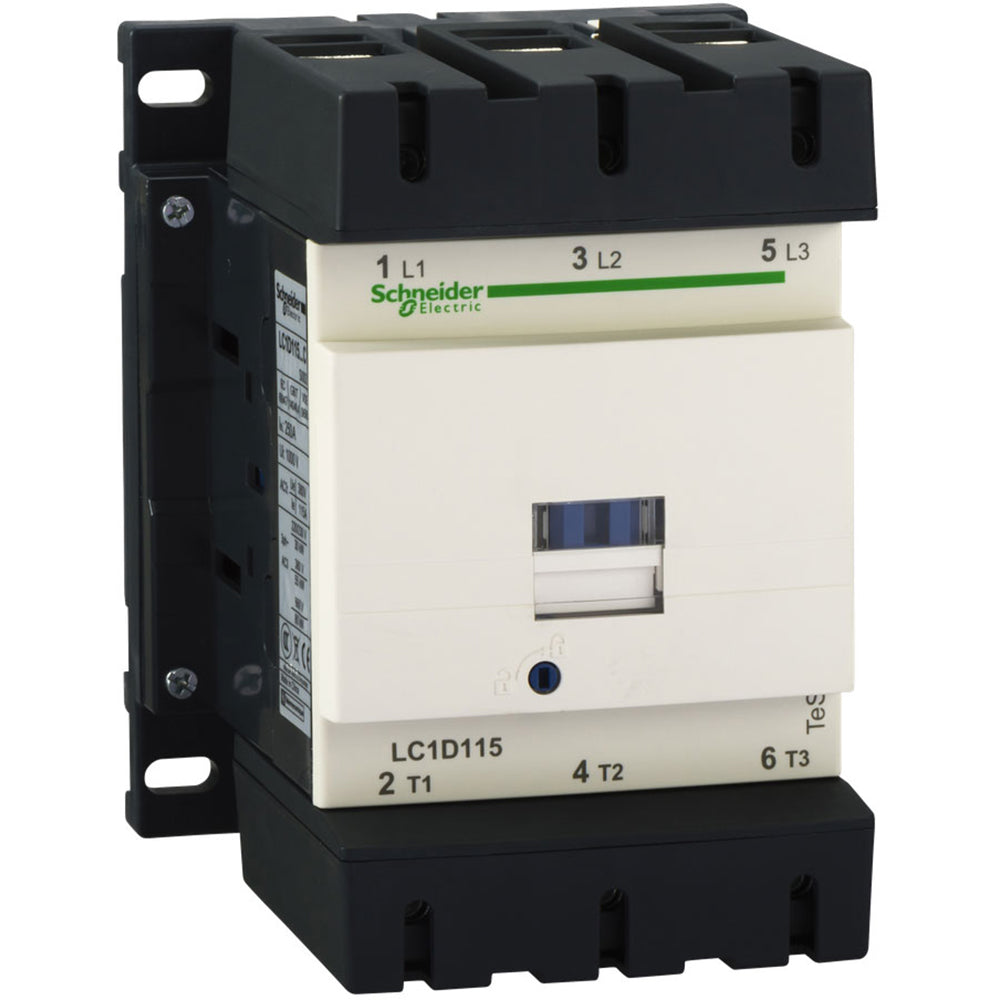

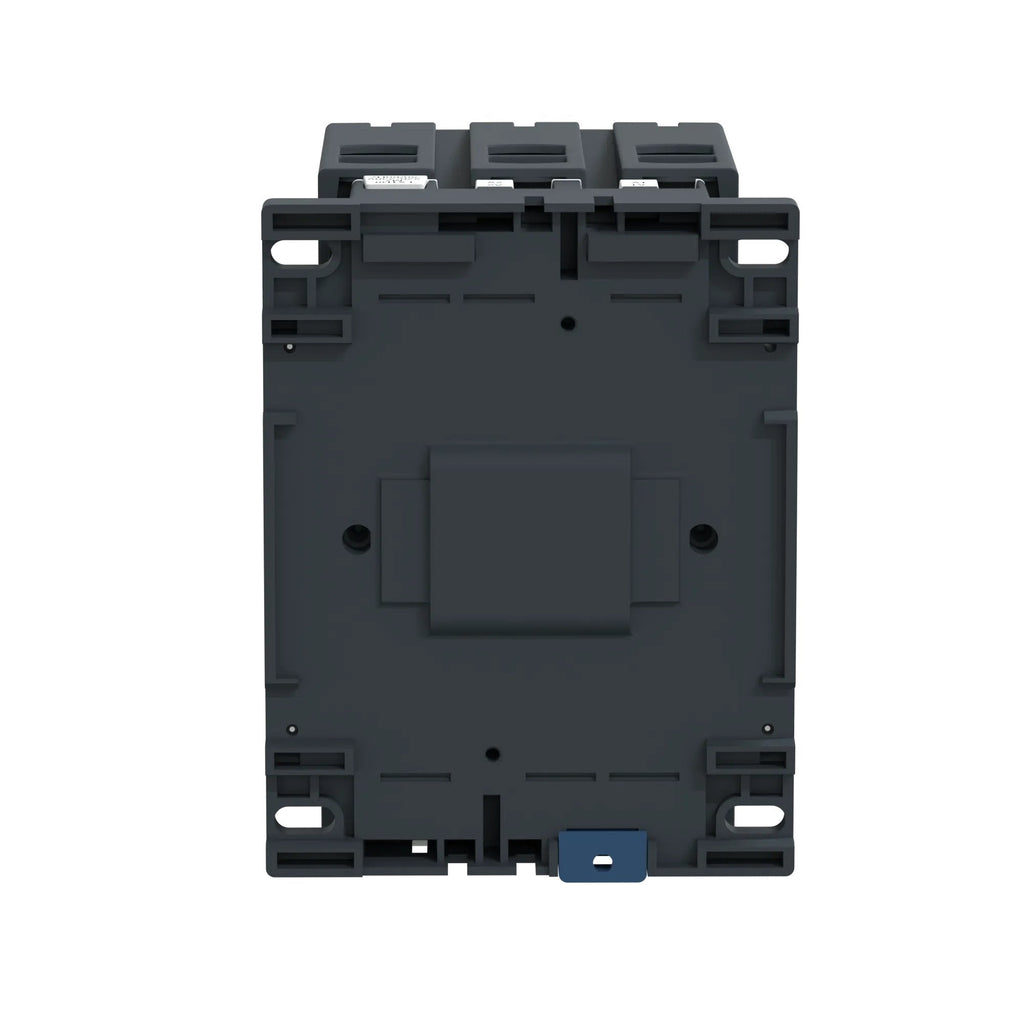

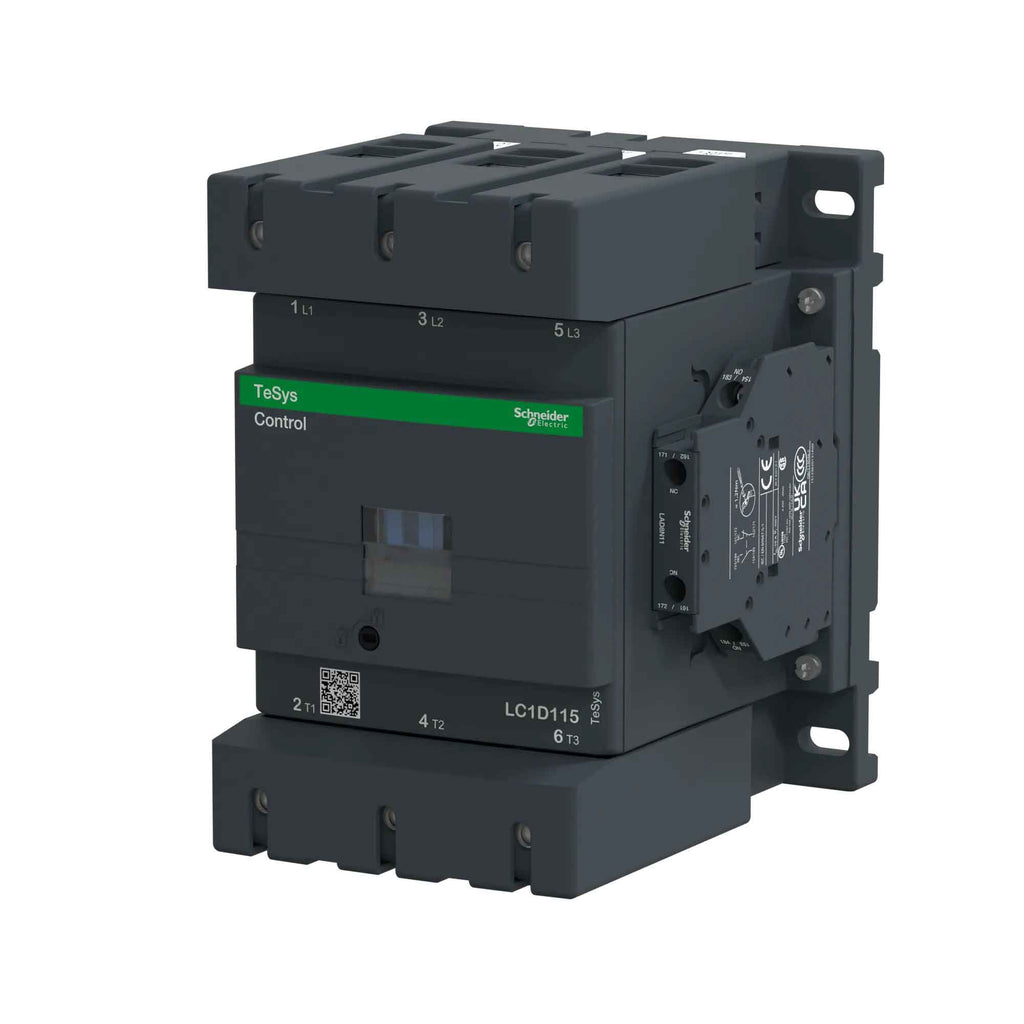

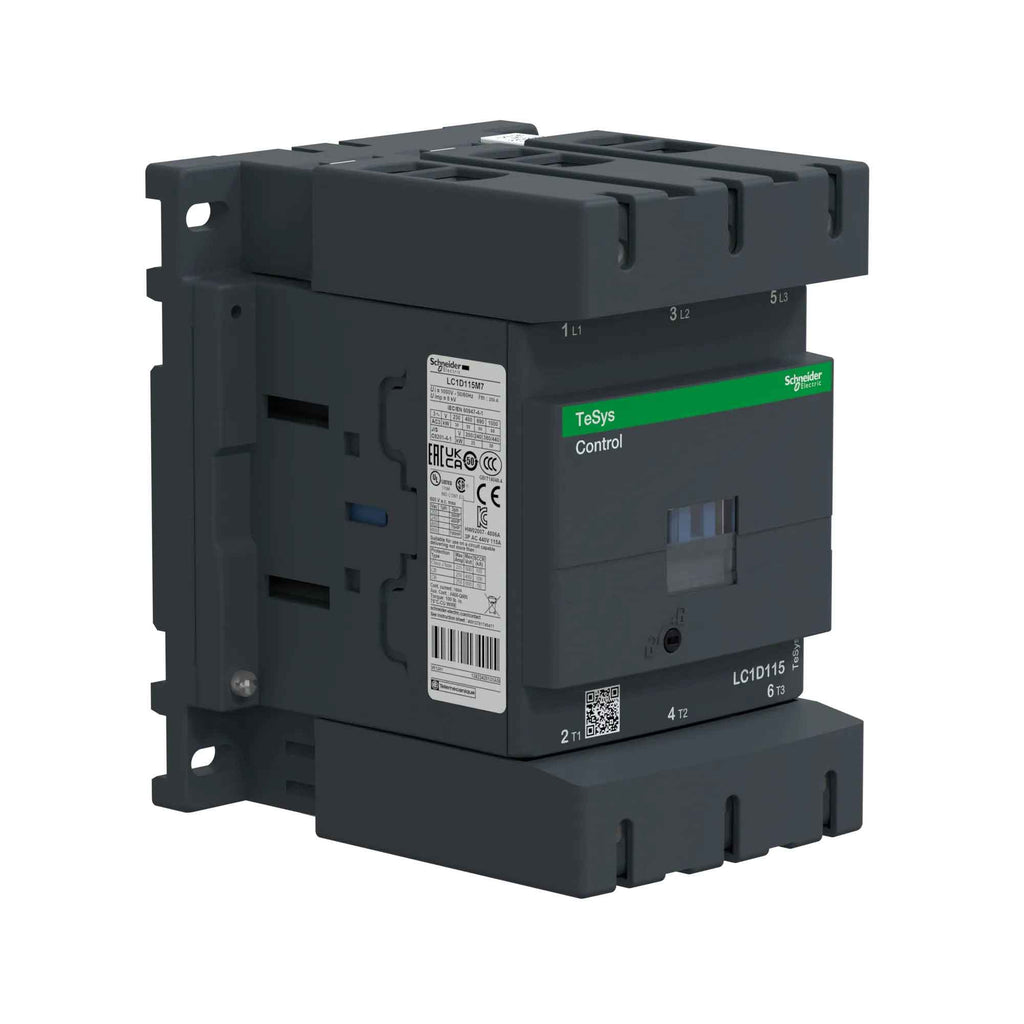

LC1D115B7 - Schneider Electric TeSys D 3P 115A 600V AC Magnetic Contactor with 24V AC Coil

LC1D115B7

LC1D115B7 is a Schneider Electric TeSys D series 3-pole AC magnetic contactor designed for motor control applications up to 115A and 600V. This contactor features a 24V AC 50/60 Hz coil, 3 NO power contacts, and is suitable for use in industrial motor control circuits. It offers reliable performance, easy installation, and is built to meet IEC standards for durability and safety.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Poles: 3P (3 NO)
• Rated Current: 115A
• Rated Voltage: 600V AC
• Coil Voltage: 24V AC 50/60 Hz
• Mounting Type: DIN Rail or Panel Mount
• Interrupt Rating: 100kA SCCR
• Utilization Category: AC-3, AC-4, AC-1
• Motor Power: 75HP @ 480V, 55kW @ 400V
• Standards: IEC 60947-4-1, UL, CSA
• Operating Frequency: 25-400 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1D115B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 115A Full Load Amps-Resistive 200A
• Coil Voltage Minimum : 24
• Frequency : 50/60 Hz

Product Data

• UPC : 038911037660
• GTIN : 03389110376609
• Country of Origin : Czechia
• Dimensions : 4.72 in x 4.33 in
• Weight : 5.467
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
