LC1D1156M7 - Schneider Electric TeSys Deca 115A 3-Pole IEC Motor Contactor, 220V AC Coil

LC1D1156M7

LC1D1156M7 - Schneider Electric TeSys Deca 115A 3-Pole IEC Motor Contactor, 220V AC Coil

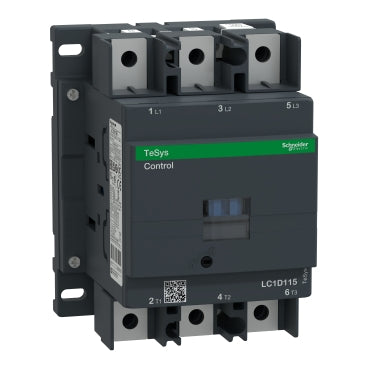

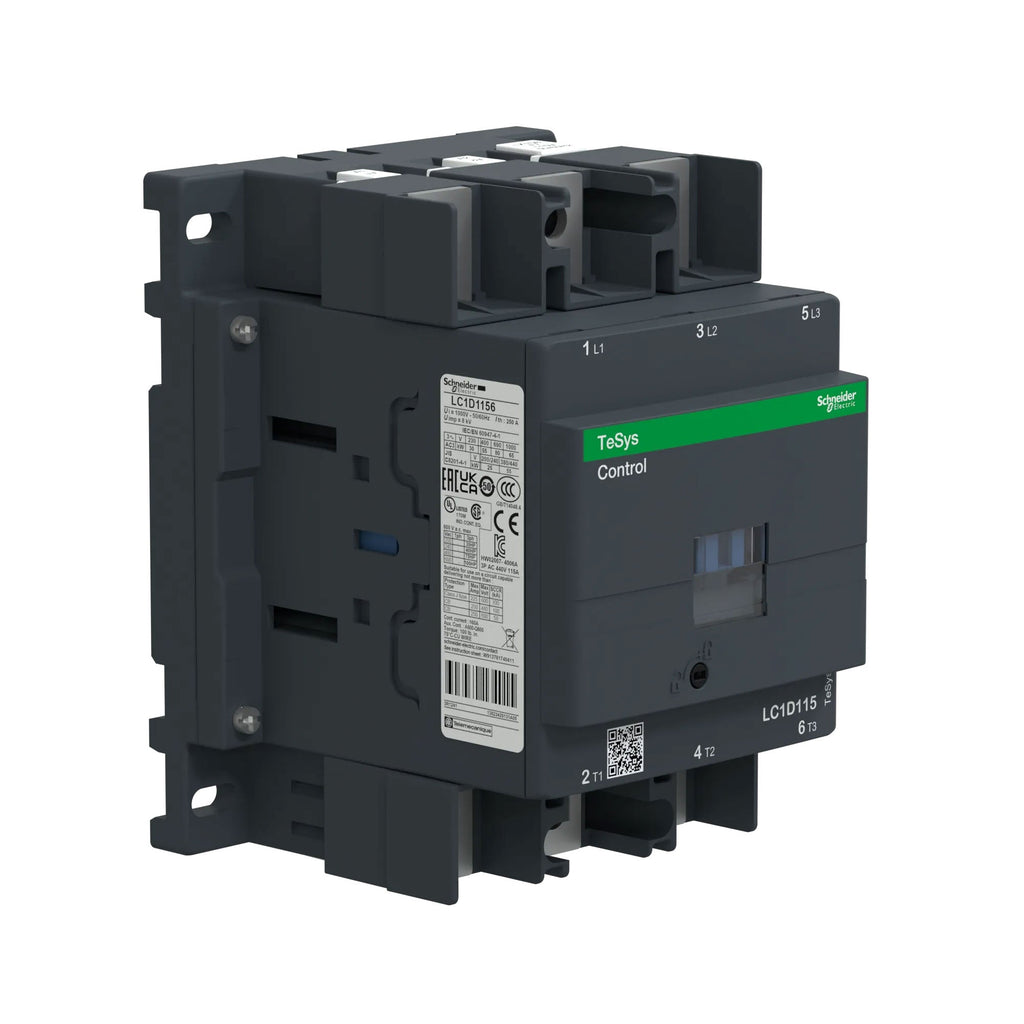

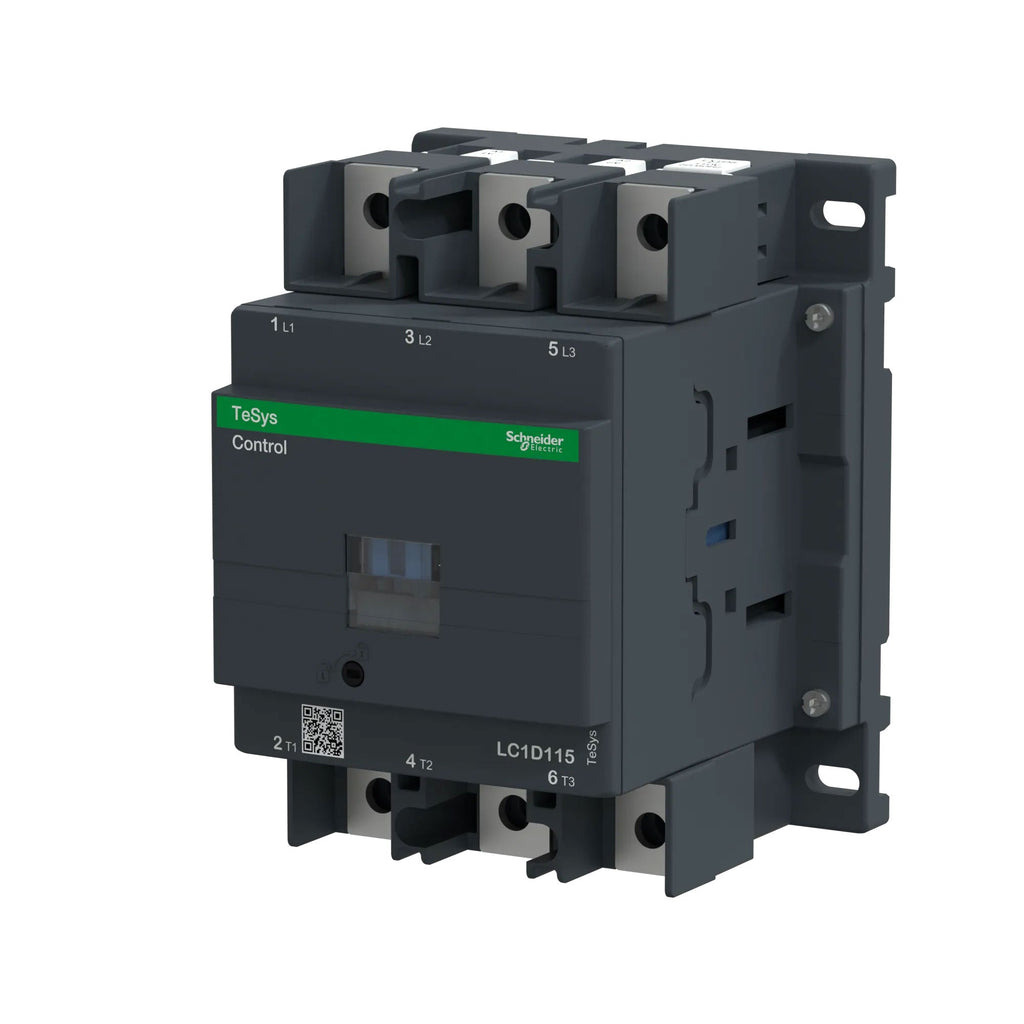

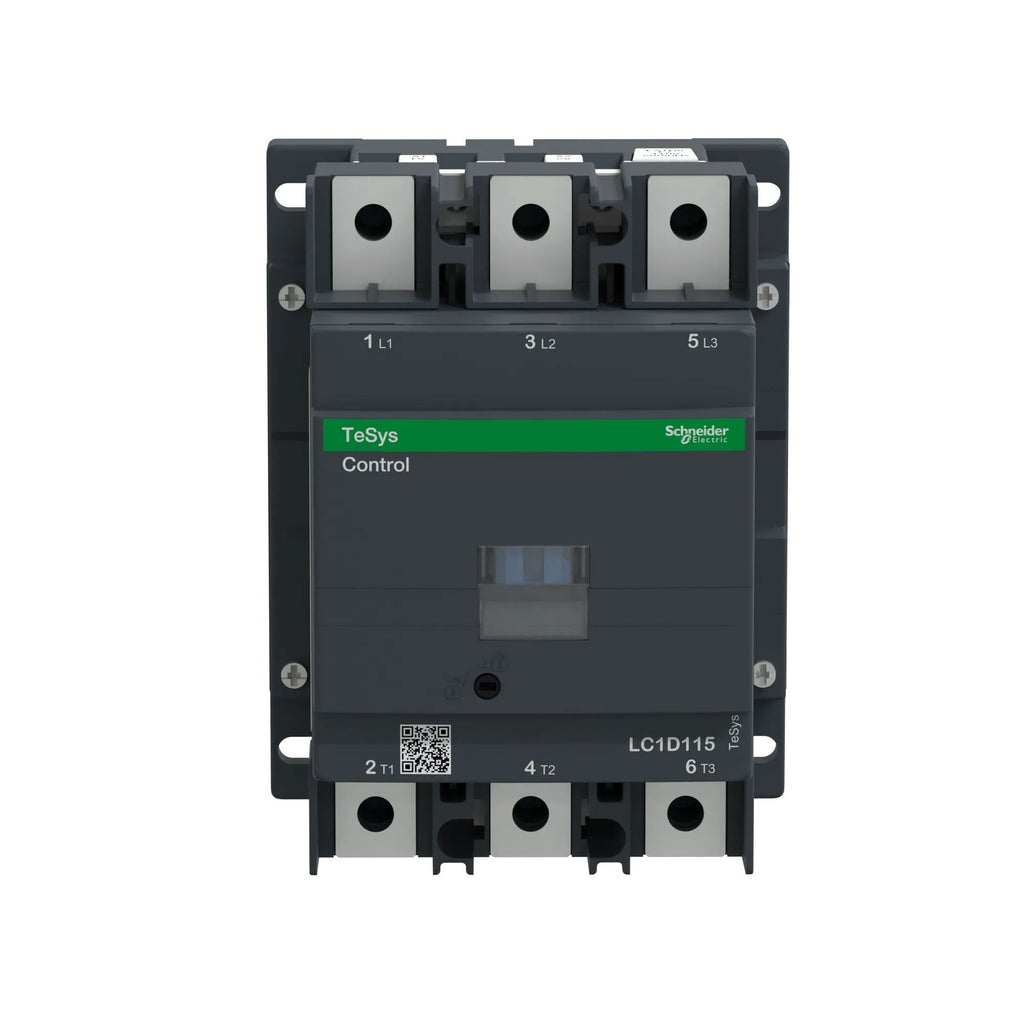

The LC1D1156M7 is a Schneider Electric TeSys Deca IEC motor contactor rated 115A AC-3 at up to 440V, configured 3-pole/3NO for nonreversing motor control, with a 220V AC 50/60 Hz coil. It is listed to UL 508 and CSA C22.2 No. 14, and rated to IEC 60947-4-1 for spec and submittal use.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Note for specifiers: this part is on Schneider Electric's end-of-commercialization schedule (last order date December 31, 2026). Stock remains available now; the listed replacement is LC1D115A6KUE.

Common Applications

• Motor starter assemblies in industrial control panels
• OEM machine control cabinets requiring UL/CSA-listed switching devices
• Pump, fan, and compressor motor control circuits
• Retrofit or replacement in existing TeSys D platform panels

Key Features

• 115A AC-3 rating: Switches loads up to 75 HP at 480V, 3-phase
• 3-pole, 3NO: Standard nonreversing power circuit arrangement
• 220V AC coil: 50/60 Hz, 220-240V coil voltage range
• Multi-standard listed: UL, CSA, and IEC 60947-4-1 compliant
• DIN rail or panel mount: Open style, flexible layout

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys Deca (TeSys D platform)
• Poles: 3, configuration 3P(3NO)
• Rated current: 115A AC-3, <=440V
• Rated insulation voltage: 1000V AC (IEC 60947-4-1); 600V (UL/CSA)
• Coil voltage: 220V AC, 50/60 Hz (220-240V range)
• HP rating: 30 HP at 200/208V, 40 HP at 230/240V, 75 HP at 460/480V, 100 HP at 575/600V, 3-phase
• Termination: Lug (ring terminal) / bar

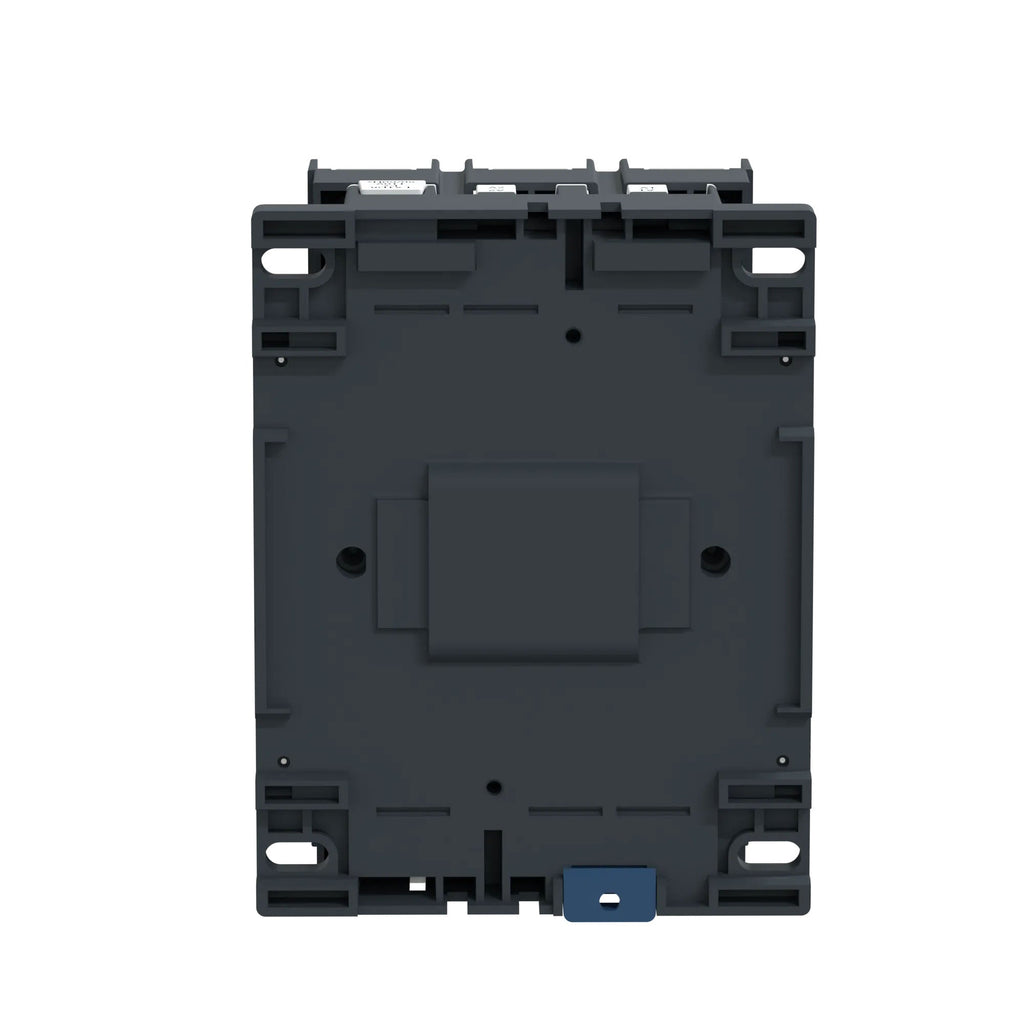

• Mounting: DIN rail or direct panel, open style
• Operating temperature: -5 C to 60 C
• Mechanical life: 0.95 million cycles at 115A AC-3, <=440V
• Certifications: UL 508, CSA C22.2 No. 14, IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, RoHS compliant
• Lifecycle: End of commercialization Dec 31, 2026; replacement LC1D115A6KUE

Product Identification

• Country of origin: Czech Republic
• Dimensions: 4.72 in W x 6.22 in H x 5.35 in D (120 mm x 158 mm x 136 mm)
• Weight: 4.86 lb (2.2 kg)
• UPC: 038911038125
• GTIN: 03389110381252

FAQ

What is the LC1D1156M7? A Schneider Electric TeSys Deca IEC contactor rated 115A AC-3, 3-pole, 220V AC coil, for nonreversing motor control.

What is the coil voltage?
