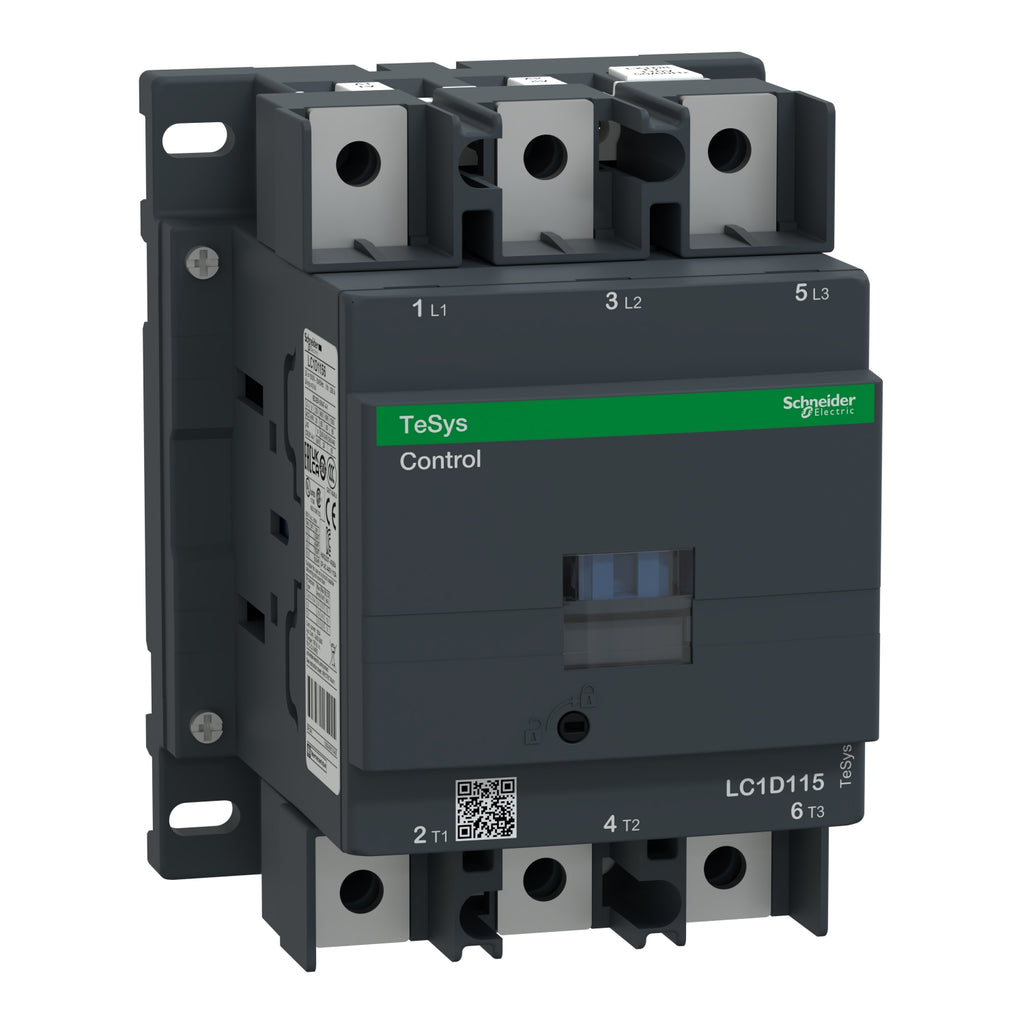

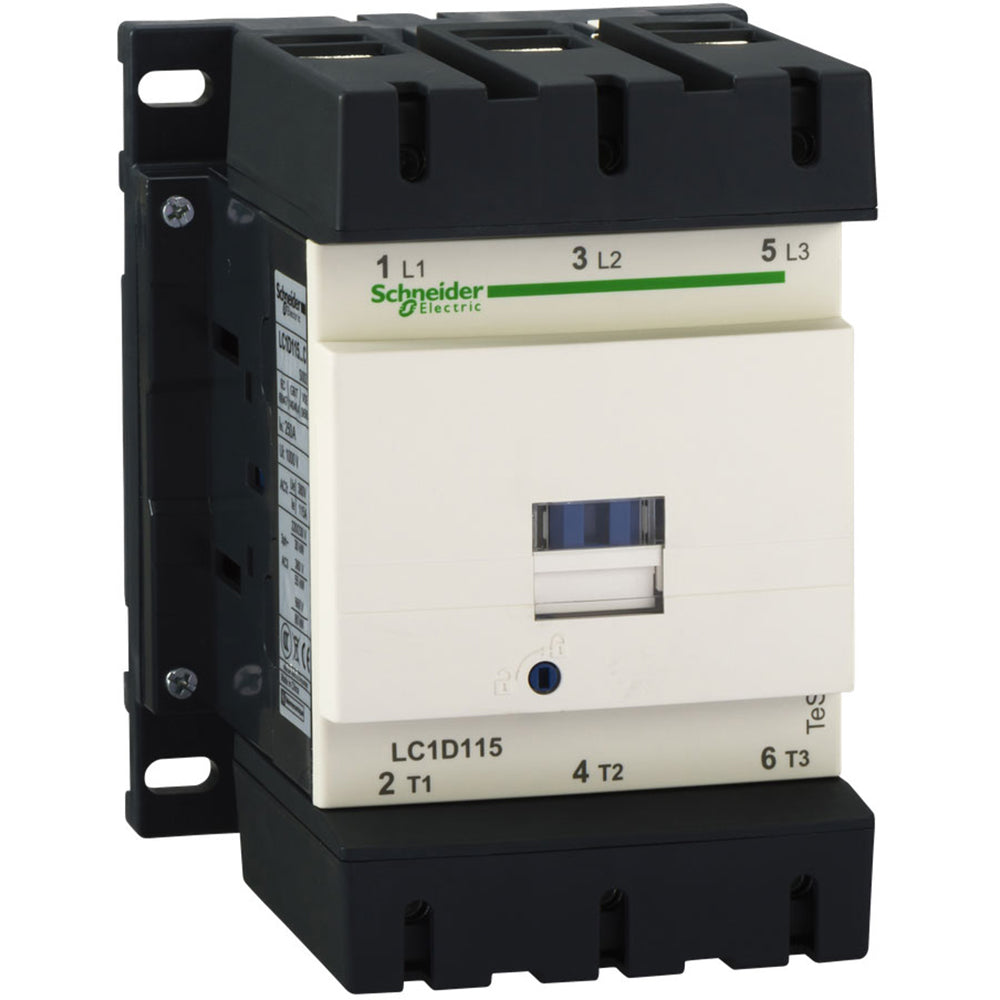

LC1D1156F7 - Schneider Electric TeSys D Deca 115A 3P 3NO Non-Reversing Contactor 110V AC 50/60Hz Coil

LC1D1156F7

LC1D1156F7 is a non-reversing IEC contactor from Schneider Electric's TeSys D Deca series, designed for motor control applications up to 115A and 1000V AC-3. This contactor features a 3-pole configuration with 3 normally open (NO) power contacts and a 110V AC 50/60Hz coil. It is suitable for resistive and motor loads, offering high durability with operating rates up to 2400 cycles/hour. The compact design allows for easy installation and maintenance, and it is certified for use in a wide range of industrial environments.

• Manufacturer: Schneider Electric
• Series: TeSys D Deca
• Amperage: 115A
• Voltage: 1000V AC-3
• Poles: 3
• Contacts: 3 NO
• Coil Voltage: 110V AC 50/60Hz
• Mounting Type: DIN rail or panel mount
• Application: Motor control
• Operating Frequency: 50/60 Hz
• Interrupt Rating: 115A/1000V AC-3
• Standards: IEC 60947-4-1, IEC 60335-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you ge(more...)

Additional Information

This TeSys D IEC Contactor includes a 110 VAC coil.

Specifications

• Part Number: LC1D1156F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50/60 Hz

Product Data

• UPC : 038911038079
• GTIN : 03389110380798
• Country of Origin : Czechia
• Weight : 4.976
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
