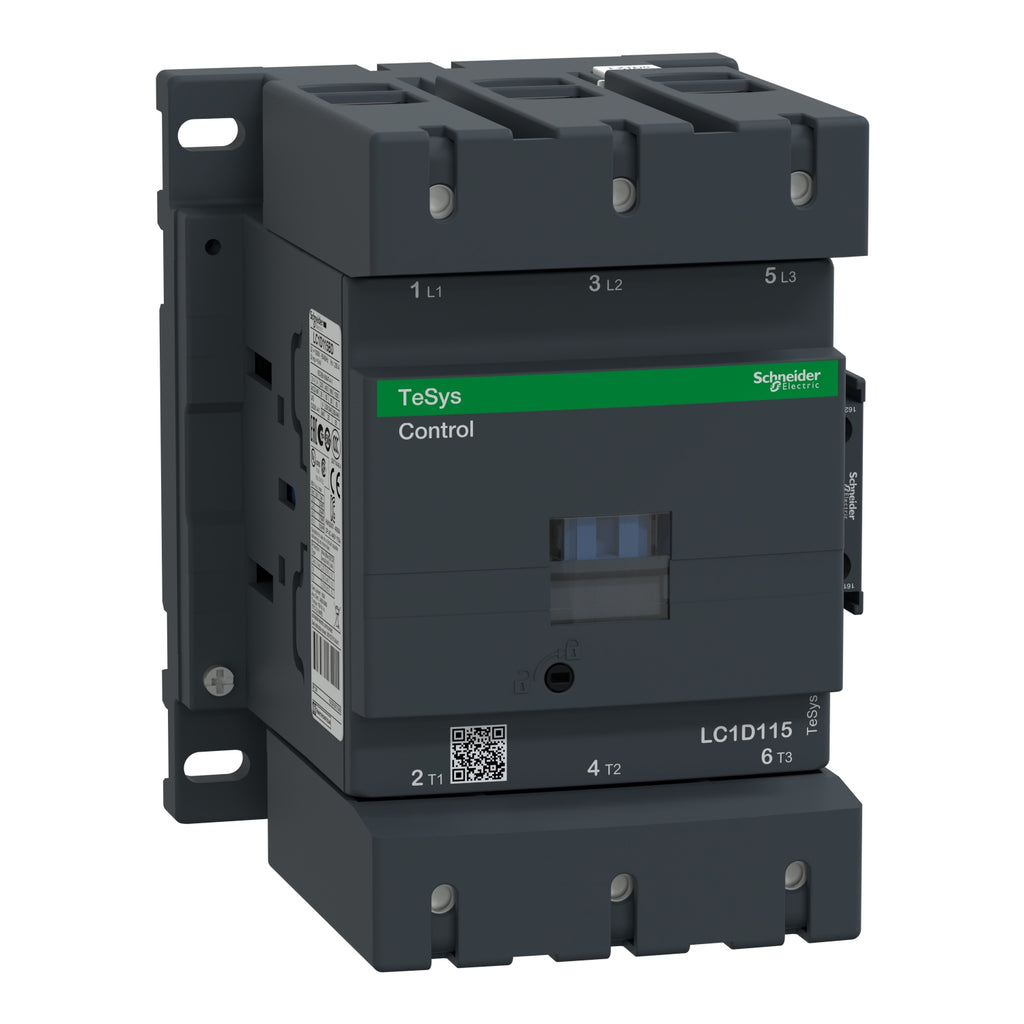

LC1D115-G7 - Schneider Electric IEC Contactor 115A 3-Pole 600V 120VAC Coil

LC1D115-G7

LC1D115-G7 is a Schneider Electric TeSys Deca IEC non-reversing contactor designed for motor control and resistive load applications in industrial environments. This 3-pole contactor delivers reliable performance with a rated operational current of 115A at 440V AC in AC-3 duty, supporting motor ratings up to 100 hp at 480V AC or 125 hp at 600V AC three-phase systems. The contactor features a 120V AC 50/60 Hz control coil, DIN rail mounting capability, and is rated for up to 100 kA SCCR (Short Circuit Current Rating) for enhanced protection in demanding applications. Built-in bidirectional peak limiting diode suppressor technology ensures coil protection and extended operational life.

• Amperage: 115A at 440V AC AC-3
• Voltage: 600V AC power circuit maximum
• Poles: 3-pole with 3 NO (normally open) contacts
• Control Coil: 120V AC 50/60 Hz
• Mounting: DIN rail and plate mounting options
• Series: TeSys Deca IEC
• Interrupt Rating: 100 kA SCCR
• Motor Power: 100 hp at 480V AC, 125 hp at 600V AC
• Mechanical Durability: 8 million cycles
• Operating Rate: 2400 cycles per hour at 60 degree(more...)


  Specifications

  • Part Number: LC1D115-G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 115
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120



  Product Data

  • UPC : 038911037710
  • GTIN : 00389110377104
  • Weight : 6.5
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
