Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D09P7C

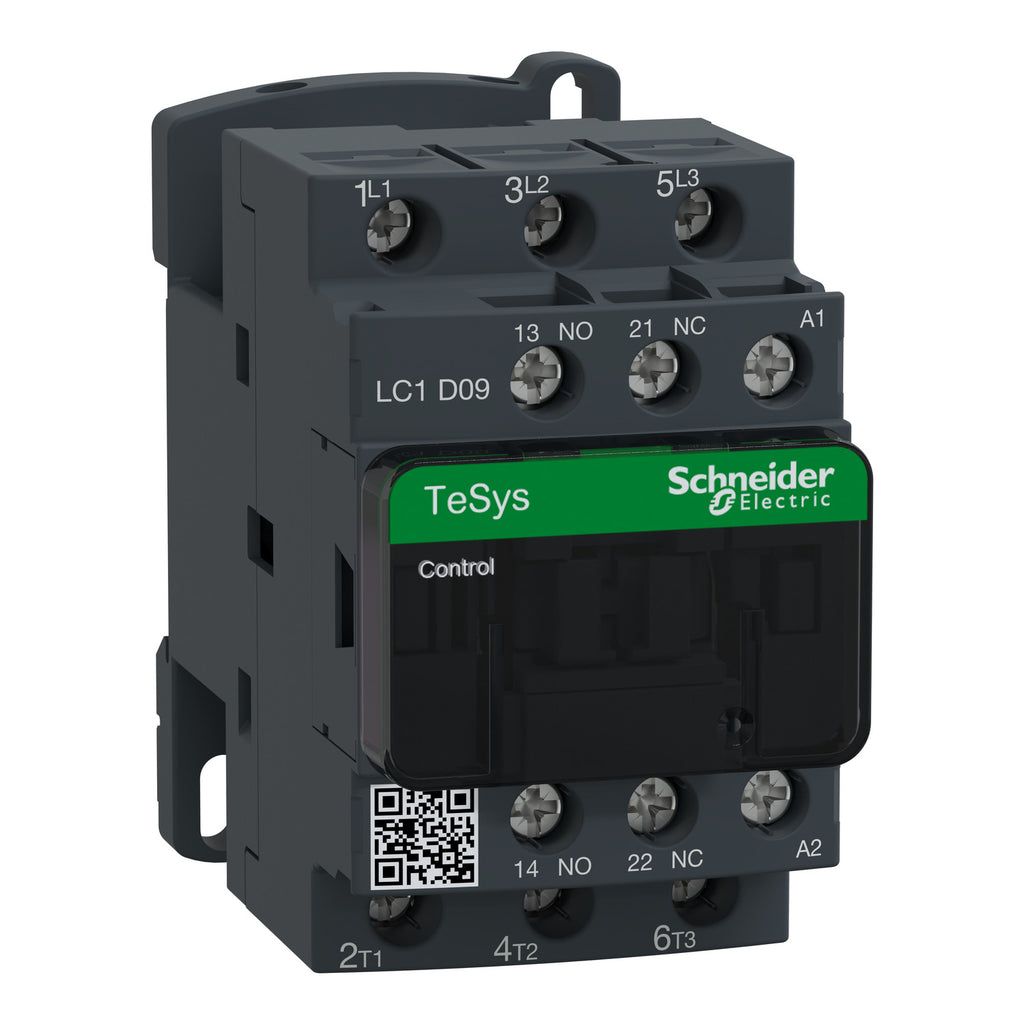

LC1D09P7C is a Schneider Electric TeSys Deca nonreversing IEC contactor designed for reliable motor control in industrial and HVAC applications. This 3-pole contactor delivers 9A rated current at up to 690V AC, with a 230V AC 50/60Hz control coil and screw clamp terminals for secure connections. The compact design features built-in auxiliary contacts (1NO+1NC) and meets multi-standard certifications including IEC 60335-1 for improved fire resistance and dustproof operation.
- Rated Amperage: 9A at 440V AC (AC-3)
- Rated Voltage: 690V AC, 25-400 Hz power circuit
- Poles: 3 poles with 3 NO main contacts
- Control Coil: 230V AC 50/60 Hz
- Auxiliary Contacts: 1NO + 1NC
- Mounting: Screw clamp terminals
- Operating Time: 4-19 ms opening, 12-22 ms closing
- Motor Power Range AC-3: 4-6 kW at 380-440V 3-phase
- Mechanical Robustness: B10d = 20,000,000 cycles per EN/ISO 13849-1
- Flame Retardance: V1 conforming to UL 94
- Warranty: 18 months
Specifications
- Part Number: LC1D09P7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
Product Data
- Weight : 0.772
- Certification : CE, UKCA, CCC
