Description
LC1D09M7

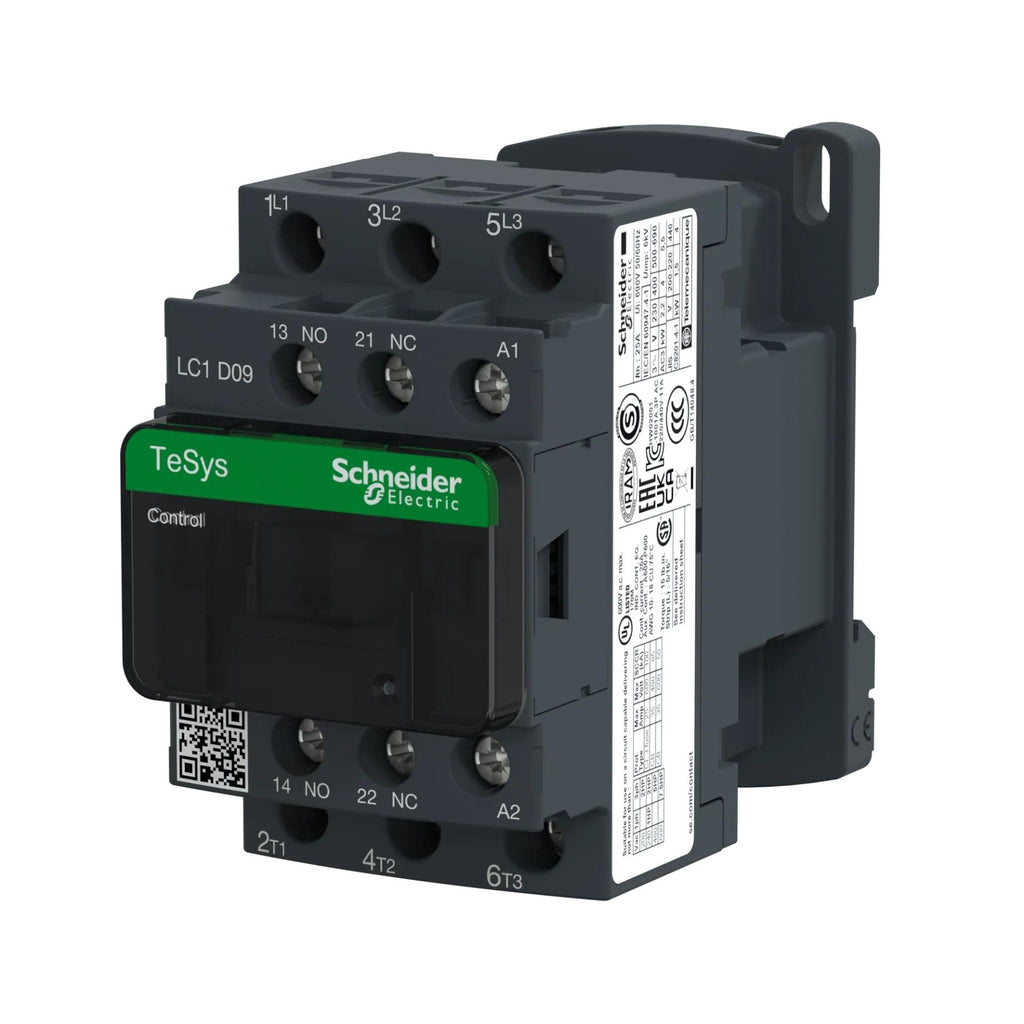

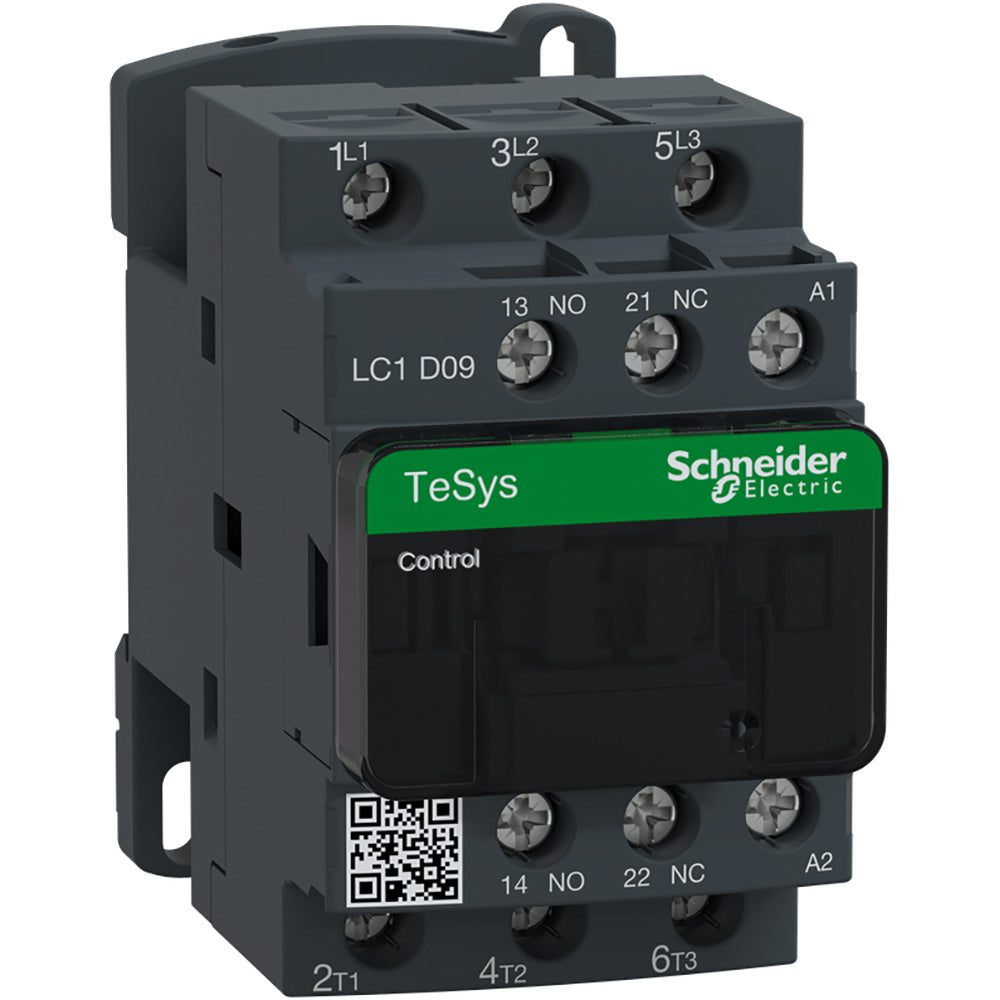

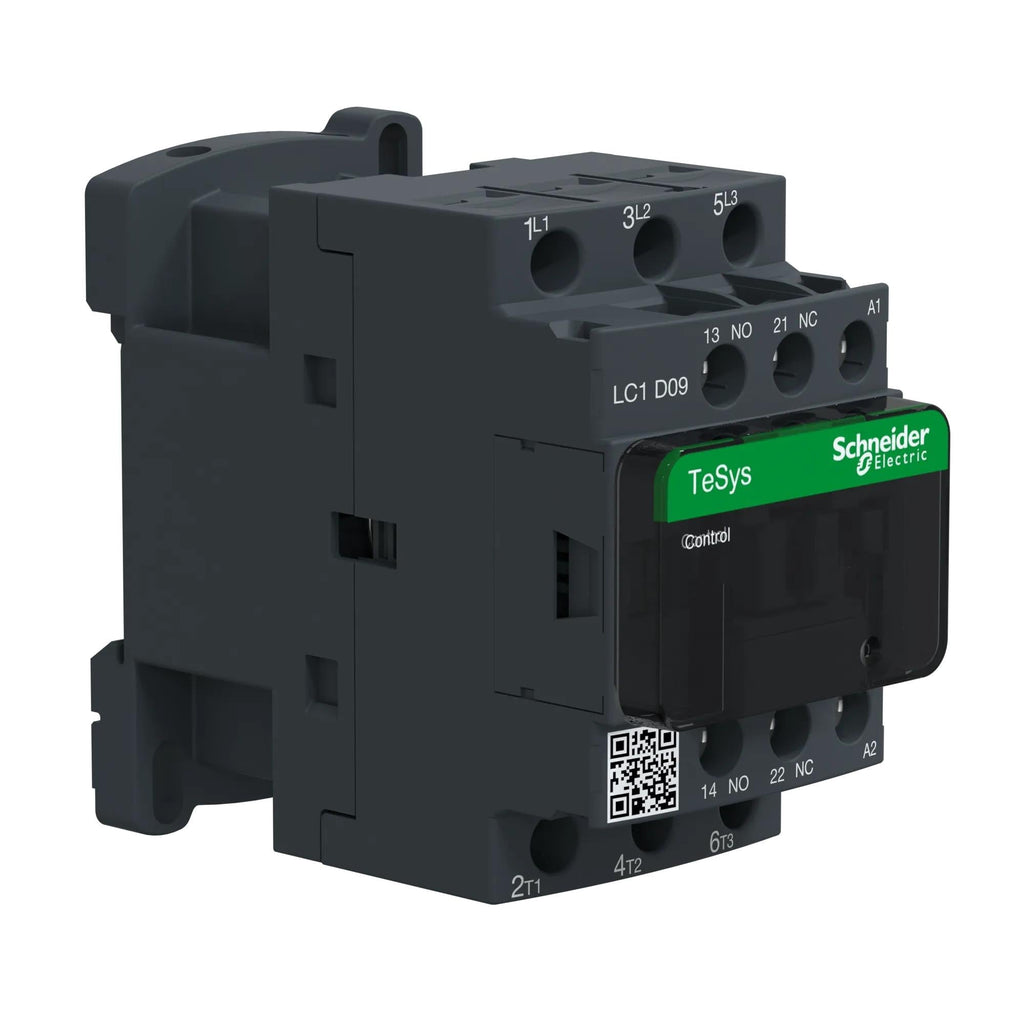

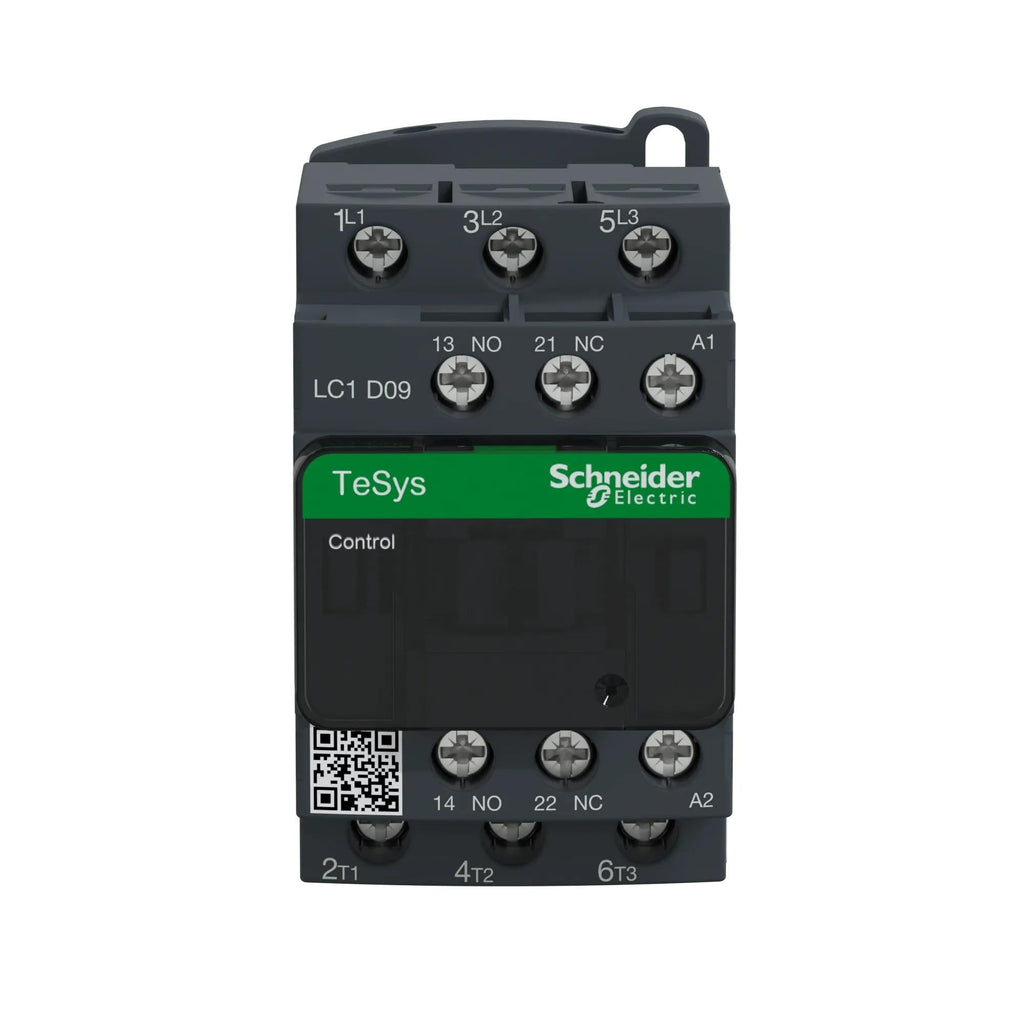

LC1D09M7 is a Square D TeSys D IEC contactor designed for motor control applications with a 9 ampere rating and 3 normally open poles.
This contactor features a 220V AC coil operating at 50/60 Hz, supports motor loads up to 5 HP at 480V AC, and is suitable for use with voltages up to 690V AC and 300V DC. It includes a screw clamp terminal type, rail or surface mounting options, and complies with IEC 60947-4-1 and UL 508 standards. The device offers a rated operational current of 9A, a conventional free air thermal current of 25A, and a rated breaking capacity of 250A at 440V. It is non-reversing with 3 normally open contacts and includes a protective cover for safety.
- Key Specifications
- Amperage: 9A operational current, 25A thermal current
- Voltage: 220V AC coil, power circuit up to 690V AC, 300V DC
- Poles: 3 poles, 3 normally open (3 NO)

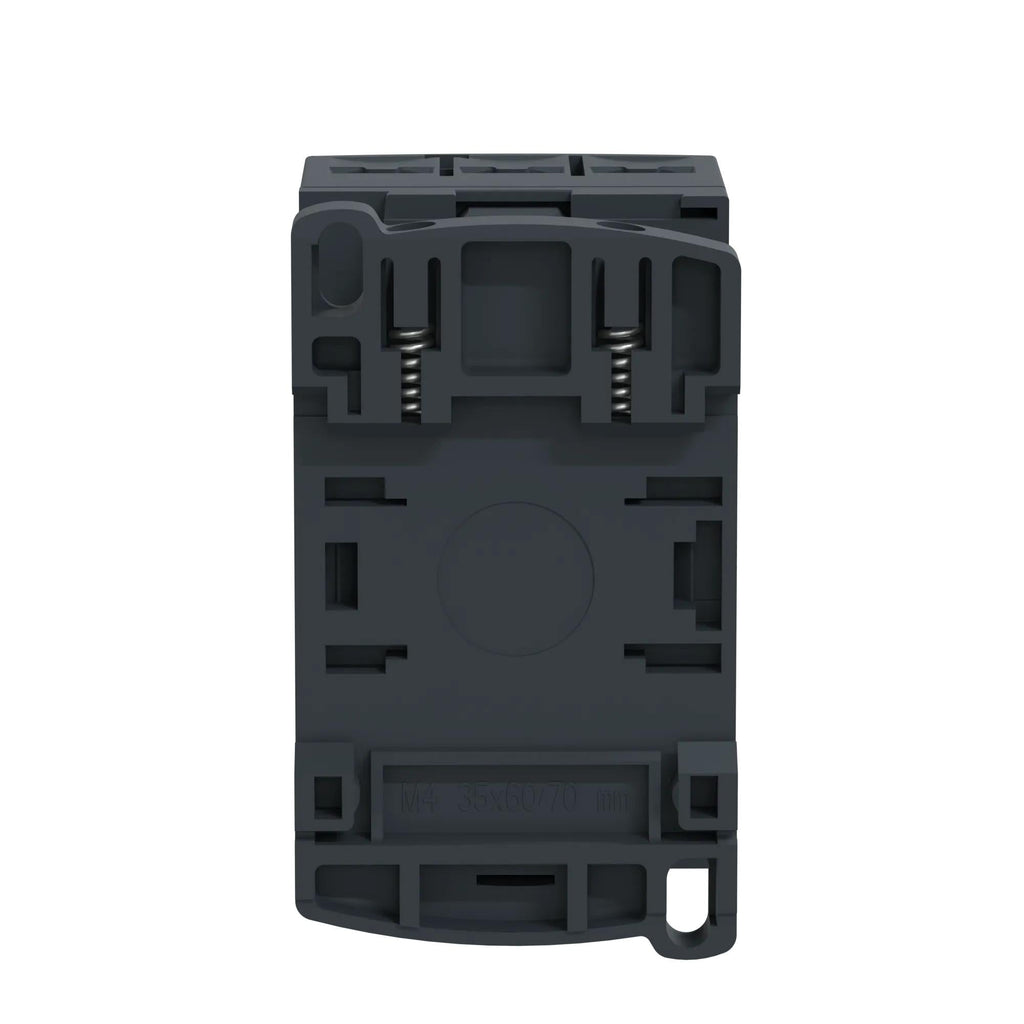

- Mounting Type: DIN rail or surface mount
- Interrupt Rating: 250A breaking capacity at 440V AC
- Series/Frame: TeSys D, LC1D series
- Trip Unit: Non-reversing contactor
- Certifications: UL 508, CSA C22.2 No 14, IEC 60947-4-1, Lloyds Register, DNV, RINA, (more...)
Additional Information
This TeSys D IEC Contactor includes a 220 VAC coil.
Specifications
- Part Number: LC1D09M7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Horse Power : 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 220
- Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 25A
- Coil Voltage Minimum : 220
- Mounting : Plate
- Frequency : 50/60 Hz
Product Data
- UPC : 38911034887
- GTIN : 03389110348873
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.03 in
- Weight : 0.75
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
