LC1D09BL - Schneider Electric TeSys D 9A 3P 24VDC Coil IEC Contactor for Motor Control

LC1D09BL

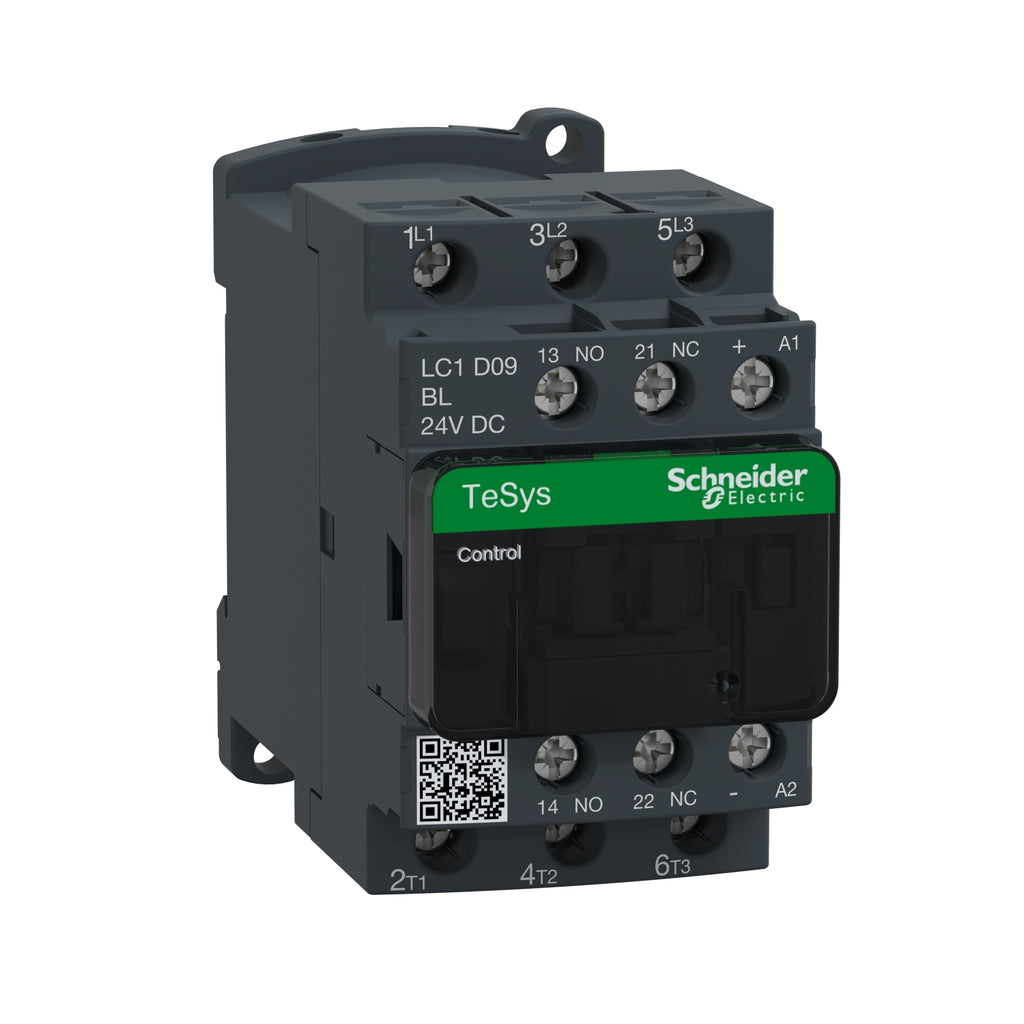

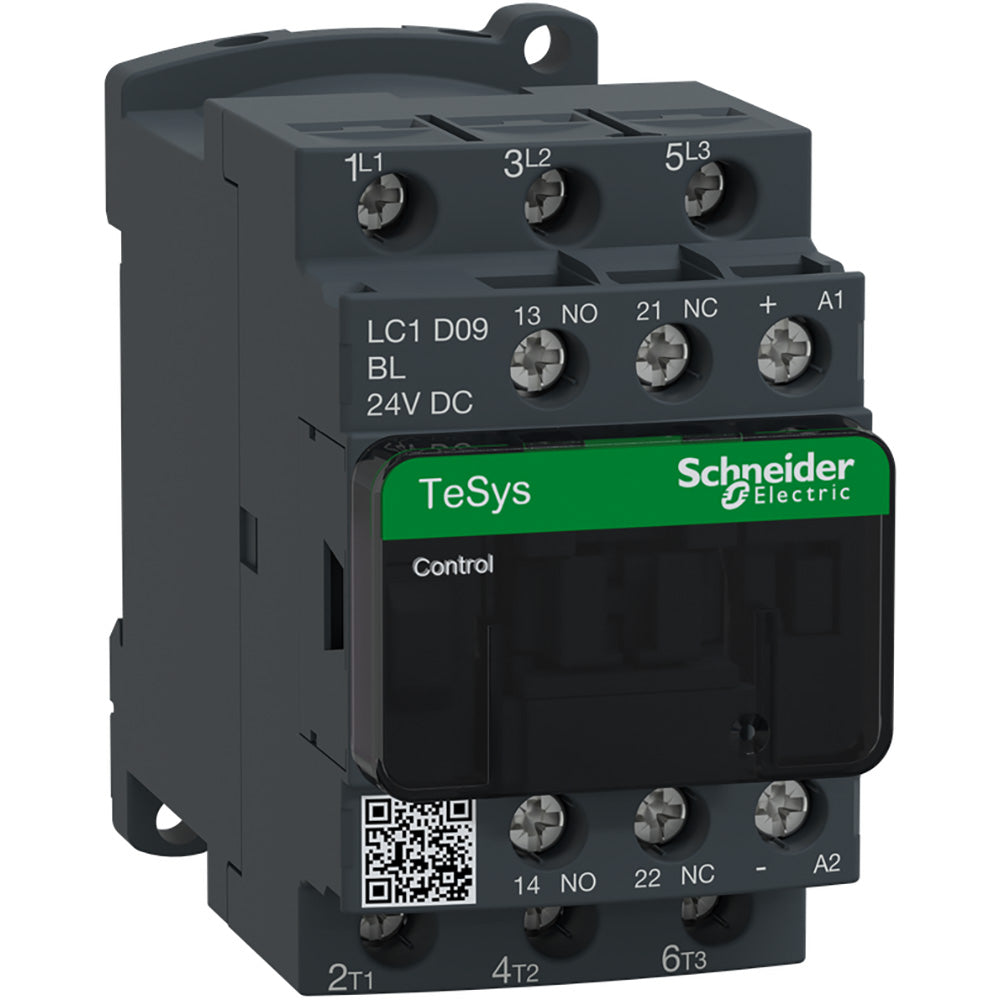

LC1D09BL is a 3-pole, 9A, 24VDC coil IEC contactor designed for motor control applications. This TeSys D series contactor features 3 NO main contacts and is suitable for resistive and motor loads up to 440V AC. It offers reliable performance for industrial and HVAC systems with a compact design and easy installation. Engineered for durability and safety, the LC1D09BL contactor is rated for 9A at 440V AC-3, with a 24VDC low consumption coil. It includes 1NO+1NC auxiliary contacts, screw clamp terminals, and meets multiple international standards for industrial use. The contactor is designed for plate or rail mounting and provides robust protection for motor circuits.

• Part Number: LC1D09BL
• Manufacturer: Schneider Electric
• Series: TeSys D
• Poles: 3P (3 NO)
• Rated Current: 9A
• Rated Voltage: 440V AC
• Coil Voltage: 24VDC
• Mounting Type: Plate/Rail
• Interrupt Rating: 100kA SCCR
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• Certifications: UL, CSA, GL, CCC, RINA, BV, GOST, DNV
• Utilization Category: AC-3, AC-4
(more...)


Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.




Specifications

• Part Number: LC1D09BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 038911036107
• GTIN : 03389110361070
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.03 in
• Weight : 1.164
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
