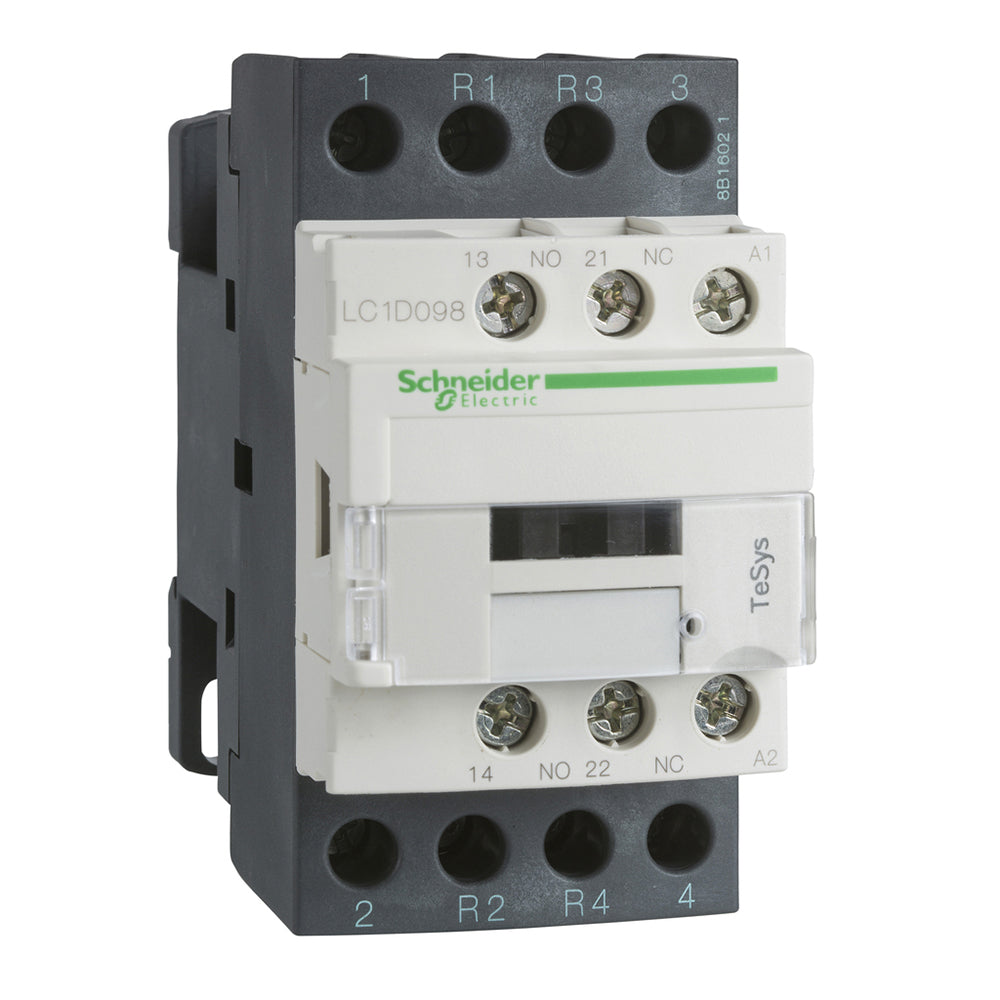

LC1D098T7 - Schneider Electric 9A 4 Pole IEC Contactor 480VAC 50/60Hz TeSys D

LC1D098T7

LC1D098T7 is a 4-pole IEC contactor from Schneider Electric's TeSys D series, designed for reliable motor and resistive load control in industrial applications. This contactor features a 480VAC 50/60Hz coil, 2NO+2NC main contacts, and 1NO+1NC auxiliary contacts for versatile control circuit integration. It offers screw clamp terminals for secure wiring and is suitable for DIN rail or plate mounting. The contactor is rated for up to 9A continuous current and provides high mechanical and electrical endurance for demanding environments. It meets IEC 60947-1 and IEC 60947-4-1 standards for safety and performance.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Part Number: LC1D098T7
• Amperage: 9A
• Coil Voltage: 480VAC 50/60Hz
• Poles: 4
• Contact Configuration: 2NO+2NC main, 1NO+1NC auxiliary
• Mounting Type: DIN rail or plate
• Terminal Type: Screw clamp
• Rated Insulation Voltage: 600V
• Rated Impulse Withstand Voltage: 6kV
• Standards: IEC 60947-1, IEC 60947-4-1, VDE 0660, EN 60947-1, EN 60947-4-1
• Protection: IP2X

Specifications

• Part Number: LC1D098T7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480



Product Data

• Weight : 0.781
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
