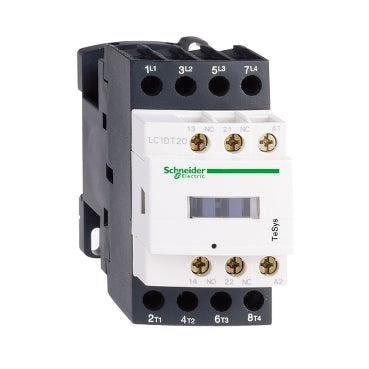

LC1D098BL - Schneider Electric TeSys D 20A 440V AC-1 4-Pole Contactor 24V DC Coil

LC1D098BL

LC1D098BL is a Schneider Electric TeSys D 4-pole contactor designed for motor control and resistive load applications.LC1D098BL features a 20 amp rated current at up to 440 V AC-1 utilization category with a 24 V DC low consumption coil. It includes 2 normally open and 2 normally closed power poles, screw clamp terminals, and complies with IEC 60947 standards. This contactor supports a rated operational voltage of up to 690 V AC and has a conventional free air thermal current of 25 A. It is suitable for industrial and HVAC applications with a robust design and certifications including UL, CSA, and RoHS compliance.

Key Specifications
• Rated operational current: 20 A at 440 V AC-1
• Rated operational voltage: up to 690 V AC
• Poles: 4 (2 NO + 2 NC)
• Coil voltage: 24 V DC low consumption
• Control circuit type: DC low consumption
• Mounting type: Open style with screw clamp terminals
• Rated impulse withstand voltage: 6 kV
• Thermal current: 25 A at 60 ¡C
• Certifications: IEC 60947, UL, CSA, RoHS compliant
• Application: Motor control, resistive load

Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.




Specifications

• Part Number: LC1D098BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 4
• Horse Power : 7.5
• Aux Contacts : 2 NO + 2 NC
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 038911044709
• Country of Origin : Indonesia
• Weight : 1.232
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
