Product Info
- Manufacturer:Telemecanique||Schneider Electric
- Sub-Category:Contactor
Description
LC1D093G7

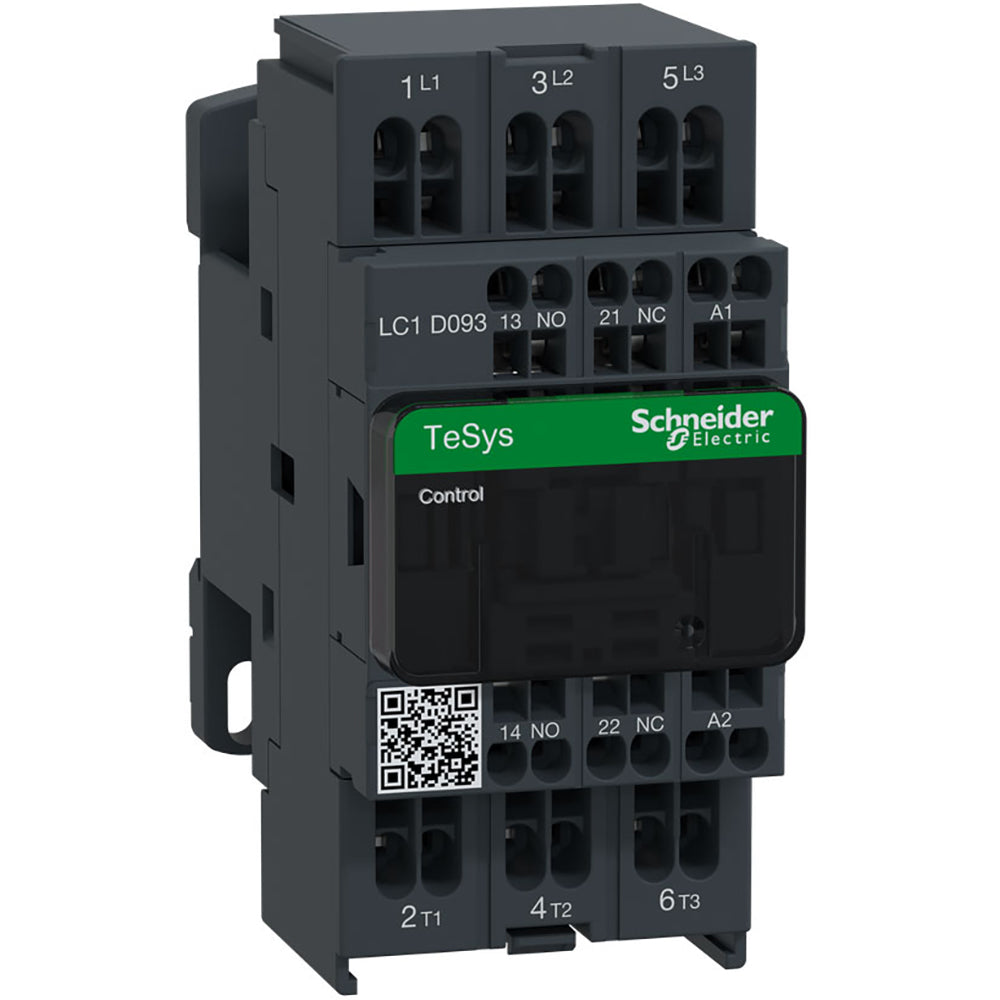

LC1D093G7 is a Schneider Electric TeSys Deca 3-pole IEC contactor designed for motor control and resistive load applications. This contactor features a 120V AC 50/60Hz coil and is rated for up to 9A at 690V AC, making it suitable for a wide range of industrial and HVAC uses.Engineered for reliable performance, the LC1D093G7 offers a 3P (3NO) configuration with spring terminals and rail or surface mounting options. It supports AC-3/AC-3e duty and is built to meet IEC 60947-4-1 standards. The contactor is non-reversing and includes 1NO+1NC auxiliary contacts for enhanced control flexibility.
- Part Number: LC1D093G7
- Manufacturer: Schneider Electric
- Series: TeSys Deca
- Number of Poles: 3
- Rated Operational Current: 9A
- Control Circuit Voltage: 120V AC 50/60Hz
- Power Circuit Voltage: 690V AC
- Mounting Type: Rail or Surface
- Coil Power Rating: 7.5/7 VA
- Contact Configuration: 3NO
- Auxiliary Contacts: 1NO+1NC
- Operating Temperature: -4 to 70¡C
- Operating Cycles: 3600 cycles/hr
- Standards: IEC 60947-4-1<(more...)
Additional Information
This TeSys D IEC Contactor includes a 120 VAC coil.
Specifications
- Part Number: LC1D093G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Horse Power : 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : AC 50/60 Hz
Product Data
- UPC : 785901197249
- GTIN : 03389110802276
- Country of Origin : Indonesia
- Dimensions : 45 mm x 80 mm
- Weight : 0.811
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
