Product Info
- Manufacturer:Schneider Electric||Telemecanique
- Sub-Category:Contactor
Description

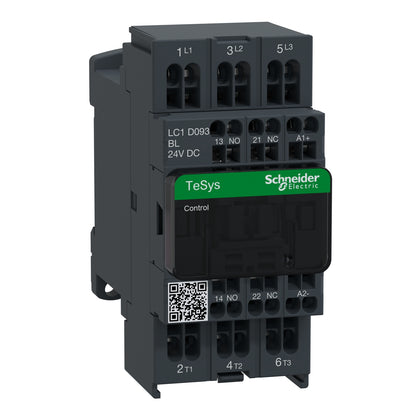

LC1D093BL
LC1D093BL is a TeSys Deca series IEC contactor designed for motor control and resistive load applications, featuring a 24VDC low consumption coil and 3-pole configuration.This contactor is engineered for reliable operation in industrial and HVAC environments, supporting up to 9A at 440V AC-3 and 690V AC-1, with a 3P (3 NO) power pole contact composition. It includes 1 NO + 1 NC auxiliary contacts, spring terminals for easy connection, and is suitable for DIN-rail or screw mounting. The built-in bidirectional peak limiting diode suppressor enhances coil protection and durability.
- Manufacturer: Schneider Electric
- Series: TeSys Deca
- Poles: 3P (3 NO)
- Rated Operational Current: 9 A (AC-3)
- Rated Operational Voltage: 690 V AC
- Control Circuit Voltage: 24 V DC
- Mounting Type: DIN-rail or screw
- Utilisation Category: AC-1, AC-3, AC-4
- Auxiliary Contacts: 1 NO + 1 NC
- Rated Impulse Withstand Voltage: 6 kV
- Overvoltage Category: III
- Mechanical Durability: 30 million cycles
Additional Information
This TeSys D IEC Contactor includes a 24 VDC coil.
Specifications
- Part Number: LC1D093BL
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Horse Power : 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 038911080848
- GTIN : 03389110808483
- Country of Origin : Indonesia
- Dimensions : 45 mm x 99 mm
- Weight : 1.235
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
