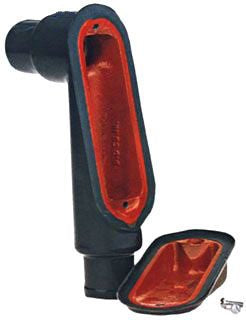

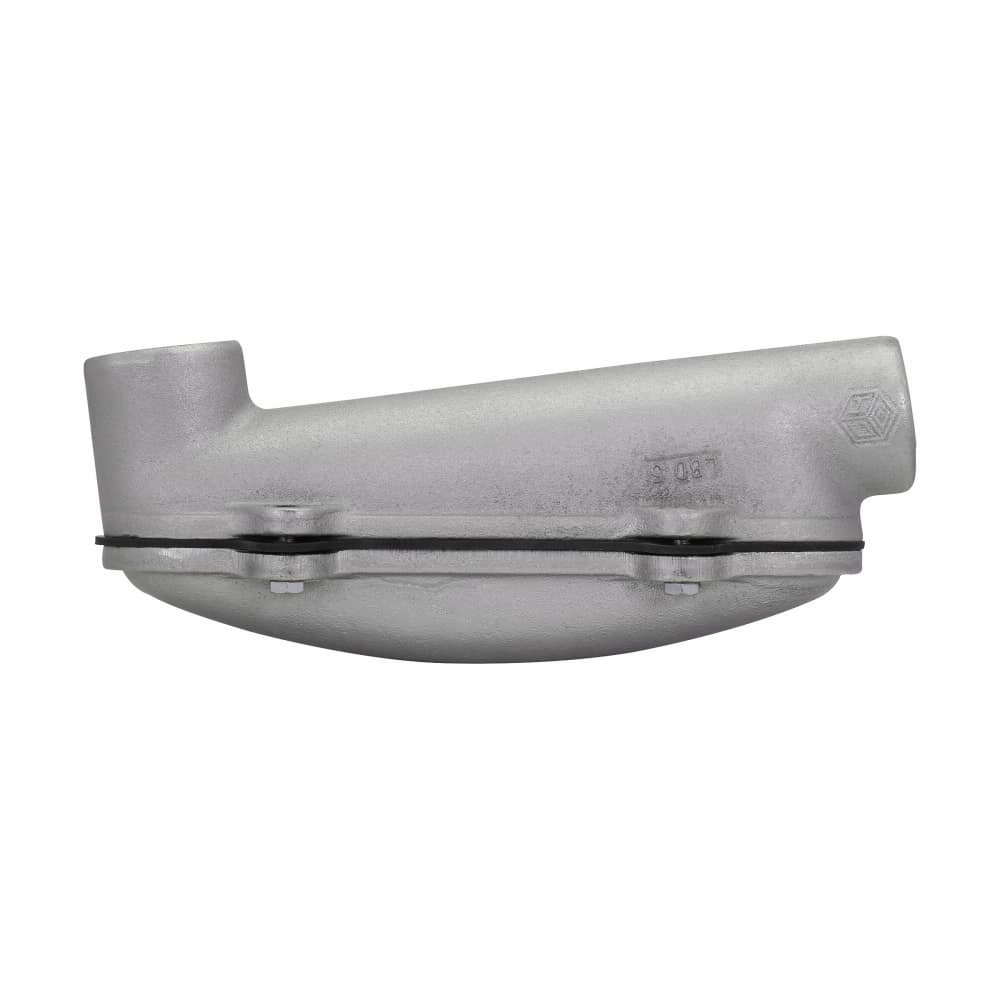

LBD8800 Eaton Crouse-Hinds Condulet LBD Mogul Conduit Body, 3 in

LBD8800

LBD8800 Eaton Crouse-Hinds Condulet LBD Mogul Conduit Body, 3 in

LBD8800 is an Eaton Crouse-Hinds series Condulet LBD mogul conduit body for 3 in rigid conduit. Its Feraloy iron alloy construction, angled cover opening, and tapered threaded hubs support conductor pulling through a 90 degree conduit bend.

The body is specified for ordinary/non-hazardous locations and has a 7.0 in bend radius with 212.0 cu in of internal volume. Eaton lists UL 514B, CSA C22.2 No. 18, and Federal Specification W-C-586D for the LBD series that includes this exact catalog number.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Pulling stiff conductors through 90 degree bends in rigid conduit
• Providing conduit service entrance to buildings
• Routing conductor entrances to motors
• Maintaining access to wiring for service or future expansion

Key Features

• Body design: Angled cover opening permits a straight pull through either hub
• Conductor protection: Domed cover provides room for conductor bends
• Included components: Cover and neoprene gasket furnished
• Hub construction: Taper tapped hubs with integral bushings
• Finish: Electrogalvanized with aluminum acrylic paint

Specifications

• Trade size: 3 in
• Material: Feraloy iron alloy
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Bend radius: 7.0 in
• Internal volume: 212.0 cu in
• Product dimensions: 19.69 x 5.63 x 9.56 in
• Product weight: 33.25 lb
• Standards: UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D

Product Identification

• Catalog number: LBD8800
• Manufacturer: Eaton
• Brand: Eaton Crouse-Hinds series
• Product family: Condulet LBD
• UPC: 782274518800
• GTIN: 00782274518800

FAQ

What is LBD8800?

It is a 3 in Eaton Crouse-Hinds series Feraloy iron alloy LBD mogul conduit body for rigid conduit systems.

Is LBD8800 the aluminum version?

No. Eaton identifies this catalog number as Feraloy iron alloy; copper-free aluminum uses the separate SA suffix.

Are a cover and gasket supplied?

Yes. Eaton states that the LBD body is furnished with a cover and neoprene gasket.

What are the verified product measurements?

Eaton reports 19.69 in length/depth, 5.63 in width, 9.56 in height, and 33.25 lb product weight.

Where is this conduit body classified for use?

Th

Specifications

• Part Number: LBD8800
• Manufacturer : Eaton
• Brand : Crouse-Hinds
• Category : Conduit & Fittings
• Item Subcategory : Conduit bodies, covers and outlet boxes
• Section : Mogul Conduit Bodies and Pulling Elbows
• Material : Feraloy iron alloy
• Trade size : 3"

Product Data

• UPC : 782274518800
• GTIN : 00782274518800
• Dimensions : 19.69 in x 9.56 in x 5.63 in (Length/Depth x Height x Width)
• Weight : 33.25 lb
