LB1LD03M22

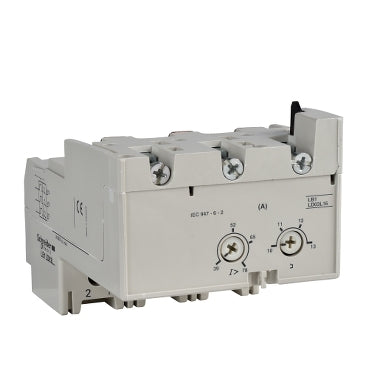

LB1LD03M22 is a solid-state overload relay and protection module designed for integral motor control applications within the INTEGRAL Self-Protected Combination Motor Controller series. This adjustable overload relay provides motor protection with an amperage range of 18A to 25A, suitable for AC-3 duty motor starting applications. The unit features adjustable magnetic protection set at 6 to 12 times maximum thermal current, delivering reliable short-circuit and overload protection for three-phase motor circuits. Key Specifications
- Amperage Range: 18A to 25A adjustable
- Rated Breaking Capacity: 42 kA at 480 Vac
- Number of Poles: 3
- Motor Power: 5.5 kW at 220-240V AC 50/60 Hz; 11 kW at 400-415V AC 50/60 Hz
- Magnetic Protection: Adjustable, 6 to 12 times maximum thermal current
- Protection Type: Solid-state overload relay
- Certifications: UL, CSA, IEC, ASTA, BS, DEMKO, NEMKO, SEMKO, VDE
- Standards: NF C 63-650
- Protective Treatment: TH
- Weight: 2.26 lbs
- Series: INTEGRAL Self-Protected Combination Motor Controller
Specifications
- Part Number: LB1LD03M22
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Integral
- Type : LB1LD
- Poles : 3
- Amperage Maximum : 25
- Amperage Minimum : 18
Product Data
- GTIN : 03389110180664
- Weight : 2.255
