Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAP36350MB

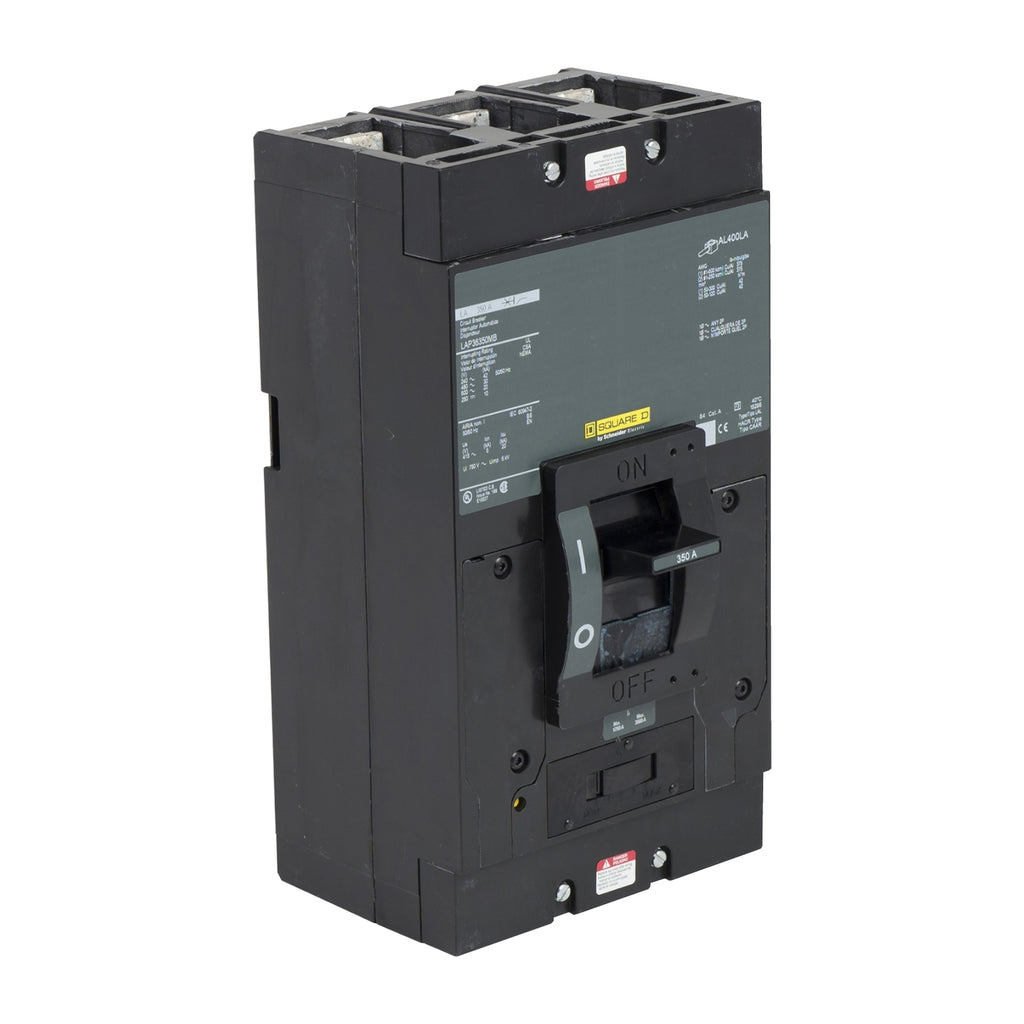

LAP36350MB is a Square D I-Line LAP series 3 pole molded case circuit breaker rated for 350A and 600VAC, designed for reliable protection in commercial and industrial power distribution systems. This unit mount circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, providing robust overload and short circuit protection. The LAP36350MB is built with a 400A frame and includes load side lugs for secure connections. It is suitable for use in I-Line busway systems and meets UL, CSA, and IEC standards for safety and performance.
- Manufacturer: Square D
- Series: I-Line LAP
- Amperage: 350A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Unit Mount
- Interrupting Rating: 22kA at 600VAC
- Frame Type: LAL (400A)
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Terminal Connection: Load Side Lug
- Certifications: UL, CSA, IEC, RoHS
Specifications
- Part Number: LAP36350MB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAP Series
- Type : LAP
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590153008
- GTIN : 00785901530084
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 15.659
- Certification : UL, CSA, IEC
