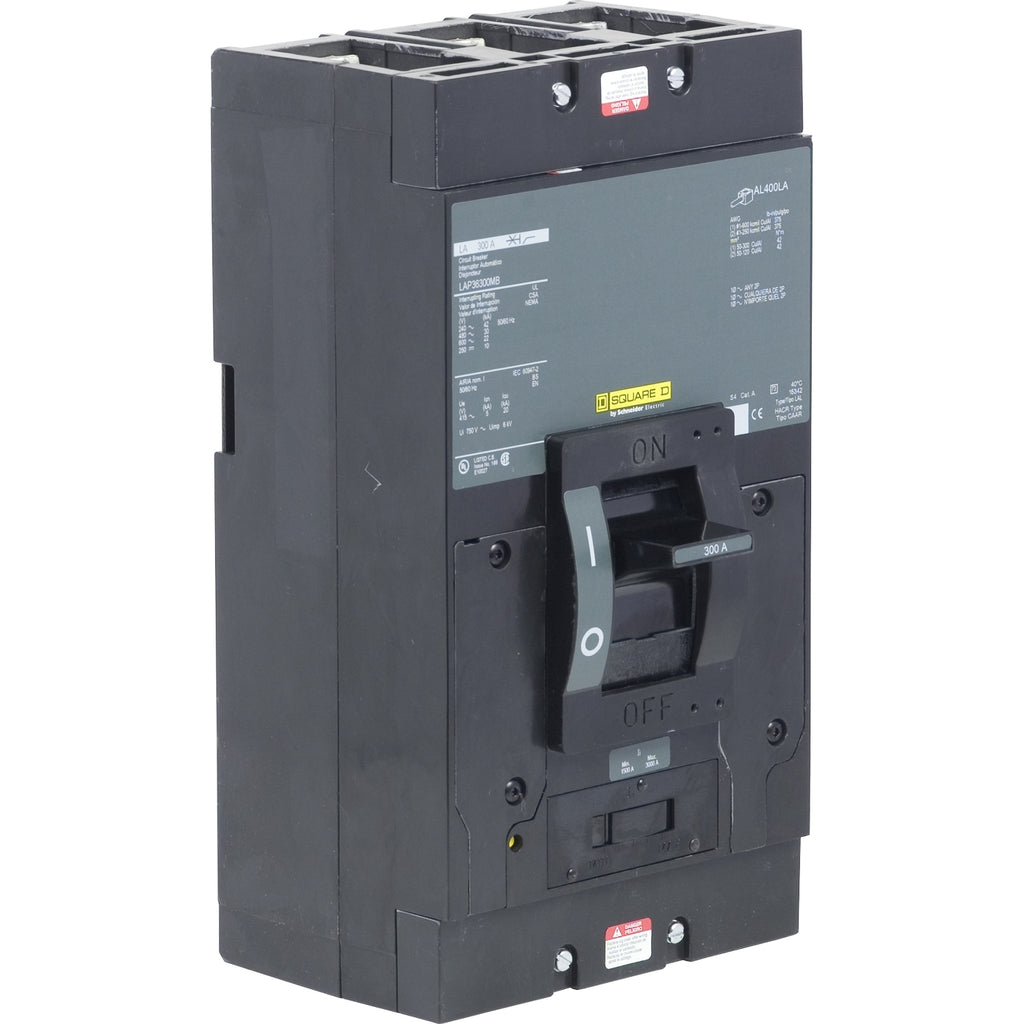

LAP36300V - Square D PowerPact 300A 3-Pole 600V Molded Case Circuit Breaker

LAP36300V

LAP36300V is a Square D PowerPact molded case circuit breaker designed for industrial power distribution applications. This 3-pole thermal magnetic circuit breaker features a 300 ampere current rating at 600 volts AC (250 volts DC) with a 22 kiloampere interrupting capacity. The unit mount configuration with long-time and instantaneous trip functions provides reliable protection for I-Line panelboards and switchboards.

• Amperage Rating: 300A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Interrupting Capacity: 22kA at 600VAC
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Mounting Type: Unit Mount
• Series: LA PowerPact
• Certifications: UL Listed, CSA Approved
• Application: I-Line Panelboard and Switchboard
• Connection: Lug terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAP36300V
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAP Series
• Type : LAP
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 20
