- Manufacturer:Schneider Electric
Description
LAL3640036MV1052

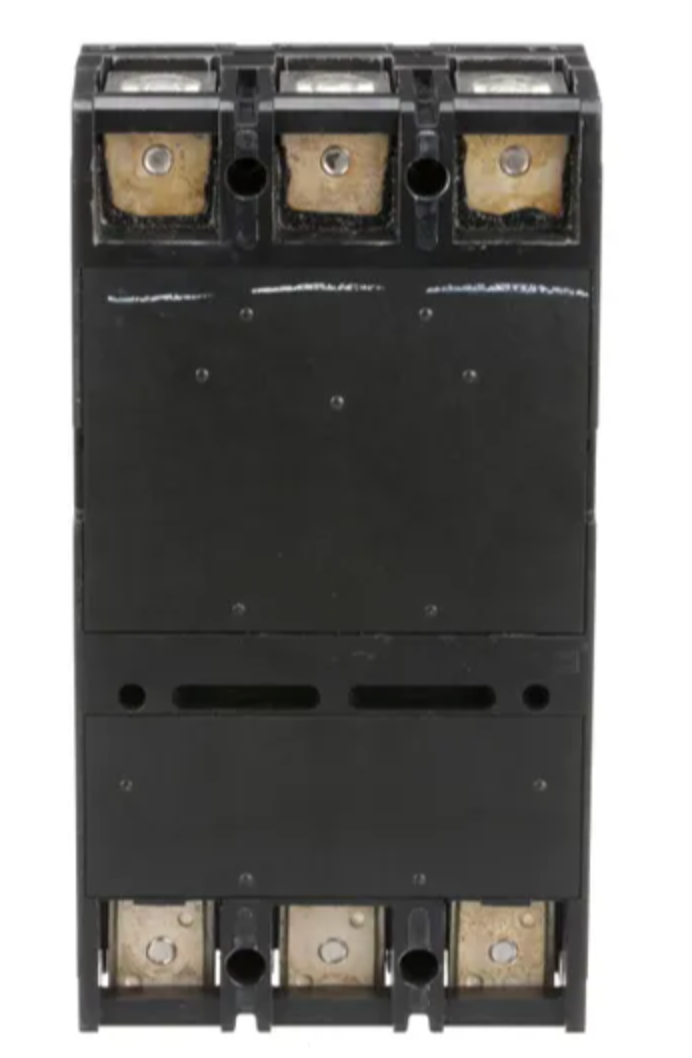

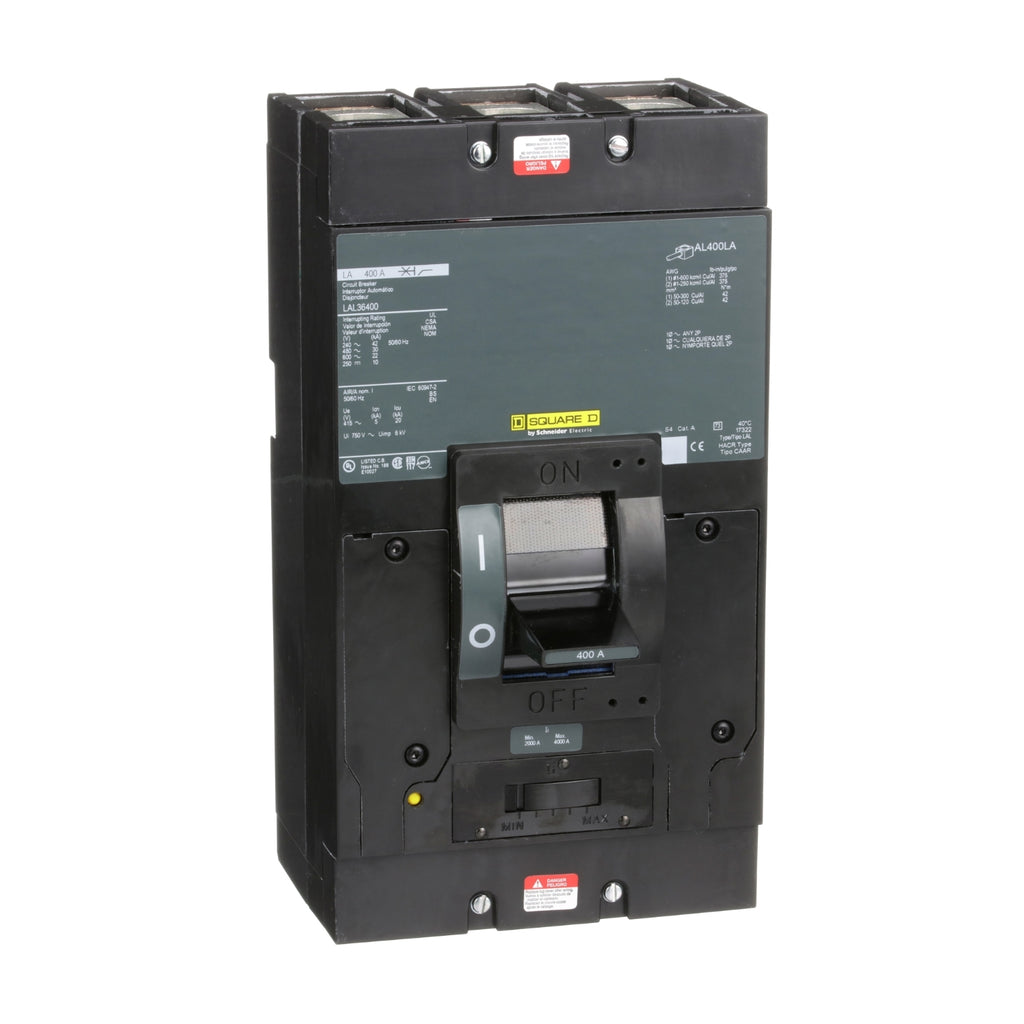

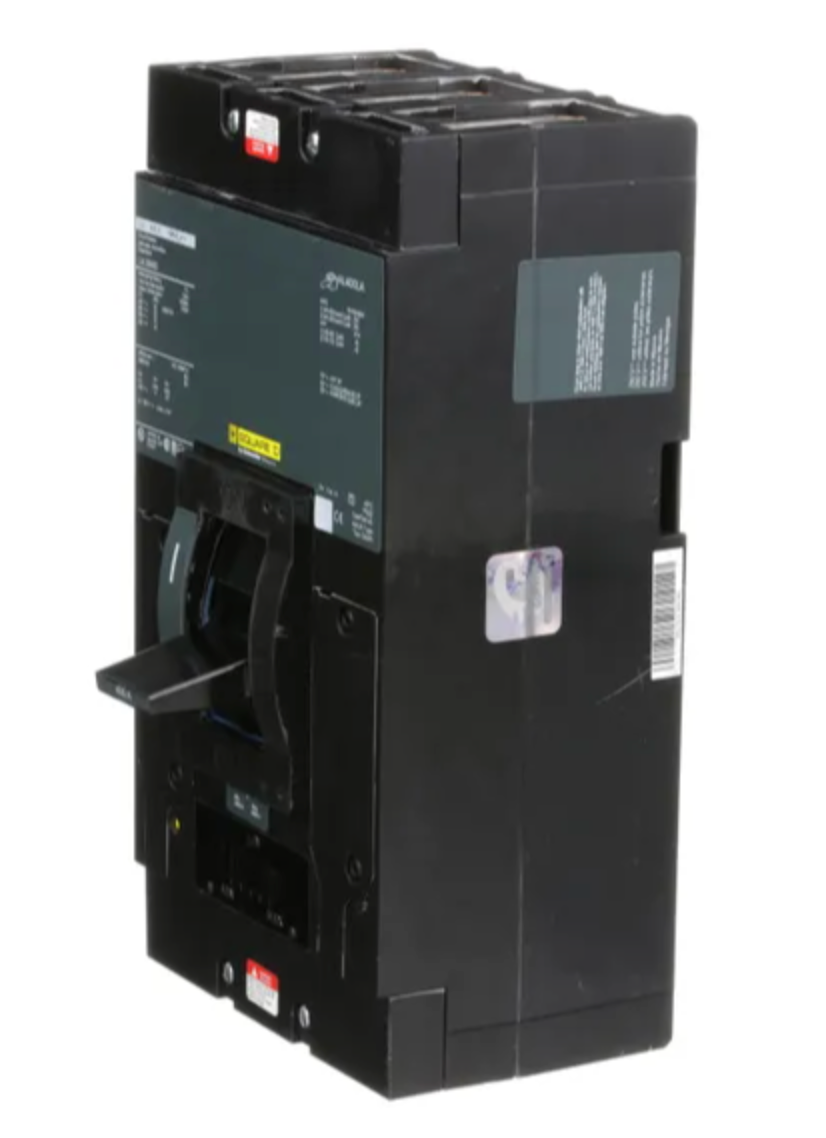

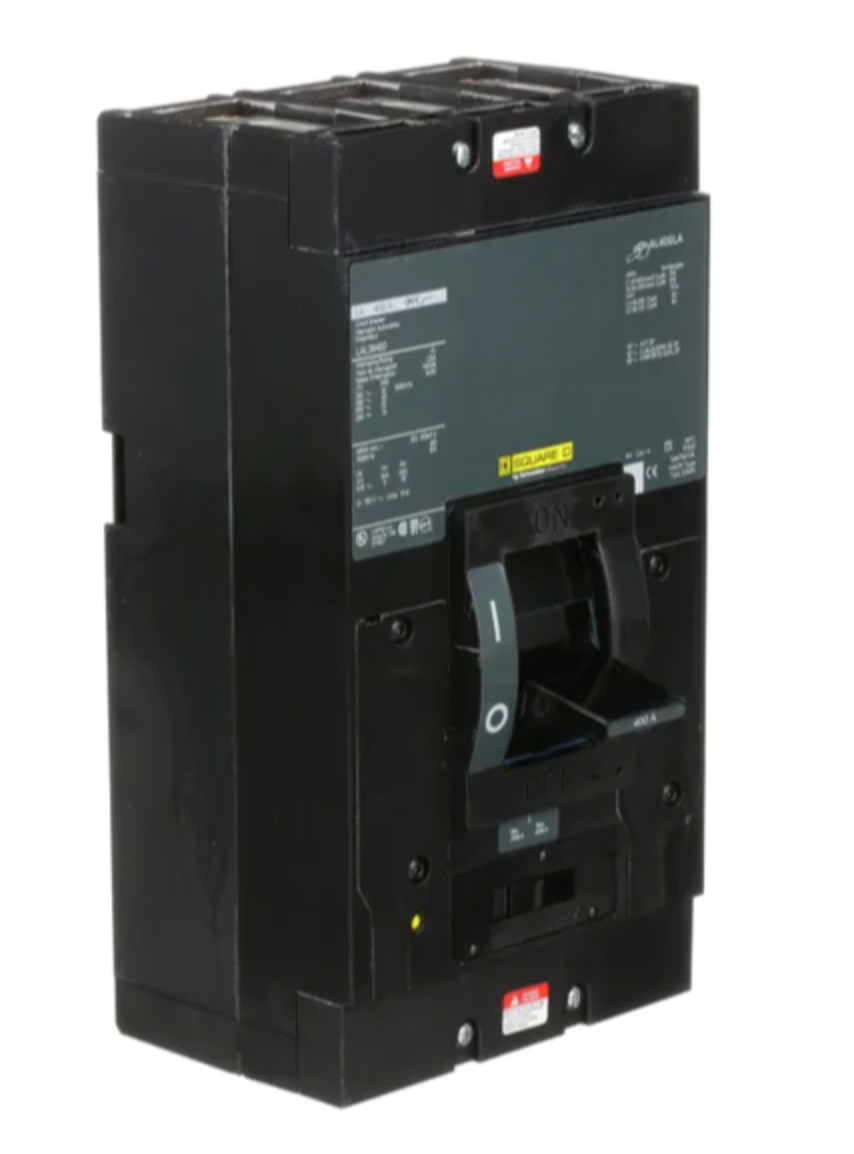

LAL3640036MV1052 is a Square D 400 Amp, 600 Volt AC, 3-pole thermal magnetic molded case circuit breaker with I-Line plug-in mounting.This circuit breaker features a thermal-magnetic trip unit providing reliable overload and short circuit protection. It is designed for industrial and commercial power distribution with a 3-pole configuration and 400 Amp rating. The breaker supports 600VAC and 250VDC operation, has a 22kA interrupting rating at 600VAC and 10kA at 250VDC, and mounts via I-Line style plug-in connection. It includes load side lug terminals and meets UL, CSA, and IEC certifications.
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: I-Line plug-in
- Interrupt Rating: 22kA at 600VAC, 10kA at 250VDC
- Frame Type: LA / J-Frame
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Connection: Load side lugs
- Standards: UL 489, CSA, IEC certified
- Dimensions: 11" H x 6" W x 5.84" D
- Weight: Approx. 18.9 lbs
Specifications
- Part Number: LAL3640036MV1052
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Country of Origin : United States
- Weight : 18
