Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL363501212

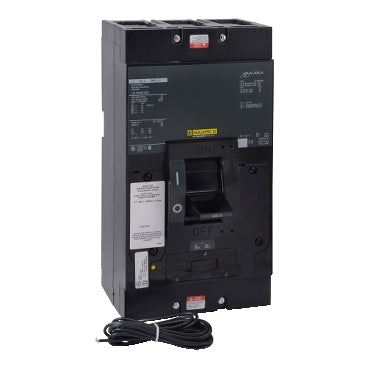

LAL363501212 is a 3 pole, 350 amp, 600 volt thermal magnetic molded case circuit breaker from Square D's LAL series.This circuit breaker features a feed-thru mounting type with line and load side lug terminals. It offers a 30kA interrupting rating at 480V and includes LI (long-time and instantaneous) trip functions for reliable protection. The breaker is UL, CSA, and IEC approved and meets RoHS and HACR standards. It also includes an auxiliary switch for enhanced control.
- Manufacturer: Square D
- Series: LAL
- Amperage: 350A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Feed-Thru Unit
- Interrupting Rating: 30kAIC at 480V
- Trip Functions: LI - Long-Time and Instantaneous
- Protection Type: Thermal Magnetic
- Terminal Connection: Line and Load Side Lug
- Approvals: UL, CSA, IEC
- Standards: RoHS, HACR
Specifications
- Part Number: LAL363501212
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901334866
- GTIN : 00785901334866
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 20
- Certification : Ul (Listed) Csa (Certified) Ce (Marked)
