Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL36300V

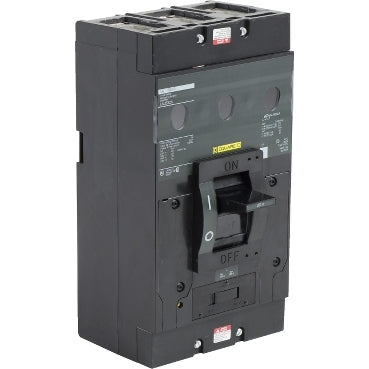

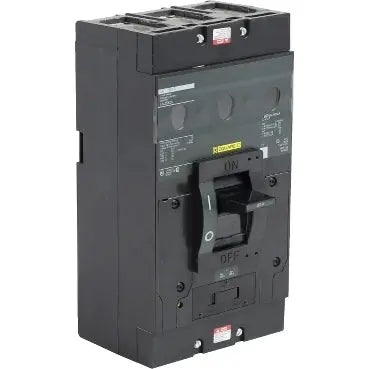

LAL36300V is a Square D 3 pole molded case circuit breaker rated for 300 amps and 600 volts AC with bolt-on mounting.
This thermal magnetic circuit breaker is designed for reliable protection in electrical distribution systems. It features a 3 pole configuration suitable for three-phase applications, with a maximum voltage rating of 600VAC and 250VDC. The breaker has an interrupt rating of 22kA at 600VAC and 10kA at 250VDC, ensuring safe interruption of fault currents. It is UL Listed, IEC and CSA certified, and HACR rated for HVAC applications.
- Key Specifications
- Amperage: 300A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA @ 600VAC, 10kA @ 250VDC
- Trip Unit: Thermal Magnetic
- Series/Frame: LA
- Certifications: UL Listed, IEC, CSA
- HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LAL36300V
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590135832
- GTIN : 00785901358329
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 16.2
