Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LAL36250V

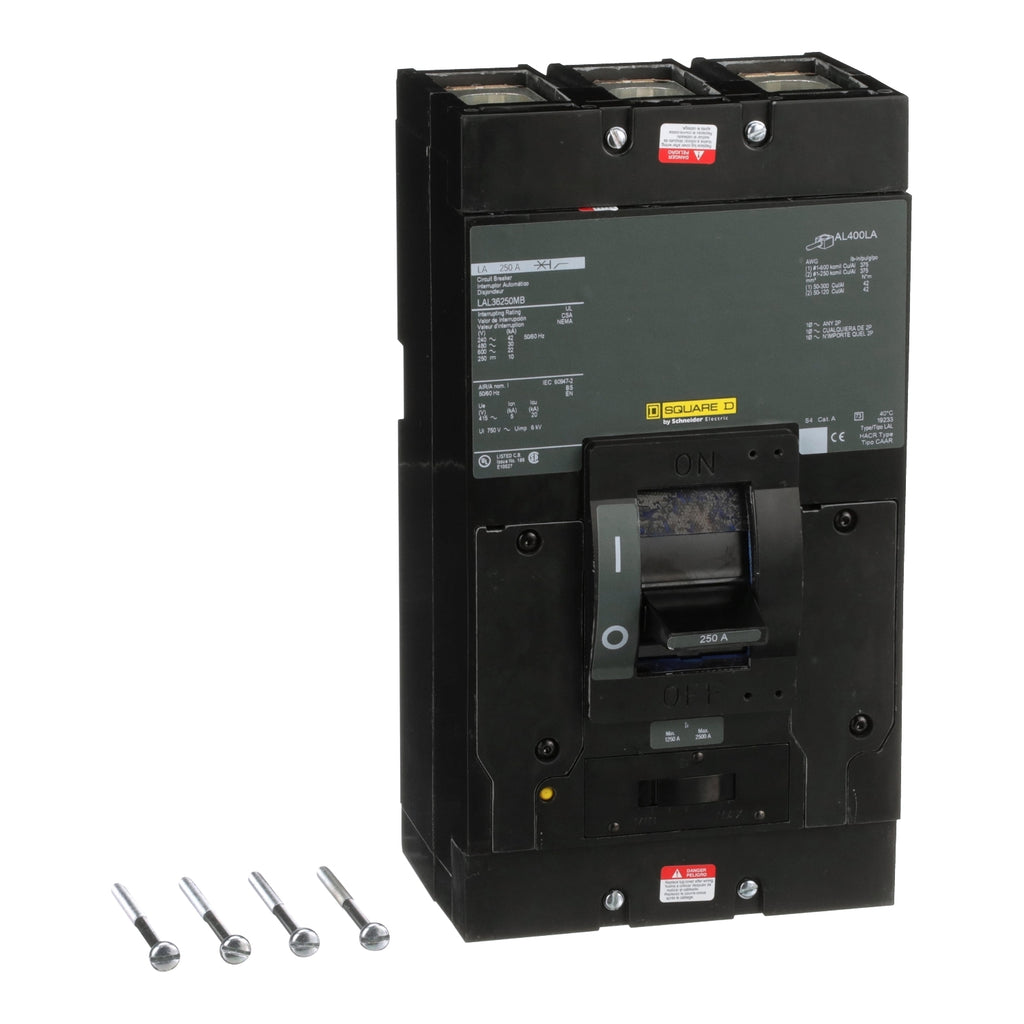

LAL36250V is a Square D 250 Amp, 600 Volt, 3-Pole molded case circuit breaker designed for reliable circuit protection.This Square D LAL Series circuit breaker features a J-Frame design with thermal-magnetic trip technology, providing long-time and instantaneous trip functions. It supports a 3-phase connection with feed-thru lugs on both line and load sides, suitable for unit mount applications. The breaker has an interrupt rating of 30kA at 480V and is rated for use up to 600V AC and 250V DC.
- Key Specifications
- Amperage: 250 Amp
- Voltage: 600 Volt AC / 250 Volt DC
- Poles: 3
- Frame Type: J-Frame
- Trip Unit Technology: Thermal Magnetic
- Mounting Mode: Unit Mount
- Interrupt Rating: 30kA @ 480V AC
- Connection Type: Feed-Thru Lugs (Line and Load)
- Trip Functions: Long-Time and Instantaneous (LI)
- Part Number: LAL36250V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
- Weight : 20
