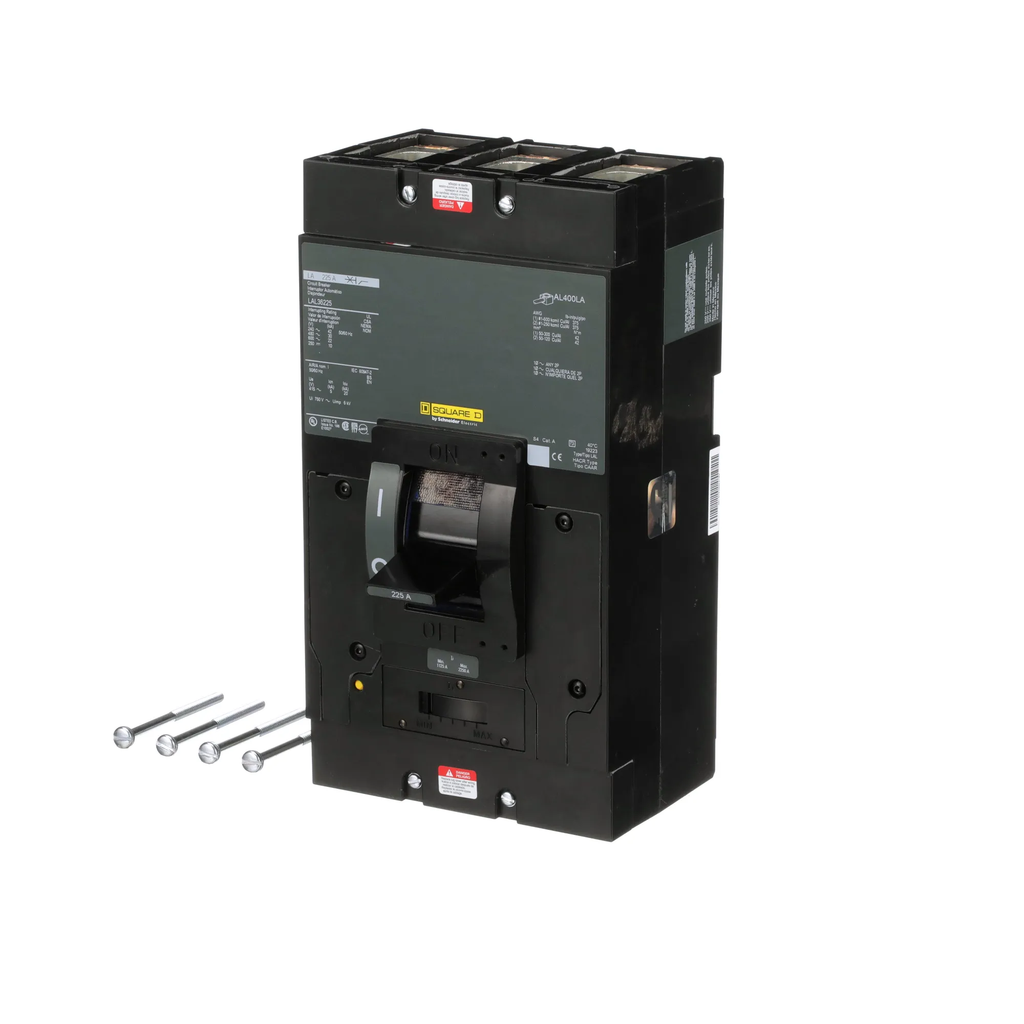

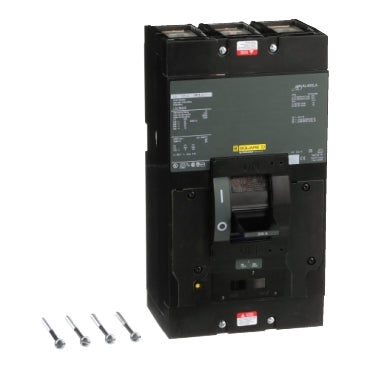

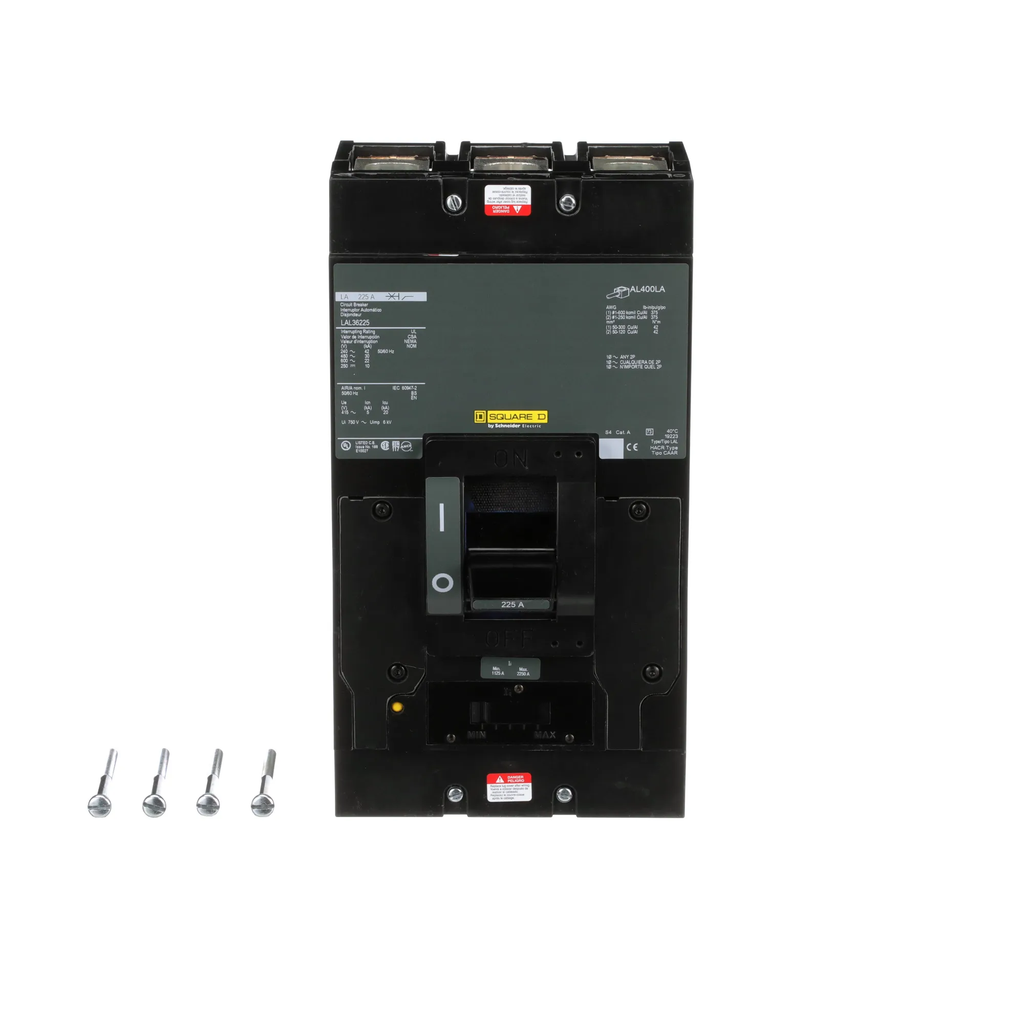

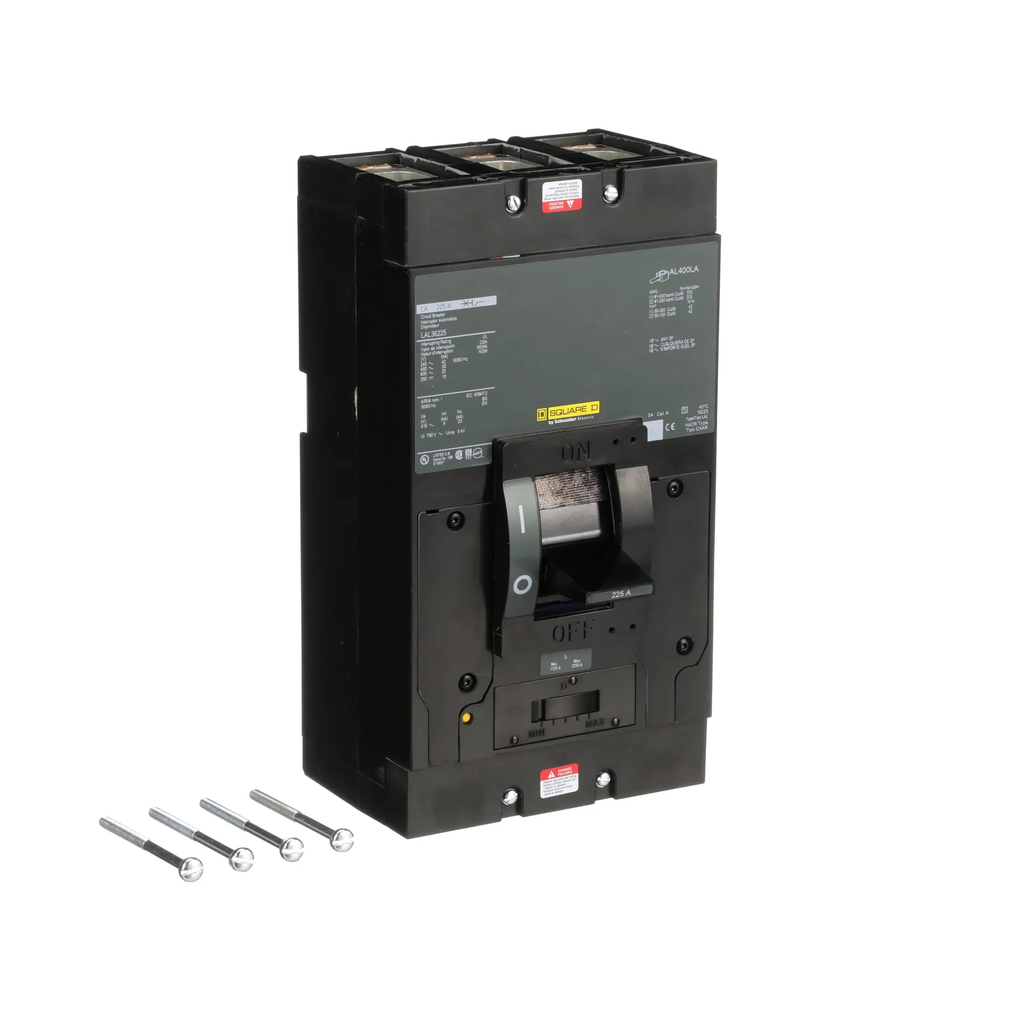

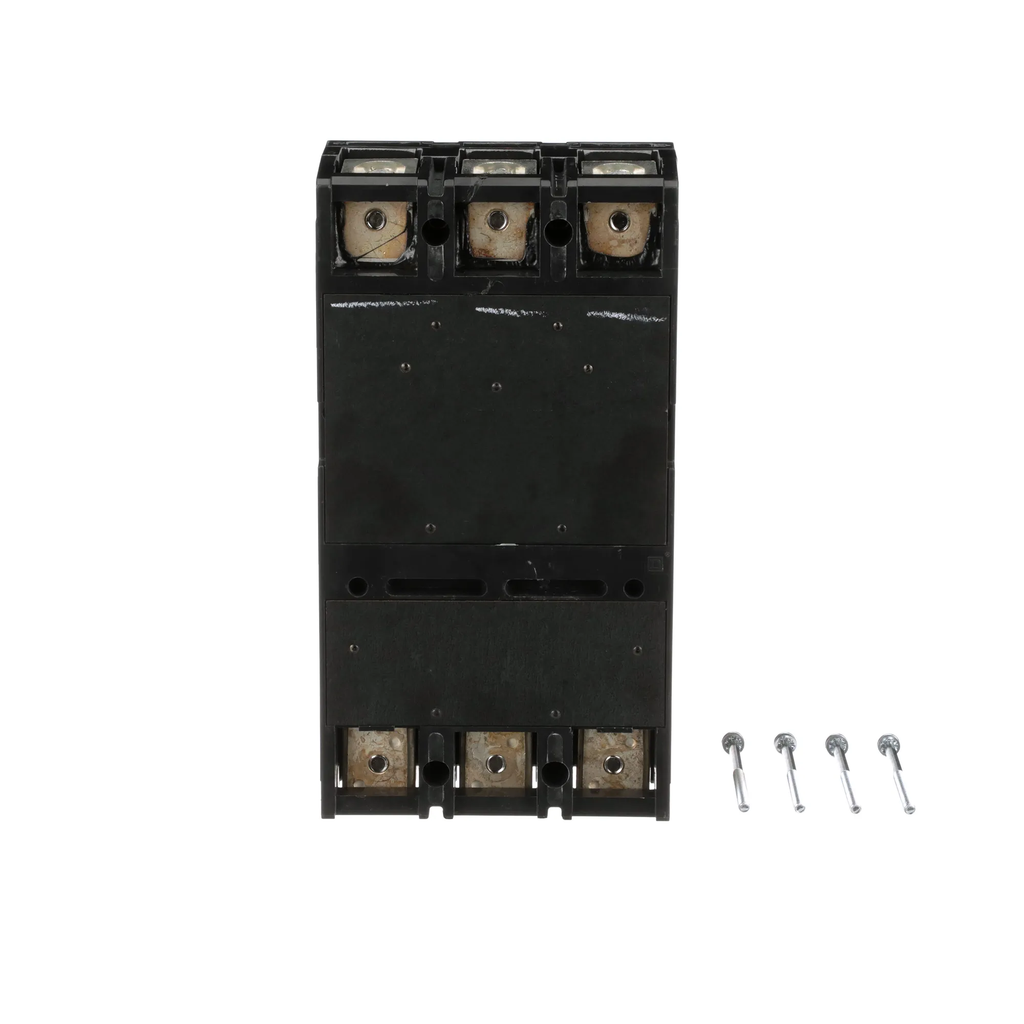

LAL36225 - Square D 225A 3 Pole 600V Molded Case Circuit Breaker Thermal Magnetic

LAL36225

LAL36225 is a 3 pole, 225A, 600V molded case circuit breaker from Square D, designed for reliable thermal magnetic protection in commercial and industrial applications. This Square D LAL36225 circuit breaker features a 22kA interrupting rating at 600VAC, 10kA at 250VDC, unit mount design, and includes both line and load side lugs. It is UL, CSA, and CE certified for safety and compliance in demanding electrical environments.

• Part Number: LAL36225
• Manufacturer: Square D
• Series/Frame: LAL
• Amperage: 225A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 22kA @ 600VAC, 10kA @ 250VDC
• Trip Unit: Thermal Magnetic
• Features: Manual Trip, Line & Load Lugs
• Certifications: UL Listed, CSA, CE
• Application: Commercial, Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901009818
• GTIN : 00785901009818
• Country of Origin : Mexico

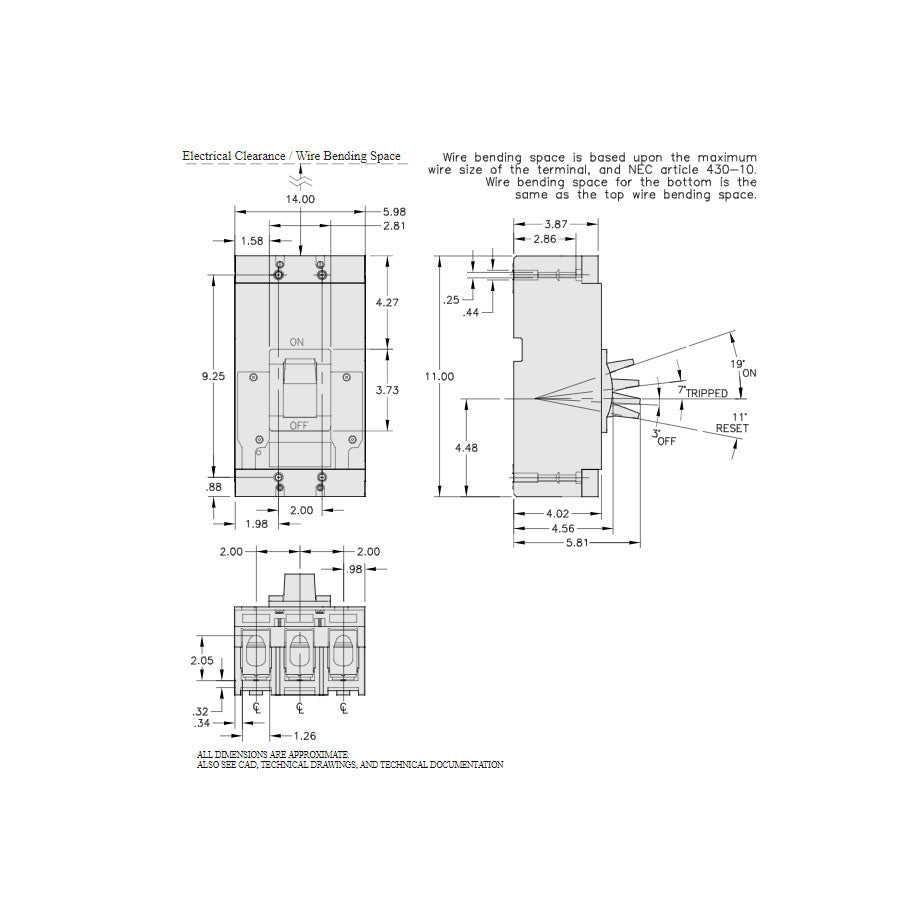

• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.38
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
