Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LAL36200V

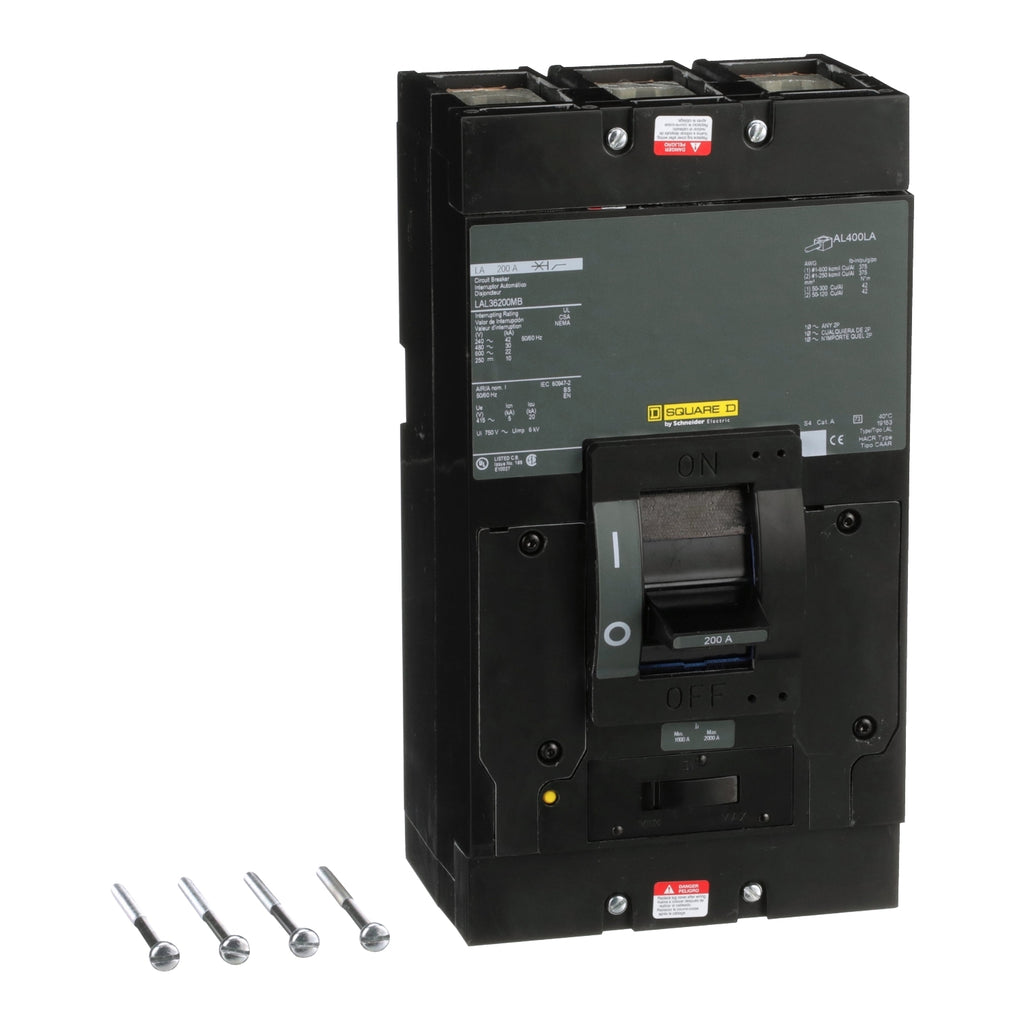

LAL36200V is a 3 pole thermal magnetic molded case circuit breaker manufactured by Square D with a rated current of 200 amperes and voltage rating of 600VAC, 250VDC. This LAL series circuit breaker provides reliable protection for overload and short circuit conditions with thermal sensing for overload detection and magnetic sensing for short circuit protection in each pole. The breaker features feed-thru construction with line and load side lug terminals, long-time and instantaneous trip functions, and flexible mounting options including unit mount and I-Line construction. Push-to-trip capability allows manual circuit opening without exposure to live parts.
- Part Number: LAL36200V
- Manufacturer: Square D by Schneider Electric
- Series: LAL
- Amperage: 200A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Phase: 3
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
- Mounting Type: Bolt-On, Unit Mount
- Certifications: UL Listed, CE and CSA Certified
- Dimensions: 11 inches H x 6 inches W x 5.84 inches D
- Terminal Connection: Line and Load Lugs
Specifications
- Part Number: LAL36200V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
