Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL36200MB

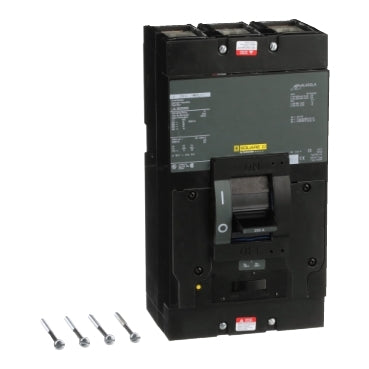

LAL36200MB is a 3 pole, 200A, 600V molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Square D LAL36200MB breaker features a thermal magnetic trip unit, bolt-on mounting, and is rated for 30kA interrupting capacity at 480V. It is suitable for use in panelboards and switchgear requiring high performance and safety.
- Part Number: LAL36200MB
- Manufacturer: Square D
- Amperage: 200A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting: Bolt-On
- Interrupt Rating: 30kA @ 480V
- Series/Frame: LAL
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
- Width: 6 inches
- Depth: 5.84 inches
Specifications
- Part Number: LAL36200MB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : L Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901823933
- GTIN : 00785901823933
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 16.18
- Standards : CSA, IEC, UL Listed
- Certification : CSA, IEC, UL Listed
