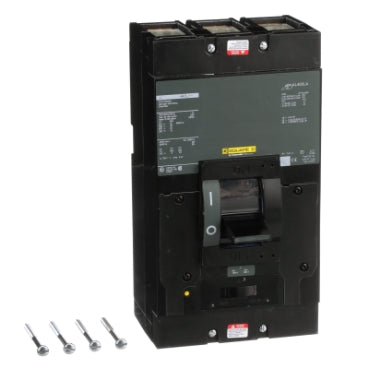

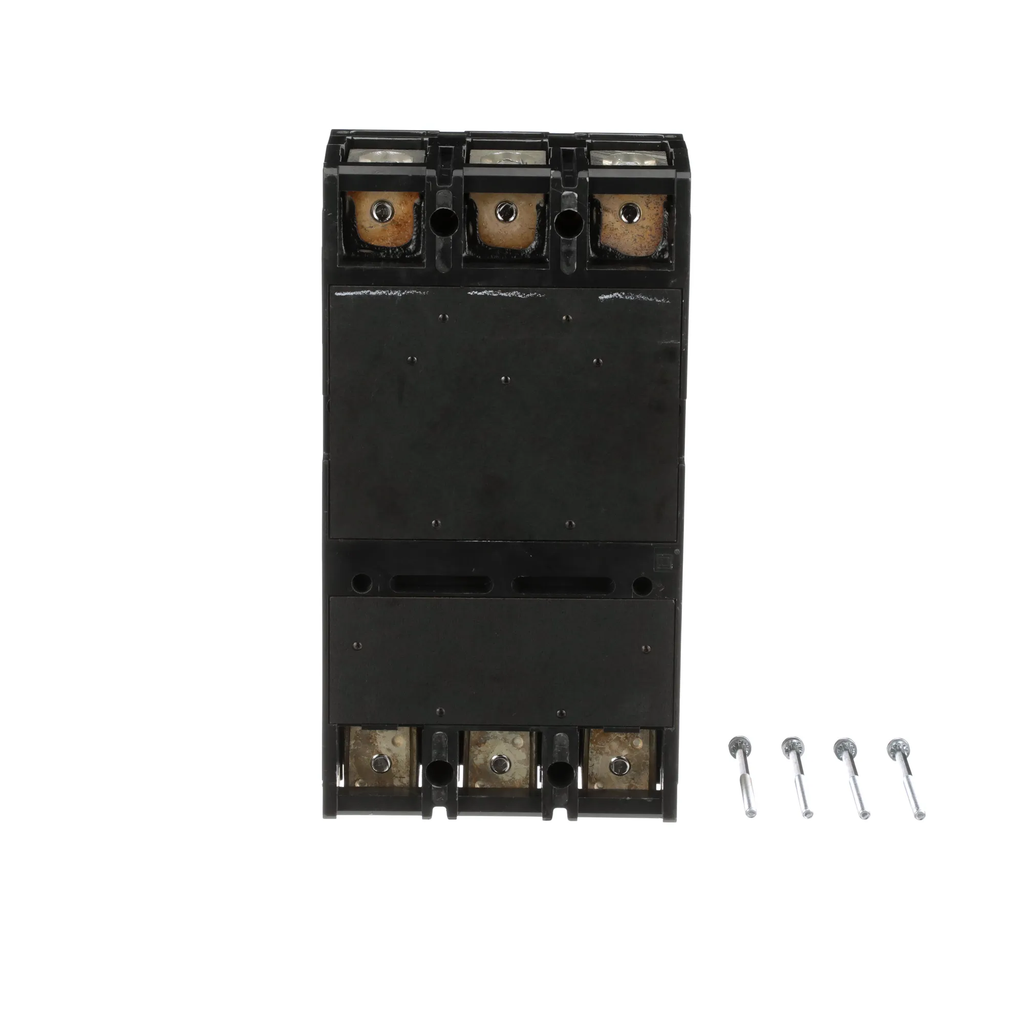

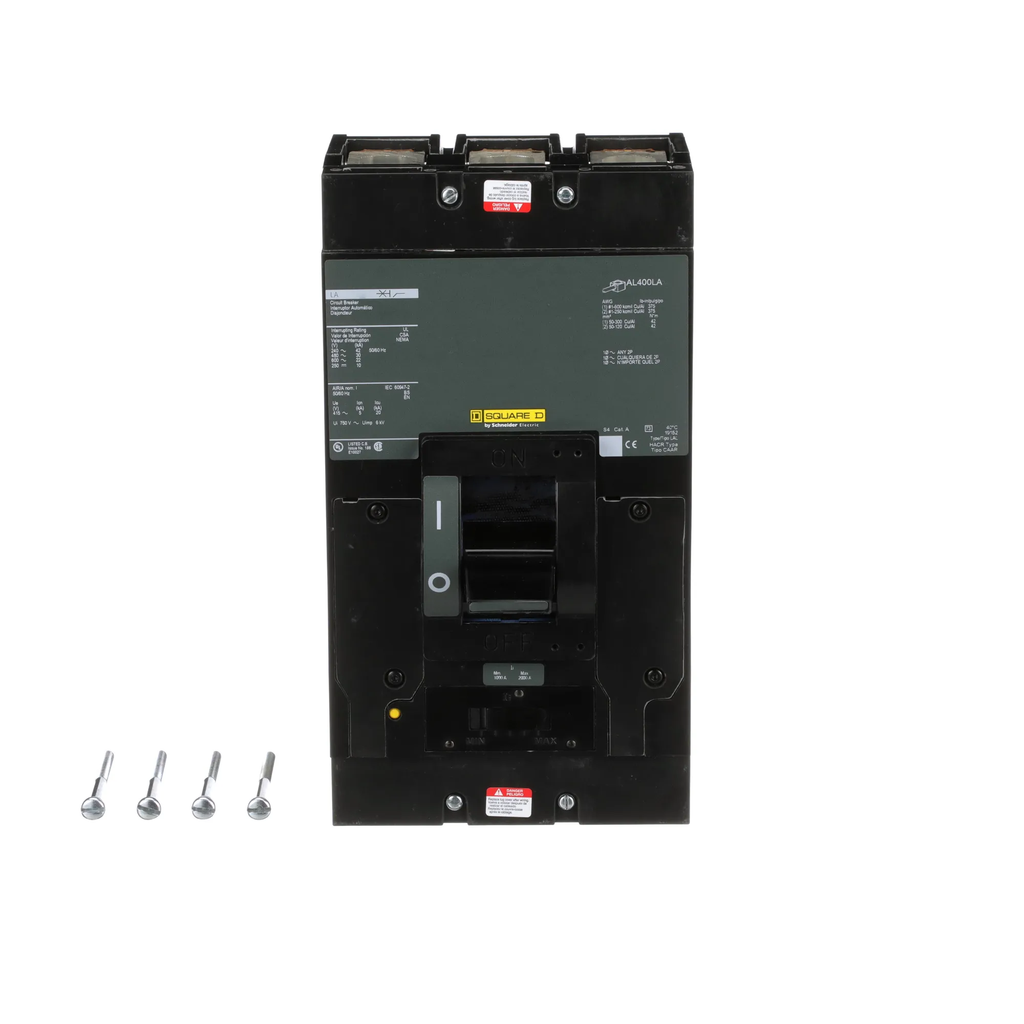

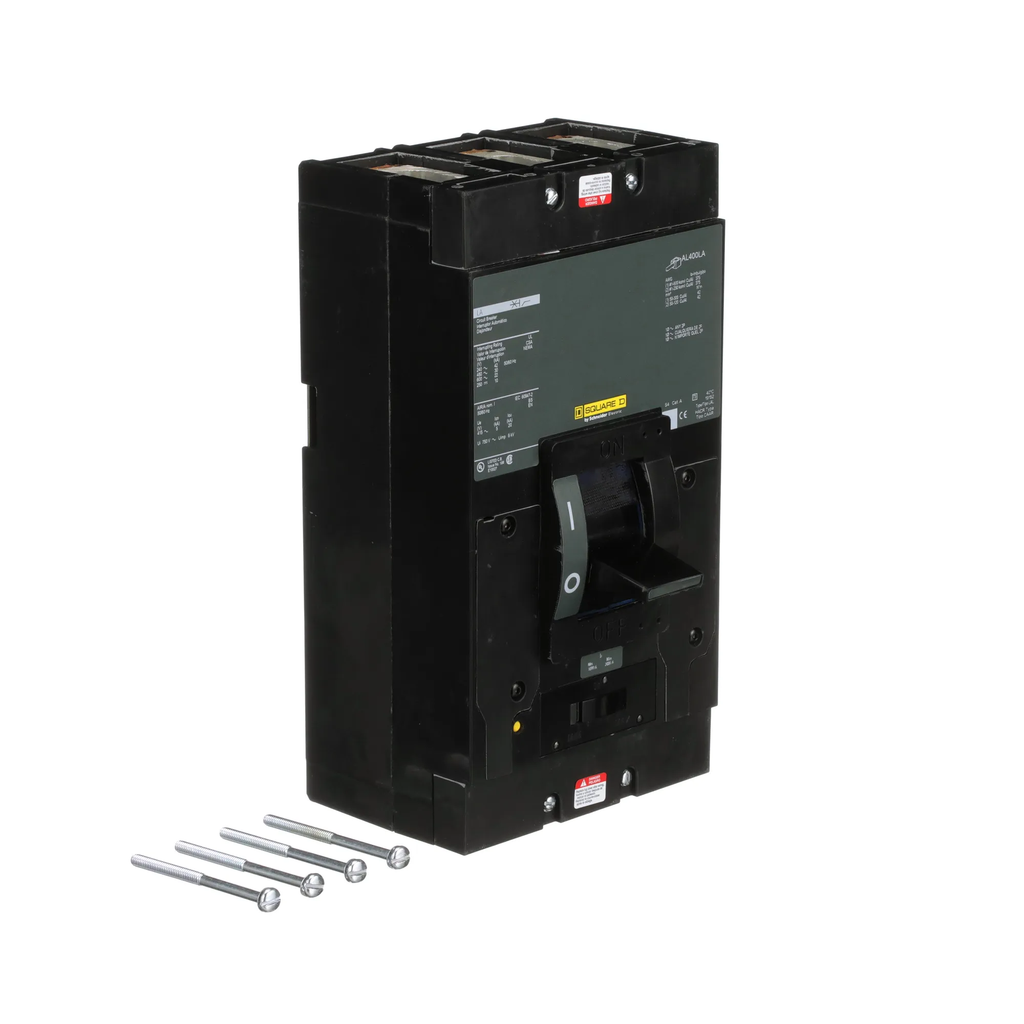

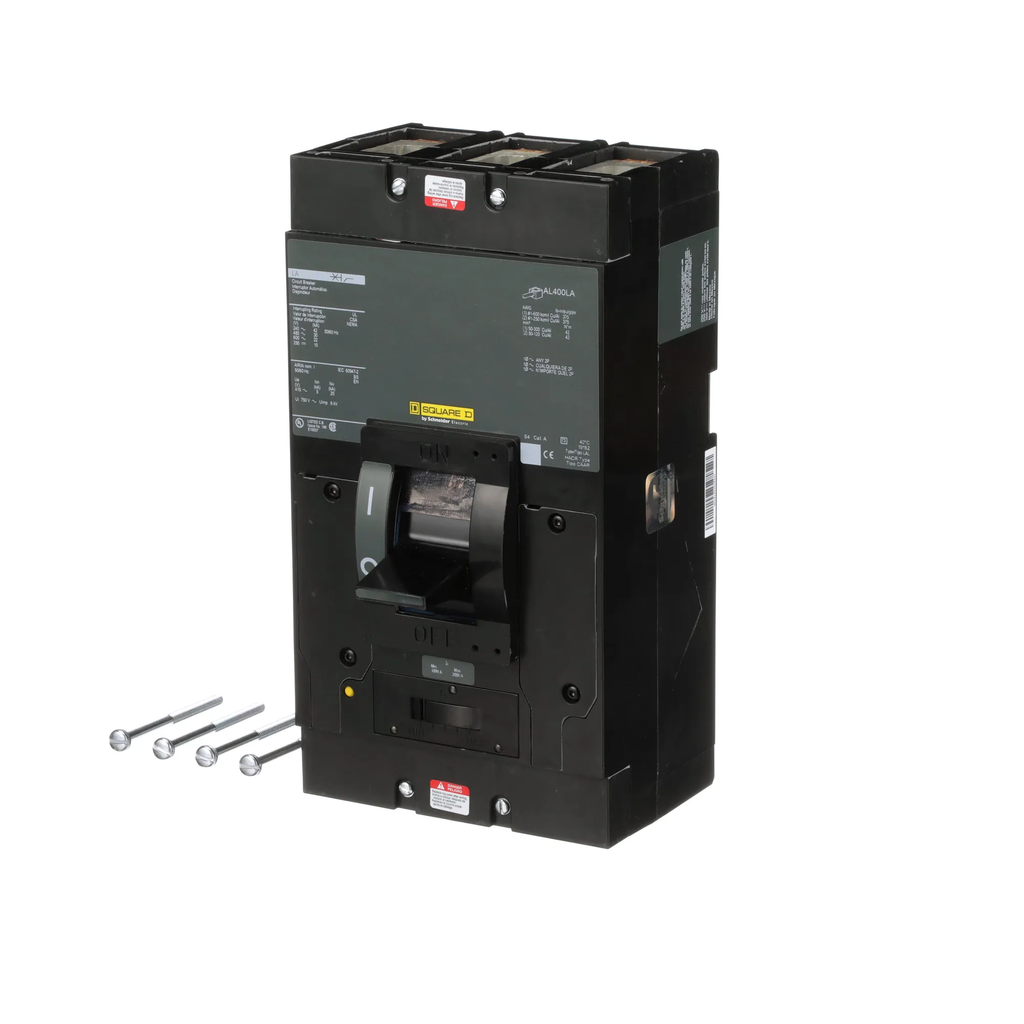

LAL36150 - Square D 150A 600V 3-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

LAL36150

LAL36150 is a Square D 150 Amp 3-Pole Molded Case Circuit Breaker designed for reliable circuit protection in industrial and commercial applications.This circuit breaker features a thermal magnetic trip unit with adjustable settings, suitable for 600 VAC and 250 VDC systems. It has a 3-pole configuration with a 22 kA interrupt rating at 600 VAC and is built on the LA frame with unit mounting and line/load lug connections. The breaker supports NEMA 1/3R/4/4X/5/12 enclosures and is rated for use in 50/60 Hz systems.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Interrupt Rating: 22 kA at 600 VAC, 30 kA at 480 VAC, 42 kA at 240 VAC
• Trip Unit: Thermal Magnetic, Adjustable
• Frame: LA
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lug
• Enclosure Compatibility: NEMA 1/3R/4/4X/5/12
• Frequency: 50/60 Hz
• Actuator Type: Rotary Handle

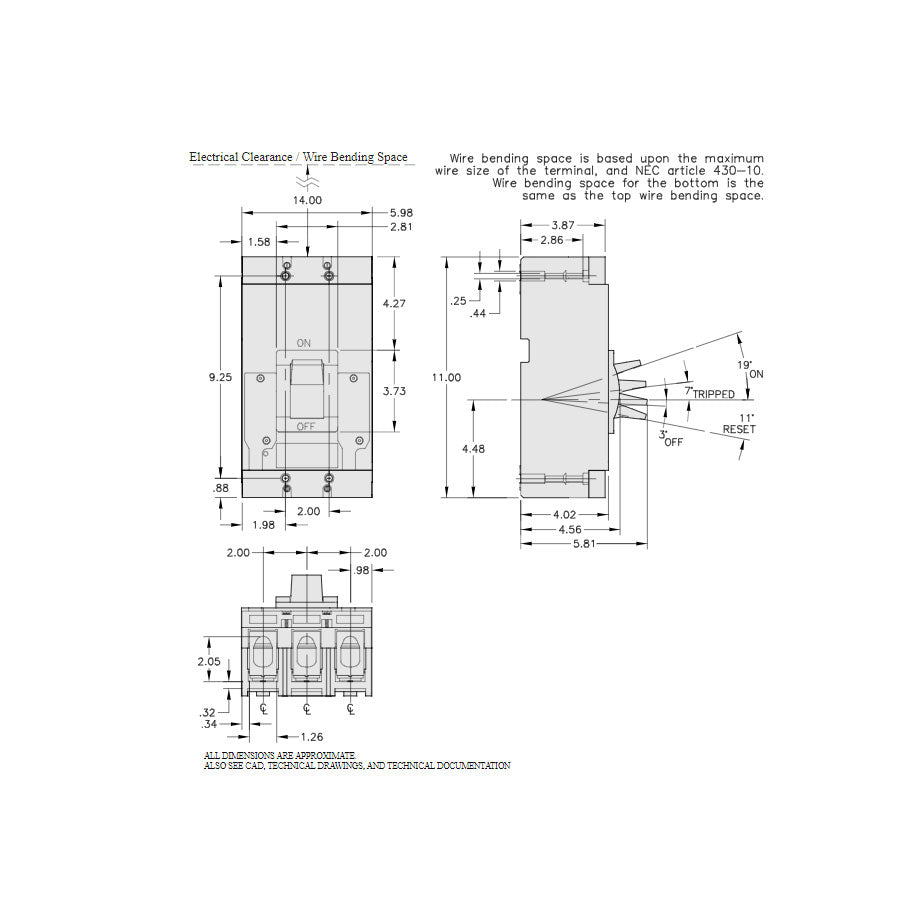

• Dimensions: Approx. 5.84 in L x 6 in W x 11 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901563228
• GTIN : 00785901563228
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 15.906
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL listed
• Certification : CSA, IEC, UL listed
