Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

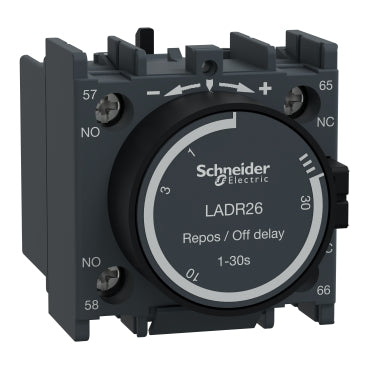

LADR26
LADR26 is a time delay auxiliary contact block designed for TeSys D contactors, providing 1NO + 1NC contacts with off-delay timing from 1 to 30 seconds. LADR26 integrates seamlessly with industrial motor control applications and HVAC systems, offering front-mounted clip-on installation with lugs-ring terminal connections for reliable electrical integration. This auxiliary contact block delivers rated operational performance at 690 V AC (25-400 Hz) with a 10 A contact rating at 140 degrees Fahrenheit (60 degrees Celsius). The unit features modern industrial design, multi-standard screw compatibility, IEC60335-1 compliance, improved fire resistance, and dustproof auxiliary contacts for demanding environments.
- Contact Configuration: 1NO + 1NC
- Time Delay Type: Off-delay
- Time Delay Range: 1 to 30 seconds
- Rated Operational Voltage: 690 V AC, 25-400 Hz
- Rated Operational Current: 10 A at 140 degrees Fahrenheit
- Mounting Style: Front clip-on
- Terminal Type: Lugs-ring terminals
- Series: TeSys D
- Compliance: IEC60335-1, IEC 60947-5-1
- Operating Temperature Range: 23 to 140 degrees Fahrenheit (-5 to 60 degrees Celsius)
Specifications
- Part Number: LADR26
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Aux Contacts : 1 NO + 1 NC
Product Data
- UPC : 38911082186
- GTIN : 03389110821864
- Country of Origin : France
- Dimensions : 1.9 in (48 mm) x 1.7 in (44 mm) x 2.4 in (61 mm) (Height x Width x Depth)
- Weight : 0.163
