Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

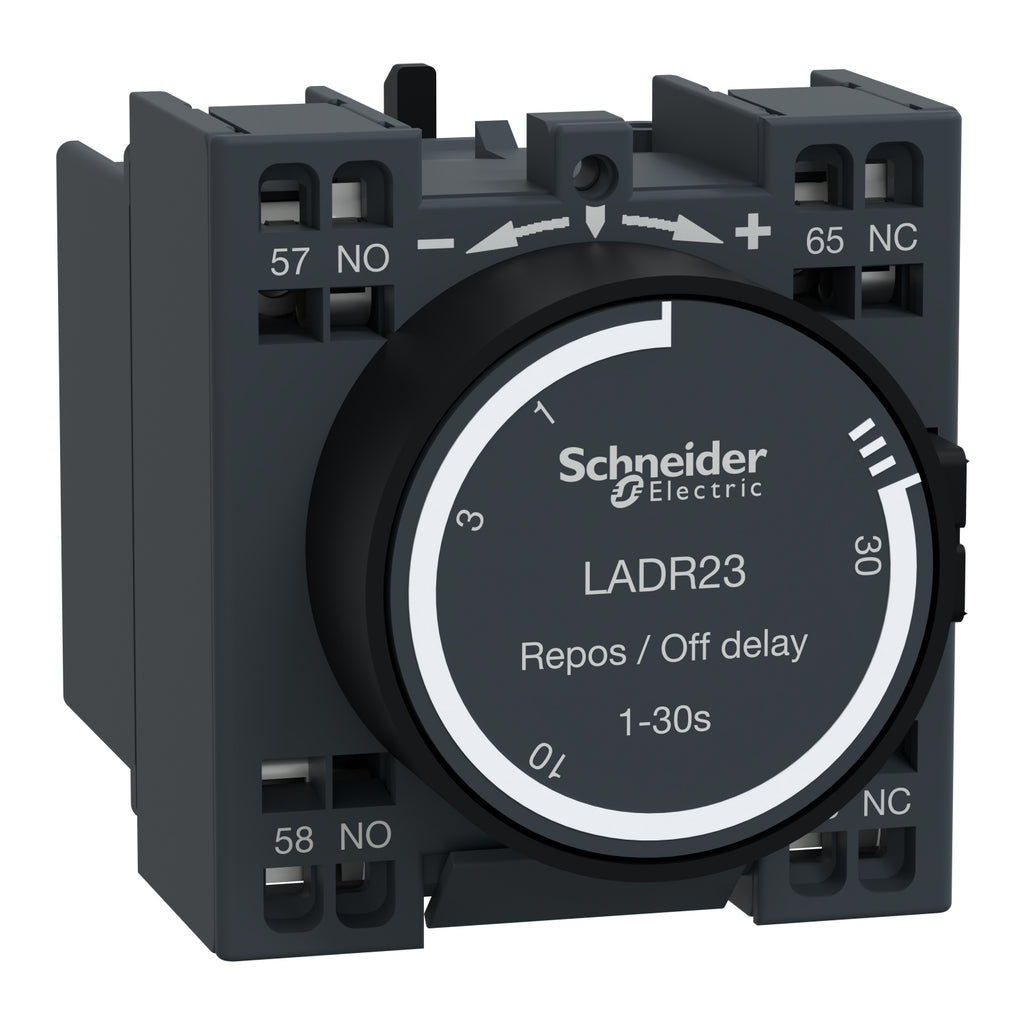

LADR23
LADR23 is a time delay auxiliary contact block designed for use with TeSys D control relays and contactors. This device features 1NO+1NC contacts and provides off-delay timing from 1 to 30 seconds, making it ideal for industrial and HVAC applications requiring precise control. The LADR23 offers front mounting with spring terminals for easy installation and reliable connections. It is rated for 10 A and 690 V AC, supporting a wide range of control circuit requirements. The robust design ensures long service life with up to 5,000,000 operating cycles and reliable performance in demanding environments.
- Part Number: LADR23
- Manufacturer: Schneider Electric
- Series: TeSys D
- Type: Time Delay Auxiliary Contact Block
- Contacts: 1NO + 1NC
- Amperage Rating: 10 A
- Voltage Rating: 690 V AC
- Mounting Type: Front
- Terminal Type: Spring Terminals
- Time Delay: Off Delay 1-30 s
- Operating Cycles: 5,000,000
- Operating Temperature: -40 to 158 °F
Specifications
- Part Number: LADR23
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Configuration : Time delay
- Aux Contacts : 1 NO + 1 NC
Product Data
- UPC : 038911082176
- GTIN : 03389110821765
- Country of Origin : France
- Dimensions : 1.9 in (48 mm) x 1.7 in (44 mm) x 2.4 in (61 mm) (Height x Width x Depth)
- Weight : 0.169
- Certification : CB;UL;CSA;CCC;EAC;UKCA;GB/T 14048.5;EN/IEC 60947-5-1
