LADN40 - Telemecanique TeSys D Auxiliary Contact Block, 4NO, 10A, 690V, Front Mount, Screw Clamp Terminals, for LC1D09 to LC1D150 Contactors

LADN40

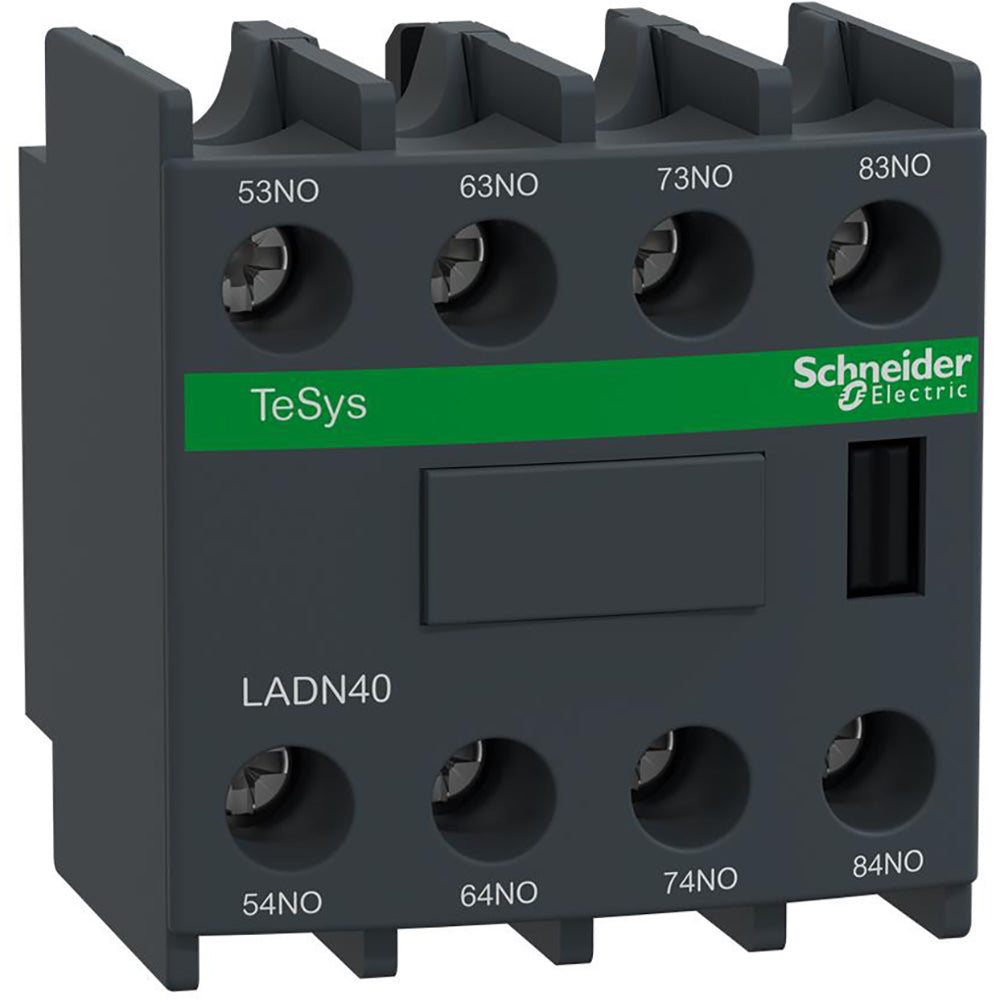

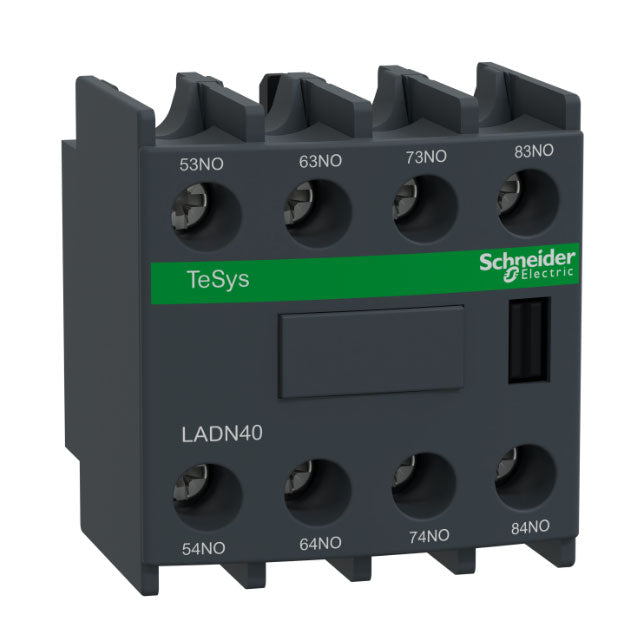

LADN40 is a Telemecanique TeSys D auxiliary contact block designed for industrial motor control applications.

This 4-pole, normally open (4NO) contact block features screw clamp terminals and front mounting compatibility with LC1D09 to LC1D150 contactors. It is rated for up to 10A thermal current and 690V, making it suitable for a wide range of industrial and HVAC applications. The LADN40 offers reliable performance, easy installation, and meets international safety and environmental standards.

Key Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Series/Frame: TeSys D (LC1D09 to LC1D150)
• Contact Configuration: 4 Normally Open (4NO)
• Amperage: 10A thermal current
• Voltage: 690V AC
• Mounting Type: Front (top) mount
• Terminals: Screw clamp
• Interrupt Rating: 140A making capacity
• Certifications: CSA, UL, IEC 60947-5-1, EN 60947-5-1, VDE 0660, NF C 63-140, BS 4794
• Environmental: RoHS compliant, IP2x protection
• Operating Temperature: -5 to 60°C
• Mechanical Durability: 30 million cycles
• Insulation Resistance: >10 MΩ

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADN40
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : TeSys D
• Type : LADN
• Voltage : 690 AC
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : 4NO
• Aux Contacts : 4 NO

Product Data

• UPC : 785901213727
• GTIN : 03389110384437
• Country of Origin : Czechia

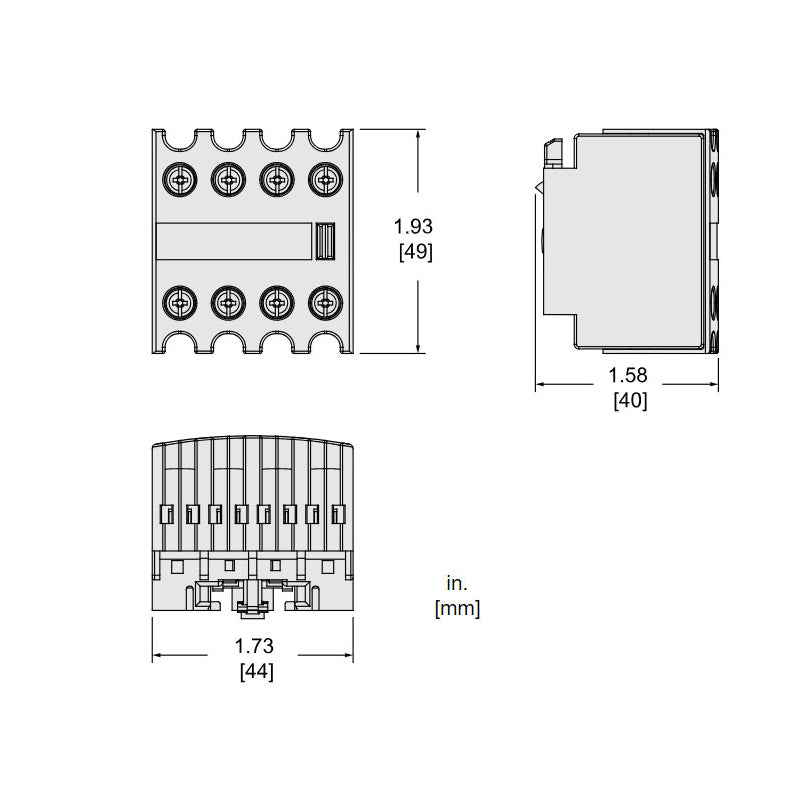

• Dimensions : 1.9 in (48 mm) x 1.7 in (44 mm) x 1.7 in (42 mm) (Height x Width x Depth)
• Weight : 0.137
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012, CB, CCC, EAC, UKCA
