Product Info
- Manufacturer:Telemecanique
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
LADN31C

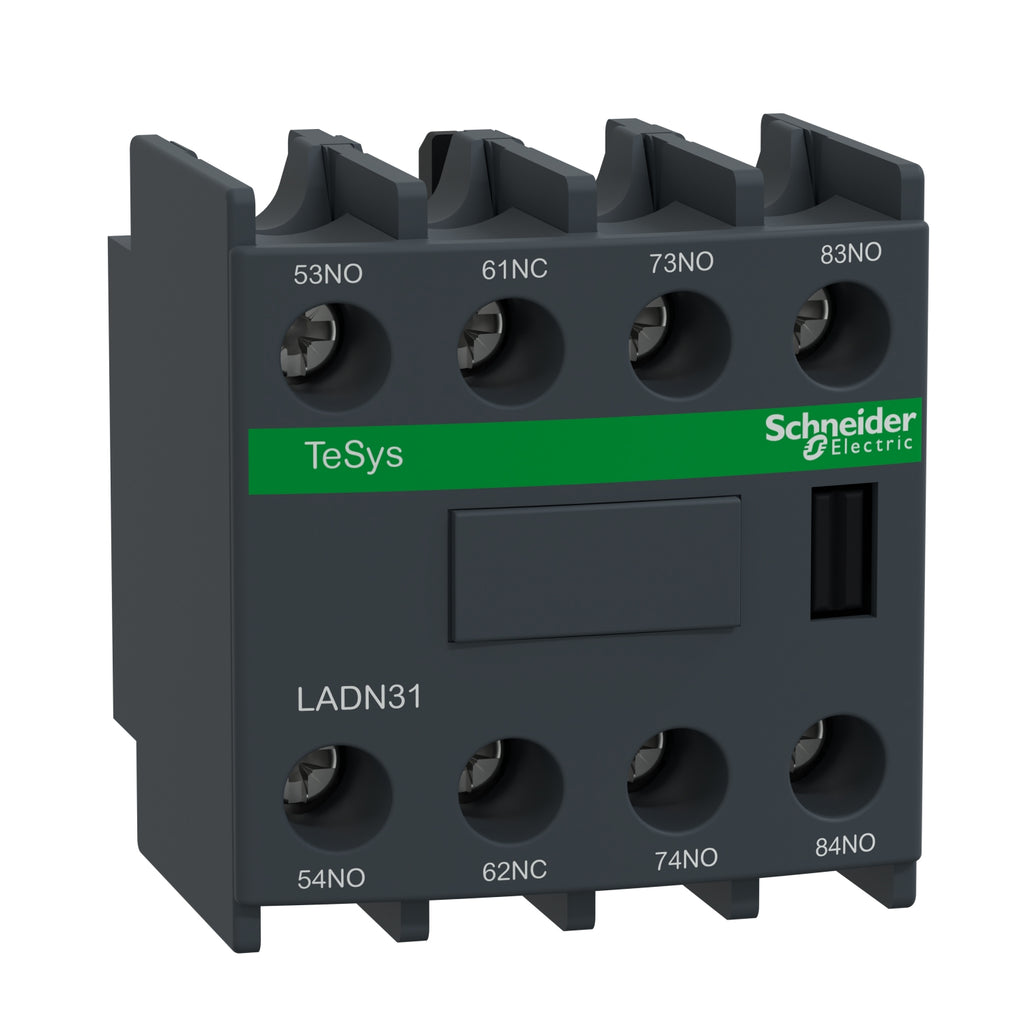

LADN31C is a Telemecanique TeSys D auxiliary contact block providing 3 normally open (3NO) and 1 normally closed (1NC) contacts for motor control applications.This auxiliary contact block is designed for top mounting on TeSys D contactors, featuring screw-clamp terminals for secure wiring. It supports a rated operational voltage of 690 V AC and a conventional free air thermal current of 10 A. The device complies with IEC 60947-5-1 standards and offers high mechanical durability with 30 million mechanical cycles. It includes protection with a 10 A gG fuse rating and ensures no overlap timing between NC and NO contacts during switching.
- Key Specifications
- Contact configuration: 3 normally open (3NO) + 1 normally closed (1NC)
- Rated operational voltage: 690 V AC
- Conventional free air thermal current: 10 A
- Mounting type: Top mount
- Terminal type: Screw-clamp
- Standards: IEC 60947-5-1, BS 4794, EN 60947-5-1
- Mechanical durability: 30 million cycles
- Fuse rating: 10 A gG
- Insulation voltage: 690 V
- Non-overlap time: 1.5 ms on energisation and de-energisation
Specifications
- Part Number: LADN31C
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Family : TeSys D
- Type : LADN
- Configuration : 3NO/1NC
Product Data
- Weight : 0.08
