LADN226 - Schneider Electric TeSys D Auxiliary Contact Block 2NO+2NC Front Mounting 690V AC

LADN226

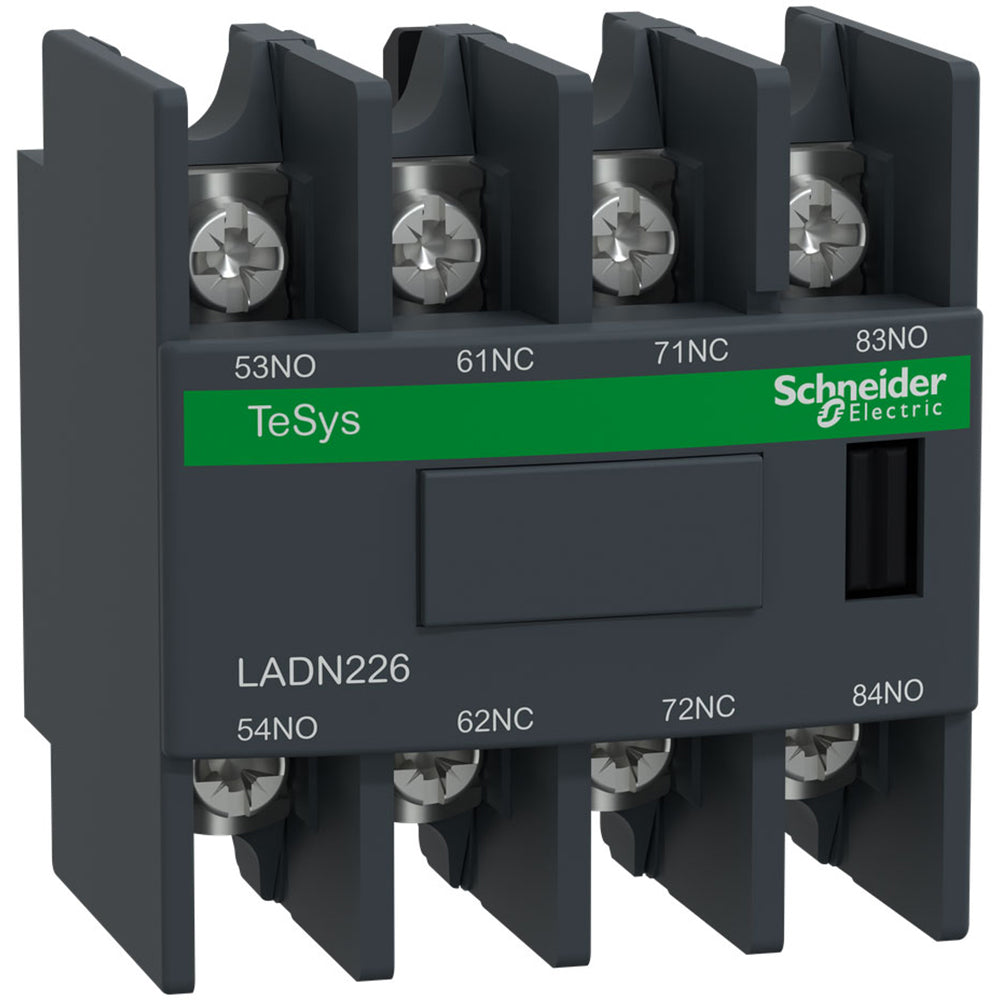

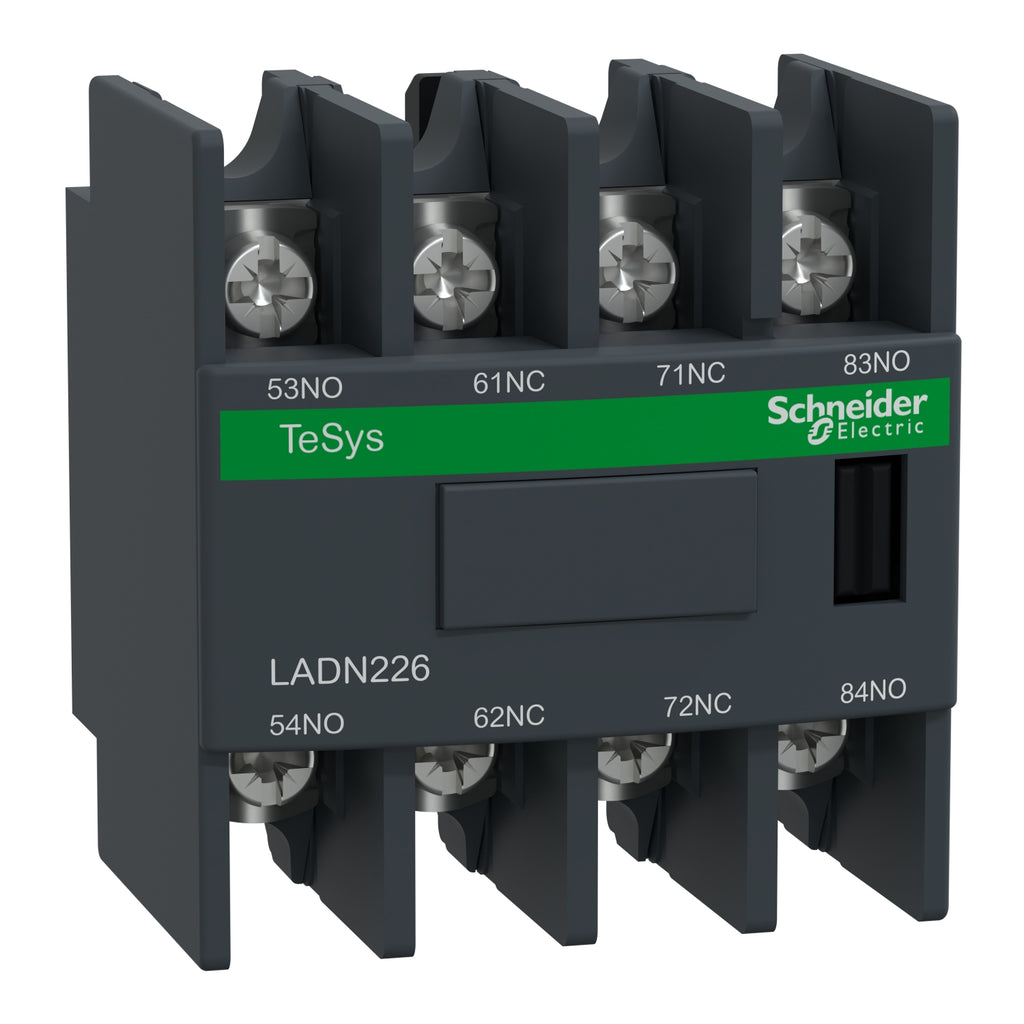

LADN226 is a Schneider Electric TeSys D auxiliary contact block featuring 2 normally open (NO) and 2 normally closed (NC) contacts with front mounting and lugs-ring terminals.This auxiliary contact block is designed for instantaneous operation with a rated operational voltage of 690 V AC at 25 to 400 Hz. It provides reliable switching performance with no overlap between NC and NO contacts during energisation and de-energisation, ensuring safe and precise control. The unit is compatible with TeSys D CAD/D LC1D and TeSys F LC1F/F CR1F series contactors and is certified to IEC 60947-5-1 standards.

Key Specifications
• Contact Configuration: 2 NO + 2 NC
• Operation: Instantaneous
• Rated Operational Voltage: 690 V AC, 25-400 Hz
• Mounting Type: Front mounting with lugs-ring terminals
• Contact Current Rating: 10 A
• Compatible Series: TeSys D CAD/D LC1D, TeSys F LC1F/F CR1F
• Standards: IEC 60947-5-1, UL, CSA
• Contact Switching Time: 1.5 ms on energisation and de-energisation
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADN226
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Configuration : Instantaneous
• Aux Contacts : 2 NO + 2 NC

Product Data

• UPC : 038911082087
• GTIN : 03389110820874
• Country of Origin : Czechia
• Dimensions : 1.9 in (48 mm) x 1.7 in (44 mm) x 1.7 in (42 mm) (Height x Width x Depth)
• Weight : 0.128
• Certification : EN/IEC 60947-5-1 || UL || CSA || CCC || EAC || UKCA
