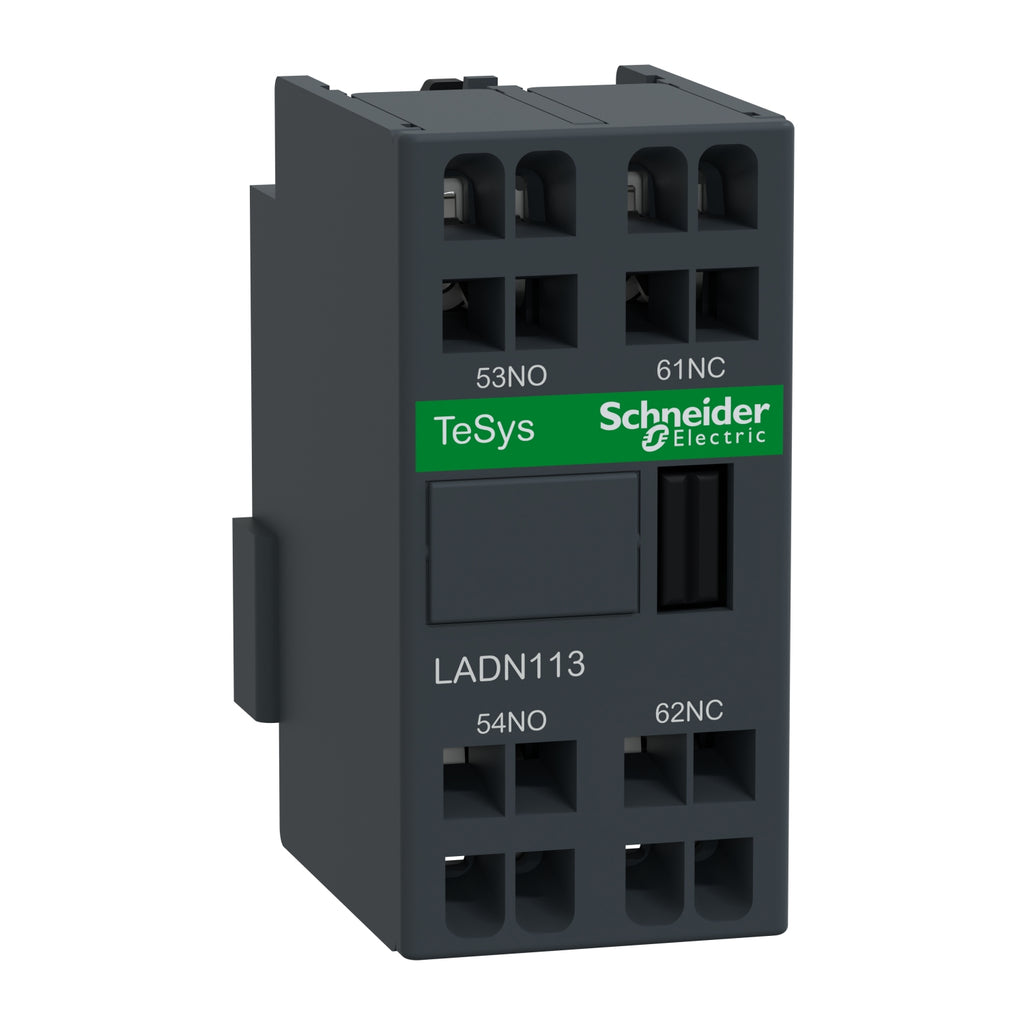

LADN113 - Schneider Electric TeSys Deca Auxiliary Contact Block 1NO+1NC 10A 690V Front Mounting Spring Terminals

LADN113

LADN113 is a Schneider Electric TeSys Deca auxiliary contact block featuring 1 normally open (NO) and 1 normally closed (NC) contact for motor control applications.

This auxiliary contact block is designed for front mounting with spring terminals, rated at 10 amps and 690 volts AC. It provides reliable switching with no overlap between NC and NO contacts during energization and de-energization, ensuring safe and efficient operation. The unit supports a high mechanical endurance of up to 30 million cycles and complies with IEC 60947-5-1 standards. It is suitable for use with TeSys D contactors and offers a compact design for easy integration.

Key Specifications
• Contact Configuration: 1 NO + 1 NC
• Current Rating: 10 A
• Voltage Rating: 690 V AC
• Mounting Type: Front mounting
• Terminal Type: Spring terminals
• Series/Frame: TeSys Deca
• Mechanical Endurance: 30 million cycles
• Standards: IEC 60947-5-1, UL, CSA
• Operating Temperature: -5 to 60 °C (23 to 140 °F)
• Contact Switching Time: 1.5 ms (no overlap NC/NO)
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADN113
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contact Kit
• Configuration : Instantaneous
• Aux Contacts : 1 NO + 1 NC

Product Data

• UPC : 038911082099
• GTIN : 03389110820997
• Country of Origin : Czechia
• Dimensions : 1.9 in (48 mm) x 1.02 in (26 mm) x 1.7 in (42 mm) (Height x Width x Depth)
• Weight : 0.082
