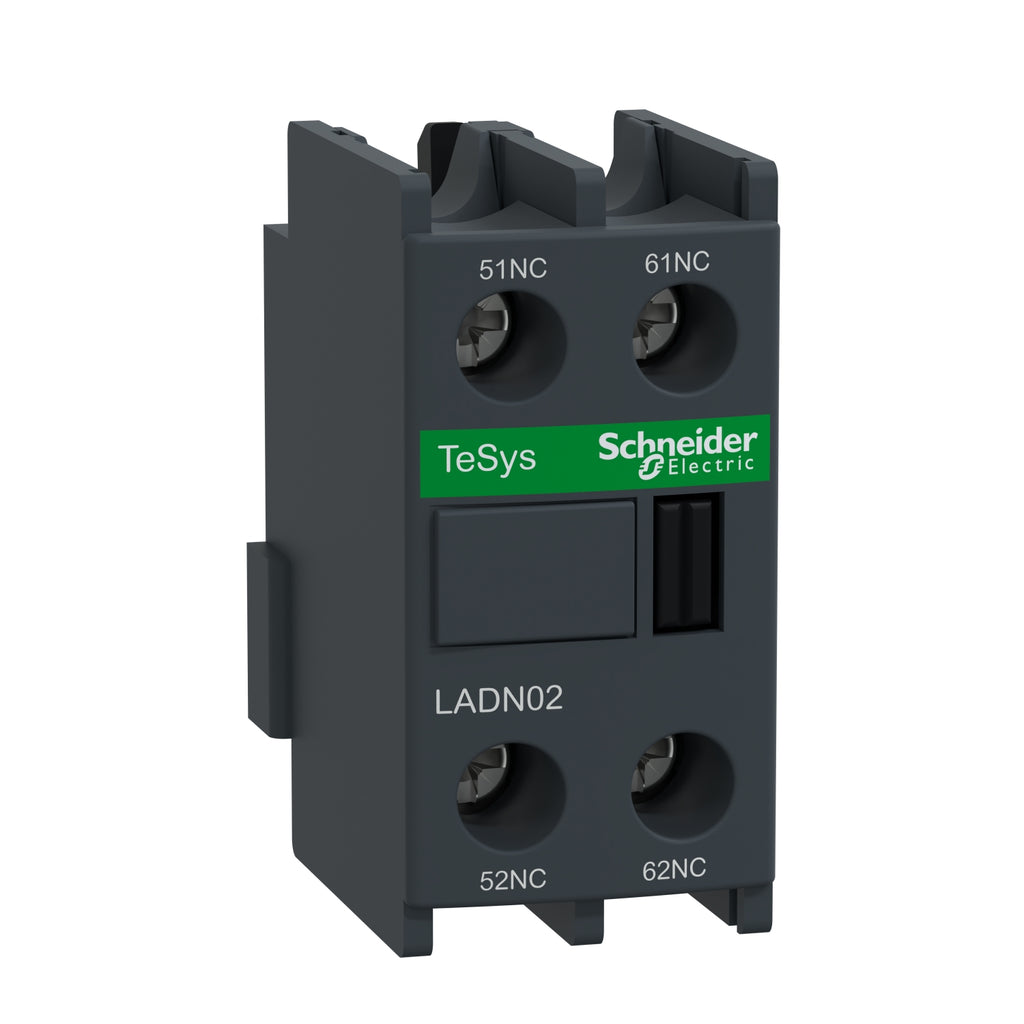

LADN02C - Schneider Electric TeSys Deca Auxiliary Contact Block 2NC 690V 10A

LADN02C

LADN02C is a Schneider Electric TeSys Deca auxiliary contact block designed for front mounting on TeSys D contactors and motor starters, providing reliable secondary switching functionality in industrial and HVAC applications.

This auxiliary contact module features a 2 NC (normally-closed) contact configuration with instantaneous operation. The unit is rated for 690 V AC at 25-400 Hz with a contact current rating of 10 A at 60 degrees Celsius. Front-mounted with screw clamp terminals, the LADN02C integrates seamlessly with TeSys Deca series contactors to expand control circuit capabilities. The module delivers 30 million mechanical cycles of durability and includes 1.5 ms contact transition timing with no overlap between NC and NO contacts during energization and de-energization.

• Pole Contact Composition: 2 NC
• Rated Operational Voltage: 690 V AC 25-400 Hz
• Contact Current Rating: 10 A at 60 degrees Celsius
• Operating Temperature Range: -5 degrees Celsius to 60 degrees Celsius
• Mounting Location: Front
• Terminal Type: Screw Clamp
• Contact Operation: Instantaneous
• Mechanical Life: 30 Mcycles
• Series: TeSys Deca
• IEC60335-1 Compliance: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADN02C
• Manufacturer : Telemecanique
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : TeSys D
• Type : LADN
• Configuration : 2NC

Product Data

• Weight : 5
