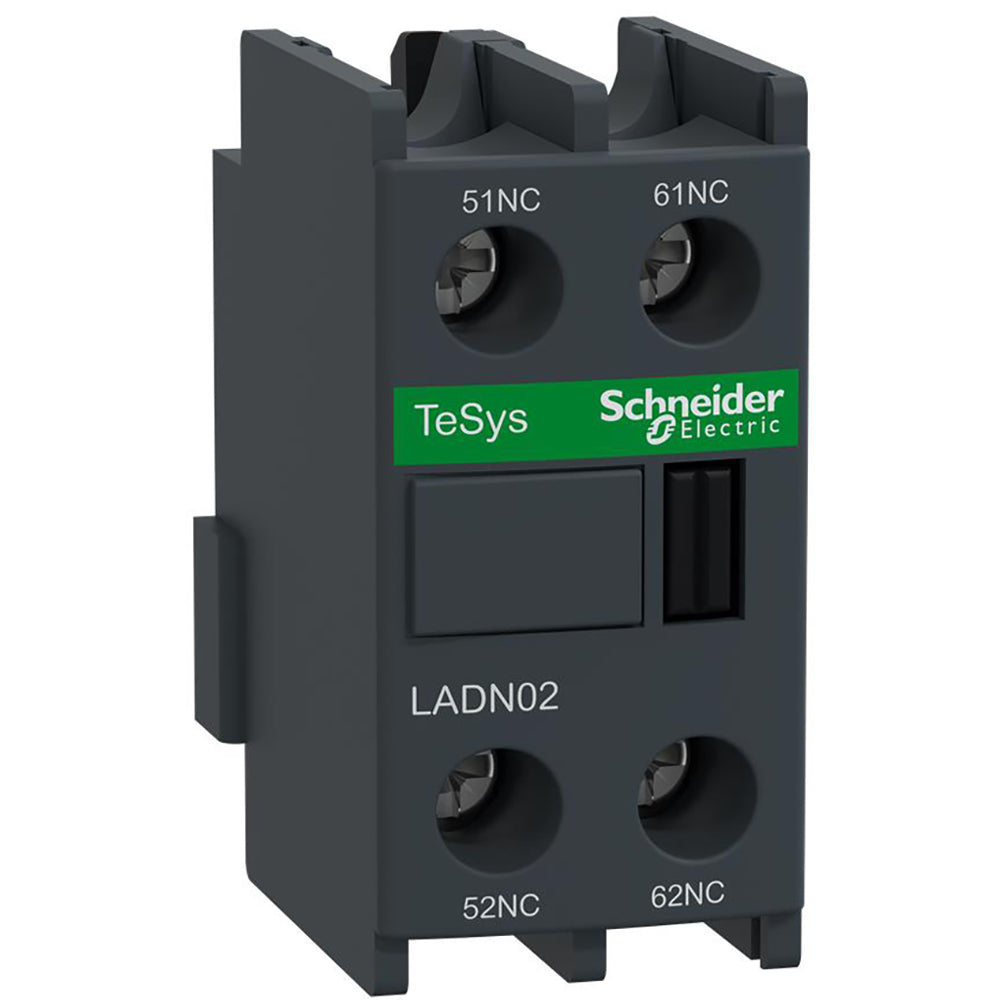

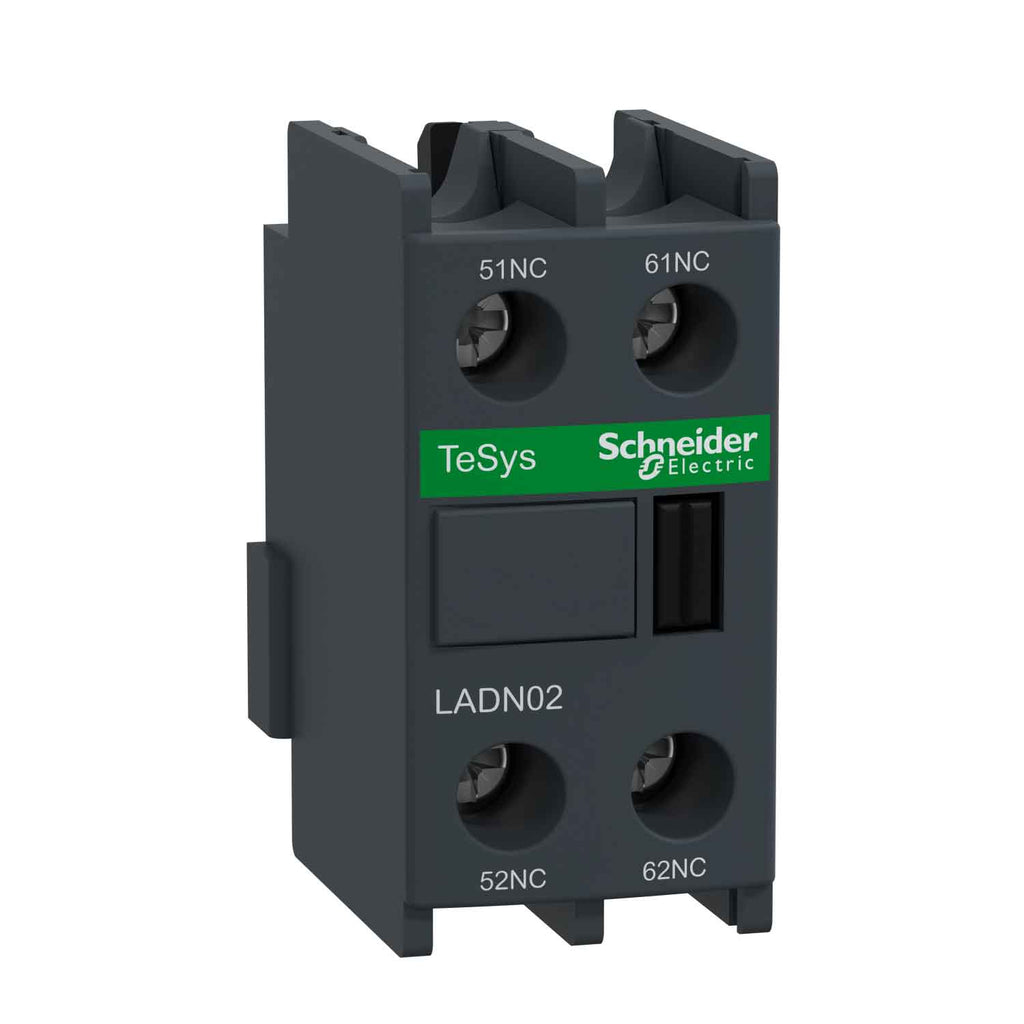

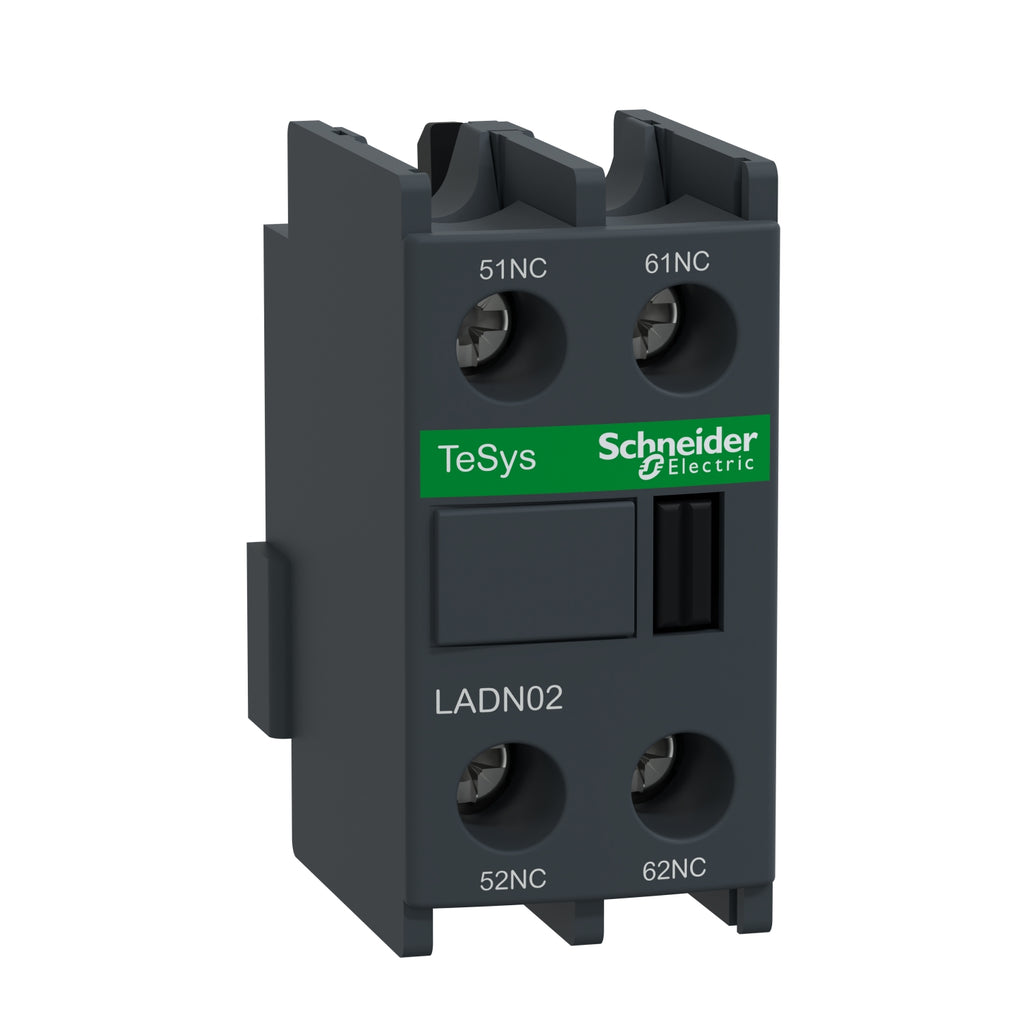

LADN02 Telemecanique TeSys D Contactor And Motor Starter Auxiliary

LADN02

LADN02 is an auxiliary contact block manufactured by Schneider Electric for use with TeSys D contactors. It provides 2 normally closed (2NC) contacts for use in control circuits, signaling, or interlocking applications. The LADN02 easily snaps onto the front of a TeSys D contactor for quick installation and reliable auxiliary switching performance.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Type: Front-Mount Auxiliary Contact Block
• Contact Configuration: 2 Normally Closed (2NC)
• Mounting: Front mount on TeSys D contactors
• Function: Provides auxiliary signaling and interlocking capability
• Compatibility: TeSys D contactors (LC1D and LP1D series)
• Standards: UL, CSA, and IEC certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADN02
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : TeSys D
• Type : LADN
• Voltage : 690 AC
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : 2NC
• Aux Contacts : 2 NC

Product Data

• UPC : 785901213642
• GTIN : 03389110383768
• Country of Origin : Czechia
• Dimensions : 1.9 in (48 mm) x 1.02 in (26 mm) x 1.7 in (42 mm) (Height x Width x Depth)
• Weight : 0.075
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, CB, CCC, EAC, UKCA
