LADC22 - Square D Auxiliary Contact Block 2NO 2NC 10A 690V AC Front Mounting

LADC22

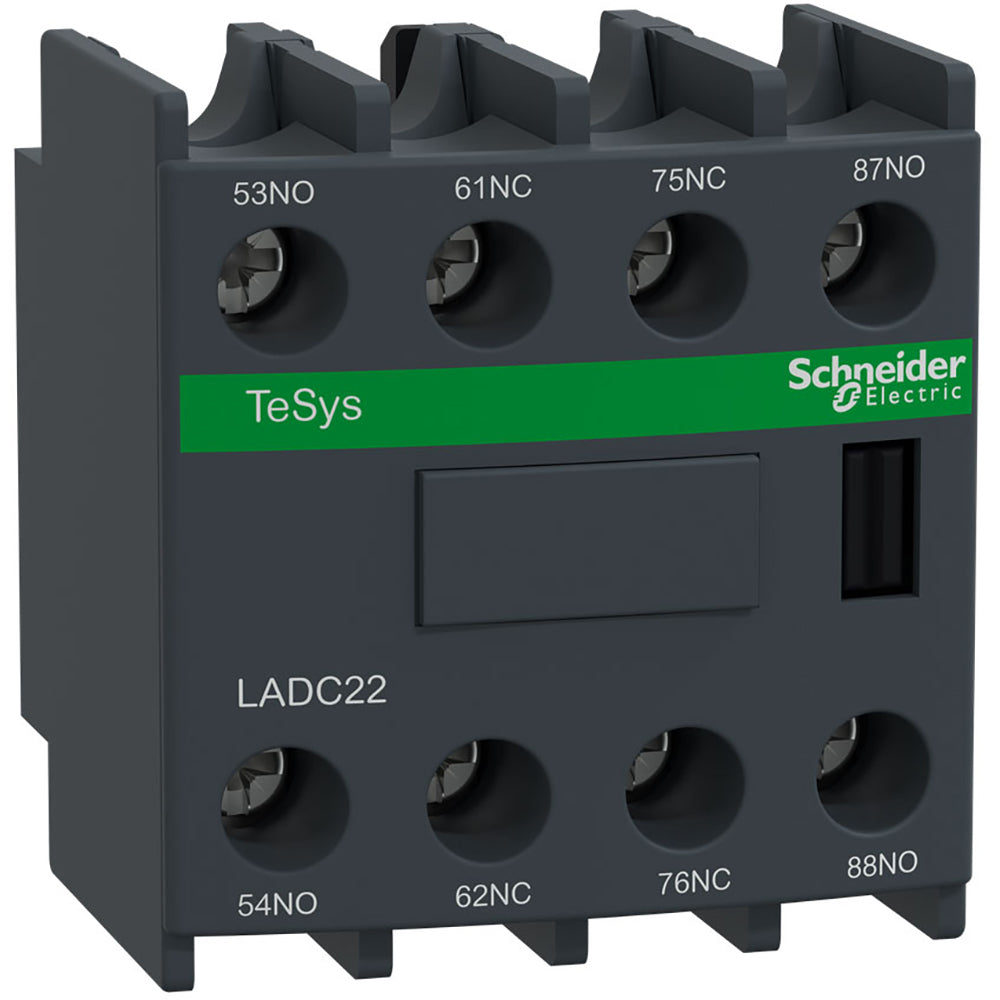

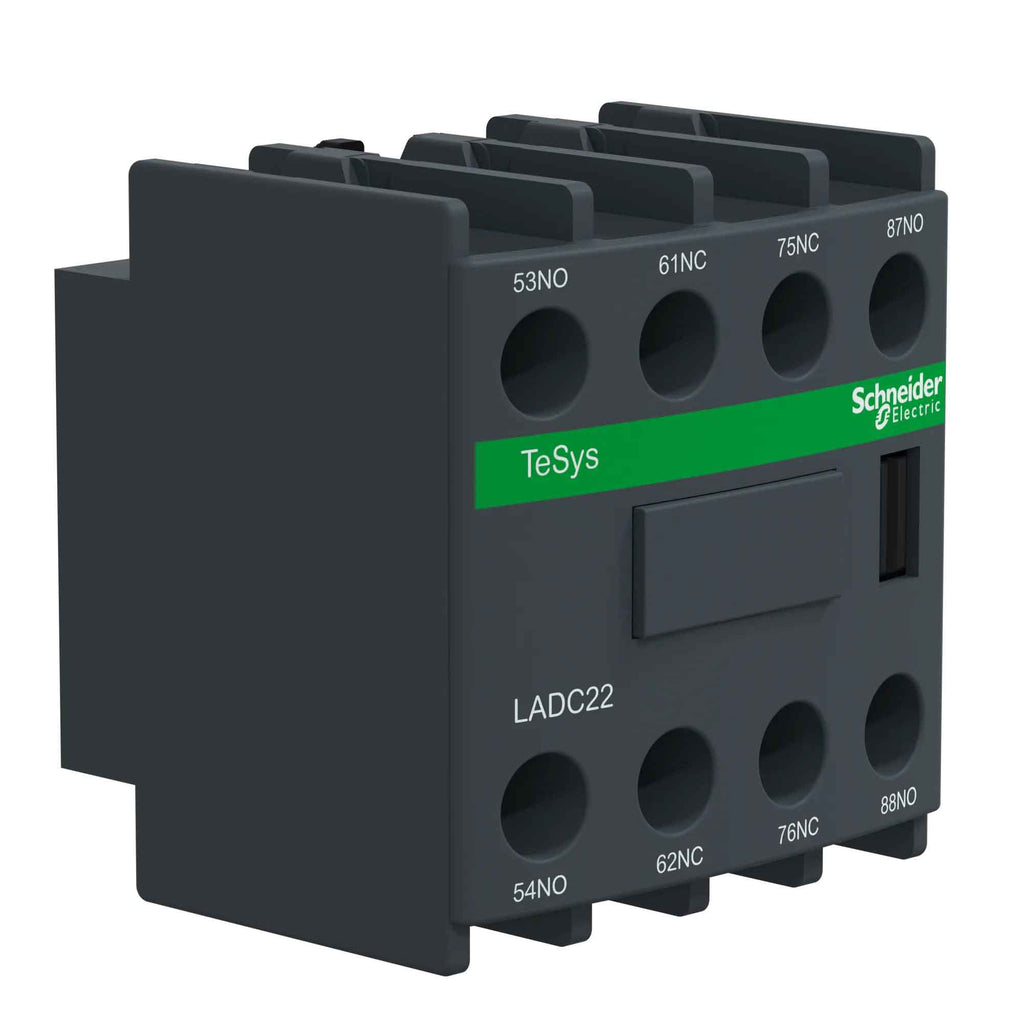

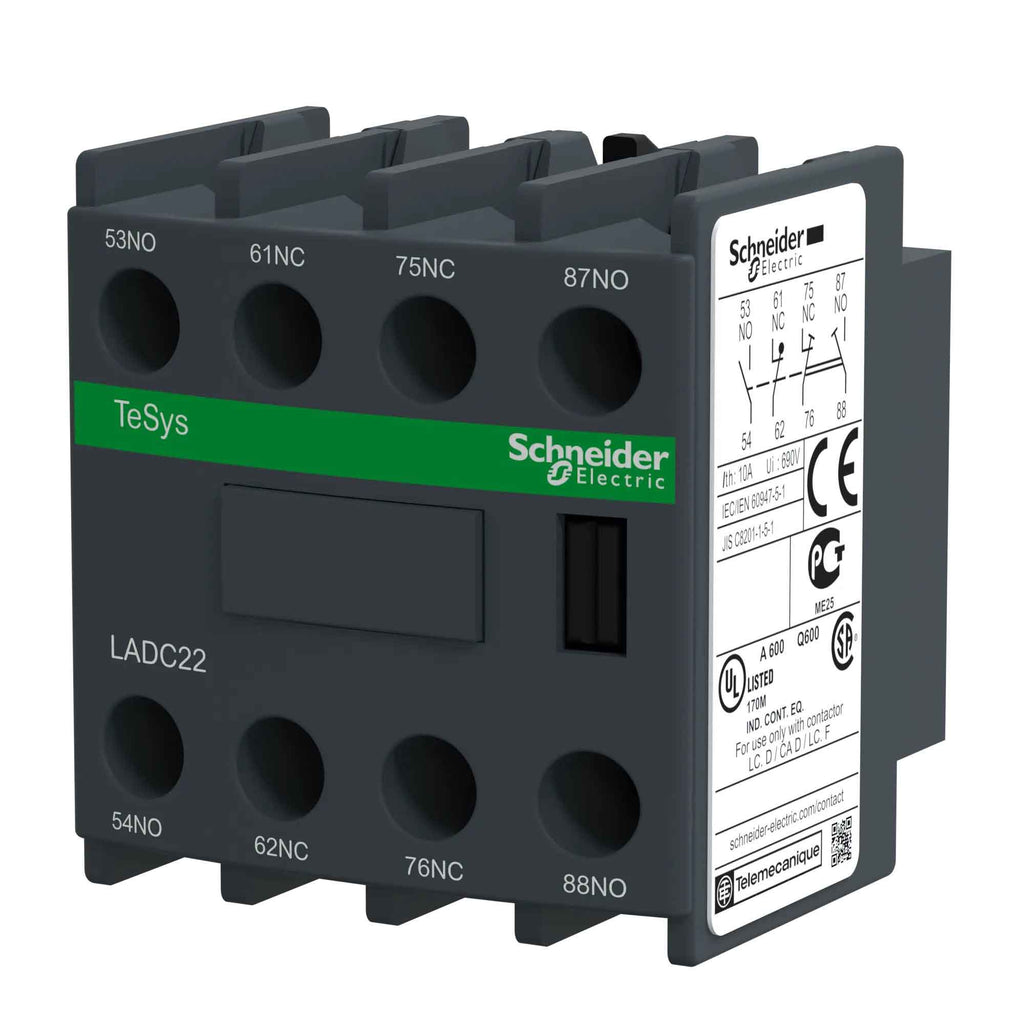

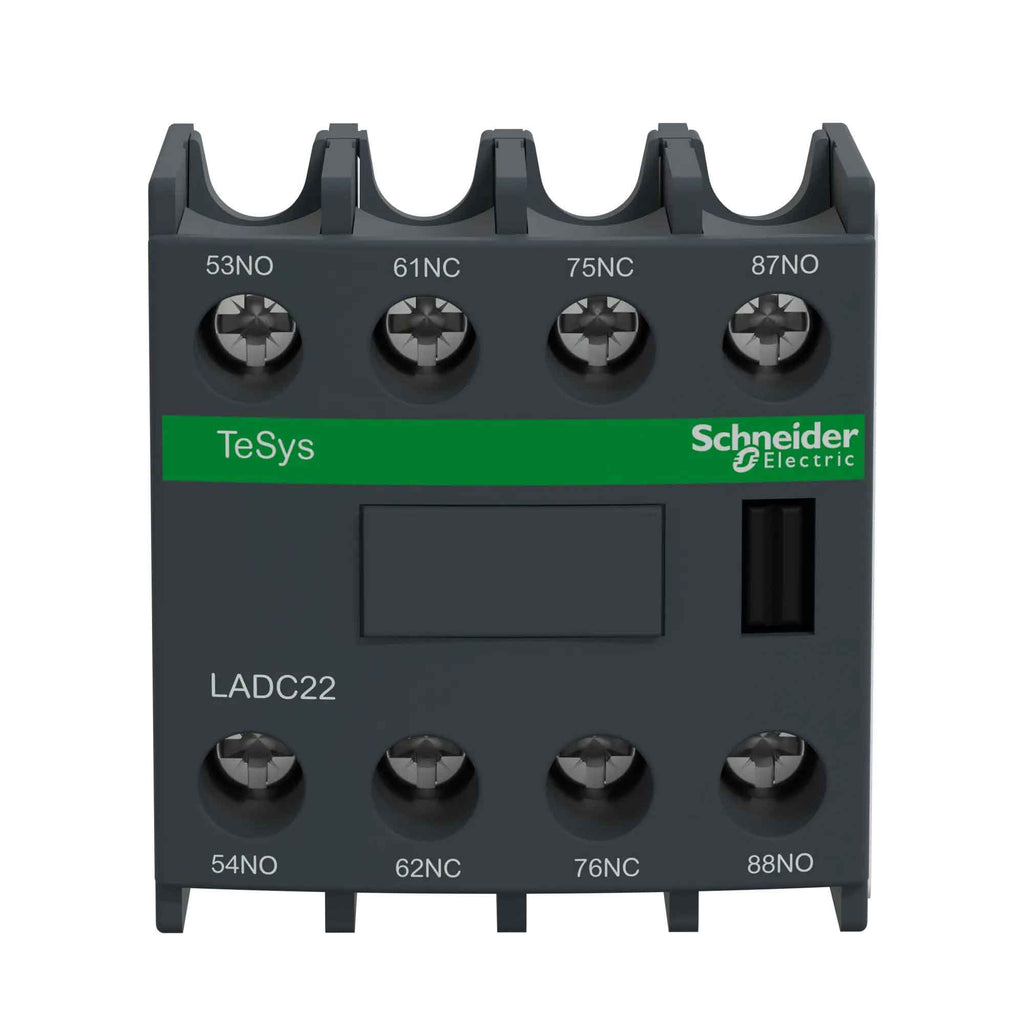

LADC22 is a Square D auxiliary contact block designed for motor control applications with a 2NO + 2NC contact configuration.

This auxiliary contact block features instantaneous contacts rated for 10 Amps at 690 Volts AC. It includes 1NO + 1NC contacts with overlap time (make-before-break) and is designed for front mounting with screw clamp terminals. The LADC22 is compatible with TeSys D motor control systems and can be used in safety applications due to its normally closed contacts.

• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Current Rating: 10 Amps
• Voltage Rating: 690 Volts AC
• Contact Type: Instantaneous
• Includes 1NO + 1NC Make-Before-Break Contacts
• Mounting Type: Front Mounting
• Terminal Type: Screw Clamp
• Compatible with TeSys D Motor Control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LADC22
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 2 NO + 2 NC
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 785901220886
• GTIN : 03389110384475
• Country of Origin : Czechia

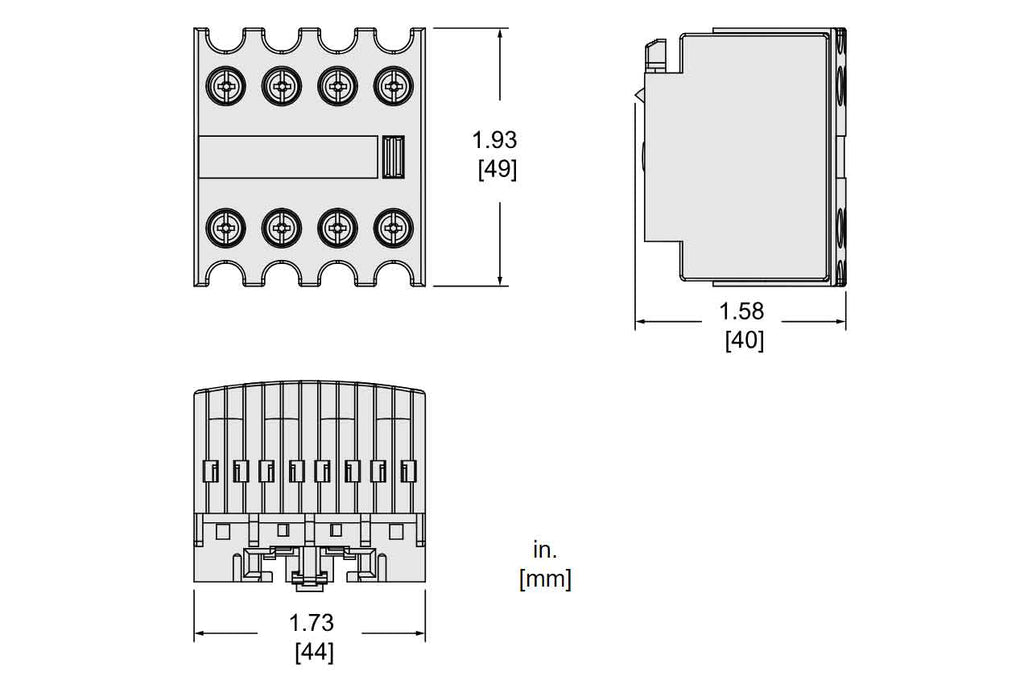

• Dimensions : 1.9 in (48 mm) x 1.7 in (44 mm) x 1.7 in (42 mm) (Height x Width x Depth)
• Weight : 0.137
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
