LA7D2064 - Square D Adapter Terminal Block for TeSys Deca Motor Control, Screw Terminals, Panel Mount

LA7D2064

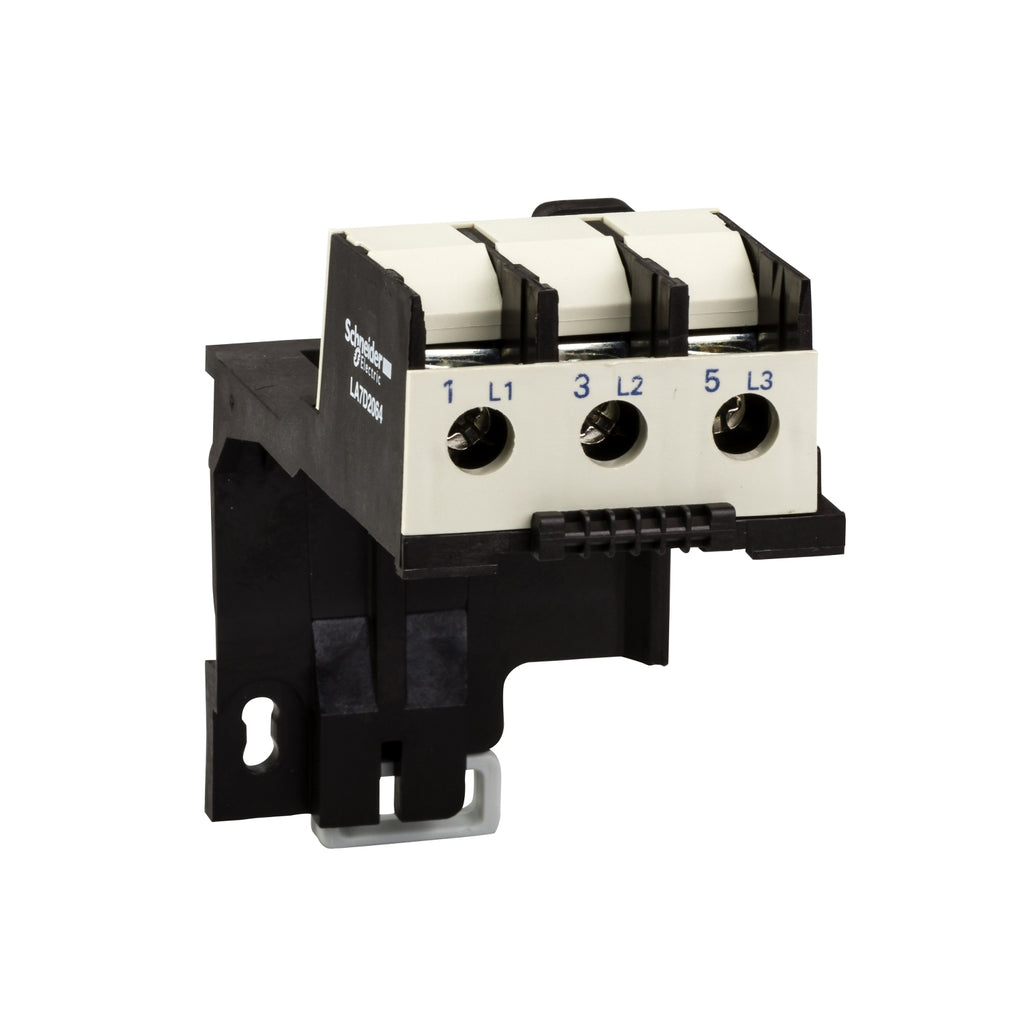

LA7D2064 is an adapter terminal block designed for separate mounting of LR2D2 and LR3D2 overload relays in motor control applications.This Square D terminal block from the TeSys Deca range features screw terminals and supports panel or 35 mm DIN rail mounting. It facilitates easy and secure connection of overload relays such as LR2D25. The compact design measures approximately 3.5 in height, 2.2 in width, and 3.8 in depth, with a net weight of 0.40 lbs. It is compatible with Schneider Electric's motor control devices and meets industry standards for reliable electrical connections.

Key Specifications
• Manufacturer: Square D by Schneider Electric
• Part Number: LA7D2064
• Product Type: Adapter Terminal Block
• Compatible with: LR2D2, LR3D2 Overload Relays
• Mounting Type: 35 mm DIN Rail or Panel Mount with Screws
• Connection Type: Screw Terminals
• Dimensions: 3.5 in (H) x 2.2 in (W) x 3.8 in (D)
• Weight: 0.40 lbs
• Series: TeSys Deca
• Application: Motor Control Overload Relay Mounting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA7D2064
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 785901258780
• GTIN : 3389110230413
• Dimensions : 3.5 in (89 mm) x 2.2 in (55 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.213
