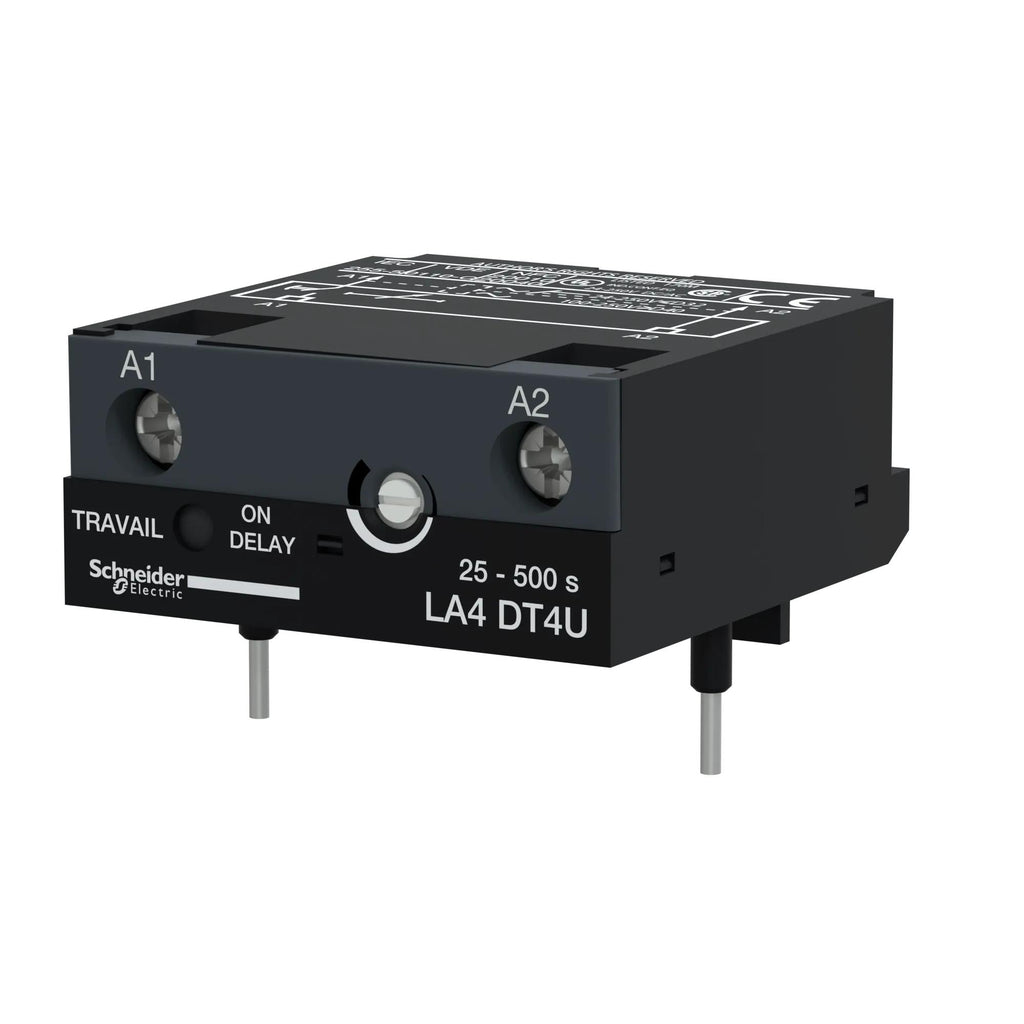

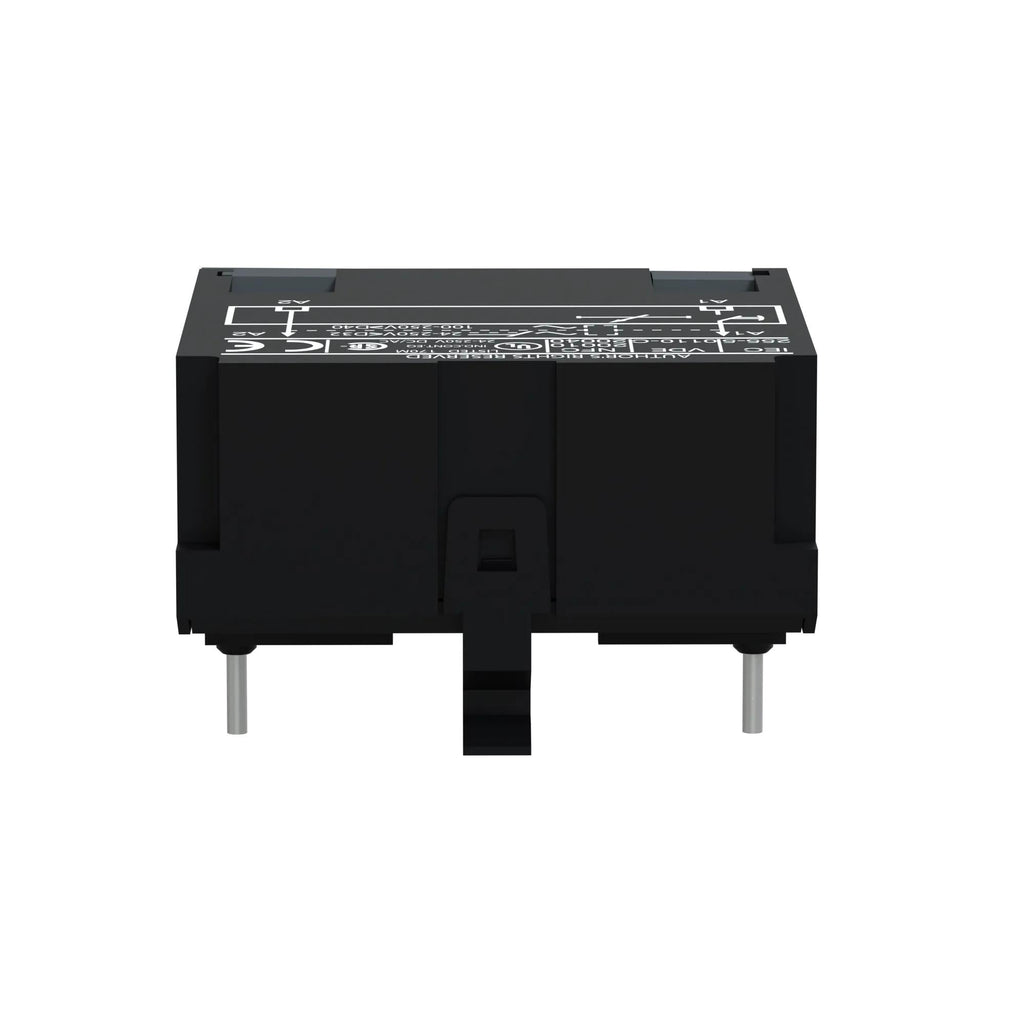

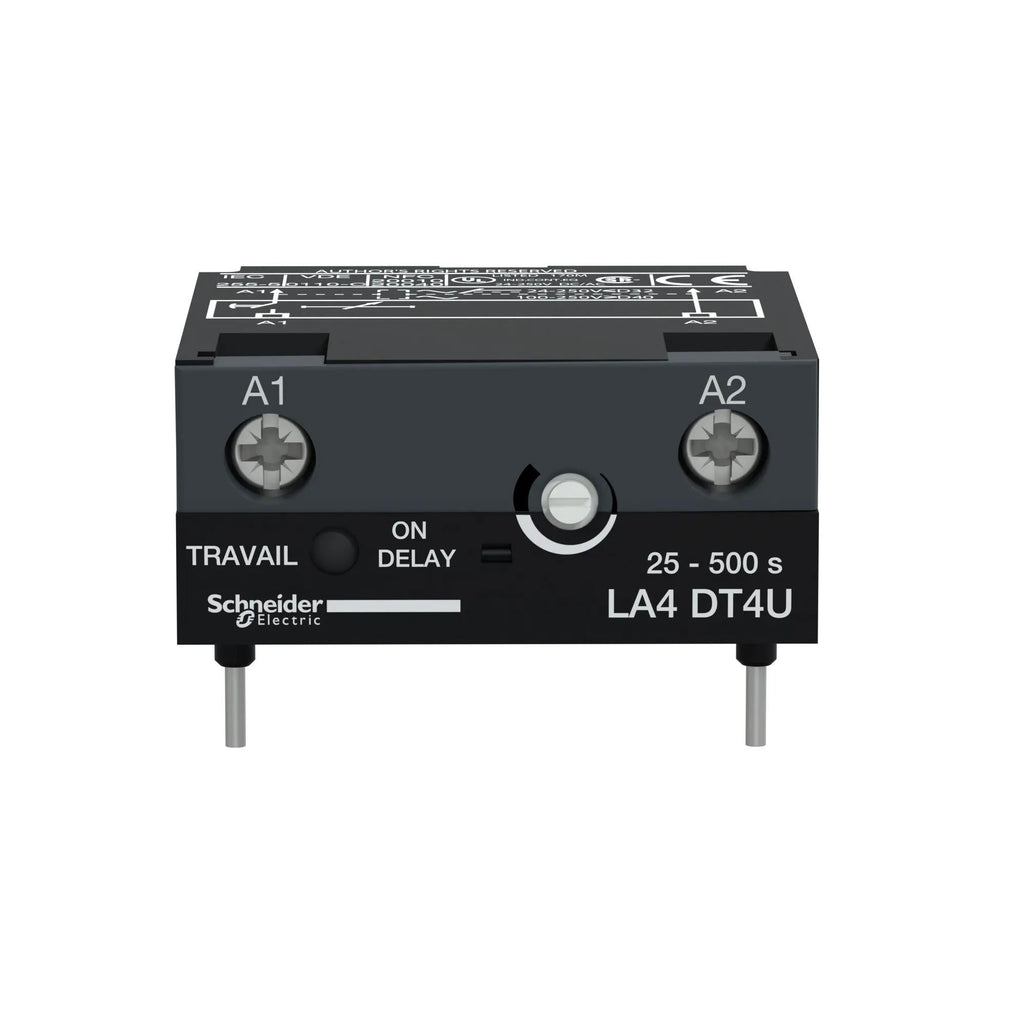

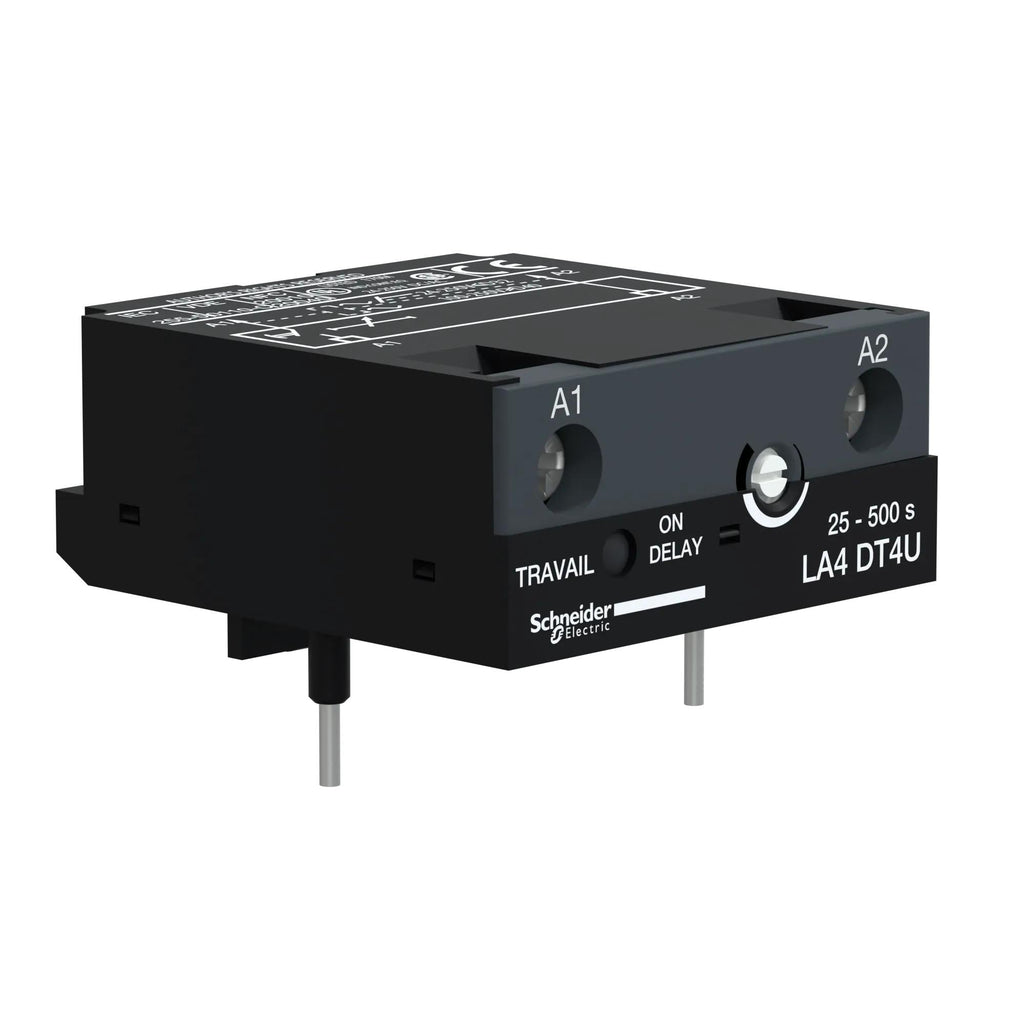

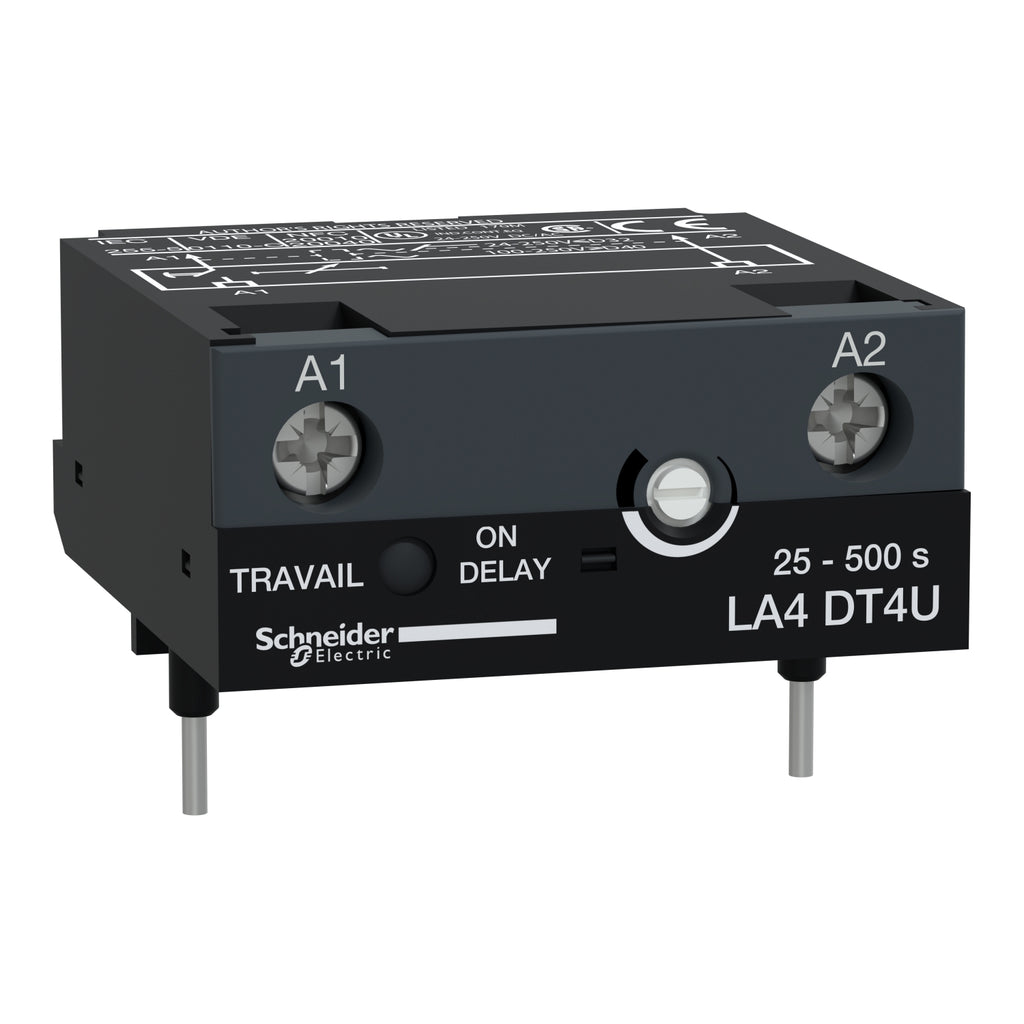

LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors

Save $17.28
SKU: LA4DT4U-New
Condition: New
Price:
$80.14 $97.42
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LA4DT4U - Square D Motor Control Part - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LA4DT4U - Square D Motor Control Part - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply
LA4DT4U - Square D TeSys D On-Delay Timer Module, 24-250V AC/DC, 3 Pole, 25-500 Sec, Side Mount, For LC1D/LC1DT Contactors - Essential Electric Supply

Description

LA4DT4U


LA4DT4U is a Schneider Electric Square D TeSys D electronic on-delay timer module designed for precise motor control applications.

This solid-state timer module provides adjustable on-delay timing from 25 to 500 seconds, signaled by an LED, and is compatible with a range of IEC contactors. It features side mounting, manual time adjustment, and is certified to multiple international standards for safety and performance.

    Key Specifications
  • Part Number: LA4DT4U
  • Manufacturer: Square D (Schneider Electric)
  • Voltage: 24 to 250 V AC/DC
  • Poles: 3
  • Mounting Type: Side (on contactor)
  • Timing Range: 25 to 500 seconds (adjustable)
  • Series/Frame: TeSys D (LA4D)
  • Certifications: IEC, UL, CSA, RoHS/REACH compliant
  • For Use With: 3-pole LC1D09-D38, 4-pole LC1DT20-DT40 contactors
  • Control Indication: LED signals time delay period
  • Dimensions: 1.60 x 1.90 x 2.0 in (HxWxD)
  • Weight: 0.09 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LA4DT4U
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Motor Control Part And Accessory
  • Section : Timers
  • Family : Integral
  • Type : LA4D
  • Poles : 3
  • Coil Voltage Maximum : 24-250 VAC

Product Data

  • UPC : 038911019278
  • GTIN : 03389110192780
  • Country of Origin : Tunisia
  • Weight : 0.1
  • Certification : IEC 60255-5
