Product Info
- Manufacturer:Square D
- Sub-Category:Disconnect
Description
LA400DS

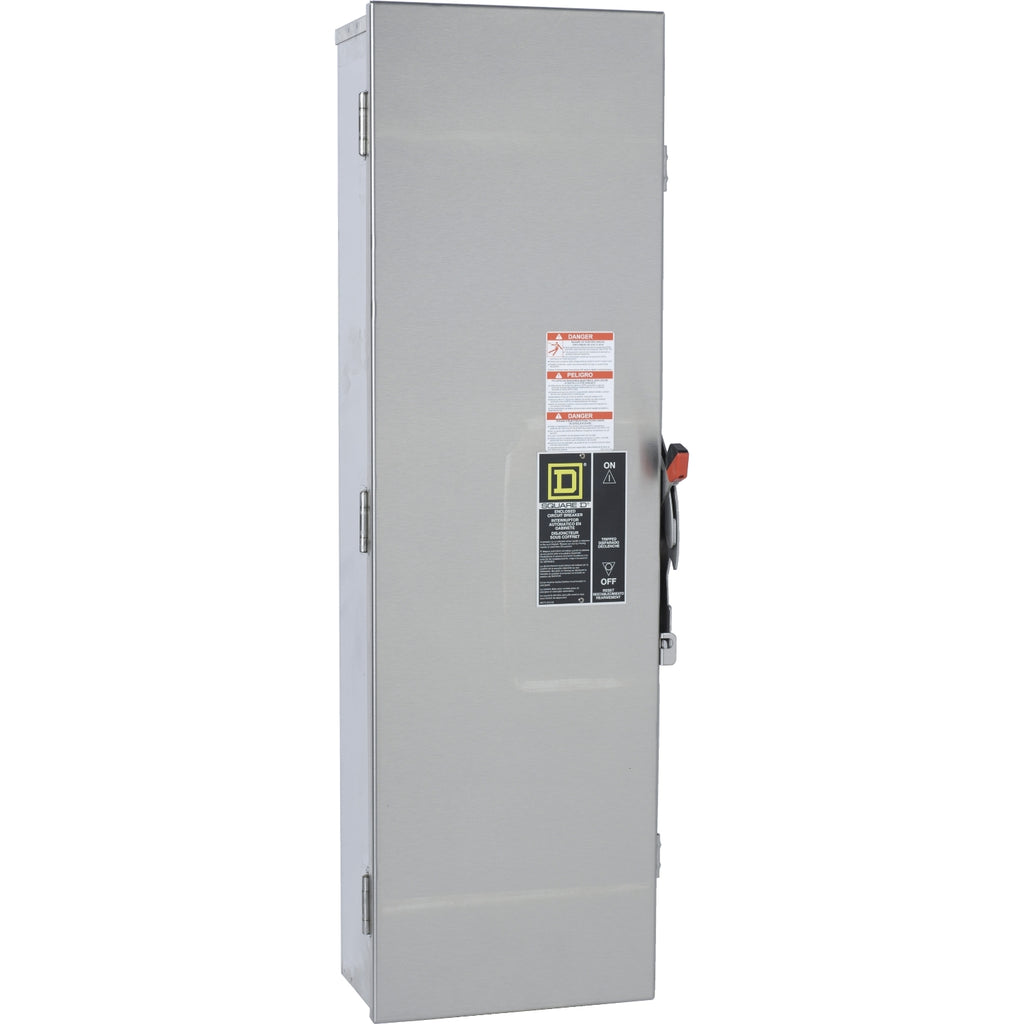

LA400DS is a Square D L Frame disconnect switch designed for use with 2-3 pole circuit breakers, rated for 600V and 400A applications. This enclosure provides robust protection and reliable operation in demanding environments.This disconnect switch is constructed for surface mounting and is compatible with Square D LAL and LHL circuit breakers. The enclosure features a durable stainless steel construction and is rated NEMA 4/4X/5 for protection against harsh conditions. It is suitable for three-phase systems and supports a wide range of current ratings from 125A to 400A.
- Part Number: LA400DS
- Manufacturer: Square D
- Series/Frame: L Frame
- Voltage: 600V
- Amperage: 400A
- Poles: 2-3 Pole
- Mounting Type: Surface Mount
- Enclosure Material: Stainless Steel
- NEMA Rating: 4/4X/5
- Phase: Three Phase
- Approvals: UL, CSA
- Dimensions: 13.75 in W x 7.25 in D x 42.25 in H
Specifications
- Part Number: LA400DS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : L Frame
- Voltage : 600
- Amperage : 400
- Poles : 2-3 pole LAL, LGL, or Q4L Circuit Breakers
- Circuit Breaker Mounting Style : Surface Mount
- Compatible Frames : LAL,LHL
Product Data
- UPC : 785901148661
- GTIN : 00785901148661
- Country of Origin : Mexico
- Dimensions : 42.2 in (1073 mm) x 13.7 in (349 mm) x 7.2 in (184 mm) (Height x Width x Depth)
- Weight : 52.5 lb
