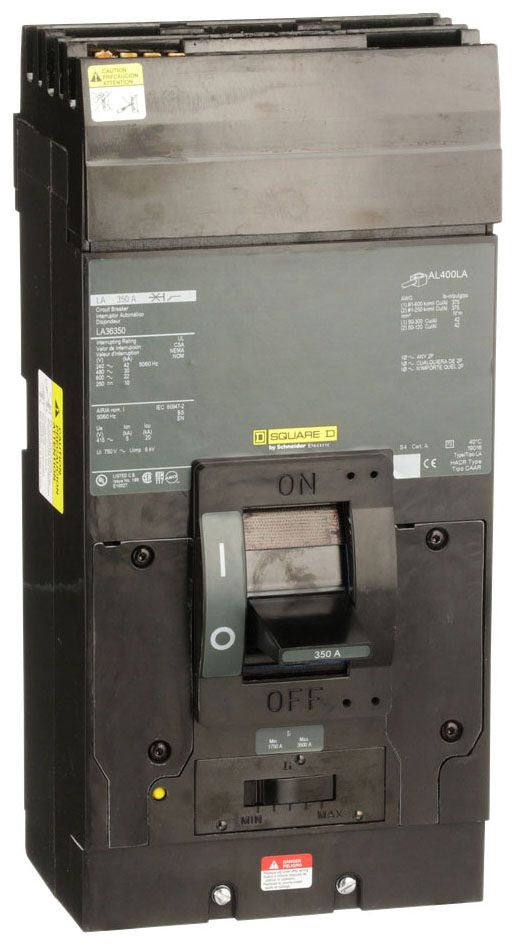

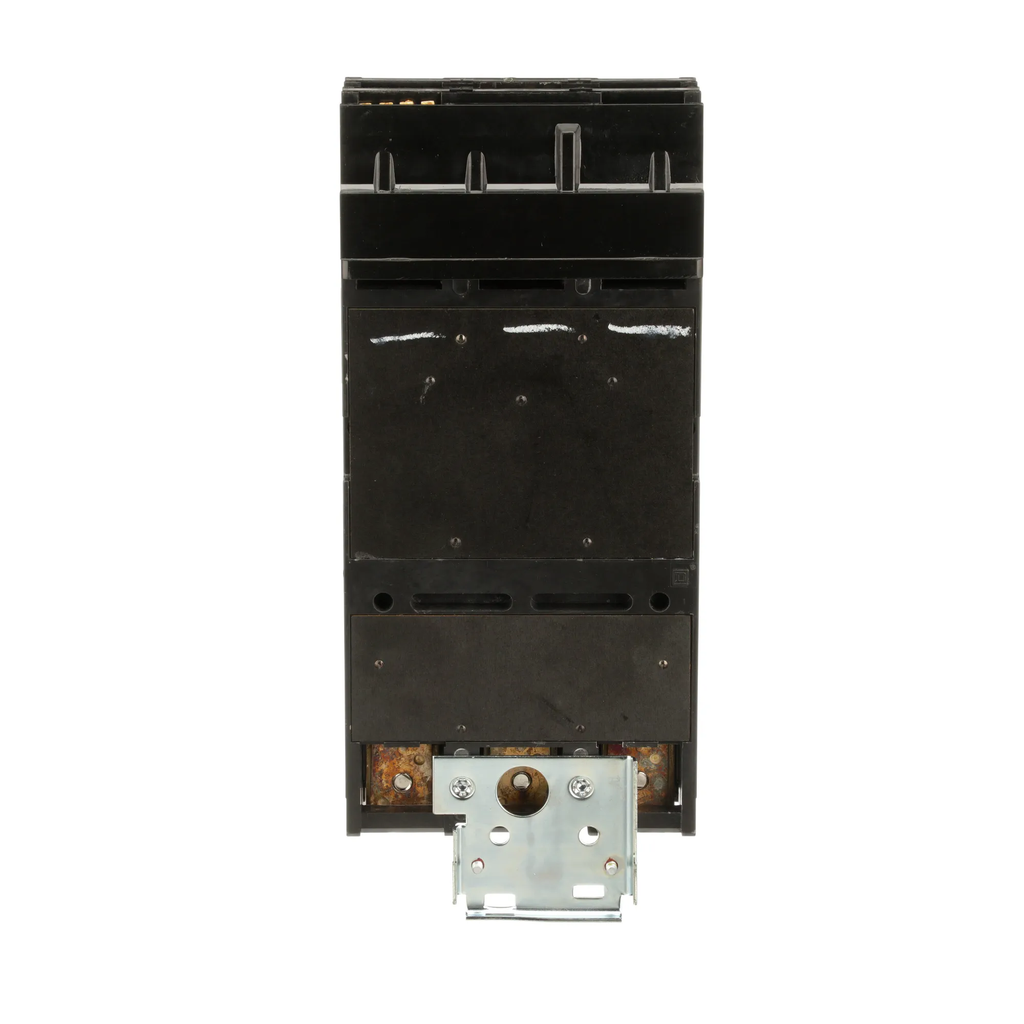

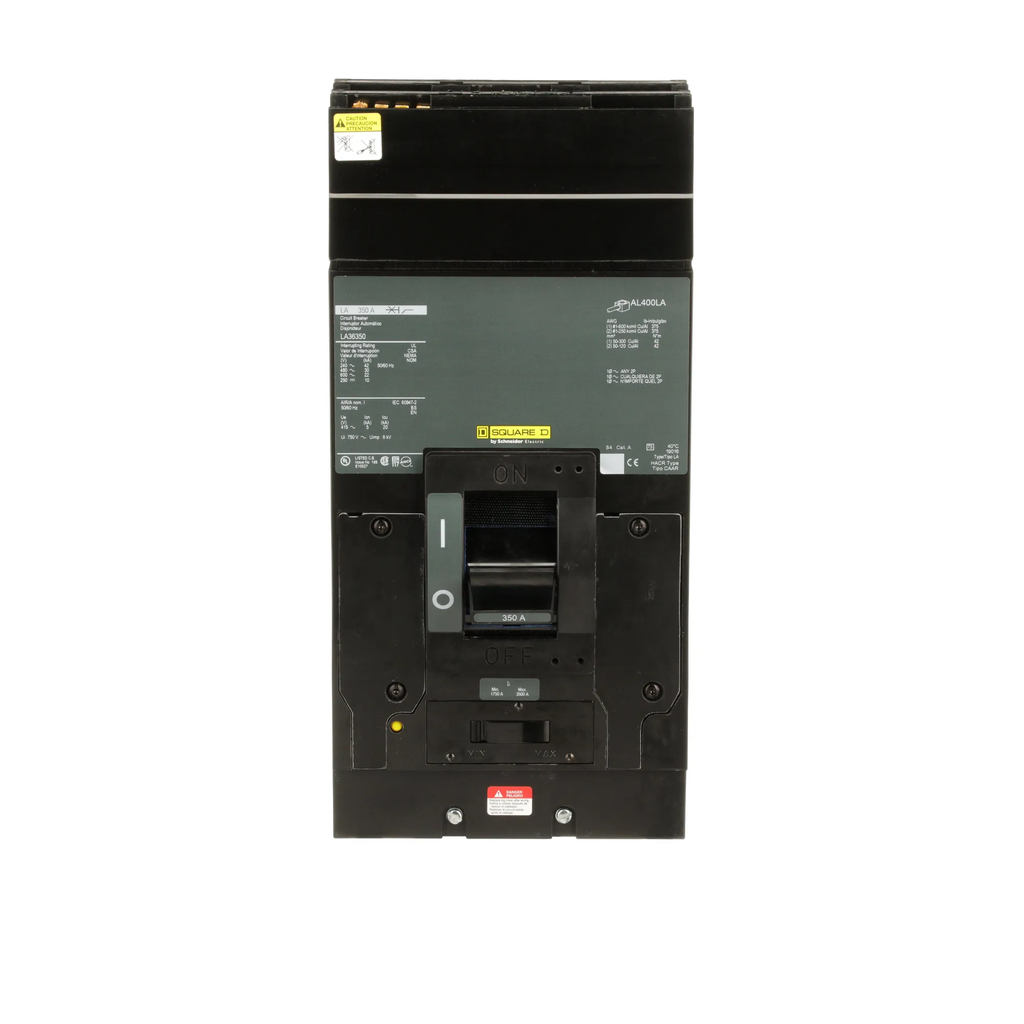

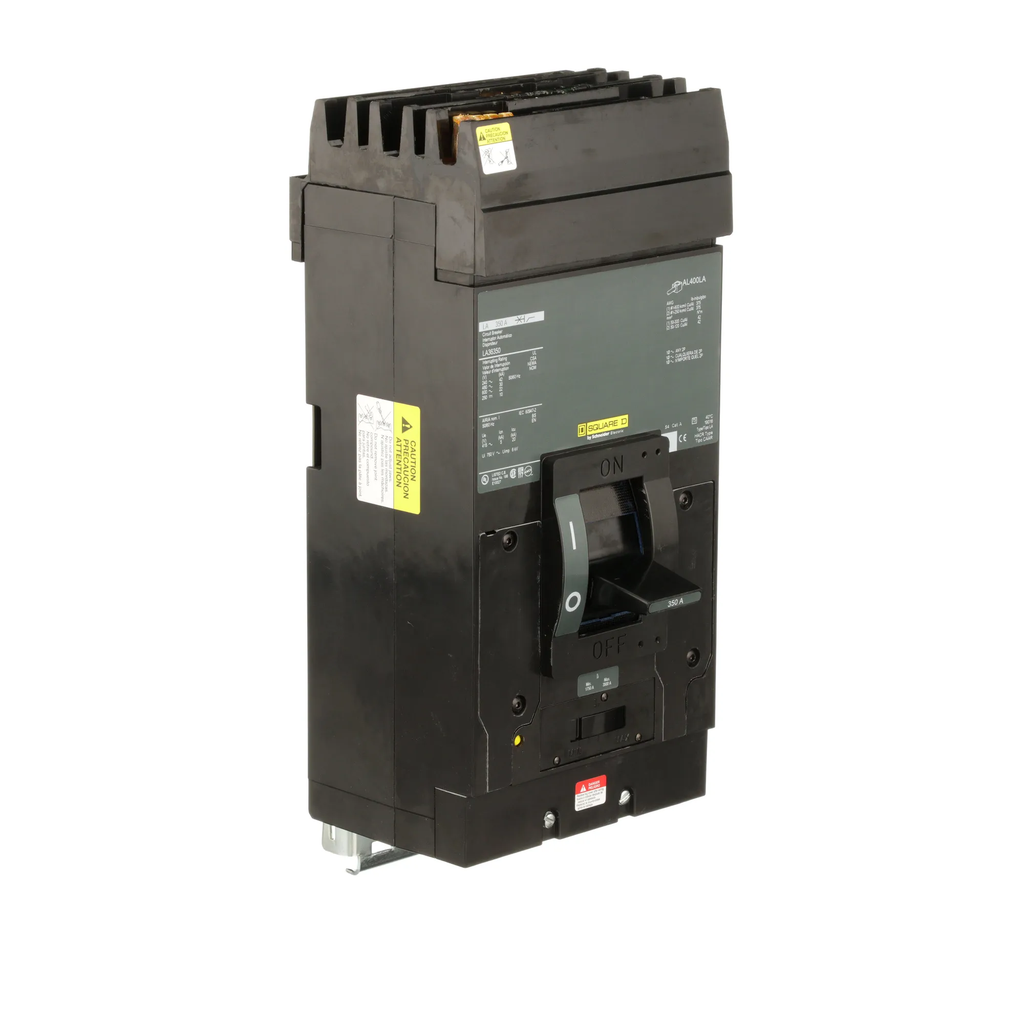

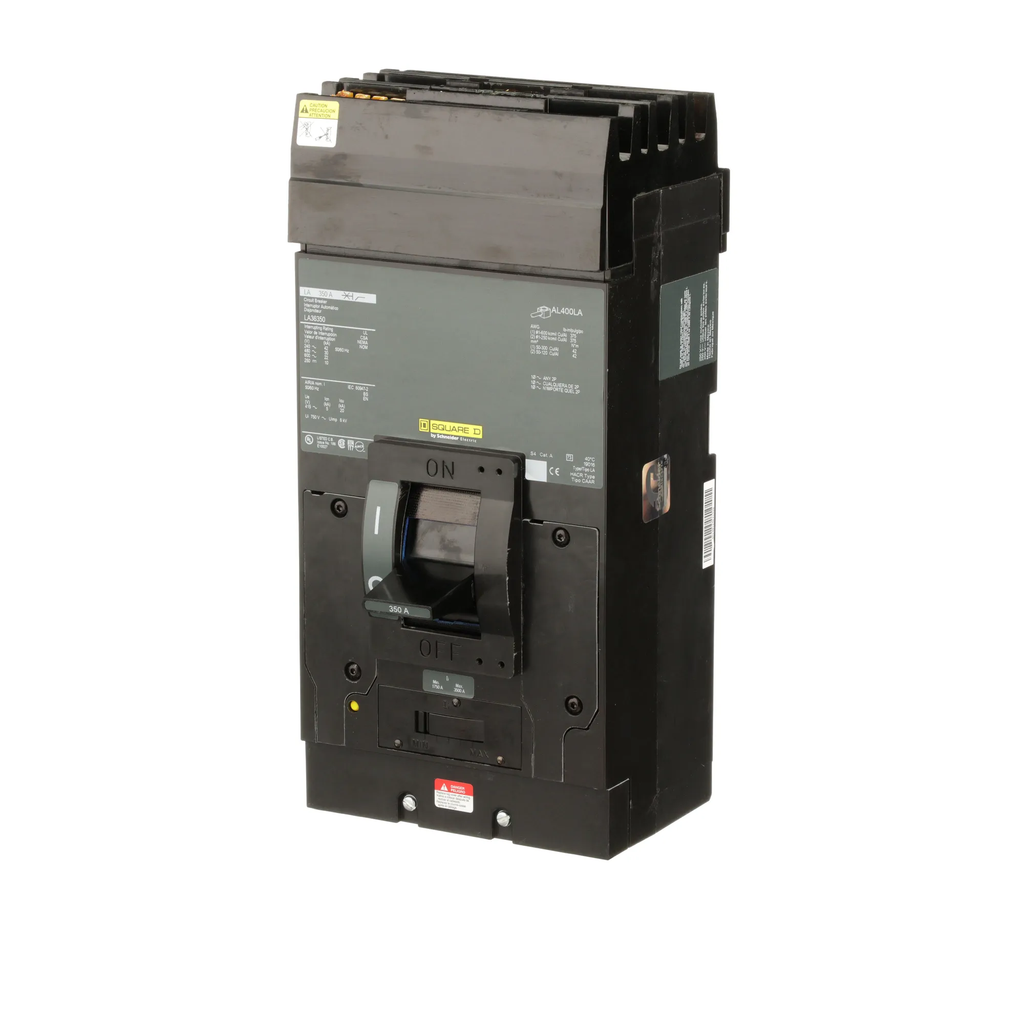

LA36350 - Square D 350A 3 Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic, I-Line Mount

LA36350

LA36350 is a Square D 350 Amp, 3 Pole molded case circuit breaker designed for reliable power distribution protection.This thermal magnetic circuit breaker features a 600VAC and 250VDC voltage rating with a 22kA interrupting capacity at 600VAC. It is an I-Line plug-on mounted breaker from the LA frame series, UL, CSA, and CE certified for safety and performance. The breaker provides protection against overloads and short circuits in industrial and commercial applications.

• Amperage: 350A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Plug-On (I-Line)
• Interrupt Rating: 22kA at 600VAC, 30kA at 480VAC, 42kA at 240VAC
• Frame/Series: LA
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, CE Certified
• Dimensions: 11 in H x 6 in W x 5.84 in D
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA36350
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901426288
• GTIN : 00785901426288
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18.151
• Panel Type : I Line Panelboards
• Standards : CSA, UL Listed
• Certification : CSA, UL Listed
