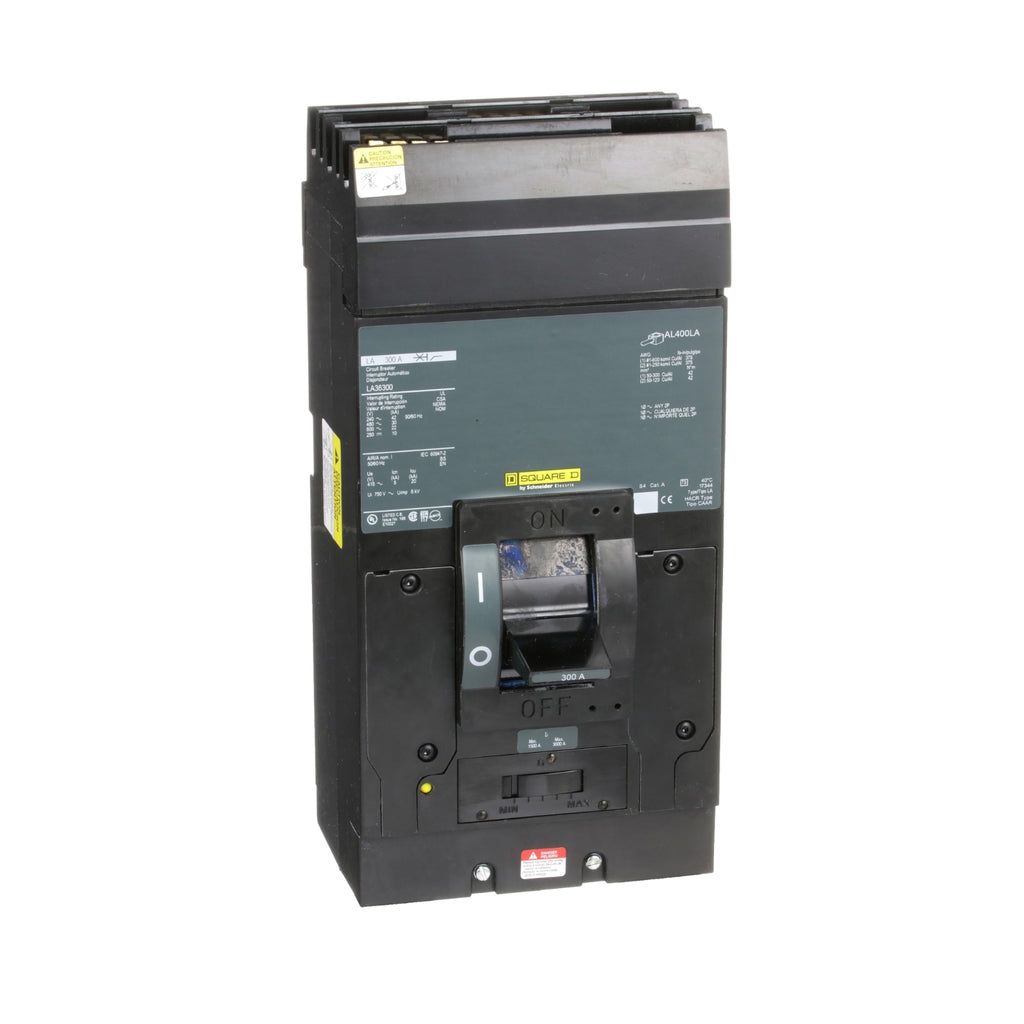

LA363001021 - Square D I-Line 3 Pole 300A 600V Molded Case Circuit Breaker, 30kA Interrupt, Thermal Magnetic Trip, UL/CSA

LA363001021

LA363001021 is a Square D I-Line 3 pole molded case circuit breaker designed for robust power distribution applications.

This thermal magnetic trip circuit breaker offers reliable protection with a 300A current rating, 600V voltage rating, and a 30kA interrupting capacity at 480V. It is UL and CSA approved, suitable for use in Square D Class 655/660/670/830 I-Line panelboards and switchboards, and features a shunt trip option for enhanced control.

Key Specifications

• Amperage: 300A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: I-Line (plug-in)
• Interrupt Rating: 30kA @ 480V AC, 22kA @ 600V AC, 42kA @ 240V AC
• Series/Frame: LA
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA
• Application: Power distribution
• Used On: Square D Class 655/660/670/830 I-Line panelboards/switchboards
• Shunt Trip: Available (model dependent)
• Condition: New

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: LA363001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901133216
• GTIN : 00785901133216
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18.5
