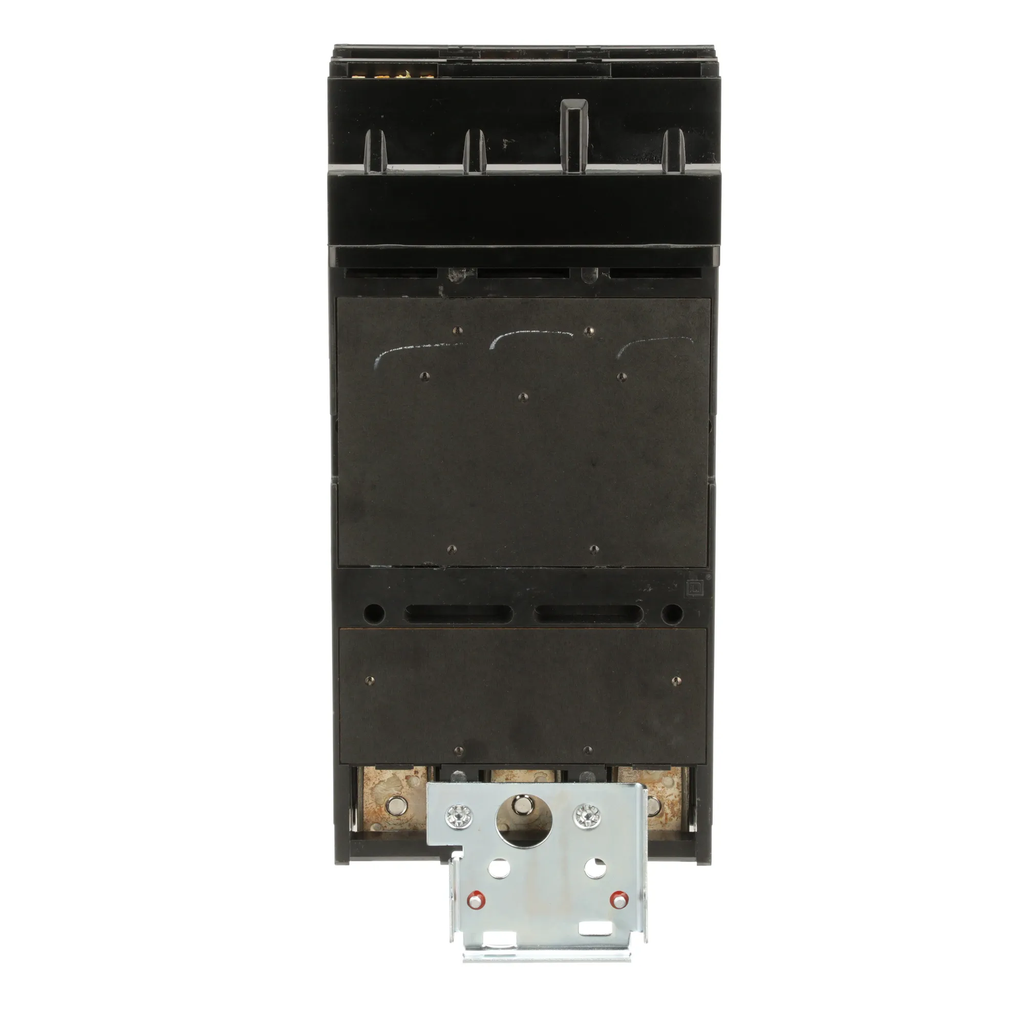

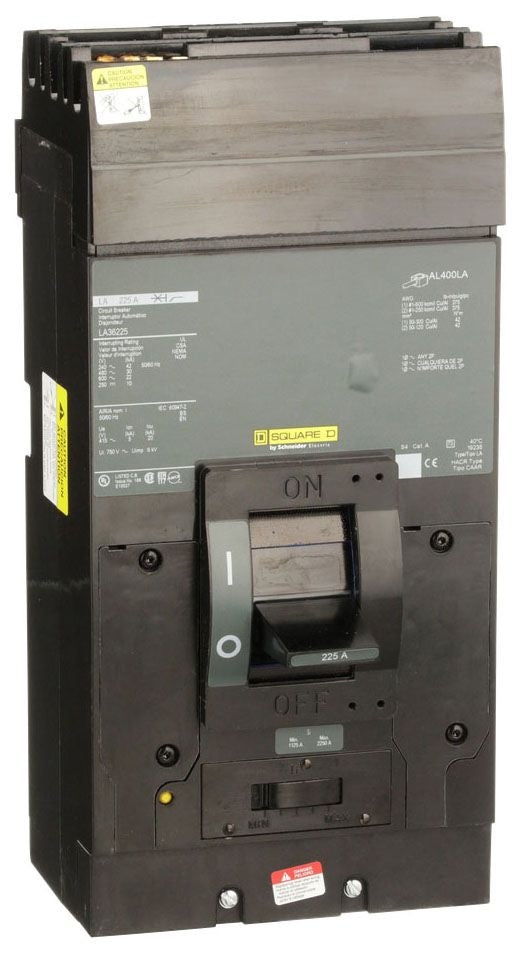

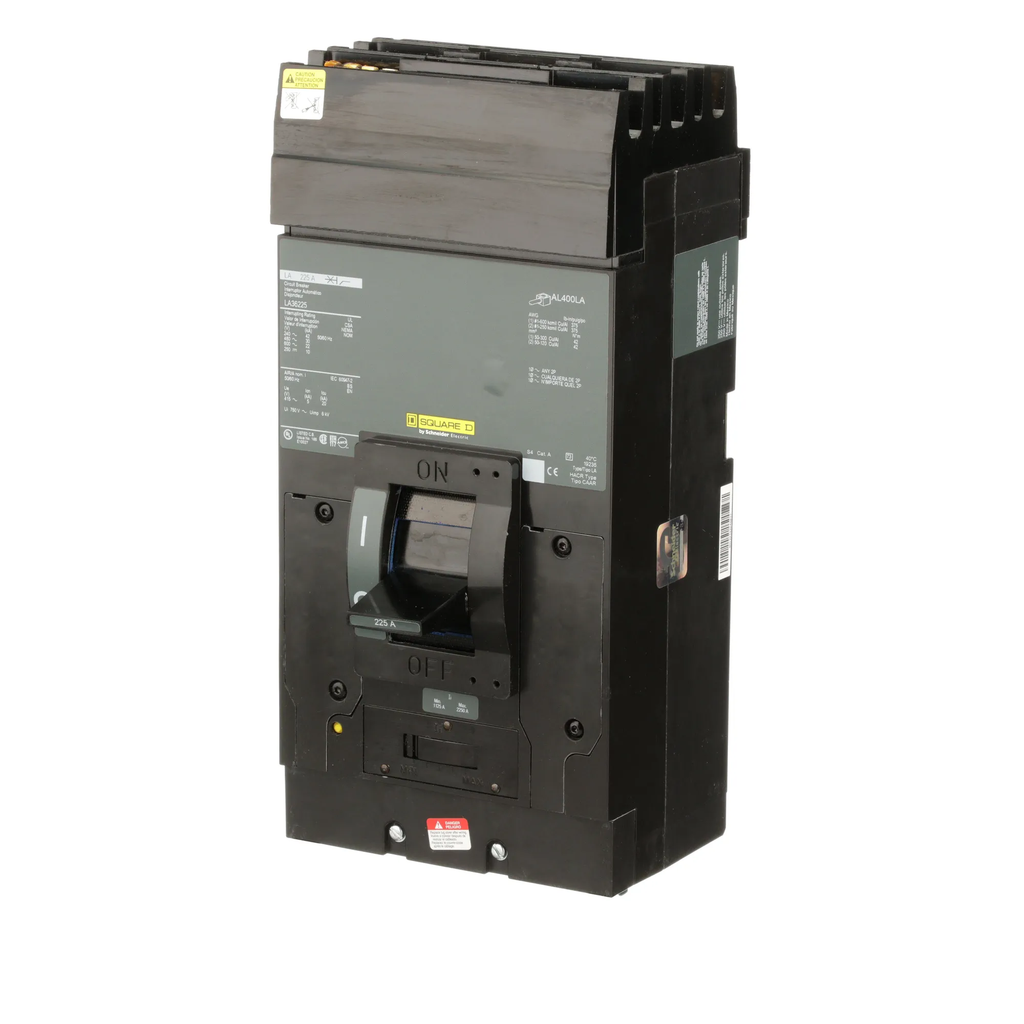

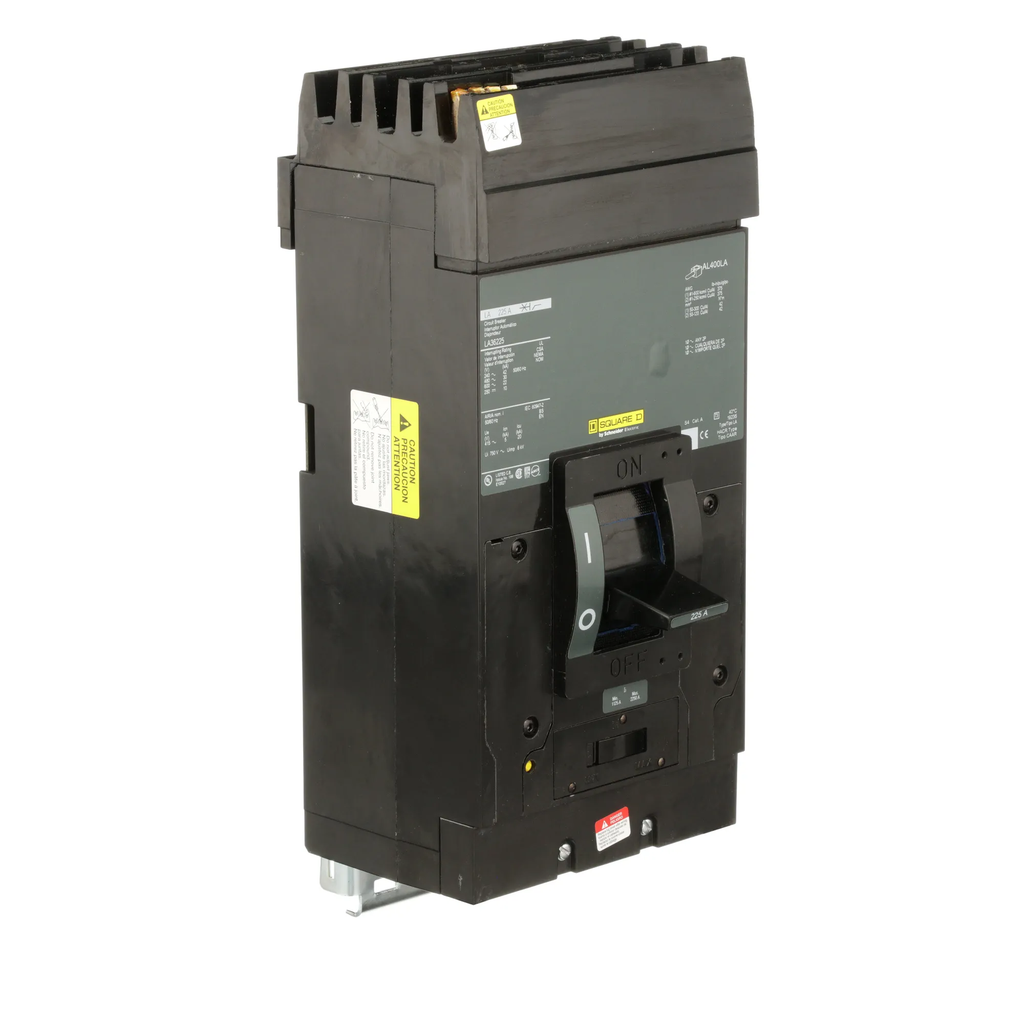

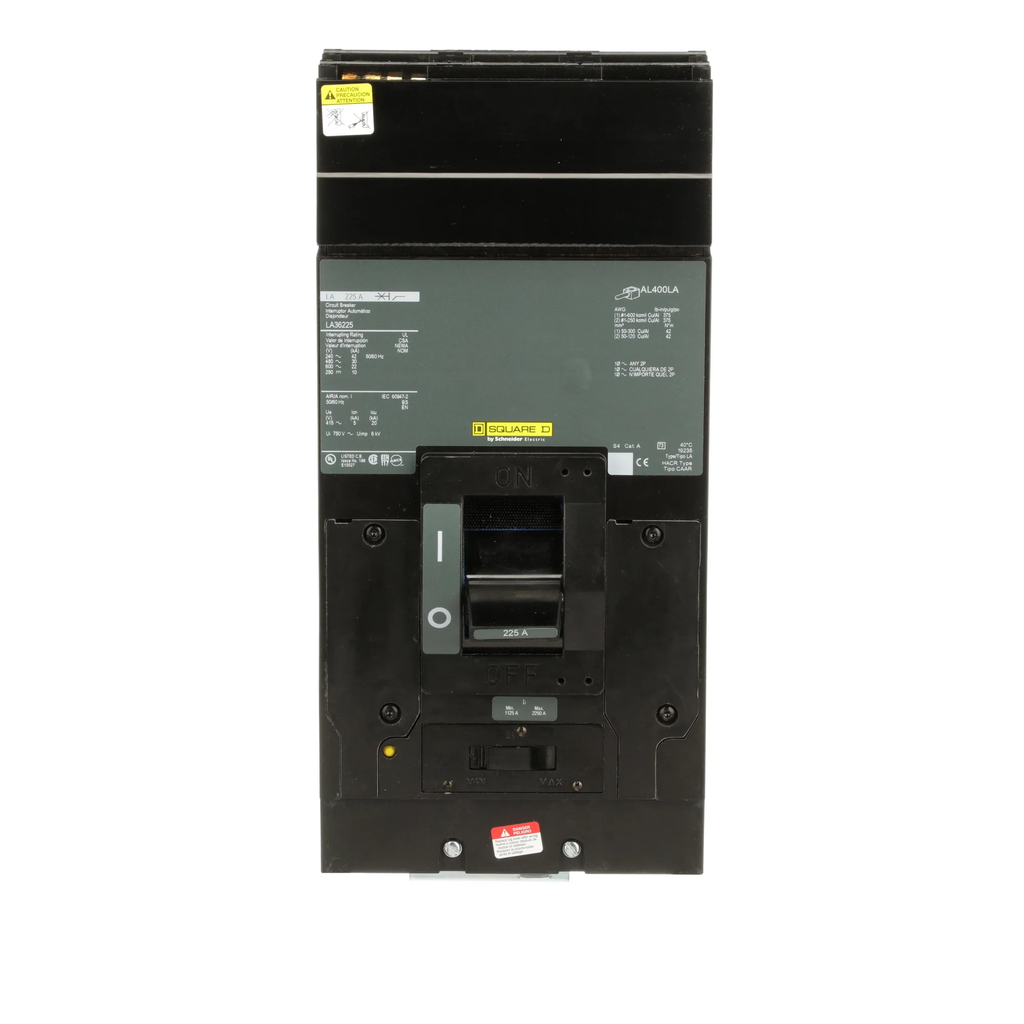

LA36225 - Schneider Electric PowerPact L-Frame Circuit Breaker, 225 A, 3-Pole, 600 V AC, Thermal-Magnetic Trip

LA36225

LA36225 is a PowerPact L-frame molded case circuit breaker manufactured by Schneider Electric. It features a 225 A thermal-magnetic trip unit and 3-pole configuration rated up to 600 V AC. The LA36225 provides reliable protection against overloads and short circuits in commercial, industrial, and OEM power distribution systems. This circuit breaker is designed for durability and high interrupting performance, with bolt-on or panel mounting options. It belongs to the PowerPact L family, known for modular accessories, high-density performance, and compliance with global standards.

• Part Number: LA36225
• Manufacturer: Schneider Electric
• Series / Family: PowerPact L-Frame
• Product Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 225 A
• Voltage Rating: 600 V AC / 250 V DC
• Trip Unit Type: Thermal-Magnetic
• Interrupting Rating: Up to 65 kA at 480 V AC (depending on configuration)
• Mounting Type: Bolt-on or panel mount
• Frame Type: L-Frame
• Application: Feeder and branch circuit protection in panelboards and switchboards
• Certifications: UL 489 Listed, CSA Certified, IEC 60947-2 Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901241843
• GTIN : 00785901241843
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18.06
• Panel Type : I Line Panelboards
• Standards : CSA, UL Listed
• Certification : CSA, UL Listed
