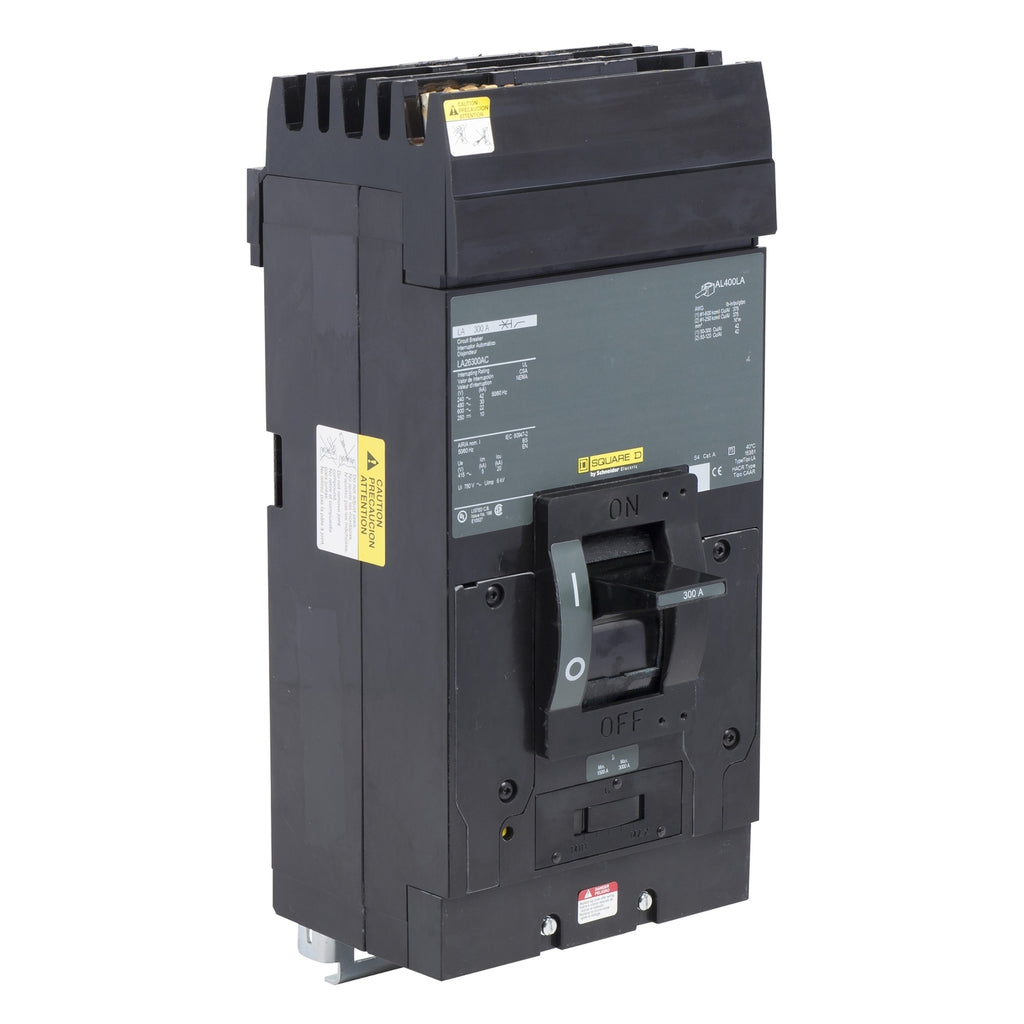

LA26300BC - Square D 300A 2-Pole 600V I-Line Molded Case Circuit Breaker

LA26300BC

LA26300BC is a 300 amp, 2-pole molded case circuit breaker from Square D designed for 600 Volt AC applications with I-Line mounting.This Square D LA26300BC circuit breaker features a 2-pole configuration with a 300 amp rating and 600 Volt AC voltage capacity. It is designed for plug-on I-Line panelboard and switchboard installations. The breaker has an interrupt rating of 22kA at 600VAC and is part of the legacy LA series. It is UL and CSA certified for reliable power distribution protection.

• Amperage: 300A
• Voltage: 600V AC
• Poles: 2
• Mounting Type: I-Line plug-on
• Interrupt Rating: 22kA at 600VAC
• Series/Frame: LA Series
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA
• Phase: Single phase
• Application: Panelboard and switchboard protection
• Type: Molded Case Circuit Breaker (MCCB)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA26300BC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 300
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1 AWG (Al) Max. Wire Size 250 MCM (Al), 600 MCM (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : 785901358428
• GTIN : 00785901358428
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 7.19
• Panel Type : I Line Panelboards
• Standards : CSA Certified, UL Listed
• Certification : CSA Certified, UL Listed
