LA1KN20 - Square D 10 Amp 690 VAC 2 Pole Auxiliary Contact Block Front Mount Screw Clamp Terminals

LA1KN20

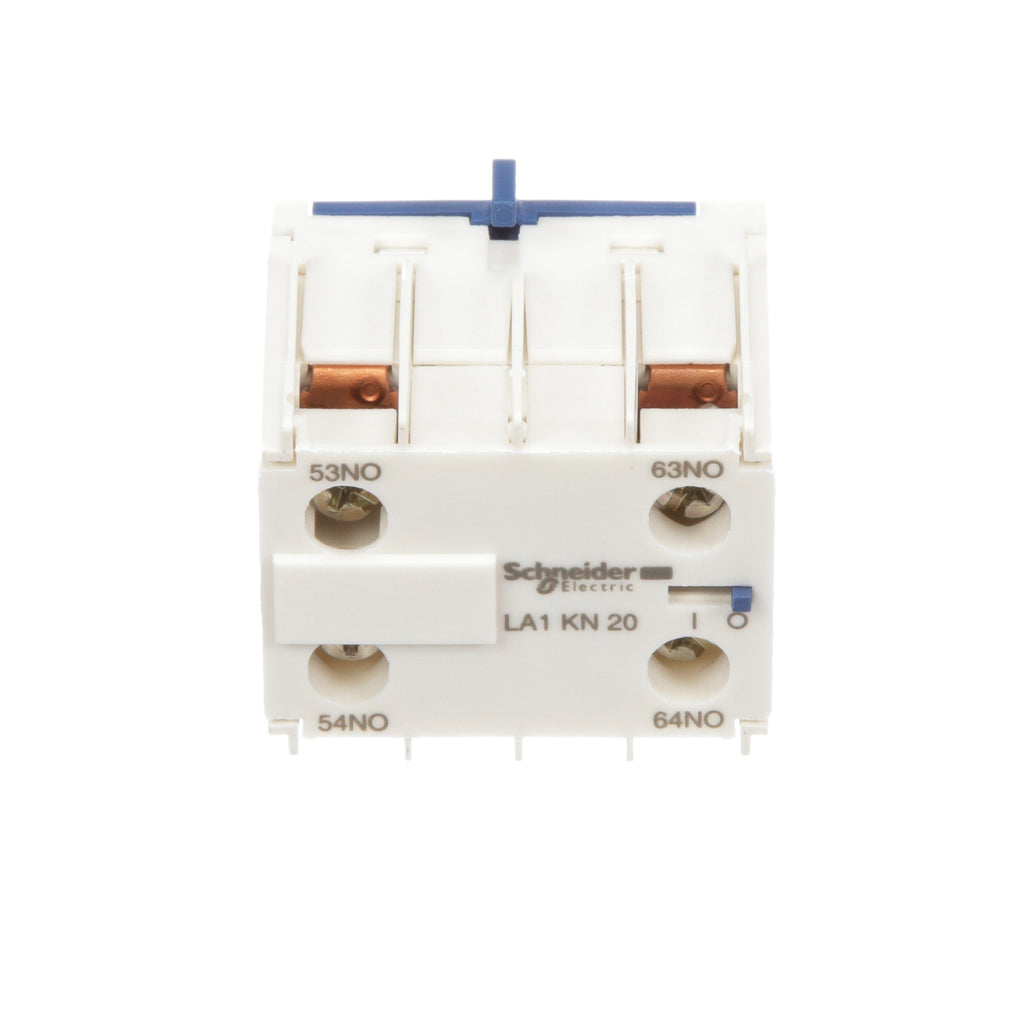

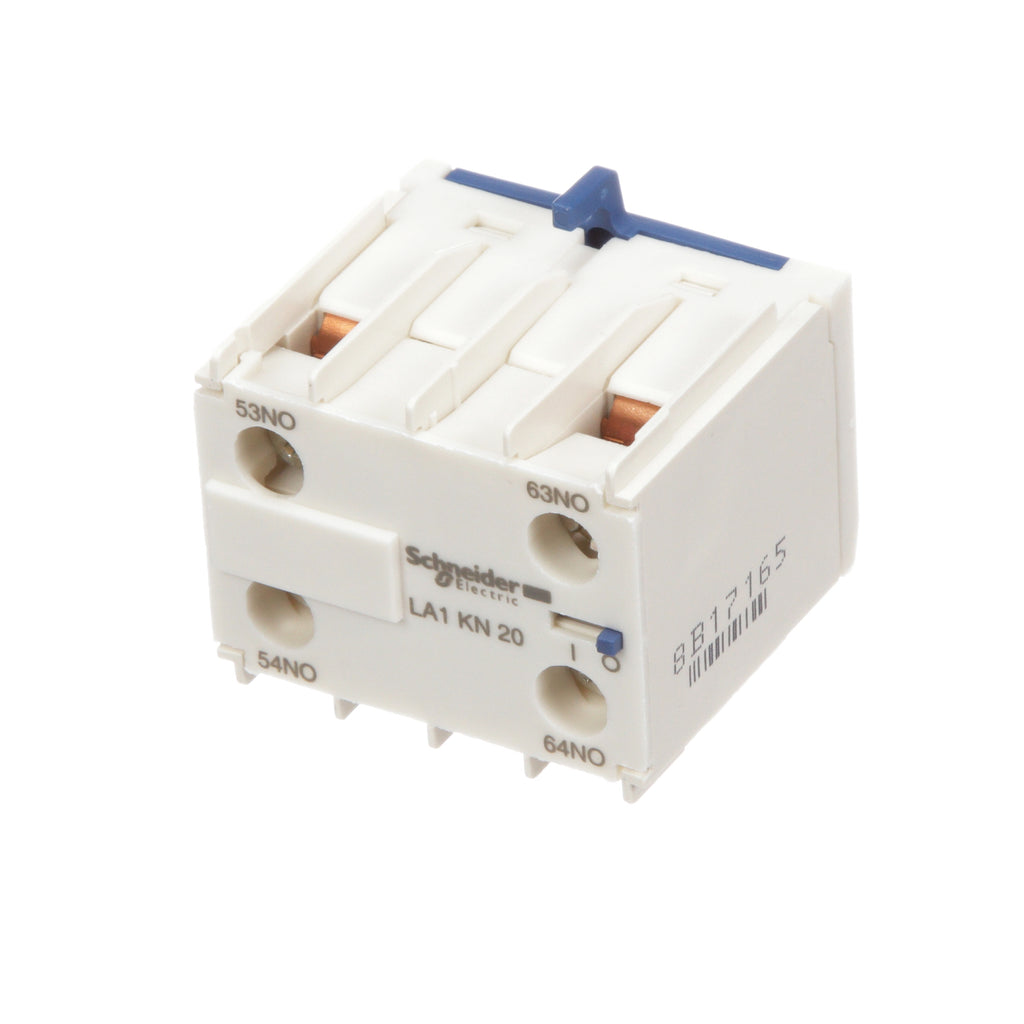

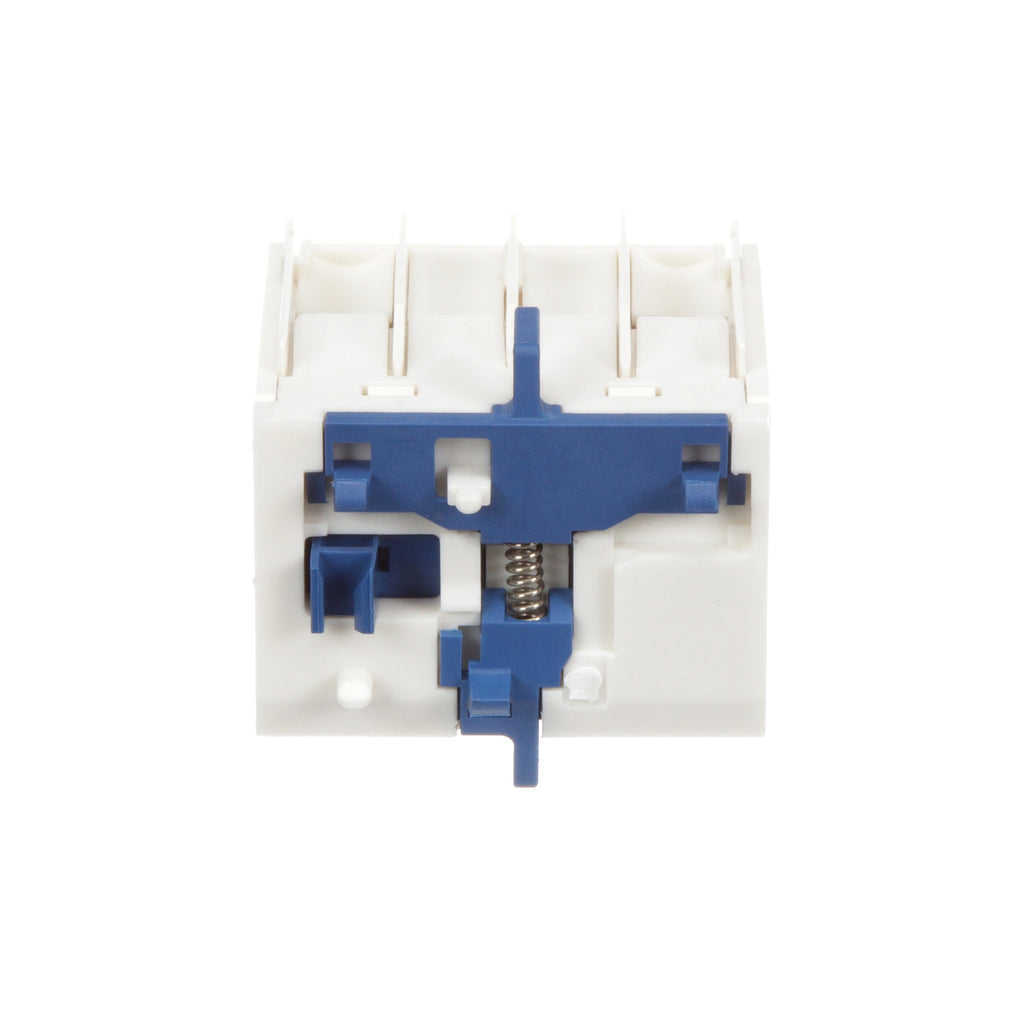

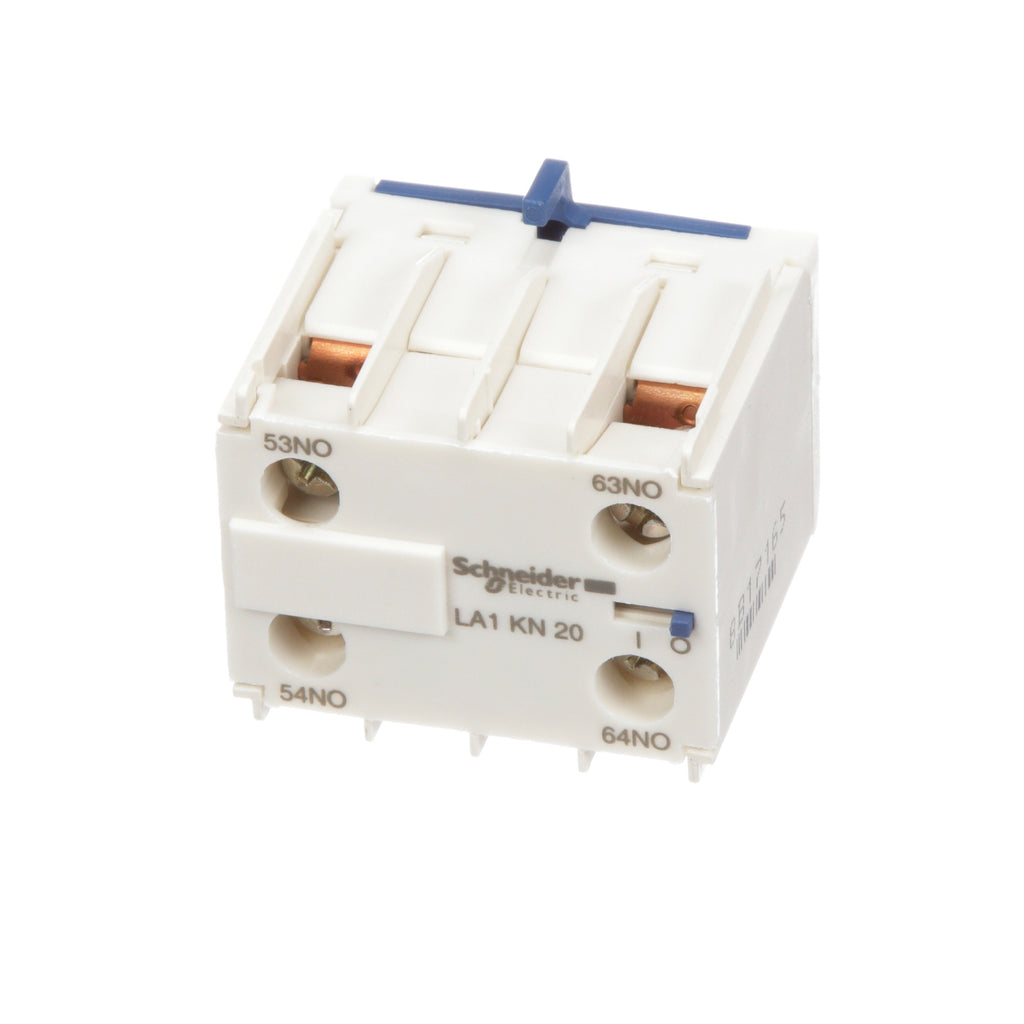

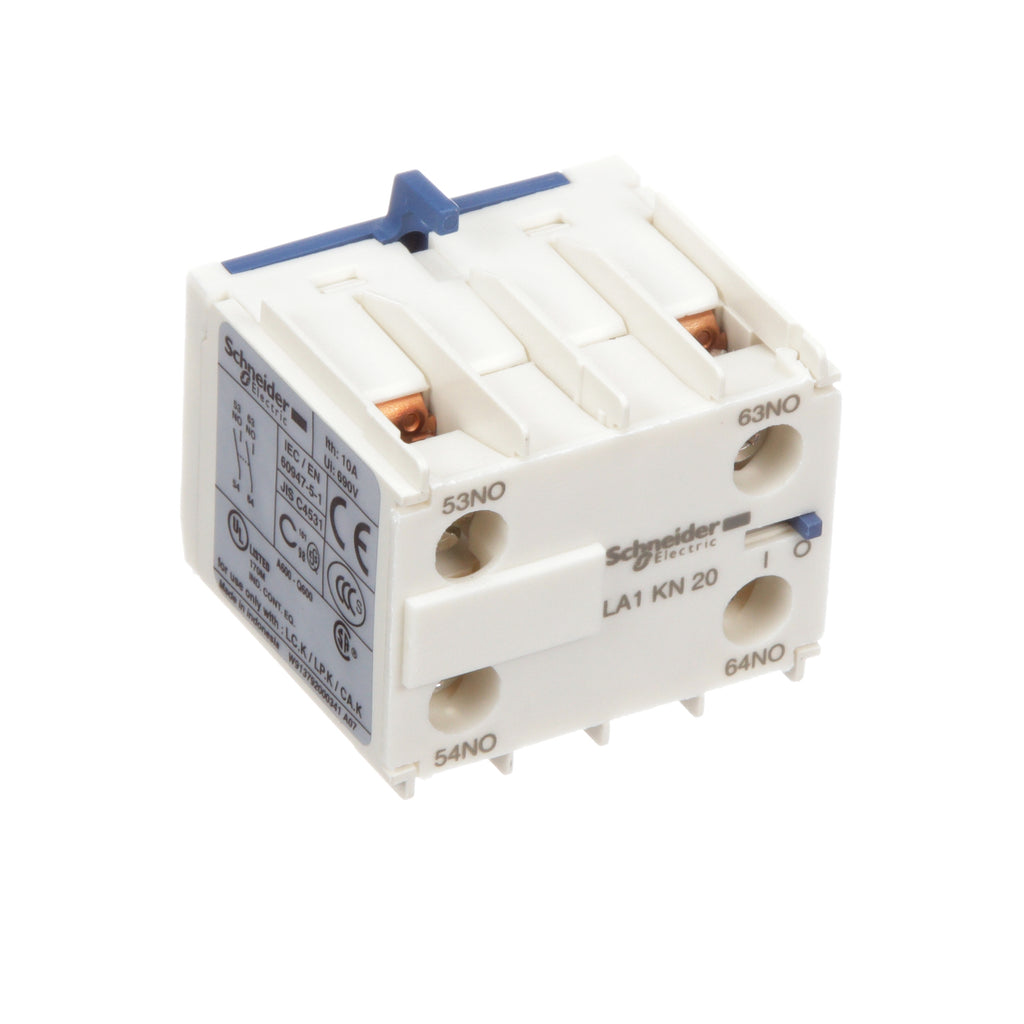

LA1KN20 is a Square D auxiliary contact block providing 2 normally open (2NO) contacts rated for 10 amps at 690 VAC with front mounting and screw clamp terminals.

This auxiliary contact block is designed for use with TeSys K contactors and control relays, offering reliable instantaneous switching for control and signaling applications. It features a clip-on front mount type for easy installation and is UL and CSA certified. The contact block supports industrial control relay functions with a contact rating of 10A at 690V AC and is suitable for use in motor control circuits.

Key Specifications
• Contact Configuration: 2 Normally Open (2NO)
• Rated Current: 10 Amps
• Rated Voltage: 690 VAC
• Mounting Type: Front Mount Clip-On
• Terminal Type: Screw Clamp Terminals
• Series/Frame: TeSys K
• Contact Type: Instantaneous
• Certifications: UL, CSA
• Dimensions (HxWxD): Approx. 30mm x 38mm x 35mm
• Weight: Approx. 0.1 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA1KN20
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Voltage : 690 AC
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Configuration : Instantaneous
• Aux Contacts : 2 NO
• Protection : Solid State

Product Data

• UPC : 3389110641455
• Country of Origin : Indonesia
• Dimensions : 1.2 in (30 mm) x 1.5 in (38 mm) x 1.4 in (35 mm) (Height x Width x Depth)
• Weight : 0.068
• Certification : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1, CB, CCC, CE, UKCA
