Product Info
- Manufacturer: Littelfuse
- Sub-Category: Low Voltage
Description

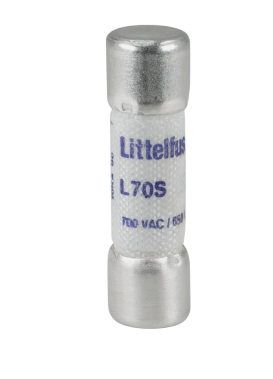

L70S25
L70S25 is a high-speed semiconductor fuse from Littelfuse designed for fast-acting overcurrent protection in sensitive power electronic devices.This fuse features a voltage rating of 700 V AC and 650 V DC with a 25 ampere current rating. It is part of the POWR-GARD L70S series, optimized for protecting semiconducting devices such as SCRs, diodes, thyristors, and transistors in applications like variable speed drives, UPS systems, and power converters. The fuse offers a high interrupting rating of 200 kA AC and 20 kA DC, ensuring exceptional short-circuit protection with very fast response and current limiting characteristics. It has a cylindrical mounting type requiring a fuse holder and meets UL and CSA recognition standards.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 700 V AC / 650 V DC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Mounting Type: Requires fuse holder (cylindrical)
- Fuse Type: High-speed semiconductor fuse
- Series: L70S POWR-GARD
- Body Material: Melamine
- Terminals: Copper, silver plated
- Operating Temperature: -55°C to +125°C
- Certifications: UL Recognized, CSA Recognized, RoHS Compliant
- Part Number: L70S25
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Voltage : 700
- Amperage : 25
- AIC rating : 200kA
- Connection : Ferrule
- Class Rating : Semiconductor
- Velocity : VFA - Very Fast Action
- Weight : 5.19
