Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L70S125

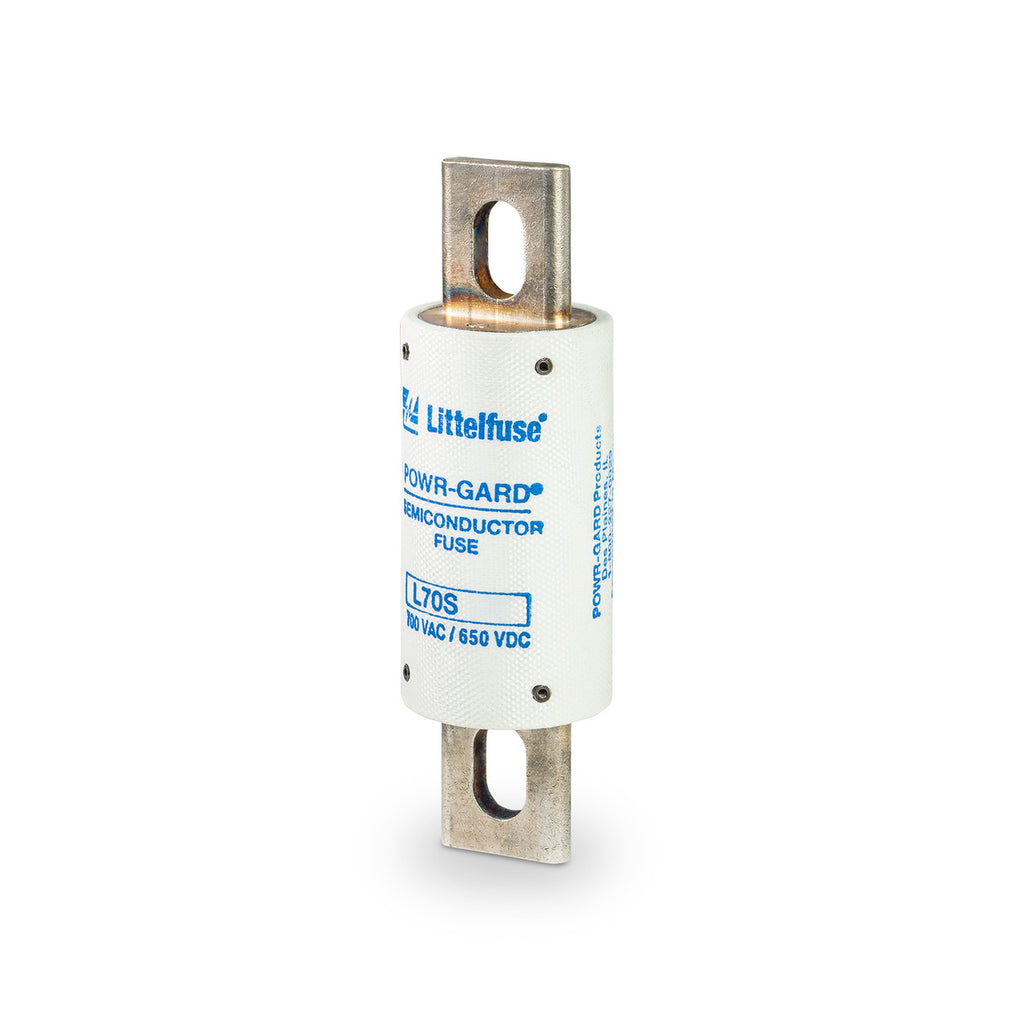

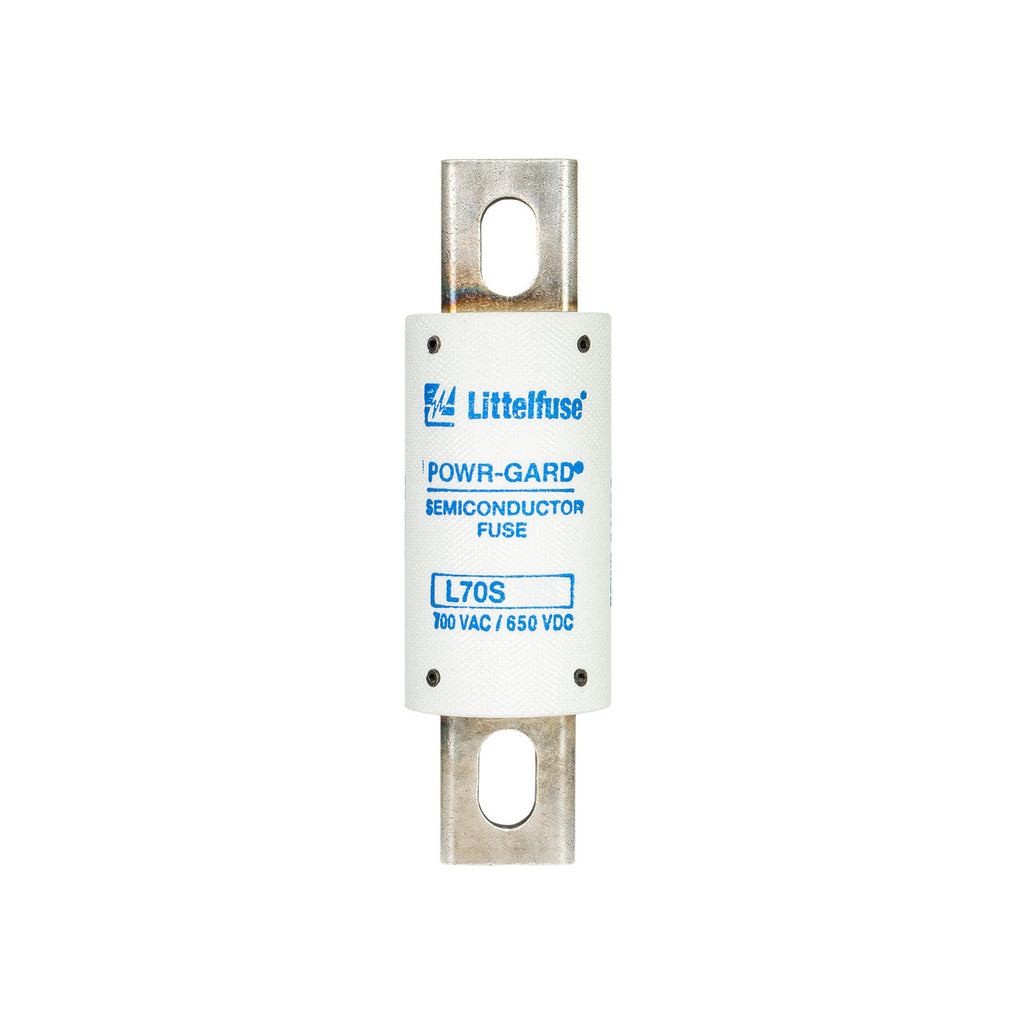

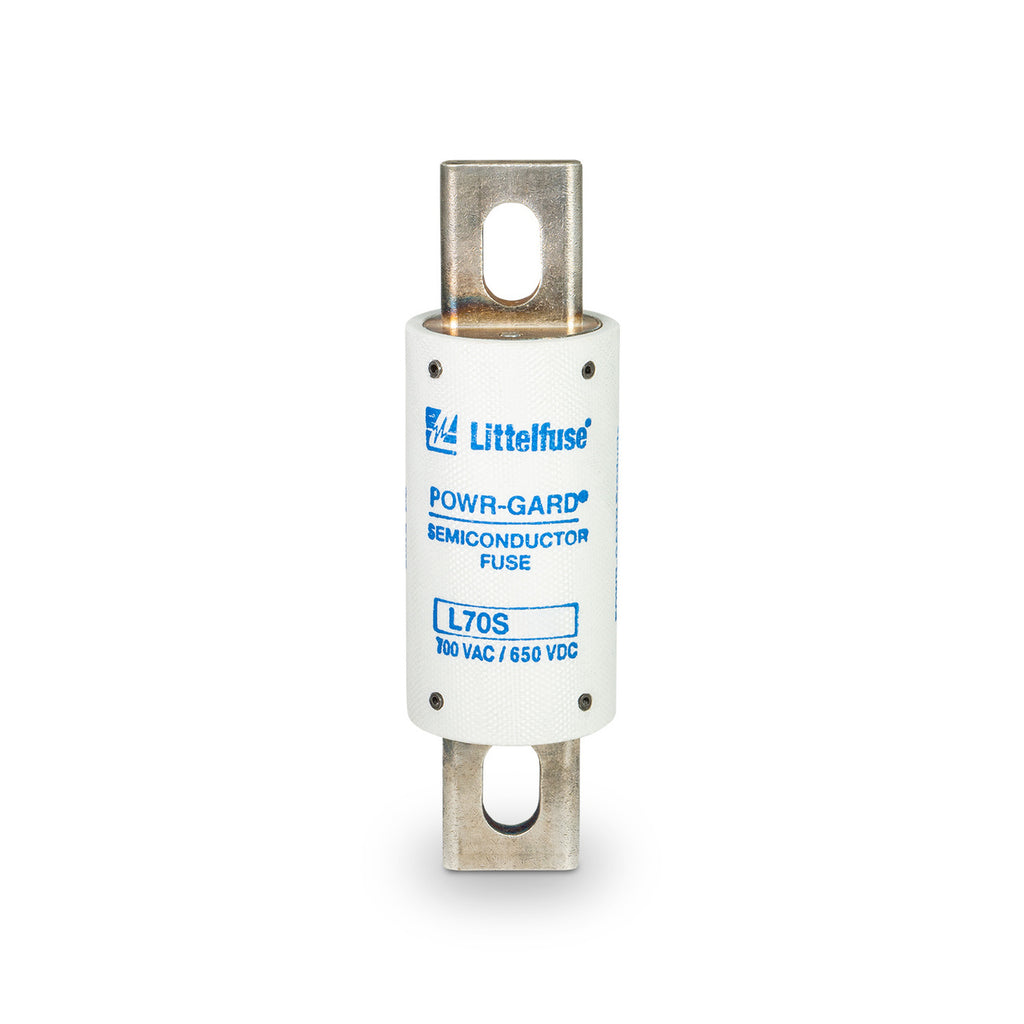

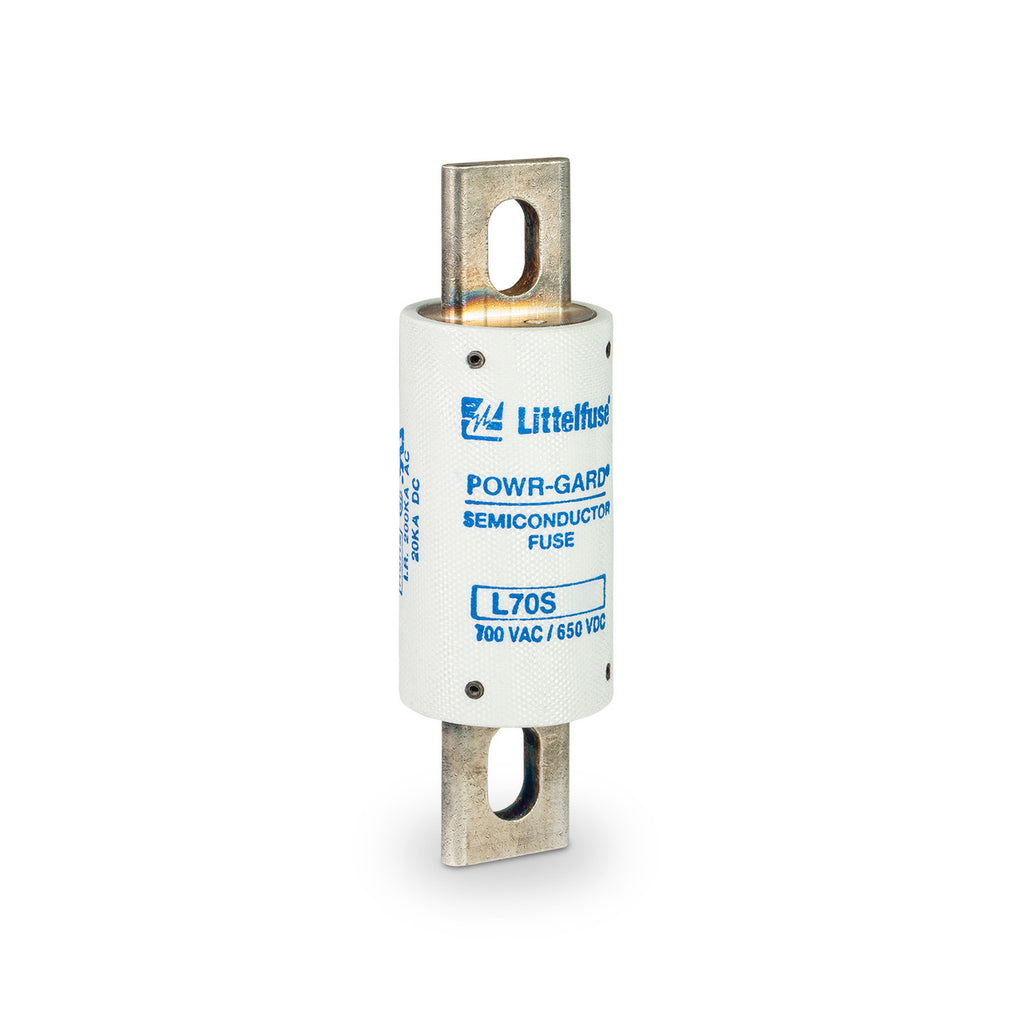

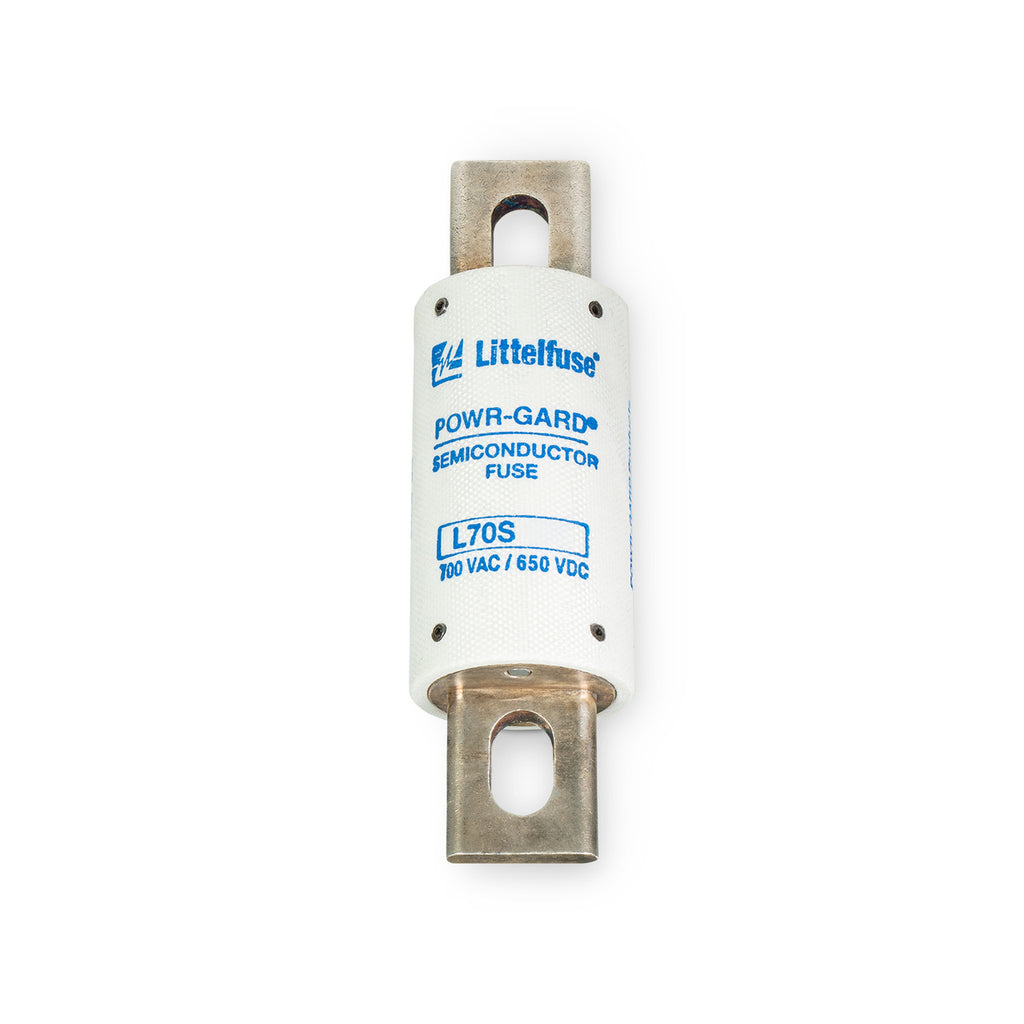

L70S125 is a Littelfuse POWR-GARD® semiconductor fuse designed for high-speed protection in industrial applications.This fuse features a 125 ampere rating with voltage ratings of 700 VAC and 650 VDC. It has a very fast-acting response time and a high interrupting rating of 200 kA AC and 20 kA DC. The fuse body is cylindrical with bolted tags for mounting, constructed from melamine with silver-plated copper terminals. It is UL and CSA recognized, RoHS compliant, and suitable for operating temperatures from -55°C to +125°C.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 700 VAC / 650 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Type: Semiconductor, Very Fast-Acting
- Mounting Type: Cylindrical body with bolted tags
- Material: Melamine body, silver-plated copper terminals
- Operating Temperature: -55°C to +125°C
- Certifications: UL Recognized, CSA Recognized
- Series: POWR-GARD L70S
Specifications
- Part Number: L70S125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L70S Series – High-Speed Semiconductor Fuse
- Type : L70S Series – High-Speed Semiconductor Fuse
- Voltage : 700
- Amperage : 125
- AIC rating : 200kA@700V
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 07945810174
- GTIN : 00079458101744
- Weight : 0.6
