Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L70S100

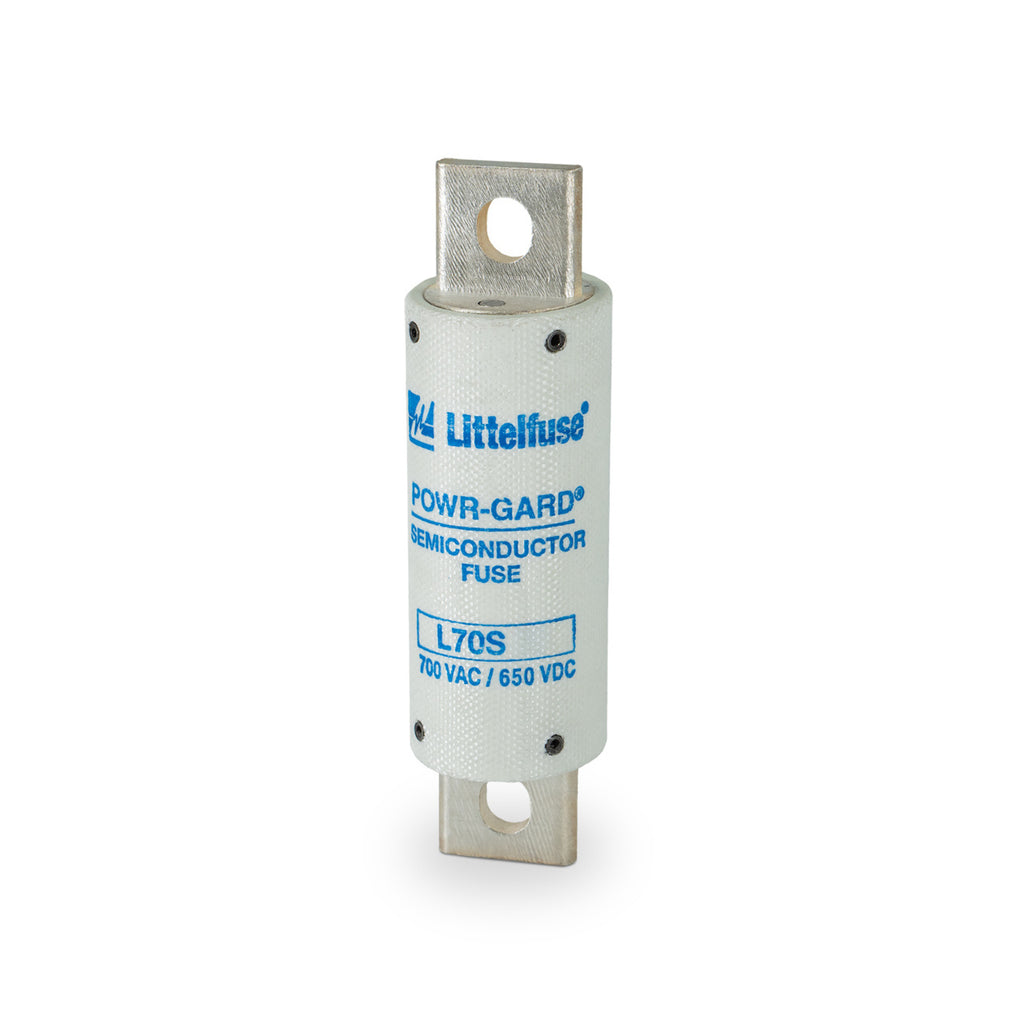

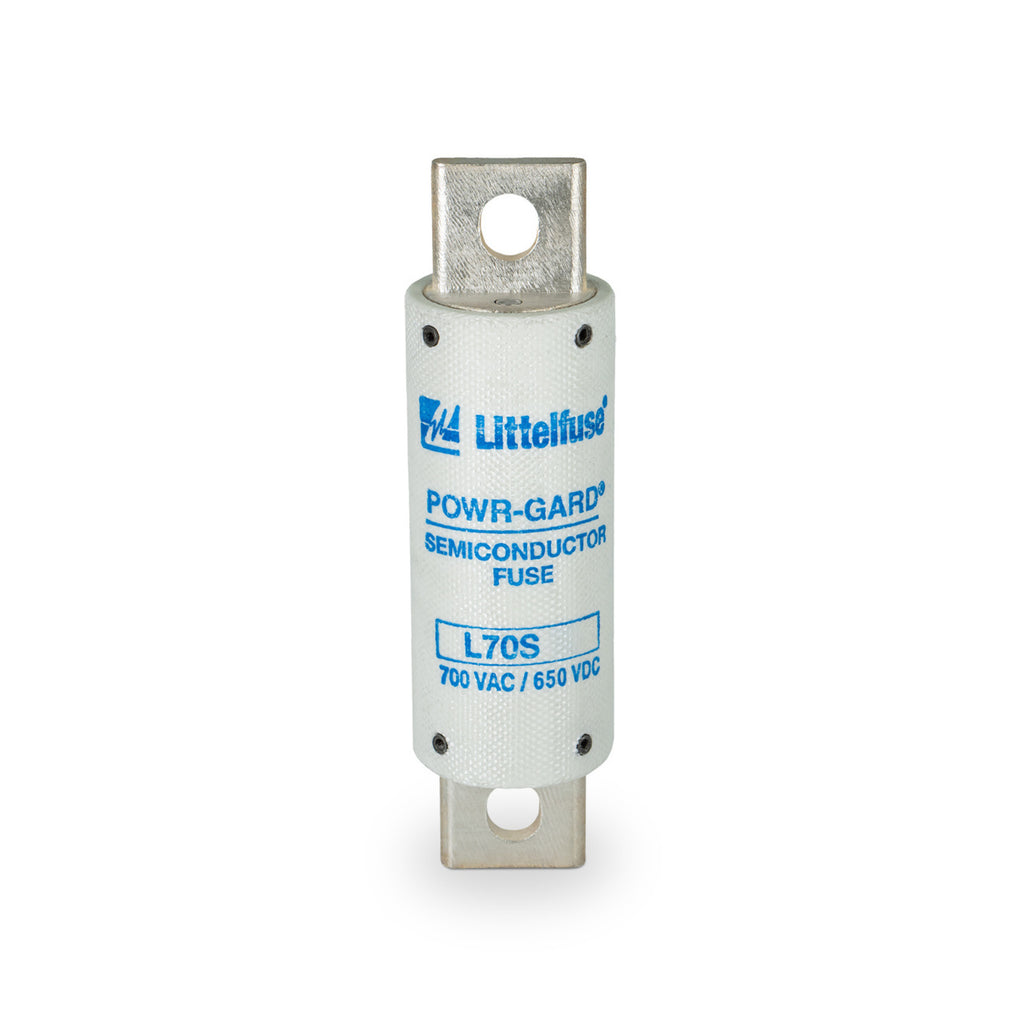

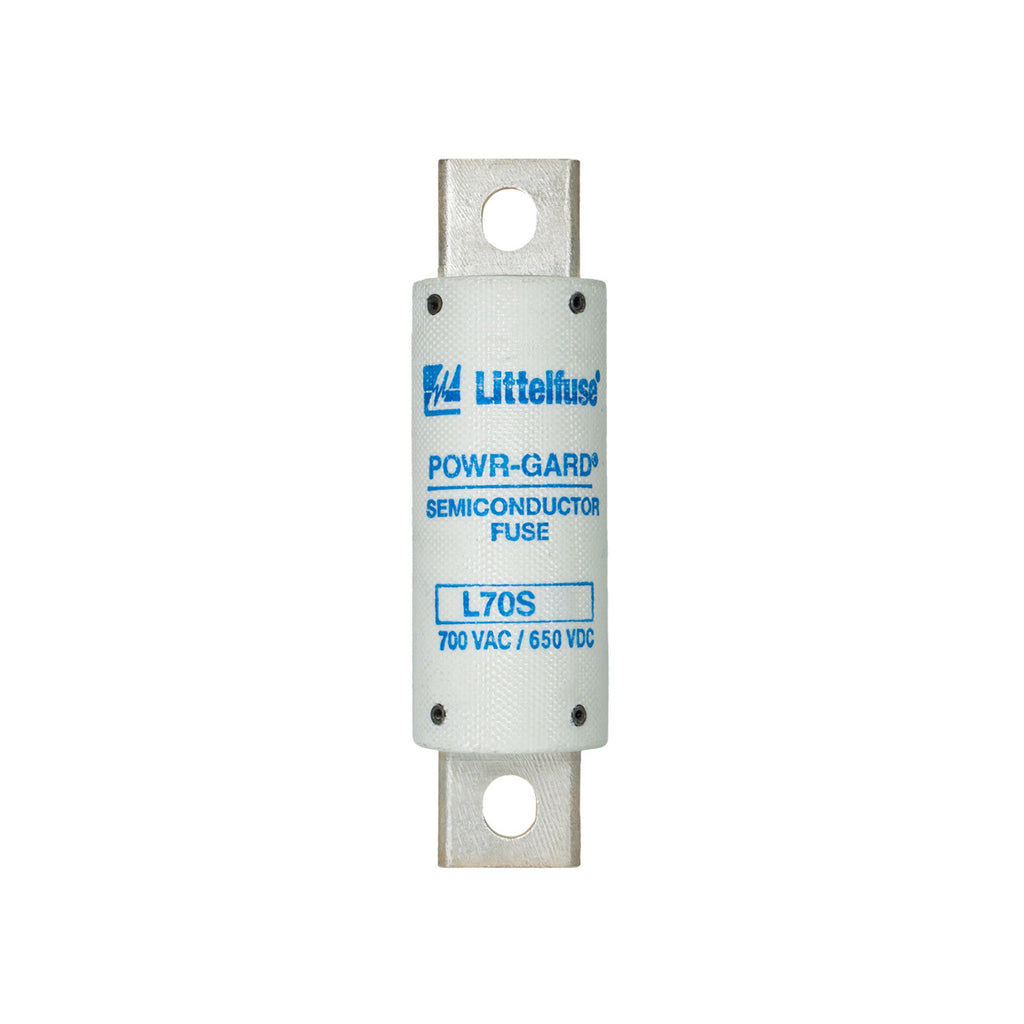

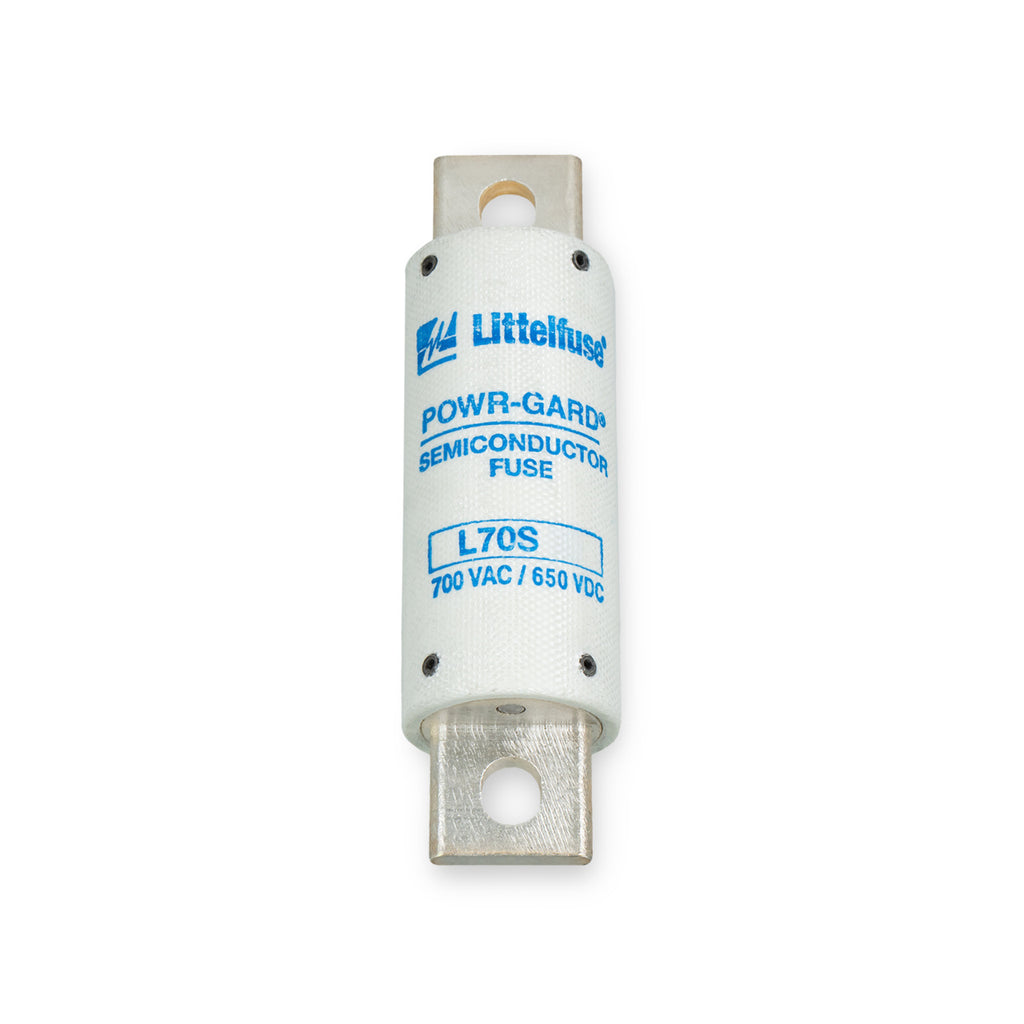

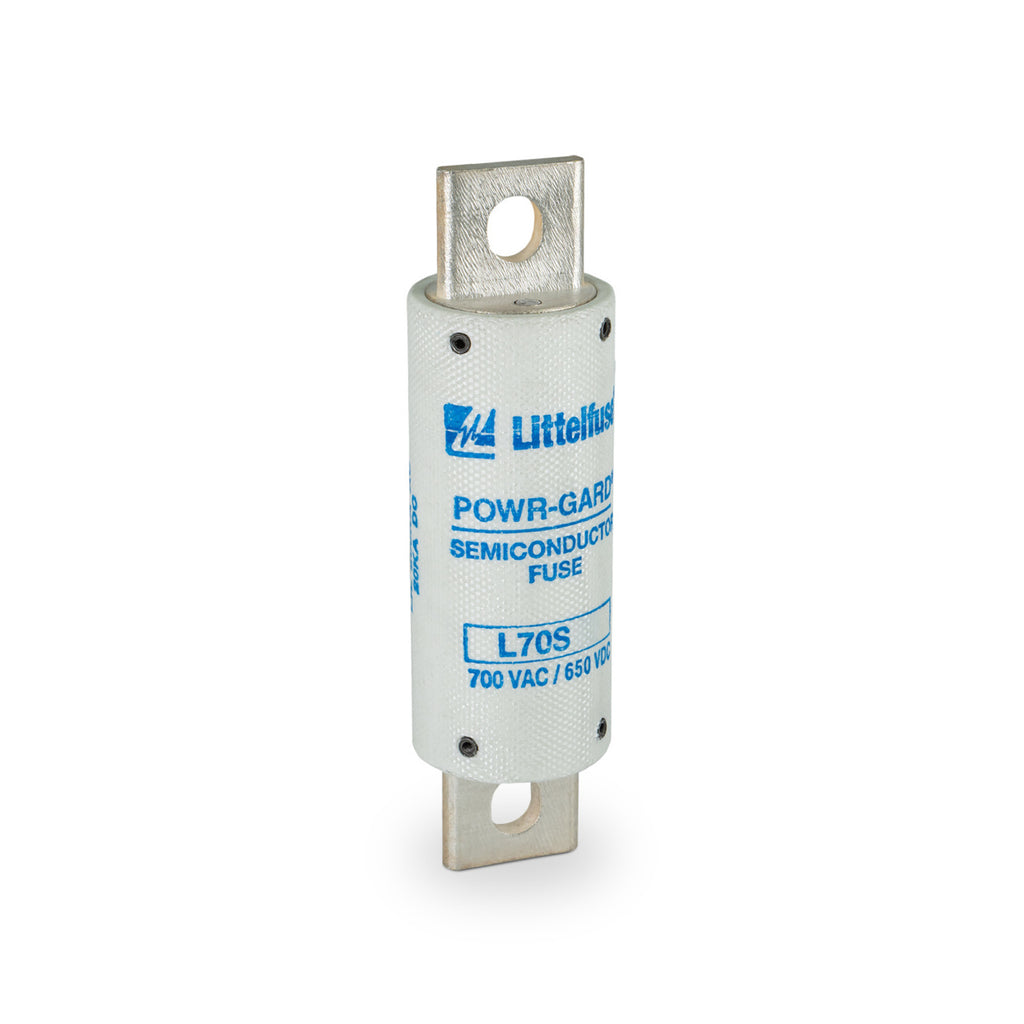

L70S100 is a Littelfuse POWR-GARD high-speed semiconductor fuse designed for supplementary protection of sensitive electronic components.
This very fast-acting, current-limiting fuse features a round body construction and is engineered for demanding industrial applications, including variable speed drives, power rectifiers, and power supplies. It offers reliable overcurrent protection with minimal time delay and low watt loss.
Key Specifications
- Amperage: 100A
- Voltage: 700V AC / 650V DC
- Poles: 1
- Mounting Type: Round body, bolted tags (for 35–800A models)
- Interrupt Rating: 200kA AC / 20kA DC
- Series/Frame: L70S
- Trip Unit: Not applicable (fuse, not circuit breaker)
- Certifications: UL Recognized, CSA Recognized, CE
- Body Material: Melamine
- Terminals: Copper, silver plated
- Operating Temperature: -55°C to +125°C
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: L70S100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L70S Series – High-Speed Semiconductor Fuse
- Type : L70S Series – High-Speed Semiconductor Fuse
- Voltage : 700
- Amperage : 100
- AIC rating : 200kA@700V
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 079458101737
- GTIN : 00079458101737
- Country of Origin : Mexico
- Weight : 1
- Certification : UL Recognized
