Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

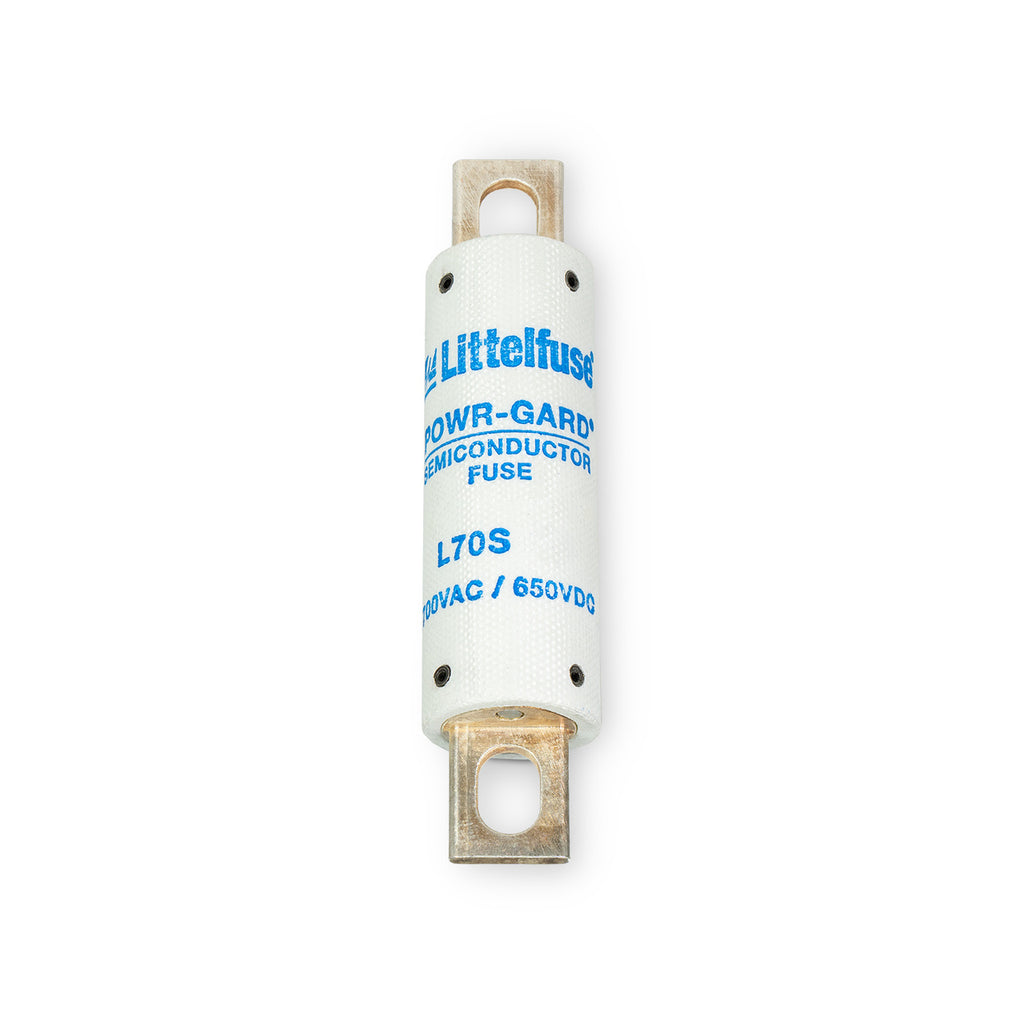

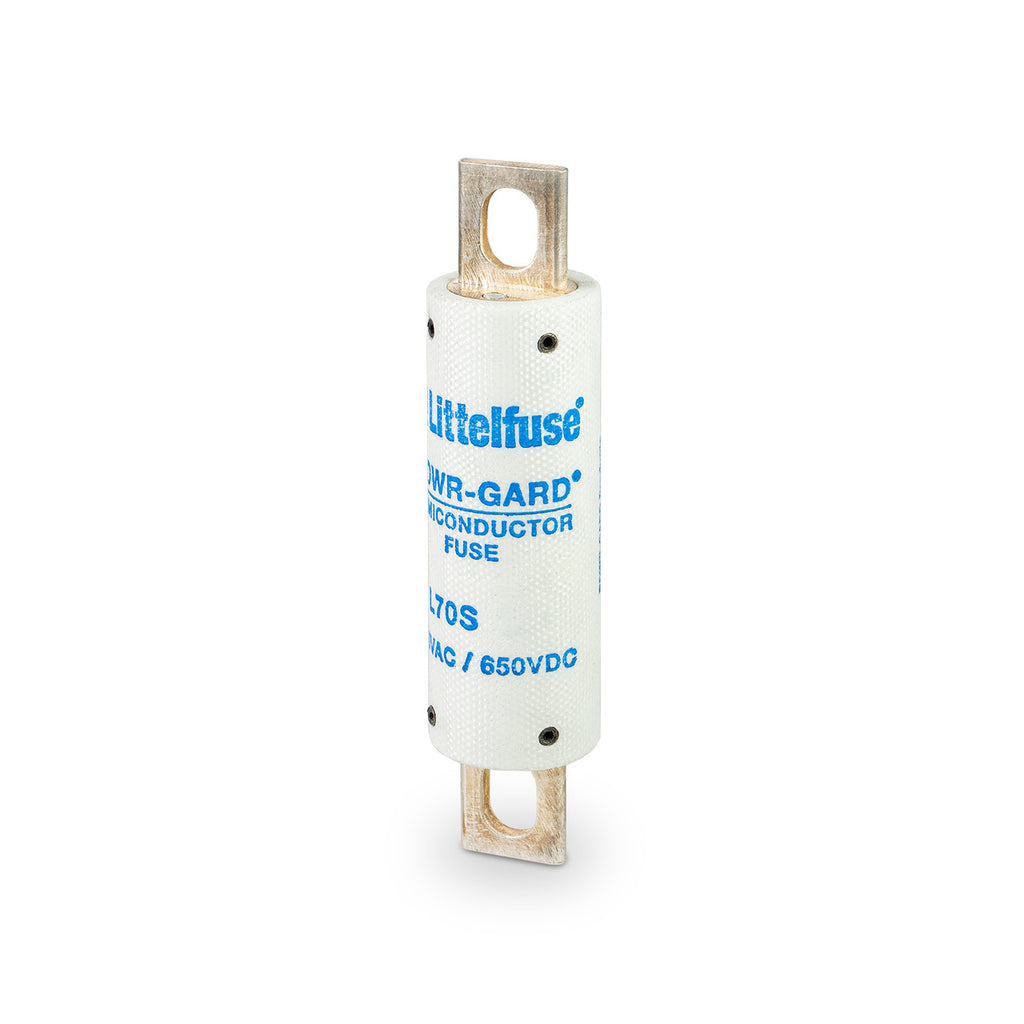

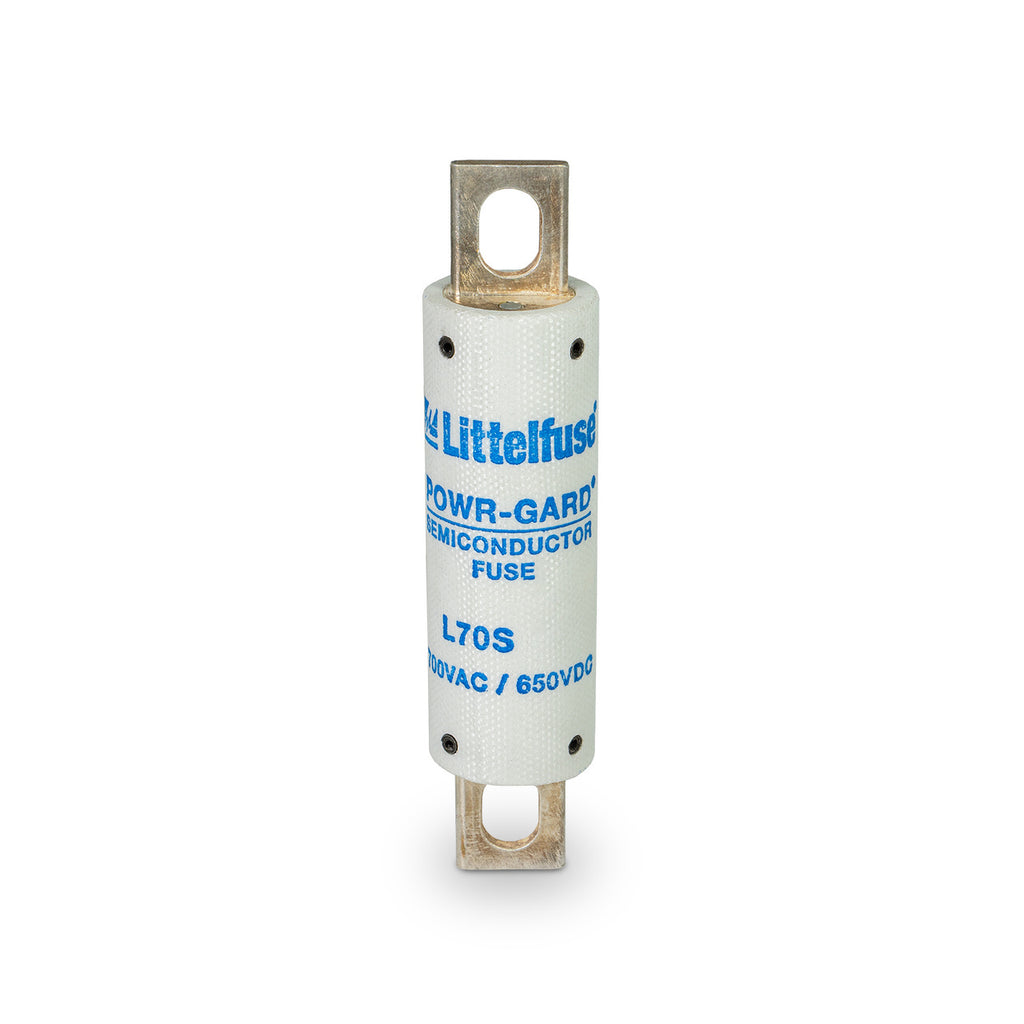

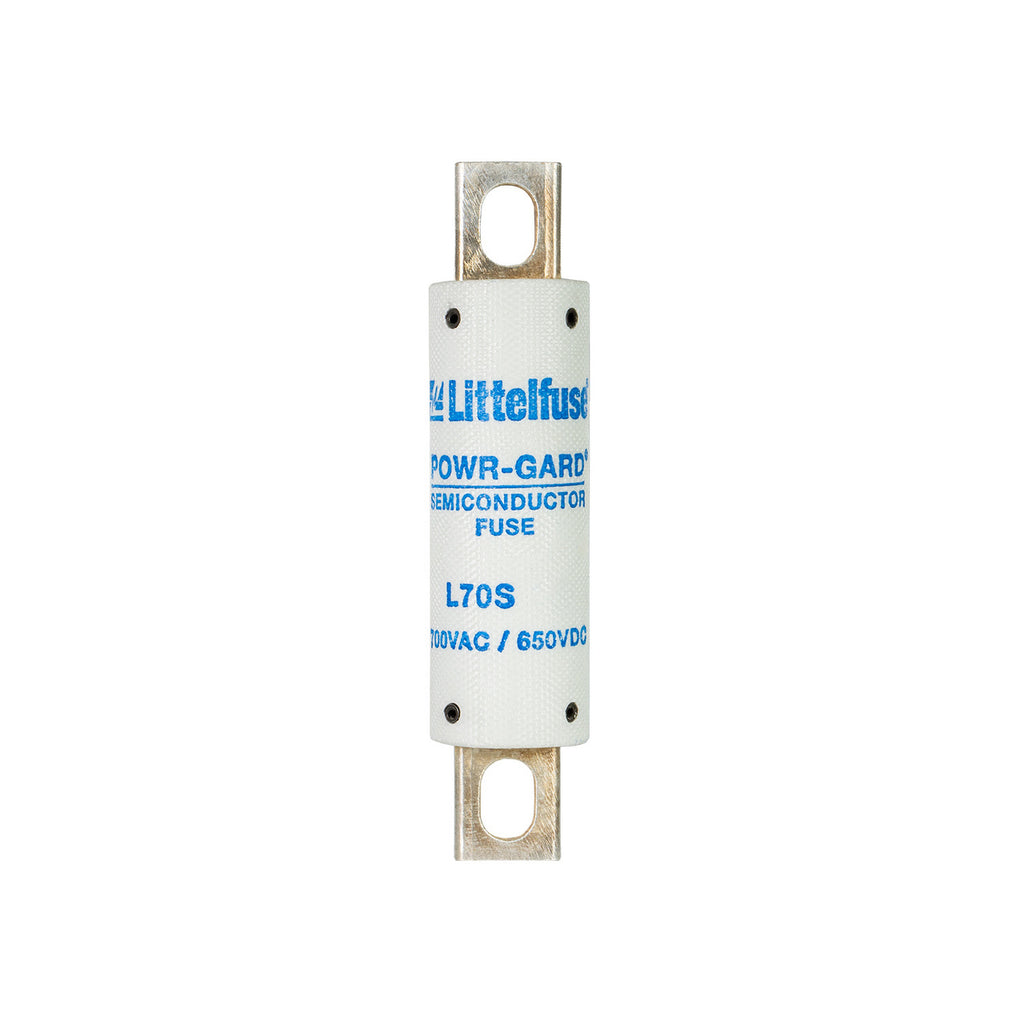

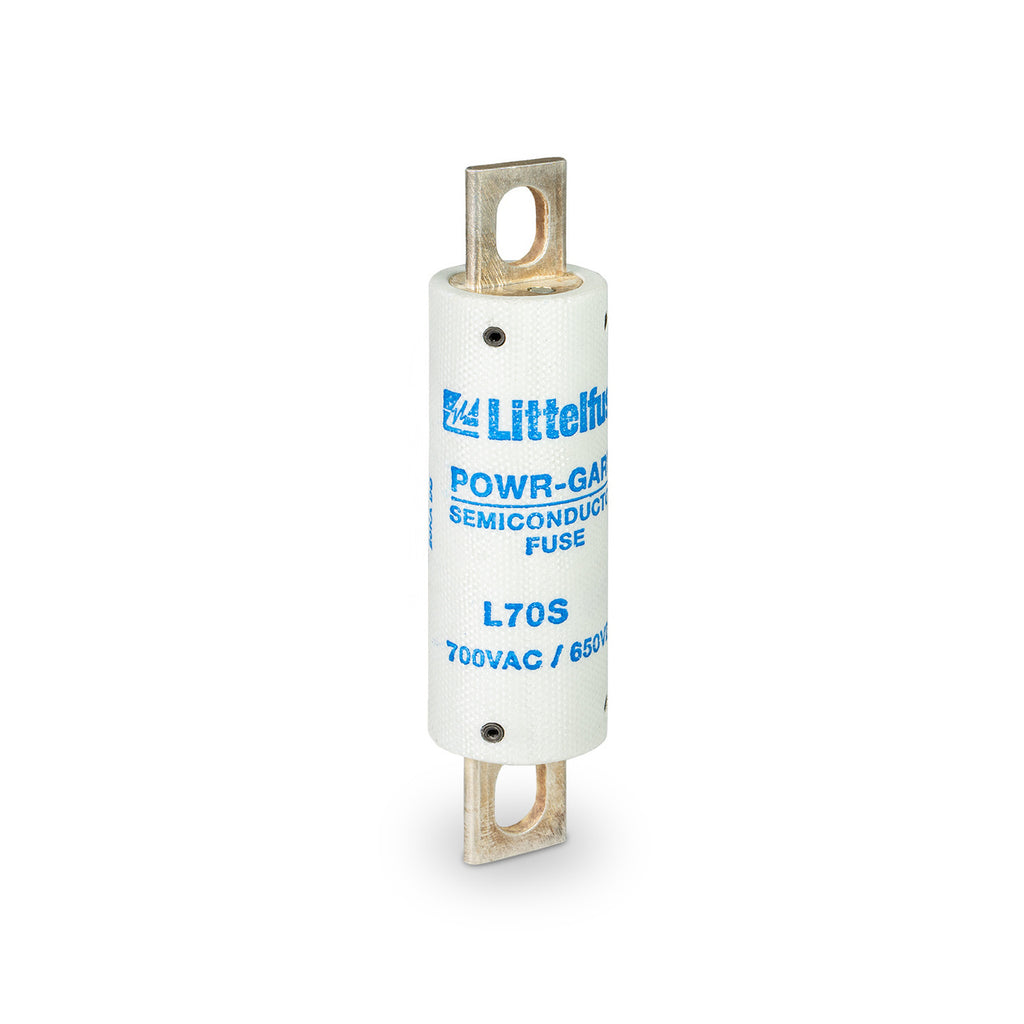

L70S060
L70S060 is a high-speed semiconductor fuse designed for fast-acting protection in demanding electrical applications. This fuse features a round body construction and is engineered for use in circuits requiring extremely fast response and current limiting. The L70S060 offers reliable protection for sensitive semiconductor devices such as SCRs, diodes, thyristors, TRIACs, and transistors. It is commonly used in variable speed drives, power rectifiers, power supplies, and consumer electronics where fast-acting, current-limiting fuses are required.
- Amperage Rating: 60 A
- Voltage Rating: 700 V AC / 650 V DC
- Interrupting Rating: 200 kAIC AC / 20 kAIC DC
- Mounting Type: Bolted Tags
- Series/Frame: L70S Series
- Body Material: Melamine
- Terminals: Copper (Silver Plated)
- Operating Temperature: -55 °C to +125 °C
- Approvals: UL Recognized, CSA Recognized
- Environmental: RoHS Compliant
- Application: Semiconductor Protection
- Features: Extremely Current Limiting, Low Watts Loss, Controlled Transient Overvoltages
Specifications
- Part Number: L70S060
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L70S Series – High-Speed Semiconductor Fuse
- Type : L70S Series – High-Speed Semiconductor Fuse
- Voltage : 700
- Amperage : 60
- AIC rating : 200kA@700V
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 07945810169
- GTIN : 00079458101690
- Weight : 0.28
