Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
L60S300

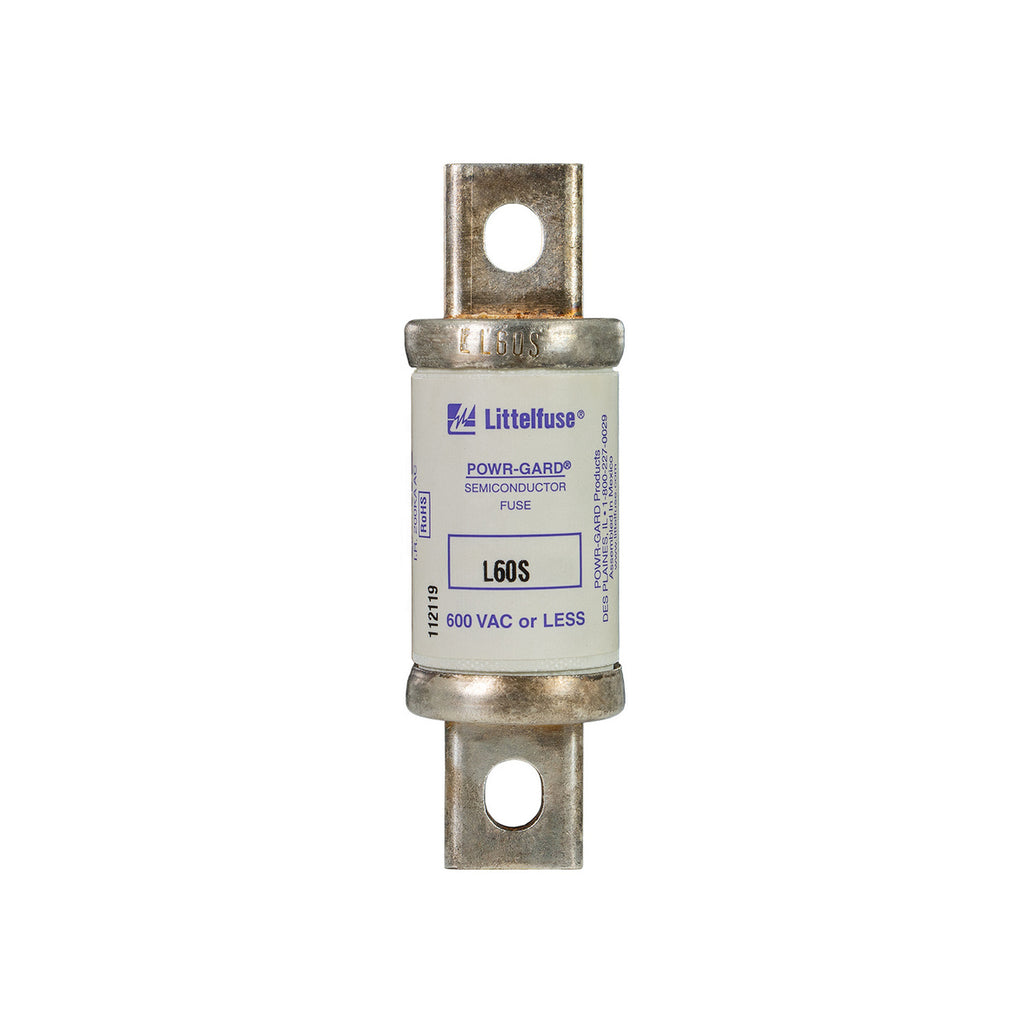

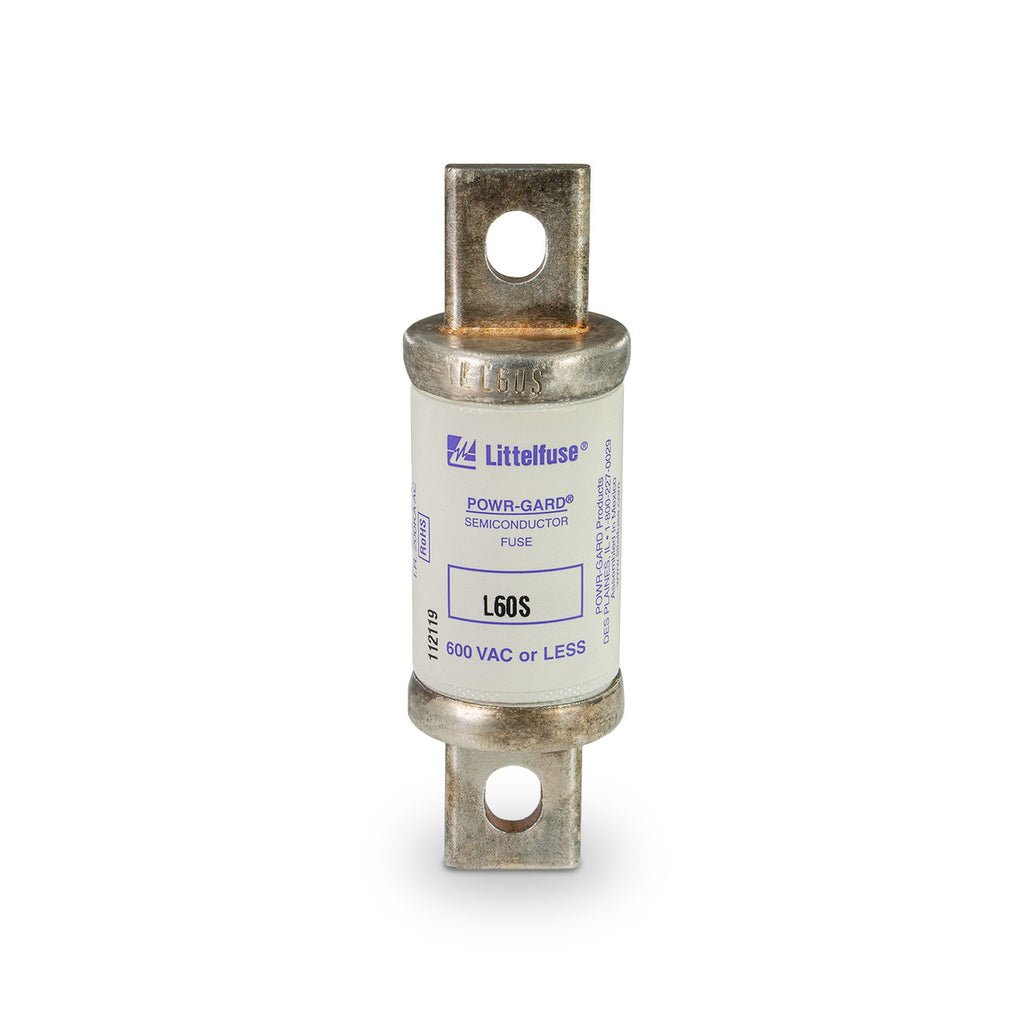

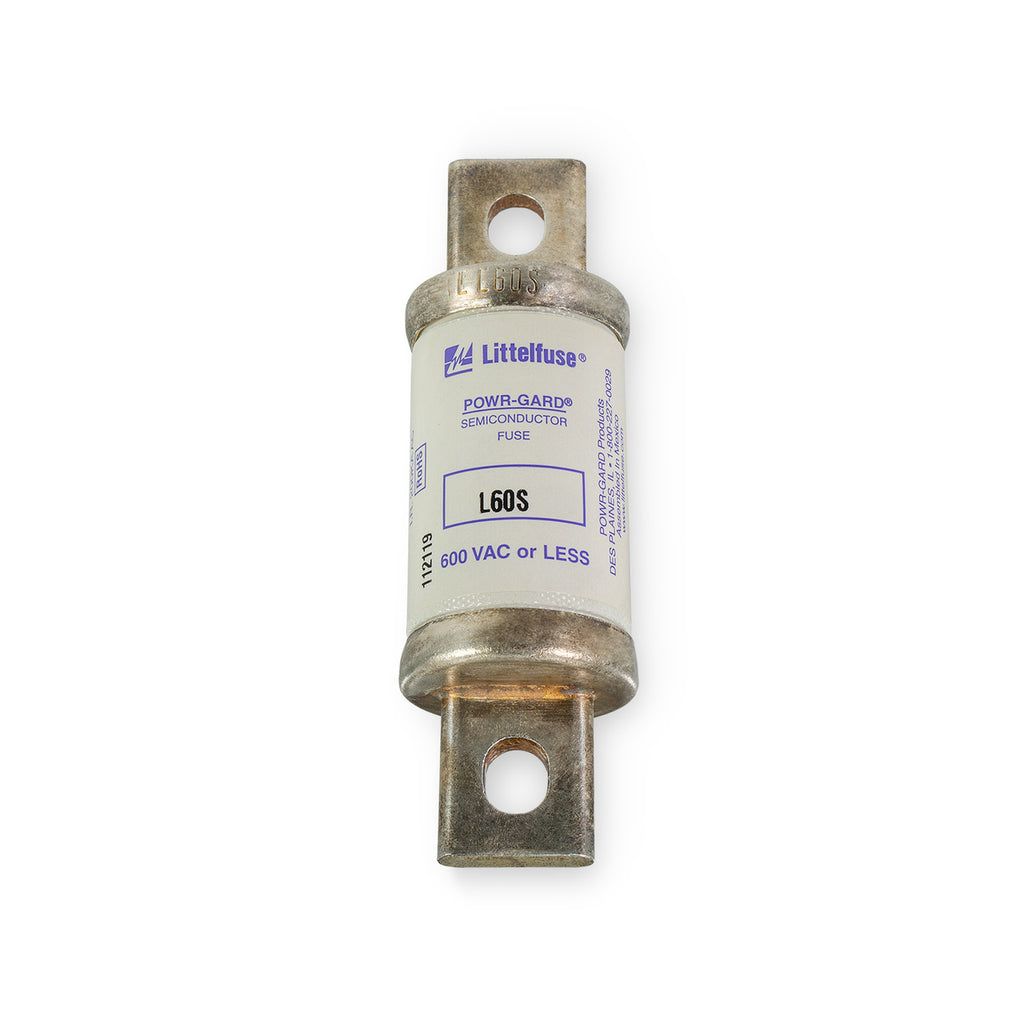

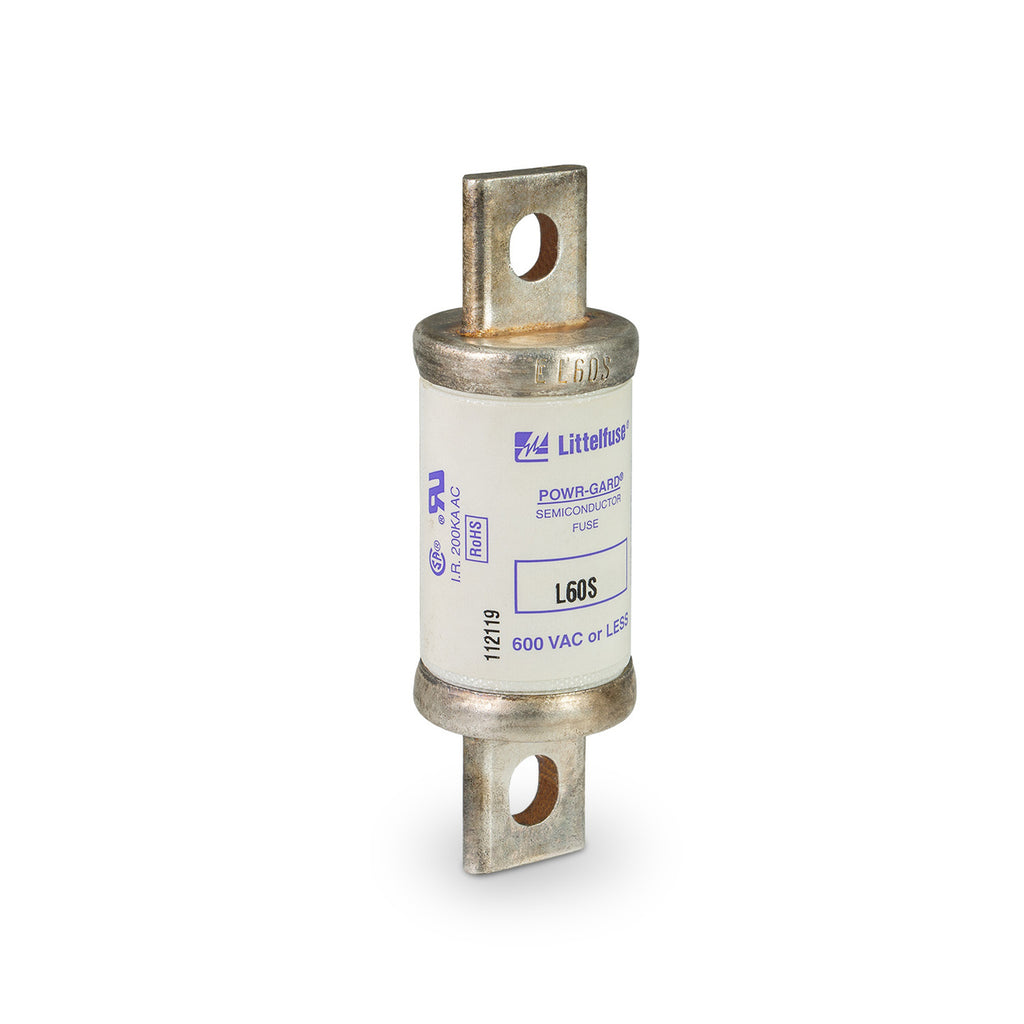

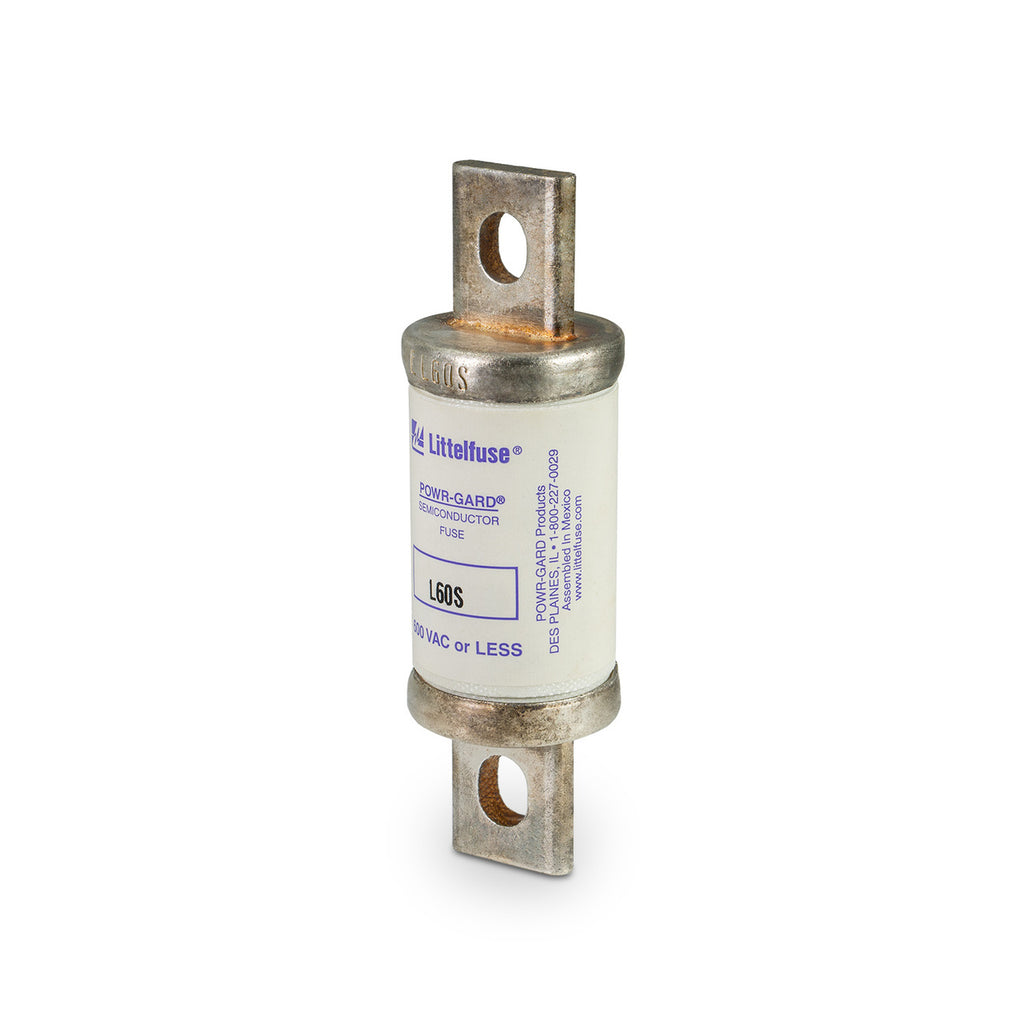

L60S300 is a Littelfuse very fast-acting semiconductor fuse designed for high-speed protection of power semiconductor devices.The L60S300 fuse features a 300 ampere rating and 600 volts AC voltage rating with a cartridge body style. It offers a high interrupting rating of 200,000 amps RMS, making it suitable for protecting power supplies, converters, and control circuits. This fuse complies with UL and CSA certifications and uses a bolted tag mounting type.
- Amperage Rating: 300 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kA RMS
- Fuse Type: Very Fast-Acting Semiconductor
- Body Style: Cartridge
- Mounting Type: Bolted Tags
- Series: L60S
- Certifications: UL Recognized, CSA Recognized
- Application: Power semiconductor device protection
- Compliance: US and Canadian requirements
Specifications
- Part Number: L60S300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : L60S Series – High-Speed Semiconductor Fuse
- Type : L60S Series – High-Speed Semiconductor Fuse
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 1.57
- Barrels : 1
Product Data
- UPC : 07945810128
- GTIN : 00079458101287
- Weight : 0.6
